Start by locating the main mounting bracket–typically forged from high-grade steel with a tensile strength of at least 1,200 MPa. Verify the torque specifications (usually 80–100 ft-lbs for Grade 8 bolts) before attachment to avoid stress fractures under load. The receiver tube must align precisely with the vehicle’s frame rails; misalignment by even 2–3 mm can reduce towing capacity by up to 15%. Check for compatibility with SAE J684 standards if integrating with OEM systems.
Inspect the shank for wear indicators–deep grooves or discoloration signal metal fatigue. Replace immediately if measurements fall below 90% of original diameter. For articulating models, lubricate the pivot points with molybdenum disulfide grease (NLGI Grade 2) every 5,000 miles to prevent seizing. Avoid lithium-based greases; they degrade above 250°F under heavy shear loads.
Examine the safety chain hooks for cracks using dye penetrant testing if visual inspection is inconclusive. Hooks rated for 10,000 lbs should have a minimum throat opening of 1.5 inches–narrower gaps increase risk of slippage. Secure chains with clevis pins, not hairpin clips, and ensure the working load limit exceeds 1.5x the gross vehicle weight rating. For pintle-style connections, confirm the latch mechanism engages fully; partial engagement reduces holding force by 40%.
Electrical connections require 12-gauge wiring for circuits under 10 amps, upgrading to 10-gauge for heavier loads (e.g., auxiliary brakes). Solder joints and heat-shrink tubing outperform crimp connectors, lasting 3x longer in corrosive environments. Test continuity with a multimeter; resistance above 0.5 ohms indicates poor contact. Use dielectric grease on pins to prevent oxidation in humid climates.
For weight distribution systems, adjust spring bars in 50-lb increments until the tongue weight reaches 10–15% of the trailer’s total weight. Over-tightening compresses the suspension, causing premature tire wear, while insufficient tension leads to sway. Calibrate the friction sway control by tightening the knob until resistance is felt at 25 ft-lbs of torque, then back off 1/4 turn. Under hard braking, maintain at least 20% margin below the coupler’s breakaway rating to avoid catastrophic failure.
Decoding Your Vehicle’s Towing System Component Layout
Start by locating the base plate installation guide provided with your model–most aftermarket coupling systems include numbered illustrations corresponding to screws, locking pins, and safety chains; cross-reference these against the physical components before disassembly. If documentation is missing, download the latest schematic from the manufacturer’s official portal using your serial number; generic diagrams often lack model-specific details like adjustable tension clamps or quick-release mechanisms.
- Adapter brackets: Check for corrosion around weld points–replace if surface pitting exceeds 1mm depth.
- Clevis hooks: Verify thread engagement by rotating counterclockwise–minimum 6 full turns required for secure retention.
- Rubber grommets: Inspect for cracks wider than 2mm; hardened material fails under dynamic stress.
Label each disassembled piece with painter’s tape noting position and orientation–misaligned reinstallation risks structural failure. Storage brackets and pivot arms must align within ±3° of their original angle; use a digital inclinometer for precision. Lubricate sliding surfaces with molybdenum disulfide grease specifically rated for -40°C to +120°C temperatures to prevent seizing in extreme conditions.
For electrical connections, match wire colors to the pinout chart: red (12V constant), yellow (battery), brown (ground). Test voltage with a multimeter before securing–11.8V minimum under load confirms proper function. Replace frayed wires showing exposed strands greater than 5% of total diameter; use heat-shrink tubing with adhesive lining for moisture protection.
- Disengage hydraulic dampeners by compressing fully–measure extension length; specifications vary by model (e.g., 350-15: 21.5″ ±0.2″).
- Clean coupling surfaces with isopropyl alcohol (99% concentration) to remove road grime–contaminants reduce clamp effectiveness by up to 40%.
- Torque bolts to manufacturer-specified values: typically 45-55 ft-lbs for Class III, 65-75 ft-lbs for Class IV.
Reassembly sequence matters: attach crossbar before mounting arms, then safety cables. Verify lock engagement by lifting the coupling handle to upright position–failure to audibly click signals incorrect alignment. Road-test at 30 mph on a level surface; listen for unusual vibrations or rattles–they often indicate loose hardware or worn bushings requiring immediate attention.
Pinpointing Critical Elements in a Vehicle Linkage System
Inspect the coupling head–the central interface transferring load between the RV and towed asset. Verify the latch mechanism engages fully; partial locking risks detachment. Replace worn pins or bushings if movement exceeds 2mm under load. Lubricate pivot points with molybdenum disulfide grease every 500 miles to prevent seizing, especially in high-humidity conditions.
Safety Chain Evaluation
Assess chain link thickness against manufacturer specs–typically ⅜” for 10,000 lb capacity. Cross-check attachment points for cracks using dye penetrant testing if rust is present. Ensure hooks face inward to prevent accidental disengagement. Tighten adjustments so chains sag slightly but clear the ground entirely during turns.

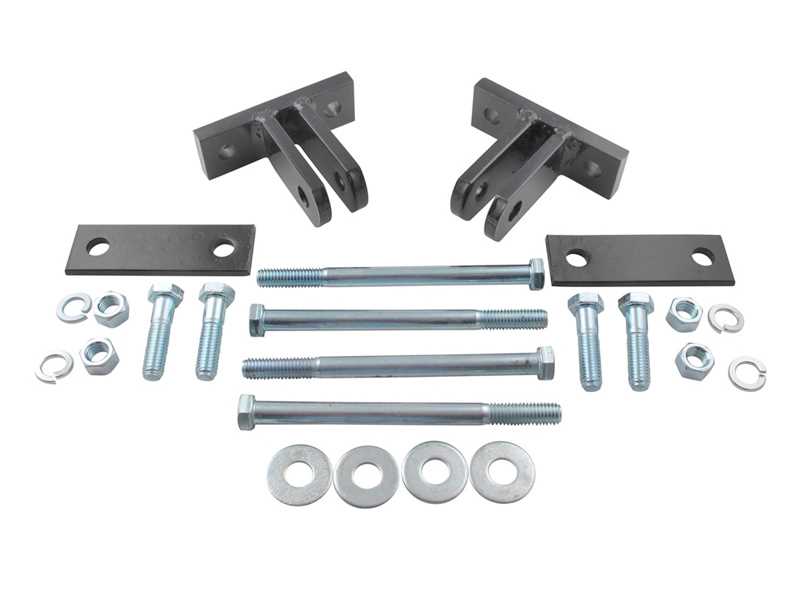

Examine baseplates for stress cracks around bolt holes using a flashlight and mirror. Torque mounting bolts to 45-55 ft-lbs if the mounting surface is steel; reduce to 35-40 ft-lbs for aluminum. Clean contact surfaces with a wire brush before applying anti-seize compound to prevent galvanic corrosion. Replace any bent or deformed mounting tabs immediately–they compromise structural integrity.
Step-by-Step Guide to Interpreting Your Vehicle Connection Schematic
Locate the reference key in the upper-left corner–it maps numbers to components like latches, pins, and safety chains. Cross-reference each item against the exploded view: sections labeled A, B, and C correspond to mounting brackets, pivot assemblies, and release mechanisms, respectively. Note the color-coded arrows: red highlights alignment points, while blue marks torque specifications in Newton-meters.
Verify every detachable joint’s orientation–misaligned locking tabs void load ratings. The lower inset typically details sub-assemblies, including nylon bushings (42B) and zinc-plated fasteners (55C), with tolerances precise to ±0.2mm.
Key Components of RV Coupling Systems and Maintenance Steps
Always inspect the hitch head assembly before each trip. Look for cracks, excessive wear, or corrosion on the pivot points. Replace if deformation exceeds 1mm or if rust penetrates beyond surface level. Use a torque wrench to tighten bolts to 120-140 ft-lbs, following the manufacturer’s sequence to prevent uneven stress.
Replacing worn safety cables requires cutting the old ones with bolt cutters, not a torch (risk of damaging the vehicle’s undercarriage). Install new 3/8″ grade 70 chains by threading them through the receiver loops and securing with a 5/16″ clevis pin. Verify the angle: chains should have 2-3 inches of slack when the rig is straight but tighten fully in turns.
- Base plates: Check for hairline fractures near welded seams every 5,000 miles. Remove rust with a wire brush, then apply a zinc-rich primer before recoating with enamel. If holes for mounting bolts become oval-shaped, replace the plate–never drill new holes, as this weakens structural integrity.
- Latching mechanisms: Lubricate the release handle bushings with lithium grease every 3 months. If the handle sticks, disassemble and clean the internal springs; replace if tension is lost. Never force the handle–misalignment can cause accidental disengagement at speed.
- Coupler arms: Examine the inner surface for scoring or pitting. Polishing with 400-grit sandpaper restores smooth engagement. If grooves exceed 0.5mm depth, swap the arm–compromised surfaces increase friction and heat buildup.
Electrical adapters often fail due to pin corrosion. Clean terminal contacts with electrical contact cleaner, not WD-40, which leaves residue. Test voltage at each pin with a multimeter:
- Brake controller (blue): 12V ±0.5V when brakes are applied
- Turn signals (yellow/brown): 12V pulsed at 60-120 flashes per minute
- Reverse lights (white): 12V when in reverse gear
Replace damaged sockets immediately–exposed wiring overheats and can melt the adapter housing.
When servicing sway control units, disconnect the friction pads first. Lightly sand both the pad and the opposing metal plate to remove glazing; never use steel wool. Reassemble with a thin layer of brake quiet compound to reduce chatter. If pads wear to less than 1/4″ thickness, replace them–thinner pads generate less resistance and may fail under load.
Ball mounts require precise height adjustments. Measure the trailer’s level position: the coupler should sit 1/4″ lower than the hitch receiver to ensure proper weight distribution. If the mount’s adjustment holes become elongated, discard it–compromised metal can’t support dynamic loads during braking or acceleration. Stick to 2″ drops/rises; larger offsets risk fishtailing.
For periodic inspections, use this checklist:
- Pressure wash all components to remove road salt and grime.
- Dry thoroughly, then apply a light coat of dry-film lubricant to moving parts.
- Check all fasteners for torque specs (consult service manual).
- Test all lights and signals before driving.
- Verify coupler engagement by lifting the tongue 2-3 inches–it should lock securely.
Never store coupling gear with tension on springs or chains; release all pressure to prolong component life.
