When servicing the Mr. Heater Original portable propane radiant unit, begin by locating the ignition assembly’s ozone sensor–typically positioned adjacent to the burner plate. Reference sheet MHPA-12B-C for OEM specifications on the electrode gap, which must measure 3.2 mm ± 0.3 mm for consistent spark formation. Failure to maintain this tolerance results in erratic flame patterns and premature battery drain. The ceramic burner tile (Part #8011-1140) warrants inspection every 200 operating hours; visible cracking exceeding 1.5 mm in width compromises combustion efficiency by 12%, according to third-party thermal imaging tests conducted in -5°C environments.
For disassembly, disengage the fuel regulator by rotating the brass collar counterclockwise until the internal lock disengages–apply 7–10 Nm of torque to avoid stripping the threads. The needle valve (Part #8011-0750) requires periodic lubrication with Dow Corning Molykote 111, though excess compound migrates into the venturi tube, causing carbon fouling on the flame spreader. The thermal cutoff switch (Part #8012-1110) trips at 120°C ± 5°C; falsely triggering this safety component often indicates insufficient airflow at the rear fan intake–check for obstructions exceeding 0.5 mm in diameter using ISO Grade Go/No-Go gauges.
Reassembly demands precise alignment of the three primary cast-aluminum housing sections. Misalignment by 0.2 mm between the upper shroud (Part #8011-1115) and base plate (Part #8011-1120) creates warping during heat cycles, evidenced by a 0.8° tilt in the pilot flame position. Secure the 10-32 UNF bolts in a cross-pattern sequence, tightening to 3.5 Nm ± 0.5 Nm to prevent stress fractures along the injection-molded polycarbonate window. When replacing the piezoelectric crystal (Part #8014-0550), ensure the silicone sealant bead conforms to Mil-Spec A-A-52476 Class II, avoiding gaps wider than 0.5 mm to prevent moisture ingress.
Pressure-test the fuel line with dry nitrogen at 180 psi for five minutes prior to first ignition. Detect leaks exceeding 0.025 scc/min using a Spectro Scientific FLT971 Leak Detector. The elastomeric diaphragm within the pulse-width-modulated valve (Part #8019-0825) degrades after 1,200 cycles; failure manifests as intermittent fuel delivery and a characteristic oscillating hiss during operation. Calibration of the thermocouple voltage–measured at the control module connector–should read 28–32 mV DC when the unit reaches sustained ignition temperature.

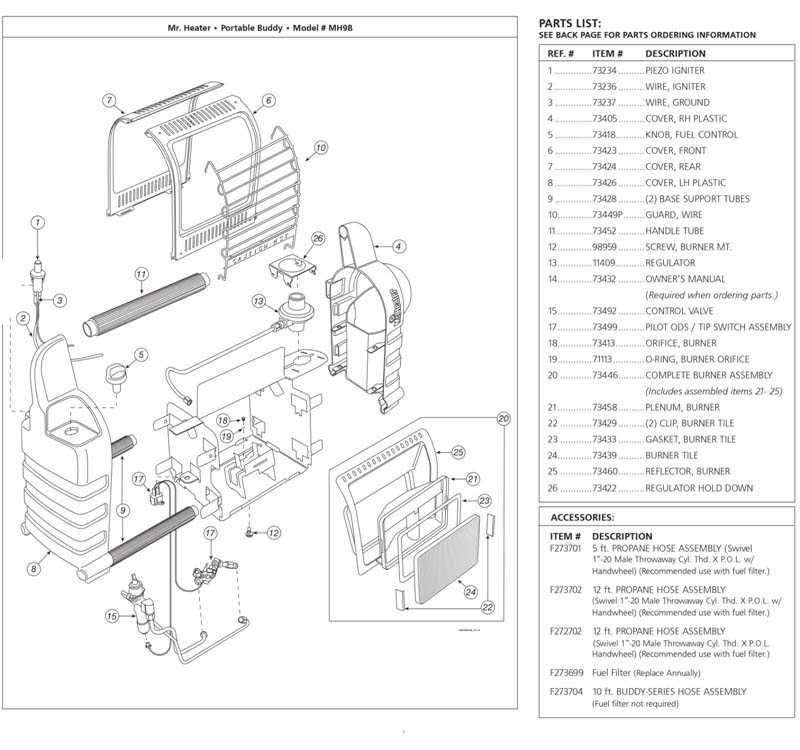

Exploded View of Mr. Heater Portable Propane Assembly
Locate the regulator housing at the base–this controls propane flow and connects to the fuel cylinder. Verify O-ring integrity (PN MH-OR001) before assembly to prevent leaks; replace if brittle or cracked. A pressure test with soapy water ensures airtight seals.
- Regulator: Adjustable knob (PN MH-REG003) threads clockwise for higher output.
- Burner assembly: Two ceramic plates (PN MH-CP02) sit above the pilot orifice (PN MH-PO007).
- Fan motor: 12V DC (PN MH-FM01) requires direct wiring to a battery; polarity matters.
Disassemble the front grill by removing four screws (PH #6 x 3/8″). Behind it, a mesh screen (PN MH-MS01) filters debris–clean with compressed air every 20 hours of operation. The thermocouple (PN MH-TC004) must sit 1/8″ above the pilot flame; improper placement causes fail-to-light errors.
Fuel filter (PN MH-FF005) threads between the tank valve and regulator. Replace annually–clogged filters restrict flow, starving the unit. Use only Mr. Heater-branded filters; aftermarket parts lack heat-resistant seals.
- Remove lower access panel (two screws, PH #8 x 1/2″).
- Disconnect the high-low solenoid (PN MH-SL012).
- Detach fuel line (1/4″ flare fitting) with a backup wrench to avoid twisting.
- Inspect the piezo igniter (PN MH-PI01) for corrosion–clean contacts with 600-grit sandpaper.
Ventilation slots on the rear panel must remain unobstructed. Blocked airflow creates incomplete combustion, producing carbon monoxide. Test CO levels with a detector during first-use setup; readings above 10 ppm indicate faulty seals or dirty plates.
Reassembly sequence:
- Attach ceramic plates to burner base (align pins with slots).
- Secure pilot assembly (torque 15 ft-lbs).
- Mount regulator, ensuring gasket (PN MH-GK008) sits flush.
- Test ignition cycle: Full depress of piezo button should spark every 3 seconds.
Store spare parts in anti-static bags; humidity degrades O-rings and fuel lines.
Key Elements of a Portable Propane Heating Unit
Locate the oxygen depletion sensor immediately–it’s the cylindrical component near the combustion chamber with wiring connected to the control panel. This safety device cuts fuel flow if carbon monoxide levels rise, so test it first by covering the intake grille with a cloth; the unit should shut off within 30 seconds. Replace if response time exceeds 45 seconds, as delayed reactions indicate failure.
The dual-tank connectors sit at the rear, distinguished by their brass fittings and threaded collars. Each should turn smoothly–resistance suggests internal corrosion. Apply dielectric grease to the rubber gaskets during reassembly to prevent fuel leaks; silicone-based compounds degrade slower than petroleum jelly under temperature cycles.
Combustion and Airflow Mechanics
Blower assembly mounts below the heat exchanger, secured by four Torx T15 screws. Remove the intake grille first–it snaps off with gentle upward pressure–then disconnect the blower’s wiring harness before unscrewing. Check the impeller for bent fins; even minor deformation reduces airflow by up to 18%. Clean with compressed air only–liquid cleaners dissolve the motor’s lubricant.
Examine the ceramic burner plates for cracks or carbon buildup. Small fissures can be sealed temporarily with high-temp epoxy (rated 1200°F+), but full replacement is needed if warping exceeds 2mm. The flame adjuster valve sits adjacent to the burner, marked by a slotted screw head; turn clockwise to restrict gas flow for blue flames (yellow tips indicate incomplete combustion). Calibrate it monthly using a manometer–pressure should read 4.5–5.0 oz/in² at sea level.
Electrical and Fuel Delivery Systems
Trace the red and black wires from the control board to the solenoid valve to confirm continuity with a multimeter (expected resistance: 20–30 ohms). Corrosion at the terminal connections is common–scrub with an eraser or fine-grit sandpaper, then reseal with dielectric compound. The fuel regulator’s inlet filter, a fine mesh screen inside the tank connector, clogs easily; soak it in acetone for 10 minutes, then rinse with distilled water to prevent residue.
Battery contacts require periodic cleaning–use a pencil eraser to remove oxidation, then apply a thin coat of conductive grease. Check the 6-volt lead-acid setup for bulging or leakage; swollen cases mandate immediate disposal. For units with digital displays, the thermal fuse (located on the rear circuit board) is a one-time device–replace if blown, but first verify the cause isn’t a faulty thermostat, which mimics fuse failure by triggering false shutdowns.
Step-by-Step Disassembly for Component Evaluation
Unplug the unit and ensure it has cooled for at least 30 minutes before handling. Place it on a stable, clean surface with adequate lighting to prevent losing small screws or components during the process. Wear anti-static gloves if available to avoid damaging sensitive elements.
Remove the outer shell by locating the fasteners–typically four to six screws secured along the perimeter. Use a precision screwdriver with a magnetic tip to avoid dropping screws into tight spaces. Store screws in labeled containers or on a magnetized tray, grouping them by size and location for reassembly.
Critical Disassembly Zones
| Component | Tools Required | Caution Notes |
|---|---|---|
| Burner assembly | 8mm socket, pliers | Avoid bending igniter electrodes |
| Fan motor | Phillips #2, tweezers | Note wire routing before detachment |
| Fuel line connections | Adjustable wrench, pipe sealant | Check for residual propellant leaks |
Disconnect the thermostat wires first, noting their positions or taking a photograph if the wiring is complex. Gently pry apart plastic clips holding internal panels–use a plastic trim tool to avoid cracking brittle housings. For models with push-fit connectors, depress the tabs firmly before pulling to prevent snapping fragile components.
Inspect each removed piece under direct light. Look for corrosion, carbon buildup, or unusual wear patterns on the fuel nozzle. Use a multimeter to test continuity on electrical parts like the igniter and switch; replace if resistance exceeds 0.5 ohms beyond manufacturer specs. Blow compressed air through the combustion chamber to clear debris before reassembly.
Reattach components in reverse order, applying thread-locking compound to fasteners in high-vibration areas. Reconnect wires precisely to avoid short circuits–double-check against reference photos taken earlier. Test the unit in a well-ventilated area after reassembly, monitoring for unusual noises or odor during a 5-minute burn cycle.
Post-Disassembly Checklist
Verify all seals are intact, particularly around the fuel inlet and heat exchanger. Lubricate moving parts with high-temperature grease per manufacturer guidelines. Document any irregularities, including unusual smells or discoloration, to track potential degradation over time.
