Start by identifying the core structural elements: hinge assemblies, track mechanisms, and sliding connectors. These form the foundation of any multi-panel configuration, dictating alignment, stability, and smooth operation. Examine the top rail first–most systems use either a concealed track or an exposed aluminum channel. The concealed variant reduces dust accumulation but complicates maintenance, while exposed tracks allow quick adjustments but demand regular cleaning.
Focus on the pivot points next. Standard setups include a fixed pivot at the header and a rotating one at the sill, but premium models integrate dual bottom pivots for heavier panels. Check for stainless steel bearings–cheaper alternatives use plastic bushings that wear out under frequent use. Replace worn pivots immediately; misalignment here causes uneven gaps and premature seal failure.
Inspect the handle and lock assemblies last. Recessed handles prevent accidental snags but limit leverage for users with limited grip strength. Surface-mounted pulls offer better ergonomics but can interfere with tight clearances. For security, prioritize deadbolts with hardened steel cores–keyed locks alone are insufficient for high-risk installations. Verify the strike plate thickness; anything under 2mm will bend under force.
Avoid generic hardware kits. Match panel weight to track capacity–standard residential tracks support 45–68 kg per section, while commercial-grade systems handle 90+ kg. Overloading causes track warping and motor burnout in automated variants. Measure clearance requirements precisely: 25mm minimum for floor tracks, 38mm for ceiling-mounted guides. Ignoring these specifications results in binding or derailment during operation.
Key Components of Folding Panel Systems
Identify the pivot mechanism first–it’s the core element allowing sections to rotate. Look for concealed hinges or exposed pivots near the top and bottom tracks; these dictate alignment tolerance. Misaligned pivots cause drag, so check for wear every 12 months.
Examine the track assembly: aluminum is standard for lightweight configurations, but steel tracks handle heavier panels. Ensure the track’s depth matches the panel thickness–standard is 1.5 inches, though commercial models often use 2 inches for stability. Clean debris monthly to prevent jamming.
The roller assembly should glide without resistance; nylon wheels last longer than plastic, reducing noise. Replace rollers if squeaking persists after lubrication. Bearings wear faster in high-traffic setups–opt for sealed units in humid environments.
Locking latches must engage fully; verify the strike plate isn’t bent. For security, deadbolts resist forced entry better than spring-loaded bolts. Multi-point locking systems distribute pressure evenly, preventing warping over time.
Seals and weatherstripping require annual inspection–cracked seals let drafts through, increasing energy loss by up to 20%. Compression seals outperform brush types in windy areas, but brush seals allow smoother operation with fewer gaps.
Panel materials affect durability: solid wood warps, MDF resists moisture poorly, and tempered glass demands reinforced framing. For high-traffic zones, aluminum-clad composite panels reduce maintenance while providing structural integrity.
Adjustment screws near the hinges fine-tune alignment; turn clockwise to raise a panel, counterclockwise to lower. Over-tightening strips threads–they should move freely with minimal effort. If gaps persist, shim the track brackets rather than forcing alignment.

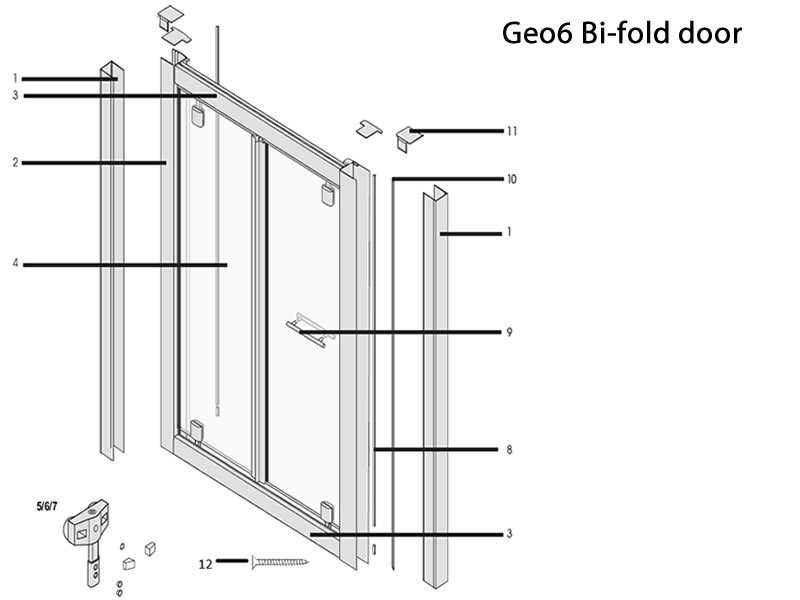

Main Elements of a Dual-Panel Folding System
Inspect the pivot mechanism first–it dictates alignment. Most assemblies use a pair of concealed hinges at the top and bottom of the leading panel, paired with a track-mounted roller. If binding occurs, check for lubrication buildup or debris in the channel. A silicone-based spray prevents corrosion without attracting dust.
Guide tracks vary in material: aluminum resists warping, while vinyl-coated steel offers smoother operation but may dent under impact. Measure the width–standard tracks accommodate 35mm panels, while heavy-duty models require 50mm. Install level; a 2mm deviation causes uneven stacking when retracted. Pre-drill pilot holes to avoid splitting, especially in composite frames.
Panel connections rely on three core attachments: aligning plates, retention clips, and intermediate pivots. Aligning plates secure the trailing edge to the fixed frame, while retention clips fasten to adjacent units. Intermediate pivots link paired sections–look for a zinc-plated variant to resist rust in humid environments. Below is a comparison of common materials:
| Component | Material | Durability | Maintenance Need |
|---|---|---|---|
| Pivot pins | Stainless steel | High | Low |
| Roller wheels | Nylon (glass-reinforced) | Medium | Moderate |
| Retention clips | Carbon steel | Low | High |
Threshold design affects both drainage and accessibility. A flushed sill prevents tripping but may trap water; a raised lip channels moisture away but requires ramped transitions for wheelchairs. Verify that the bottom seal compresses fully when closed–gaps wider than 3mm reduce energy efficiency by up to 18%. Replace worn seals with dual-durometer gaskets for improved noise reduction.
Operational load distribution depends on strut placement. Full-height struts should be positioned at the outer edge of each panel; center-mounted struts cause sagging over time. For panels exceeding 80kg, reinforce with twin struts spaced 600mm apart. Adjust tension using a hex key–over-tightening increases wear on rollers. Test swing clearance after installation–minimum 90° opening ensures unobstructed passage.
Locking hardware must align precisely with the strike plate. Mortise locks offer security but require exact routing, while surface-mounted latches are easier to install but less resistant to forced entry. Use a deadbolt for exterior applications; interior spaces benefit from flush bolts recessed into the stile. Always verify alignment with a metal shim–misalignment by even 1.5mm prevents proper engagement.
Decoding Track and Roller Layouts for Folding Panels
Start by locating the top rail in the schematic. This horizontal guide typically spans the entire opening width and anchors the movement system. Note the labeled mounting points–these dictate alignment tolerance (±1.5mm for standard installations). Misalignment here cascades into uneven spacing at floor level.
Identify roller units as circular or oval symbols with directional arrows. Each carries a weight rating–common residential variants support 45-68kg per side. Industrial models may show dual-roller clusters; verify spacing between them. If gaps exceed 120mm, expect sag under load.
Examine track intersections where vertical and horizontal guides meet. Curved transition pieces should show a 3mm fillet radius. Sharp corners in the diagram indicate potential binding points–look for manufacturer-specified gap tolerances at these junctions (usually 0.5-1mm).
Follow the pivot path down to the bottom guide. Look for a single central post or paired floor tracks. Single-post designs require precise door panel hole alignment (±0.8mm). Paired tracks offer adjustability but demand level verification across both rails. Note anti-jump tabs if present–these prevent panel lift during opening.
Check for stoppers marked as rectangular tabs or circles with crosshatching. These limit travel range–standard reach extends 12-15mm beyond the opening edge. Adjustable stops show elongated slots; tighten locking screws only after confirming smooth operation along the entire length.
Count carriage assemblies depicted as rectangular blocks along the top rail. Each panel requires two carriages spaced no wider than panel height ÷ 1.6. Fewer carriages risk torsion stress–verify maximum spacing in the spec sheet.
Look for lubrication points indicated by dotted lines or arrow annotations. Dry carbon steel systems need silicone gel at 6-month intervals; nylon wheels require PTFE spray every 12 months. Dashed arrows often mark hidden grease fittings behind decorative caps.
Troubleshooting Shortcuts from Schematics

For squeaks during operation: match noise location to the roller symbol, then cross-reference material specs. Steel-on-steel interfaces tolerate graphite powder; nylon-on-aluminium needs dry lube only.
Misaligned edge gaps? Trace the roller path backward–offset pivots or uneven floor tracks typically cause this. Reset using feeler gauges at each roller station (±0.2mm tolerance). Double-check top rail squareness with a laser level after adjustments.
How to Swap Out Failing Frame Pivots and Hinges on Folding Panels
Start by removing the panel from the track. Loosen the screws securing the bottom pivot bracket–typically a 3mm or 4mm hex key fits most models–then lift the unit upward to disengage the top pivot pin. Lay the panel flat on a padded surface to prevent scratches on the finish. Mark each pivot location with masking tape to simplify reinstallation; factory-set angles can be tricky to realign without reference points.
Inspect the hinge leaves for deformation. Steel versions often buckle under load, while brass or nylon alternatives resist warping longer but develop hairline cracks. Replace any leaf showing gaps wider than 0.5mm when closed–inexact mating introduces sagging within weeks. Order replacements that match the original mounting-hole pattern; metric screws (M4, M5) usually secure European brands, while imperial threads (#8, #10) appear on North American hardware.
Clean the pivot socket with denatured alcohol before installing the new bracket. Apply apea-sized dab of low-friction grease–PTFE-based works best–to the pivot pin to prevent squeaks. Align the bottom bracket flush against the floor track first, ensuring the adjustable slot sits perpendicular to the jamb; torque the screws to 15–18 Nm. Next, guide the top pivot into the header slot, rotating it clockwise until it clicks into the pre-drilled detent.
Test swing clearance before final tightening. Set a 3mm feeler gauge between the jamb and the panel edge at three heights: top, middle, bottom. Adjust the bottom bracket eccentric cam until the gap remains consistent; over-tightening squeezes the seals, causing binding. For hinges, verify the door sits plumb within a 1° tolerance–use a digital inclinometer pressed against the stile.
After securing all fasteners, cycle the unit ten times from fully open to closed. Listen for sharp clicks or metallic drag–both indicate misaligned pivots or grit trapped in the track. If noise persists, release the top pivot, lift the panel by 2mm, and reseat it. Repeat until silent operation confirms proper engagement; this step prevents premature wear of the replacement hardware.
