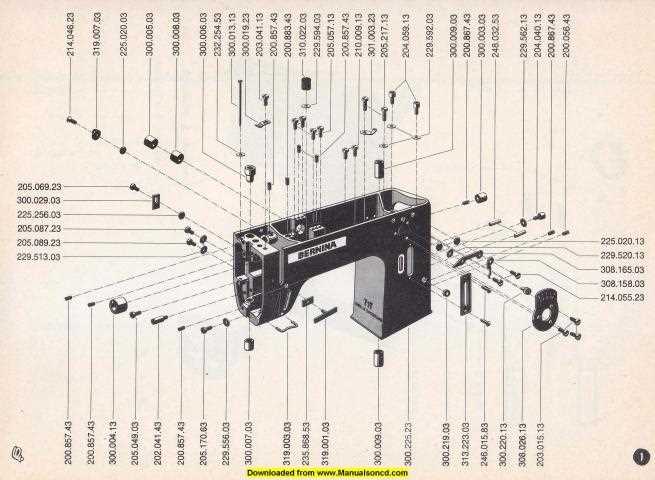

Begin by referencing the official exploded view documents from the manufacturer’s service manuals–these contain exact positioning labels for every gear, needle bar, and presser foot assembly. Models released after 2010 integrate modular subframes; trace linkages visually from the feed dogs to the stitch regulator cluster using highlighted frame codes (e.g., QC-12 for the upper thread tension unit).
For older variants, focus on reference numbers etched near pivot points–these correspond directly to part catalogs released between 1995 and 2005. Avoid relying solely on diagrammatic thumbnails; cross-check measurements against physical tolerances (shaft diameters ≤0.3mm deviations).
Substitutions require verification against OEM engineering tolerances: bobbin cases interchange between 1000-series and Aurora frames, yet motor mounting plates differ–consult serial number prefixes when sourcing replacements for electronic actuators or power transmission belts.
When disassembling regulator hubs, secure the calibration spring (position 23-4A) with locking pliers to prevent tension loss. Reassembly demands alignment of timing gears at 0° top dead center–use a dial indicator for precise indexing.
Repair Schematics: Step-by-Step Component Location
Begin by isolating the needle plate assembly–reference position 12 in the technical illustrations for models 530, 770 QE, and 880 Plus. Remove the two Torx T15 screws securing the feed dog retainer; failure to support the retainer during removal will misalign the feed mechanism. For older Activa series, note the revised thread tensioner layout: the upper thread guide (item 47) now integrates a spring-loaded cap–not present in earlier designs–which requires counterclockwise rotation to release, unlike the pull-out mechanism of pre-2015 models. Keep a 3 mm spacer washer (item 33) on hand; reinstallation without it distorts stitch width calibration.
| Model | Component | Tool Required | Common Failure Warning |
|---|---|---|---|
| Activa 240 | Hook race (item 61) | Hex key 2.5 mm | Excessive lint buildup triggers E-17 errors |
| B 350 | Bobbin case latch (item 4) | Precision screwdriver 1.4 mm | Misalignment snags thread, visible as skipped stitches |
| Passport 3.0 | Presser foot sensor | Circuits tester | Voltage below 4.8V pauses sewing cycle |
Locating Authorized Schematics for Your Sewing Machine Variant
Begin with the manufacturer’s own portal: bernette’s official spare component resource. Select your precise model in the dropdown–every variant from the 530 to the 790L is cataloged with exploded views and part numbers. Downloadable PDFs show each assembly stage, ensuring accurate identification before ordering.
For models sold under the primary brand, visit Sewing Parts Online’s extensive archive. Their interface lets you filter by serial number prefixes, revealing interactive breakdowns complete with zoom and layer toggles. Each schematic lists compatible substitutes where original stock may be depleted.
Printed Manuals and Retailer Archives
- Check the original packaging–many boxes include a condensed leaflet with basic layouts.
- Contact authorized dealers such as Sewing Machines Plus; they often email model-specific sheets on request.
- Visit eBay listings for “service manual” auctions; sellers frequently scan rare documents not hosted online.
Third-party repair hubs like Fixya aggregate community-uploaded schematics. Search using your model’s full designation–results include direct links to dropbox-hosted scans or forum threads discussing custom modifications and exact dimensions. Ensure any external source matches the revision date stamped on your unit’s rear panel.

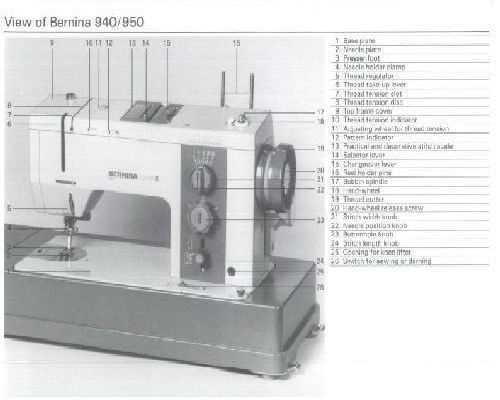

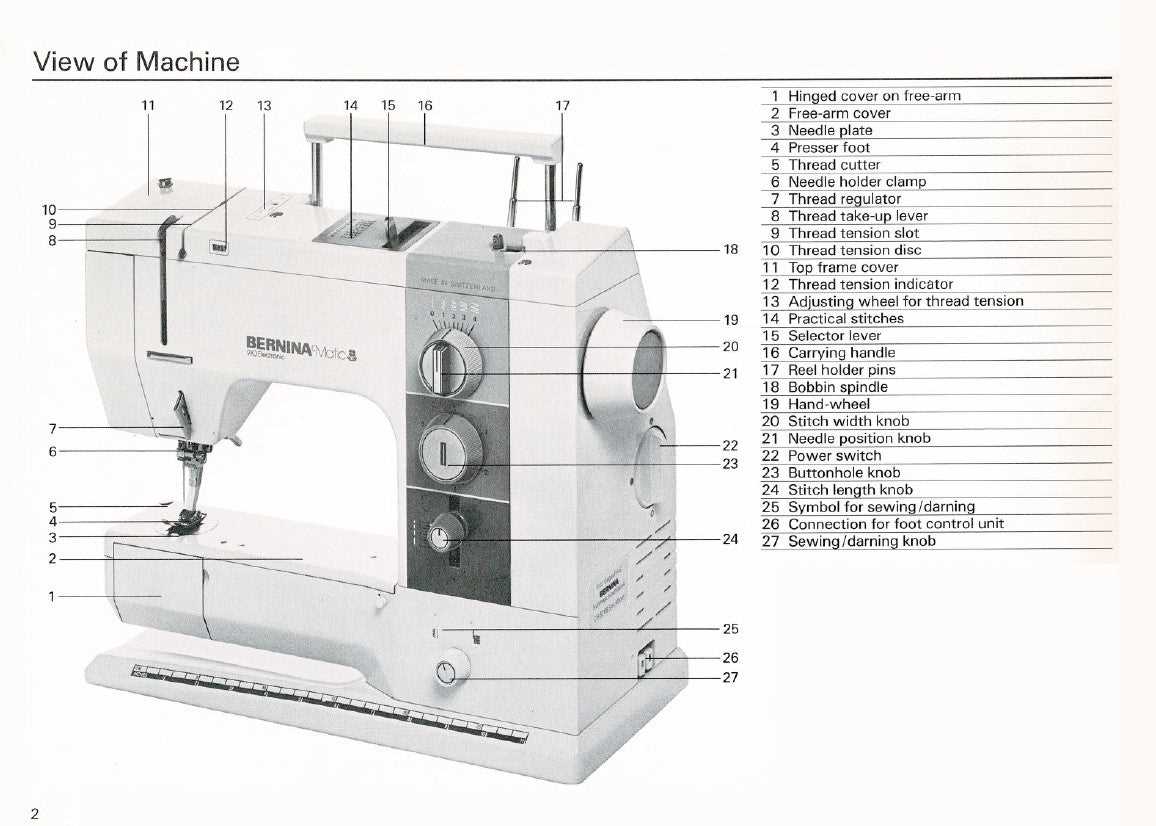

Decoding Machine Components Through Technical Illustrations
Locate the assembly breakdown in the service manual–typically near the rear or under a specific chapter–then scan for numbered callouts. Each illustration groups related elements: presser feet cluster under subheadings like “feeding mechanisms,” while needle assemblies appear in sections labeled “stitch formation.” Match the numeral on the drawing to the adjacent legend; this cross-reference reveals exact terminology, such as “shuttle hook retainer” rather than generic “hook piece.” Manufacturer-specific codes often appear in parentheses–memorize these for faster verification.
Examine thread paths first: exploded visuals trace routes from spool pins downward, highlighting tension discs, take-up levers, and thread guides in sequence. Look for wear patterns–that frayed wire or discolored guide pinpoints the suspect section without guesswork. Smaller elements like screws or washers occupy isolated circles with magnification, preventing oversight during replacement. If the drawing groups screws by length (e.g., 8mm, 12mm), sort physical samples alongside to confirm sizes.
Check footnotes–these often clarify compatibility. A presser foot marked “FD” fits models produced between 1998 and 2005; “FA” variants are post-2006. Shaded components signify wear-prone areas: feed dogs show diagonal hatching, while gears are crosshatched. Rotate the drawing orientation if needed–the top-down perspective differs for vertical assemblies like bobbin cases, where side views give accurate depth measurements.
Print the illustration and annotate directly: circle recurring faults, jot torque specifications for screws, or add color highlights for alignment indicators. Compare digital versions side-by-side with actual units–light reflections on metal surfaces can obscure minute details not captured in line art. Store annotated copies in a binder indexed by component type for quick retrieval during breakdowns.
Calipers become indispensable when illustrations lack metric conversions–measure shaft diameters, washer thicknesses, or pivot clearances against the nearest schematic dimension. For gears, count teeth manually if the drawing omits specifics; cross-reference thread pitch with micrometer readings to prevent misassembly. Document each measurement in a spreadsheet tied to the schematic reference number, building a custom parts ledger.
How to Interpret Your Stitching Equipment Blueprint Like an Expert
Locate the legend first–this small but critical box decodes every symbol used across the schematic. Icons like circles, arrows, and dashed lines correspond to specific assembly categories: motors appear as shaded rectangles, presser feet as triangles, and tension disks as concentric circles. Match each symbol to the legend before moving deeper into the layout to avoid misidentification.
Trace the power flow from the source. The wiring paths, typically depicted in red or orange, lead from the mains plug through switches and fuses to the main motor. These lines often branch into smaller sub-circuits; follow each branch to spot potential disconnects or wear points, noting components like capacitors or speed controllers listed with serial codes in the margin.
Identifying Functional Clusters
Group components by function using the schematic’s spatial hints. Feed mechanisms cluster near the needle bar region, marked by small teeth symbols and labeled “feed dogs.” Bobbin assembly details sit directly below, illustrated with curved arrows indicating thread direction. Electronic boards occupy a separate section, usually at the back or side, with microchips depicted as small rectangles connected by dotted control lines.
Compare each cluster to the equipment’s physical layout. Lift the throat plate to confirm the feed dog positions; open the side panel to validate board placements. Cross-reference each physical piece against the diagram’s corresponding label–manufacturers include alphanumeric tags like “A3” or “LH-7” next to each illustration for precise matching.
Inspect adjustment points marked with arrows or slotted lines; these denote screws, levers, or knobs for tension, stitch length, or pressure. The diagram often exaggerates these elements’ proportions for clarity–real-world adjustments may require finer tools like a 2.5mm hex key or needle-nose pliers. Note the recommended torque values, frequently listed in inch-pounds beside critical fasteners.
Verify thread paths last–dashed blue lines trace standard stitching routes from spool to needle. Deviations here suggest misthreading or obstruction; check guides, tension springs, and take-up levers against the path shown. The diagram may illustrate a “default” route; advanced stitches like zigzag or overlock will have alternate paths labeled in green or purple.
How to Resolve Issues with Missing or Broken Components Using Your Sewing Machine’s Schematic
Locate the exploded view chart in your machine’s manual–typically found under “Assembly Reference” or “Technical Illustrations.” Cross-reference the numbered items on the schematic with the labels in your physical unit. If a component appears absent, verify its position by checking adjacent elements; some fasteners or small brackets may be hidden behind larger modules.
Inspect the schematic’s callouts for color coding–red often indicates critical wear items, while blue or gray may denote optional accessories. If a section is faded or torn, use a magnifying glass to distinguish fine details, or access a digital copy of the illustration via the manufacturer’s official portal using your serial number.
Common Oversights When Cross-Checking Parts
Compare the schematic against the actual device by removing the needle plate or bobbin case; some components (e.g., feed dogs, thread guides) are only visible when disassembled. Note discrepancies in thread paths–if a tension disc or hook timing appears misaligned, the schematic’s sectional views will show correct positioning.
For electronic parts (e.g., circuit boards, sensors), the schematic may include wiring diagrams. Trace each wire’s route from connector to component, ensuring no segments are frayed or disconnected. If a sensor fails, check the illustration for calibration markings–some require precise alignment per factory specifications.
If a gear, pulley, or lever appears cracked, the schematic’s detail views will reveal its material composition (e.g., nylon, steel). Replace damaged items with exact matches; generic substitutes often cause misalignment, leading to skipped stitches or motor strain. Measure screw threads (metric or imperial) using the illustration’s technical specifications to avoid mismatches.
When reassembling, follow the schematic’s sequence–some assemblies require specific order (e.g., installing bobbins before needle bars). Tighten fasteners to the torque values listed in the legend; over-torquing can warp frames, while under-torquing may cause vibrations. If a component won’t seat properly, consult the illustration’s side views for correct orientation.
Advanced Diagnostic Steps Using the Schematic
For timing issues (e.g., skipped stitches, thread jams), reference the schematic’s cam profiles and hook race diagrams. Adjust the hook’s position relative to the needle bar using the illustration’s baseline measurements–misalignment of even 0.5mm can disrupt stitch formation. Lubrication points are often highlighted; apply oil only to the designated spots to prevent excess seepage into electronics.
If a module (e.g., presser foot lifter, tension unit) is non-functional, test continuity with a multimeter. The schematic’s electrical diagrams will show expected voltage ranges; deviations indicate faulty connections or failed components. For mechanical failures, the illustration’s close-ups of linkages and pivots will reveal bent or worn parts requiring replacement.
