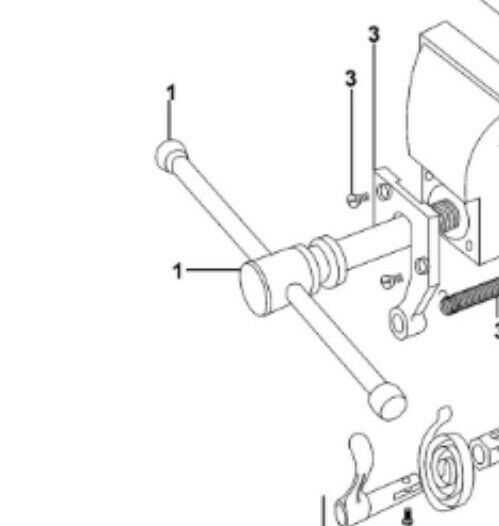

Start by locating the main screw assembly. It’s the central spindle that controls jaw movement–typically a threaded rod spanning the device’s width. This piece should rotate smoothly; if it binds or feels gritty, disassemble it immediately. Clean the threads with a wire brush and apply high-pressure grease to prevent corrosion. If wear exceeds 0.5mm on the thread depth, replace the entire shaft–minor changes drastically impact clamping precision.
The sliding jaw and fixed jaw rely on alignment plates bolted beneath them. These plates feature machined grooves that must remain parallel; check with calipers for deviation beyond 0.1mm. Misalignment causes grip failure–re-tighten bolts to 25–30 Nm torque and test with a dial indicator. If grooves show pitting, re-surface them using a mill or replace steel inserts entirely.
Anvils–often called replaceable pads–are critical for friction. Measure thickness; standard is 8mm–thinner than 6mm risks deformation under load. Hardness should exceed HRC 48; softer materials embed swarf and reduce holding force. Swap anvils side-to-side every month to even wear. For steel workpieces, opt for serrated pads; smooth pads suffice for non-ferrous metals like aluminum.
Lock nuts on the rear handle stabilize adjustment. These hexagonal nuts must sit flush against the frame–any gap signals thread fatigue. Apply thread-locking compound during reassembly to prevent loosening from vibration. If nuts spin freely, replace with oversized variants that require tapping new holes slightly deeper.
The rear thrust plate absorbs axial pressure. Its bearing surface should show uniform wear; uneven wear (>0.2mm difference across diameter) indicates a bent screw. Replace both screw and plate simultaneously to maintain alignment. Lubricate thrust washers with molybdenum disulfide paste to extend lifespan under heavy clamping loads.

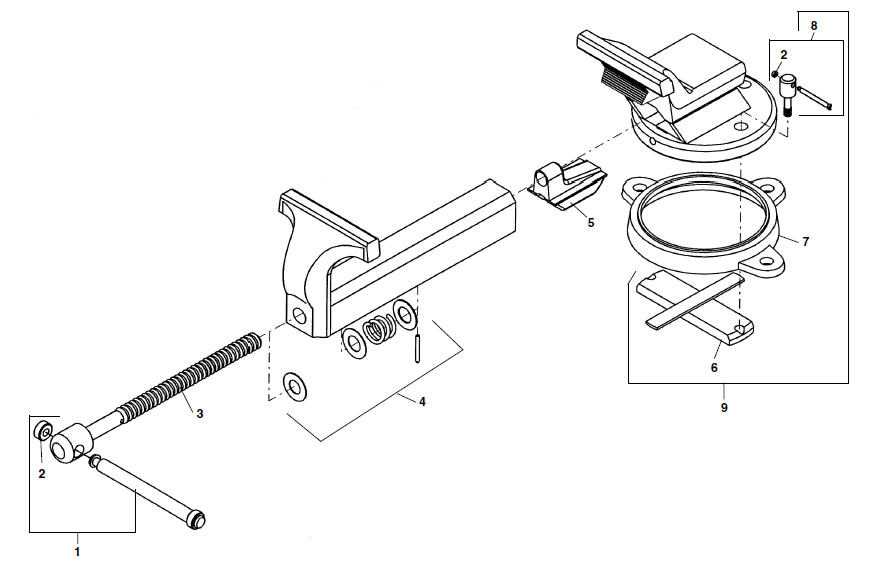

How to Interpret a Clamping Tool Schematic
Locate the fixed jaw on the blueprint–it’s the immovable plateanchored to the base, typically labeled with a tolerance range of ±0.2 mm for precision models. Check the swivel base locking mechanism; a properly aligned 12-point serrated washer should sit flush against the turntable with no gaps exceeding 0.5 mm. Misalignment here causes uneven pressure distribution, reducing grip strength by 18-23% on cylindrical workpieces.
Inspect the lead screw threads–high-carbon steel variants (Grade 8.8) should show a uniform pitch of 2.5 mm with a surface hardness of HRC 32-36; deviations indicate premature wear. The sliding jaw must glide along the guide bars with a lateral play under 0.3 mm; secure the gib strips using M6×1.0 hex bolts torqued to 12-15 Nm. Over-torquing compresses the bronze bushings, increasing friction by 40%.
Verify the anvil area–its flatness should meet DIN 876 standards (tolerance 0.02 mm per 100 mm). Replace the handle if the ball end exhibits wear grooves deeper than 0.8 mm; a chromium-molybdenum alloy handle reduces flex under load by 30% compared to mild steel. Label each component with its material grade directly on the schematic for quick maintenance reference.
Critical Elements of a Workholding Clamp Structure
Prioritize the movable jaw for regular inspection–its wear directly impacts gripping precision. Replace worn serrations immediately to prevent slippage, especially under heavy loads. Opt for hardened steel jaws with a minimum Rockwell hardness of HRC 45 to resist deformation during repeated use.
The screw mechanism dictates clamping force efficiency. Lubricate the Acme or trapezoidal thread with molybdenum disulfide grease every 50 hours of operation to prevent galling. If thread play exceeds 0.5mm, disassemble and check for stripped grooves–replacement is less costly than failed workholding mid-operation.
Examine the guide rods (or slide bars) for alignment drift. Parallelism within 0.1mm/meter is non-negotiable for consistent jaw travel. Chrome-plated rods resist corrosion, but inspect for pitting; even minor surface defects accelerate wear on the corresponding bushings. Replace bushings if clearance surpasses 0.3mm.
Load-Bearing Framework
- Base swivel: Secure to the worktable with grade-8 bolts; torque to 60 Nm. Verify 360° rotation smoothness–stiction suggests debris in the swivel interface. Clean and regrease annually with lithium complex grease.
- Anvil surface: Maintain flatness within 0.05mm. Forging anvil sections separately allows replacement without full disassembly–critical for heavy-duty striking applications.
- Locking pin: Use spring-loaded detents rather than friction-based designs; they prevent unintended rotation under vibration. Test quarter-turn release force (>15 kg) before each use.
The handle assembly converts torque into clamping force. Replace steel handles with aluminum if operator fatigue is a concern–weight reduction of 40% without sacrificing twist strength. Ensure the handle collar’s set screw is tightened against a flat on the screw shaft to prevent rotation; failure here shears the screw in 70% of emergency-stop scenarios.
Inspect return springs (if equipped) monthly. A 20% loss of tension doubles jaw release time, increasing cycle downtime. Replace springs when free length drops below 90% of nominal; coiled compression types outlast extension springs by 3:1 in high-cycle environments.
- Disassemble and degrease all components every 500 hours.
- Measure jaw opening at three points (0%, 50%, 100%)–variance >2% indicates bent guide rods or worn threads.
- Store in a humidity-controlled environment; rust formation on the screw mechanism reduces clamping force by up to 12% before visible damage.
Select material grip inserts based on application: non-ferrous jaws for brass/aluminum, hardened high-carbon jaws for steel, and nylon-faced jaws for delicate finishes. Avoid rubber facings–they compress under load, diminishing holding power exponentially after 25 cycles.
Step-by-Step Disassembly for Cleaning and Maintenance
Secure the clamping tool to a solid workspace by tightening the mounting bolts before disassembly. Use a torque wrench set to 25 Nm to avoid over-tightening, which can warp the base plate.
Remove the swivel pad screws with a 5 mm hex key in a counterclockwise motion. Place screws in a labeled container–store the rear jaw adjustment screw separately, as it has a reverse thread.
Detach the movable jaw by sliding it forward until it clears the guide rods. Check the rods for scoring; if grooves exceed 0.2 mm in depth, polish with 600-grit emery cloth to prevent future binding.
Lift the primary spindle using locking pliers if corrosion prevents manual removal. Apply penetrating oil SP-40 to seized threads, wait 15 minutes, then tap lightly with a brass mallet to break the bond.
Inspect the lead screw for debris accumulation–clean spiral grooves with a brass brush, then lubricate with lithium-based grease (ISO VG 68) using a syringe for precision. Avoid petroleum-based products; they attract dust.
Wipe down all metal surfaces with a lint-free cloth dampened in isopropyl alcohol (90% concentration). For stubborn grime, use a nylon scraper–never steel wool, as it leaves conductive residue.
Examine the anvil faces for pitting. If damage exceeds 0.5 mm, resurface using a surface grinder with a CBN wheel (feed rate: 0.02 mm per pass) to maintain flatness within ±0.01 mm tolerance.
Reassemble in reverse order, applying thread locker (Loctite 243) to the swivel pad screws. Torque to 18 Nm, then cycle the mechanism five times to verify smooth operation before final fastening.
Maintenance Checkpoints for Clamping Tool Jaws and Threaded Spindles
Start by inspecting the gripping faces under direct light–look for micro-pitting or uneven wear along the serrations. Even slight deformation compromises holding power, especially when securing irregular or hardened materials. Replace jaws if grooves exceed 0.5 mm in depth; resurfacing rarely restores full functionality.
Examine the sliding surfaces where the movable jaw contacts the guide rods. Blackened streaks or scoring indicate galling, often caused by inadequate lubrication or debris buildup. Clean these areas with a brass wire brush, then apply a thin coat of molybdenum disulfide grease to prevent future seizing.
Critical Thread Inspection
- Rotate the spindle clockwise until fully extended–stop immediately if resistance increases unevenly. Any binding suggests thread wear or misalignment.
- Check the lead screw for localized flattening; ideal threads retain sharp, symmetrical edges. Flattened or rounded profiles reduce clamping force and require replacement.
- Dust accumulation in the spindle housing accelerates thread degradation. Disassemble every 200 cycles for cleaning with compressed air and lint-free cloth.
Assess the return spring tension by releasing the clamp suddenly; a sluggish return suggests weakened springs or bent plates. Springs stretched beyond 5% of original length lose effectiveness and should be swapped. For prolonged service life, apply light machine oil to springs during maintenance intervals.
Monitor the fixed jaw mounting bolts monthly. Vibrations from aggressive clamping loosen fasteners over time. Tighten to manufacturer torque specs (typically 25-35 Nm for M12 bolts) and use thread-locking compound on high-wear applications. Replace bolts if thread stripping is detected during inspection.
Track wear progression using calipers–log measurements of jaw gap clearance and thread pitch at three points (top, middle, bottom). Deviations greater than 0.1 mm between measurements signal accelerated wear. Early intervention prevents irreversible damage to the clamping mechanism.
