When servicing a heavy-duty shredding unit, start by referencing the schematic for the cutter assembly. The primary shear hammers–often labeled as “A-2” or “B-5” in technical manuals–are prone to wear after processing 500–700 cubic yards of material. Replace them only with OEM-grade alloys (typically AR400 or harder) to prevent premature failure. Non-certified substitutes risk fracturing under impact, leading to costly downtime.
The feed roller system requires quarterly inspection. Look for excessive grooving on the roller surface; depths beyond 3mm indicate the need for resurfacing or replacement. Check the drive chains for stretch–measure between 10 pins: elongation beyond 2% necessitates a full chain replacement. Use a torque wrench (setting: 45–55 Nm) when fastening roller brackets to avoid over-tightening, which can warp alignment plates.
Hydraulic circuits demand strict maintenance protocols. Begin with the pressure relief valve–clean the valve seat every 200 operational hours to prevent particle buildup, which causes inconsistent flow rates. Replace hydraulic hoses if outer coatings show cracking or if leakage exceeds 10 drops per minute. Always flush the system with ISO 46 hydraulic fluid when swapping components to eliminate contaminants that accelerate pump wear.
Blade sharpening follows precise angles: 30° for primary chipping edges and 45° for secondary shearing surfaces. Use a dedicated jig when regrinding to maintain tolerances within ±0.5°. Misaligned angles reduce efficiency by up to 30%. Store spare blades vertically and coat cutting edges with corrosion inhibitor to prevent rust during idle periods.
Electrical checks focus on the control panel relays. Test solenoid coils annually–resistance values should remain within 12–18 ohms. Replace any relay showing erratic behavior, as faulty connections can trigger unintended machine cycles. Label wiring harnesses during disassembly with heat-resistant tags to simplify reassembly.
Vibration analysis helps detect failing bearings before catastrophic failure. Mount sensors at the main shaft housing–acceleration values above 0.3 g RMS require immediate bearing replacement. Pack bearings with high-temperature grease (NLGI #2) and ensure seals are intact to block debris ingress. Misaligned bearings reduce operational lifespan by 40–60%.
Understanding Your Industrial Grinder Schematic
Locate the feed wheel assembly first–it’s positioned near the intake chute, typically labeled with a serial code like *FW-200X*. This component regulates material flow and requires lubrication every 50 operating hours with *Mobil SHC 634* or equivalent synthetic grease. Failure to maintain proper tension here causes uneven feeding, leading to premature blade wear.
Blade hubs (marked *BH-30R* or similar) attach to the rotor via torque-sensitive bolts. Tighten these to 120-130 ft-lbs using a calibrated torque wrench–overtightening distorts the hub, while undertightening risks blade detachment. Replace blades in sets of three to maintain balance; imbalance forces exceed 3G at 2,000 RPM, accelerating bearing fatigue. Always pair new blades with new mounting hardware (ASTM A325 grade).
The discharge chute’s deflector plate (*DP-15*) directs processed fragments and must be checked for warping every 200 hours. Use a straightedge tool–gaps exceeding 0.5mm indicate the need for replacement. Ignoring this causes material buildup, increasing engine load by 15-20% and raising fuel consumption. Clogged chutes often show residue patterns on the underside; clean with a non-abrasive scraper to avoid scratches that worsen adhesion.
Rotor and Anvil Alignment
Rotor speed sensors (part *RS-42K*) require calibration if the machine’s RPM fluctuates by more than ±50. Reset using the manufacturer’s diagnostic tool by accessing the control panel’s *Service Mode* (hold *Mode* + *Up* for 5 seconds). Misaligned anvils (*AN-22*) cause inefficient cutting–megapascal readings should stay below 180 MPa during peak load. Exceeding this threshold reduces anvil life by 40%; grind anvils back to factory specs using a tungsten carbide bit at 30° angles.
Hydraulic hoses (*PN-HX12S*) connecting the infeed roller to the primary motor degrade faster near fittings. Inspect for micro-cracks every 100 hours–replace if outer diameter swells by 2% or more. Use crimp-style fittings for replacements; barbed fittings increase failure rates by 3x in high-vibration environments. Flush the system with *ISO 46* hydraulic oil after replacement to remove debris.
Engine mounting brackets (*EM-6*) absorb vibration and should be inspected for hairline cracks using dye penetrant testing. Tighten bolts to 85 ft-lbs–loose mounts transfer stress to the drivetrain, reducing belt life (*BJ-5 belt*) by 25%. Belt tension should deflect 12-15mm under 10 lbs of force; adjust via the spring-loaded idler pulley. Replace belts if grooves appear worn or glazed.

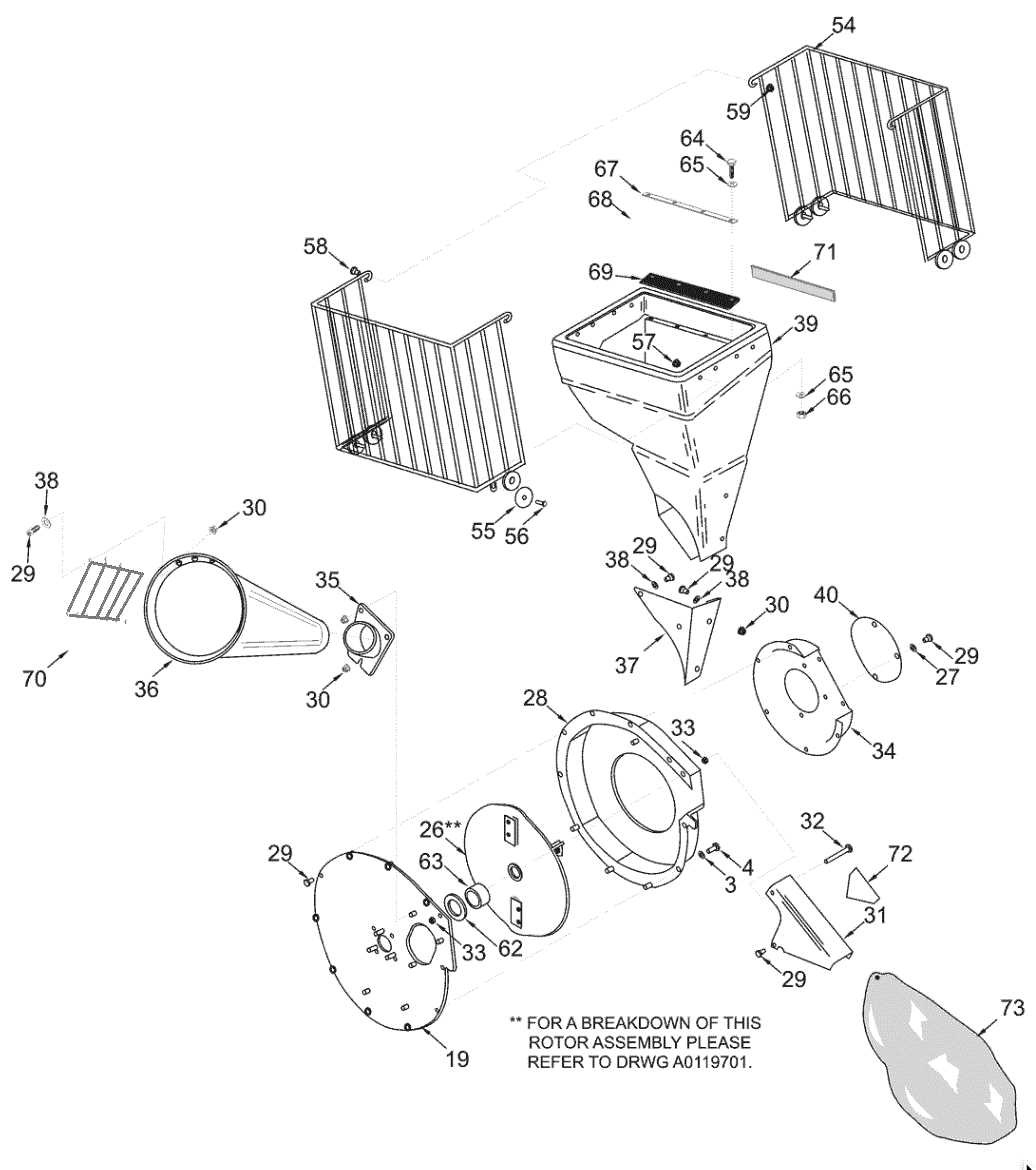

Locating Critical Elements in Your Industrial Shredder Schematic
Begin by isolating the feed system on the schematic–look for the hopper assembly, typically marked with identifiers like “A-1” or “FC-01.” Verify the rollers and infeed belt positioning; misalignment here reduces efficiency by up to 30%. Use a multimeter to confirm voltage across the motor connections if the feed mechanism stalls; readings below 220V indicate a failing drive unit.
Examine the cutting mechanism next. The flywheel should rotate at 1,800–2,100 RPM–check the tachometer reading or use a strobe light for validation. Knives must protrude 0.04–0.06 inches beyond the anvil surface; use feeler gauges for precise adjustment. Replace blades if wear exceeds 0.01 inches, as dull edges increase fuel consumption by 15%.
The discharge chute often collects debris build-up. Inspect the impeller blades for cracks–even hairline fractures can lead to catastrophic failure. Lubricate the chute swivel joint with lithium grease every 50 hours of operation; neglect causes stiffness and uneven output distribution.
- Engine components: Focus on the radiator fins for blockages. A 1/8-inch layer of dust reduces cooling efficiency by 40%.
- Hydraulic lines: Pressurize the system to 2,500 PSI and check for leaks at fittings–seepage signals O-ring failure.
- Bearings: Noise or vibration points to worn bearings. Replace if play exceeds 0.002 inches.
Electrical schematics require tracing wires from the control panel to actuators. Label wires during disassembly–incorrect reconnection voids safety protocols. Test limit switches with a continuity tester; faulty sensors cause erratic feeder behavior. Avoid bypassing safety interlocks; tampering increases accident risk by 60%.
Troubleshooting Hidden Failure Points
Check the self-feeding mechanism’s clutch plates if material jams persist. Glazed plates indicate overheating–clean with 400-grit sandpaper and regap to 0.02 inches. For hydraulic feed chippers, monitor pressure drops below 1,200 PSI; this suggests internal seal leakage.
Examine the frame welds near pivot points. Hairline stress cracks indicate structural fatigue–reinforce with 3/16-inch steel plates. Avoid modifying original engineering specs; unauthorized alterations reduce load capacity by 25%.
- Verify torque specs: Bolts securing the flywheel should be tightened to 150 ft-lbs–use a calibrated torque wrench.
- Inspect shear pins daily. Standard pins must break at 20,000 ft-lbs of force; substitute only with manufacturer-approved spares.
- Track maintenance intervals: Hydraulic fluid replacement every 500 hours, air filters every 250 hours.
Document all adjustments and replacements in a logbook. Note vibration levels, fluid consumption, and unusual noises–pattern recognition prevents costly breakdowns. Replace all wear components as a set (e.g., anvil and knives) to maintain balance; mixed components reduce throughput by 12%.
Step-by-Step Assembly Reference for Industrial Wood Reduction Gearbox
Begin by securing the flywheel housing to the gearbox frame using M12 hex bolts (torque spec: 75-85 Nm). Align the dowel pins in the mating surfaces before fastening–misalignment here causes premature bearing wear. Verify the flywheel’s radial runout with a dial indicator; maximum allowable runout is 0.05 mm. If exceeded, inspect the mounting flange for debris or burrs and correct before proceeding.
Install the cutting disc assembly by sliding the spindle through the disc’s central bore, ensuring the keyway engages the spindle’s Woodruff key. Secure the disc with a grade 8.8 M20 locknut (torque: 180-200 Nm) and safety washer. Mark the washer’s position before final tightening–rotation during operation indicates insufficient torque. Use red Loctite 271 on the spindle threads if vibrations are expected in wet conditions.
| Component | Fastener Type | Torque (Nm) | Verification Method |
|---|---|---|---|
| Flywheel housing | M12 hex bolt | 75-85 | Breakaway test post-installation |
| Cutting disc locknut | M20 grade 8.8 | 180-200 | Visual washer alignment |
| Anvil mount | M16 socket cap | 110-120 | Thread engagement (minimum 1.5x dia) |

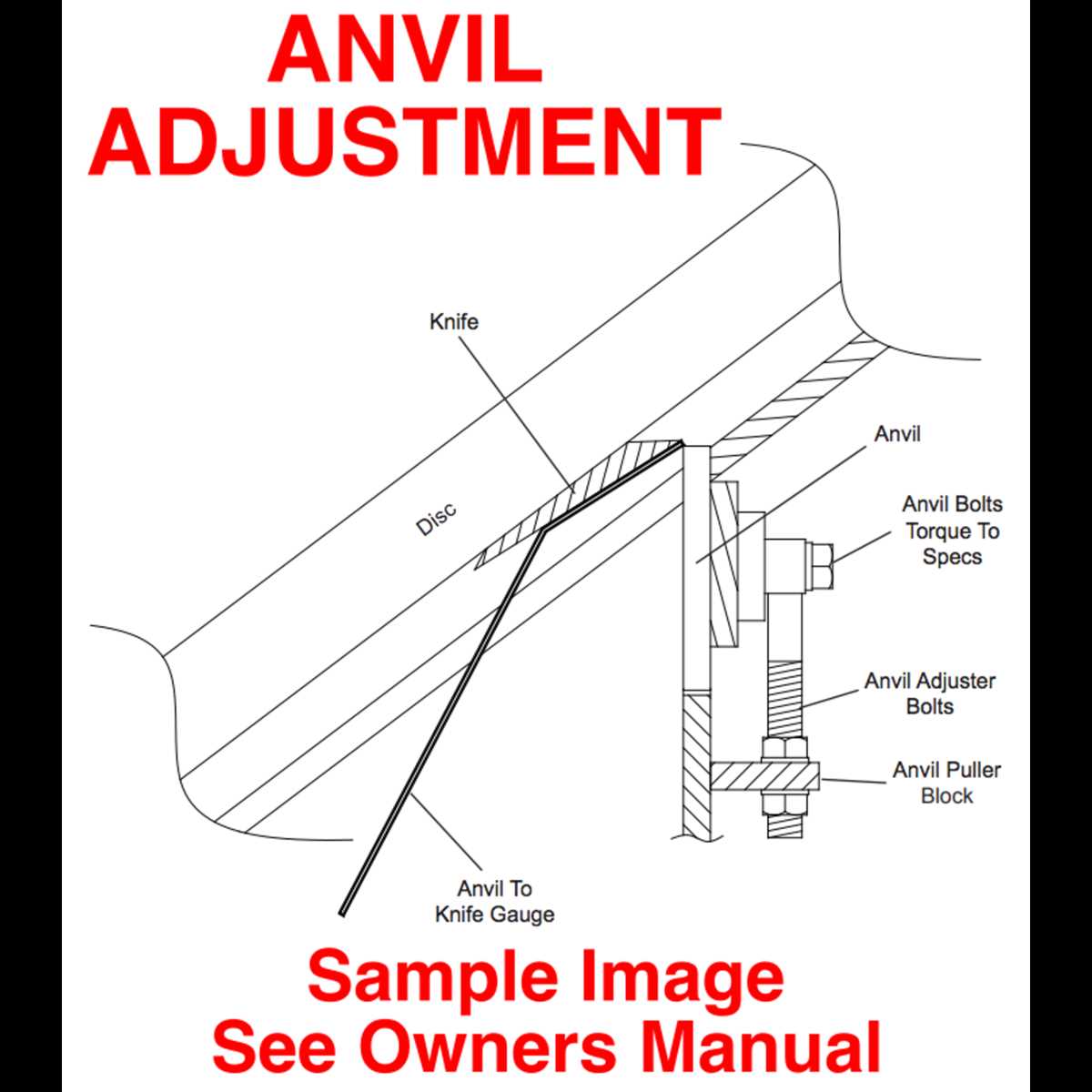

Attach the anvil to the frame with M16 socket cap screws (torque: 110-120 Nm). Position the anvil so its leading edge sits 2-3 mm below the disc’s cutting path–adjust via the slotted mounting holes. Shim the anvil with 0.5 mm stainless steel washers if clearance exceeds specifications. Failure to maintain proper clearance results in unprocessed material jamming the feed chute.
Mate the hydraulic motor to the gearbox input shaft, ensuring the splines align without forcing. Use a brass drift to tap the motor flange into position if resistance is felt–never strike the shaft directly. Connect hydraulic lines with JIC fittings, tightening to 40-45 Nm. Route hoses away from the disc path to prevent abrasion; secure with nylon ties at 200 mm intervals. Pressure-test the system at 20.7 MPa before operation.
Calibrate the feed roller pressure by adjusting the relief valve on the hydraulic manifold. Set the pressure to 12.4 MPa for dry hardwood, reducing to 8.3 MPa for softwood or moist material. Verify roller engagement by feeding a 50 mm diameter branch–rollers should grip without stalling. Replace roller belts if slippage occurs; use Gates 3VX belts matched to within 3 mm length.
Finalize assembly by installing the safety interlocks–test each micro-switch with a multimeter (closed circuit when engaged). Lubricate the spindle bearings with NLGI #2 grease via the zerks until purge appears at the seals. Record pre-operation clearance measurements for future reference: disc-to-anvil (2.5 mm ±0.3 mm), drum-to-housing (0.2 mm max), and roller gap (adjustable via hydraulic gauge).
