Begin with the spool assembly–this is the heart of any high-performance fishing device. The spool itself should rotate freely, balanced by precision bearings. Check the spool tension knob first; improper adjustment causes backlash, wasting fishing time. Most advanced models include a centrifugal braking system–usually with 4-6 adjustable pins–to control line release during casts. Disable or misconfigure this, and accuracy drops sharply.
The levelwind system ensures even line distribution across the spool. On quality units, this mechanism is made of hardened brass or stainless steel to resist corrosion from saltwater. Replace worn levelwind pawls immediately; a single damaged tooth leads to uneven line layers and tangles. Lubricate the pawl track with marine-grade grease every 20-30 uses to prevent friction buildup that slows retrieval speed.
The drag washers determine smoothness under load. Carbon fiber drags outperform felt in wet conditions, maintaining consistent pressure without忽然 slipping. Test drag tension before fishing by pulling line with a scale–ideal settings range from 1.5 to 3.5 kg (3-8 lbs) for most species. Avoid overtightening; excessive drag pressure wears out washers prematurely. Clean drag stacks with isopropyl alcohol to remove salt deposits after each saltwater session.
The handle assembly directly impacts control. Ergonomic power handles with EVA grips reduce fatigue during long sessions, while oversized knobs provide better leverage for large catches. Check the drive gear ratio–6.4:1 is optimal for versatility, balancing retrieval speed and torque. Lower ratios (5.1:1) increase cranking power for deep-water jigging, while higher ratios (8.1:1) suit fast topwater presentations.
Frame integrity is often overlooked. Aluminum frames resist flex under load, while graphite units are lighter but less durable. Inspect side plates for hairline cracks–especially near stress points like the footmount–which indicate imminent failure. Reinforce vulnerable areas with epoxy if fishing heavy cover regularly. The footmount itself should sit flush with the rod butt; misalignment transfers stress unevenly, reducing casting distance and accuracy.
Line guides deserve attention. Ceramic rings reduce friction better than metal, extending line life. Check guide alignment with a straightedge; even a 0.5mm misalignment adds unnecessary drag during casts. Replace cracked or pitted guides immediately–they act as weak points where line breaks under pressure. For braided line, use silicon carbide guides to prevent premature wear.
Routine inspection prevents 90% of failures. Disassemble the unit every 50 hours of use or after exposure to harsh conditions. Remove old grease thoroughly with degreaser before applying fresh lubricant–mixing viscosities creates friction-prone sludge. Store dismantled components on clean surfaces to avoid debris contamination, which is a leading cause of premature wear.
Understanding the Anatomy of a Casting Mechanism
Locate the brake system near the spool’s side plate–modern designs typically integrate either centrifugal or magnetic brakes. Adjust the dial incrementally: start with 70% brake pressure for heavy lures (over ¾ oz) and reduce to 30-40% for lighter ones (under ¼ oz) to prevent backlash without sacrificing casting distance. Higher brake settings are unnecessary for experienced users throwing consistent, straight trajectories but act as a safeguard for novices.
The spool tension knob, positioned adjacent to the handle, requires precise calibration. Rotate it until the lure descends under its own weight when disengaged, then tighten by an additional ⅛ turn. This minimal resistance balances sensitivity with control. Over-tightening suppresses performance, while too loose a setting risks line overrun, especially in windy conditions.
Examine the levelwind guide–its oscillating motion should track smoothly across the entire spool width. Misalignment causes uneven line lay, leading to weak spots and premature wear. If irregularities appear, disassemble the guide assembly and clean the worm gear with isopropyl alcohol; lubricate sparingly with light oil, focusing on the gear teeth and bushings while avoiding contact with the line or brake components.
Critical Wear Points and Maintenance
Inspect the drag washers for contamination or flat spots–silicone grease maintains smooth operation but excess attracts debris, increasing resistance unnecessarily. Replace washers if grooves exceed 20% of their original depth. Pair ceramic drags with braided line to reduce heat buildup; graphitic drags suit monofilament for cooler, more consistent tension under sustained loads.
The pawl and ratchet mechanism governs anti-reverse functionality. Engage the feature by rotating the handle backward–resistance should feel crisp, without slack or hesitation. If clicks sound irregular, disassemble the reel, clean the pawl’s engagement surface with a cotton swab, and apply a micro-drop of high-viscosity oil to the ratchet teeth. Avoid over-lubrication here; friction improves reliability.
Side covers house bearings that demand attention. Remove the side plate using a precision screwdriver–magnetic tip prevents fasteners from falling into gear assemblies. Shielded bearings (marked “ZZ”) tolerate debris better than open designs but require periodic flushing with denatured alcohol to remove old grease. Re-lubricate with reel-specific grease; automotive grease increases startup resistance and promotes corrosion.
Optimizing Gear Ratios for Specific Techniques
7.0:1 to 8.1:1 ratios excel for single-hook presentations like jigs and Texas rigs, providing rapid retrieval without sacrificing torque. Lower ratios (5.4:1 to 6.4:1) generate superior cranking power for deep diving cranks or heavy cover flipping, where line retrieval speed is less critical than force. Match pinion and main gear materials–bronze pinions with brass main gears offer durability; aluminum combinations reduce weight but wear faster under high loads.
For finesse applications, disable the anti-reverse to allow free spool backward, enabling line management without disengaging the reel. Practice this technique with 8-12 lb fluorocarbon to avoid line memory issues. When targeting aggressive fish, lock the anti-reverse and engage the drag fully–initial hooksets require firm pressure, followed by reducing drag tension to 25-30% of line test for the fight.
Critical Elements Exposed in a Precision Fishing Mechanism Breakdown
Start by identifying the spool assembly–its design dictates line control and casting distance. The bar-rel-shaped component should feature engineered grooves or micro-patterns to reduce backlash; a smooth surface increases friction-related issues. Check the spool tension knob adjacent to the frame; rotating it clockwise tightens resistance, counterclockwise loosens. This adjustment prevents overruns when deploying lighter lures. For optimal performance, pair the tension setting with the magnetic braking system–located beneath the side plate–to fine-tune cast dynamics.
- Handle and crankshaft: Look for a dual-bearing system; single-bearing cranks wear faster under load. The handle length (typically 85–100mm) affects torque transfer–shorter grips suit high-speed retrieves, longer ones provide better cranking power for heavy loads. Replace plastic gears immediately if teeth show wear; metal alloys (aluminum or brass) last 3–5x longer.
- Drag washers: Carbon fiber composite washers outperform felt or cork by 40% in heat dissipation. Stack multiple washers in pairs to distribute pressure evenly–misalignment causes inconsistent drag, leading to snapped lines. Lubricate sparingly with synthetic grease every 20 hours of use; excess attracts debris that abrades surfaces.
- Levelwind guide: A worm-gear-driven guide ensures even line lay across the spool. If the guide sticks or skips, check for bent wires–straighten with pliers, not brute force, to avoid cracking the track. Replace a damaged guide; irregular line winding reduces casting accuracy by up to 25%.
Inspect the side plate for screw torque–loose fasteners cause frame flex, misaligning internal components. Use a torque driver set to 1.2–1.5 Nm for steel screws, 0.8–1.0 Nm for aluminum threads to avoid stripping. The pinion gear, meshing with the spool drive gear, must rotate freely; apply a rice-sized drop of low-viscosity oil to the shaft biennially. Sticky rotation indicates corrosion–disassemble, clean with isopropyl alcohol, and re-grease.
Examine the thumb bar (clutch lever) for smooth engagement. A worn or cracked lever fails to disengage the spool reliably, causing backlash. Test by pressing firmly–resistance should be uniform across the arc. If the return spring feels weak, replace it; a sluggish release reduces hookset precision. For saltwater applications, corrosion-proof internal coatings (e.g., titanium nitride) extend lifespan 2–3 years compared to untreated alloys.

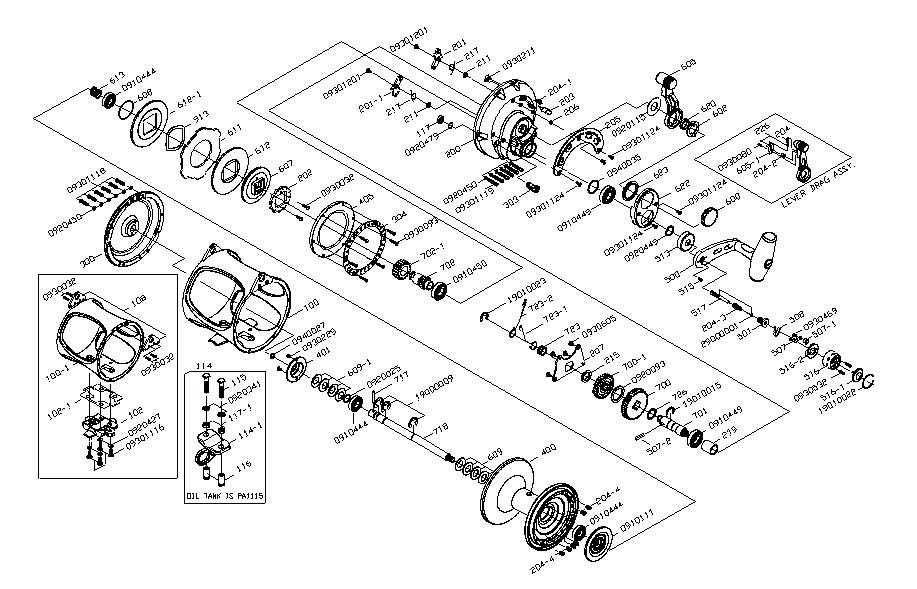

Locating and Naming Core Components on Your Casting Mechanism Blueprint
Start by isolating the spool–the cylindrical element at the heart of the mechanism where the line coils. Its sides often feature subtle ridges or bearings; trace the perimeter to confirm its boundary before moving outward. Mark this as the central reference point for all adjacent structures.
The handle assembly sits opposite the spool’s axis, connected via a shaft protruding from the frame. Rotate it slowly to observe the gears engaging–this confirms the drive train’s path. Note the ergonomic grip; it may include rubberized inserts or contoured shapes to distinguish it from neighboring pieces.
Examine the drag system near the spool’s rear. Look for a star-shaped wheel or stacked washers beneath a threaded cap. Turning it clockwise tightens resistance; note how the washers compress against the spool’s spindle. Label this immediately to avoid confusing it with brake components later.
Identify the levelwind guide–a slender, oscillating arm gliding parallel to the spool. Its movement should align precisely with the line’s winding action. If absent, the model relies on manual line management; in that case, skip this step but document its omission.
Trace the brake mechanism–typically a dial or centrifugal blocks housed inside the side plate. Modern variants use magnetic or centrifugal designs; older models may have a simple friction pad system. Press or adjust to feel the tension change, then label its exact position relative to the spool.
The frame forms the skeleton, often split into two halves. Note any screws or clips securing it–these will correlate with the side plate’s mounting points. High-end variants may include graphite or aluminum alloys; tactile differences in material texture can aid identification.
Locate the anti-reverse switch, usually a small lever near the handle. Flip it to hear or feel a faint click; this toggles the pawl’s engagement. Absence of this switch indicates a unidirectional model, where the handle only turns clockwise when reeling in.
Finally, inspect the line guide roller–a tiny, free-spinning wheel atop the levelwind. Its surface should remain smooth to prevent line fraying. If it wobbles excessively, the bearing may require maintenance; note this for future reference during disassembly.
