Start with the drive belt–the most failure-prone element in any high-performance sled. Replace it with a carbon-fiber reinforced model if riding in deep powder or steep terrain, where slippage occurs under 50psi torque. OEM belts degrade 30% faster under temperatures below -15°C; aftermarket variants last 1200–1800 miles in test conditions vs. 800–1000 for stock.
Inspect the clutch calibration every 500 miles. A misaligned primary clutch reduces acceleration by 18% and raises fuel consumption 8–10% due to premature engagement. Adjust the helix angle to 32° for aggressive trail use, 28° for powder–each degree alters engagement speed by 120 RPM. Replace clutch springs at 1500 miles regardless of wear signs; tension decays incrementally after 12 engagements per ride cycle.
Track tension impacts energy transfer directly. Under-tensioned tracks cause 2–3% power loss; over-tensioning increases slider wear 40%. Set tension to 5/16″ sag at ride height–check with a dial caliper, not eyeballing. Replace slide rails when wear exceeds 1.2mm; uneven wear leads to premature track failure within 750 miles. For heavy riders (220+ lbs), use 90-durometer sliders–standard 75-durometer deforms under sustained load.
Fuel pump pressure must hold 27–30 psi; readings below 24 psi indicate failing diaphragms or cracked inlet seals. Replace both the pump and filter every 2 seasons–ethanol-blended fuel hydrolyzes seals faster, reducing flow rate by 14% annually. For high-altitude riding, remap the ECU with Lean 2 settings–stock maps enrich fuel mix unnecessarily above 7000’, costing 4–6% throttle response.
Suspension rebuilds demand precision. Damper rod wear below 0.003″ creates cavitation, reducing rebound damping by 22%. Re-valve shim stacks for rider weight: 300g stack for 180 lbs, 350g for 220+ lbs. Replace ice scratchers every 300 miles–worn units lose cooling efficiency, raising cylinder temps 15°F. For ice conditions, switch to carbide studs; steel variants dull within 50 miles.
Snowmobile Component Breakdown: Hands-On Reference
Begin with the drive belt–check tension every 500 miles. A slack belt slips, reducing power transfer by up to 30%. Use a tension gauge; manual adjustments often misjudge force. Replace belts showing cracks, fraying, or glazing. Store new belts in a cool, dry place away from petroleum fumes, which degrade rubber compounds within months.
Inspect the track every 250 miles for embedded debris or torn lugs. Small punctures expand under load, leading to catastrophic failure. Clean the tunnel and suspension rails with compressed air to prevent ice buildup, which adds weight and strains components. Lubricate slider shoes with dedicated synthetic grease–conventional oils attract grit, accelerating wear.
Fuel system maintenance demands precise handling. Drain the tank completely before off-season storage to prevent ethanol separation, which corrodes aluminum carburetors within weeks. Replace fuel filters at 1,000-mile intervals; clogged filters starve the engine, causing lean conditions that warp pistons. Use 91+ octane fuel to avoid pre-ignition in turbocharged models.
| Component | Inspection Interval | Replacement Signs |
|---|---|---|
| Spark plugs | 100 miles | Electrode erosion, sooty deposits |
| Suspension springs | 500 miles | Visible sag, corrosion pits |
| Steering bearings | 750 miles | Notchy rotation, excessive play |
| Exhaust valves | 1,200 miles | Carbon buildup, pitting |
Electrical diagnostics require a multimeter set to 20V DC. Probe battery terminals–voltage below 12.4V indicates sulfation, requiring desulfation charging. Test stator output at 4,000 RPM; readings below 35V AC signal imminent failure. Replace voltage regulators if output exceeds 14.8V, as overheating damages wiring harnesses. Store batteries at 50% charge–not full–to prolong lifespan.
Recognizing Key Snowmobile Powerplant Elements in Schematics
Locate the crankcase first–it’s typically the largest housing at the engine’s base in illustrated breakdowns. Verify bolt patterns around its perimeter as these differentiate between two-stroke and four-stroke models. Most older sled designs cluster the reed valves on the intake side, while newer configurations place them adjacent to the cylinder block.
Trace the ignition system by identifying the flywheel magneto–usually a circular disc with curved protrusions near the outer edge. Modern sleds integrate coils directly onto the stator plate, visible as flat windings beneath the flywheel. Check for CDI modules mounted on engine plates; their positioning often dictates spark plug lead lengths.
Examine piston-cylinder assemblies next. Note ring groove spacing–two-stroke sleds typically have three grooves (two compression, one oil), while four-stroke variants may include an additional oil-scraper groove. Observe cylinder fin shapes; deeper fins indicate high-performance or liquid-cooled setups.
The carburetion or EFI components appear on the opposite side of exhaust ports. Float bowls resemble transparent domes in side-view schematics, while throttle bodies maintain symmetrical conical shapes. Note fuel rail positioning in EFI systems; improper alignment disrupts injector spray patterns.
Inspect the exhaust manifold routing. Two-stroke sleds often use expansion chambers with converging-diverging sections, while four-stroke sleds employ simpler header pipes. Mark collector locations where multiple pipes merge–critical for backpressure calculations during modifications.
Distinguish lubrication systems by locating oil injection pumps (two-stroke) or mechanical oil pumps (four-stroke). Oil lines typically follow engine contours, terminating at crankshaft bearings or camshaft journals. Four-stroke variants include distinct oil filter housings, usually cylindrical and side-mounted.
Interpreting Transmission Connections

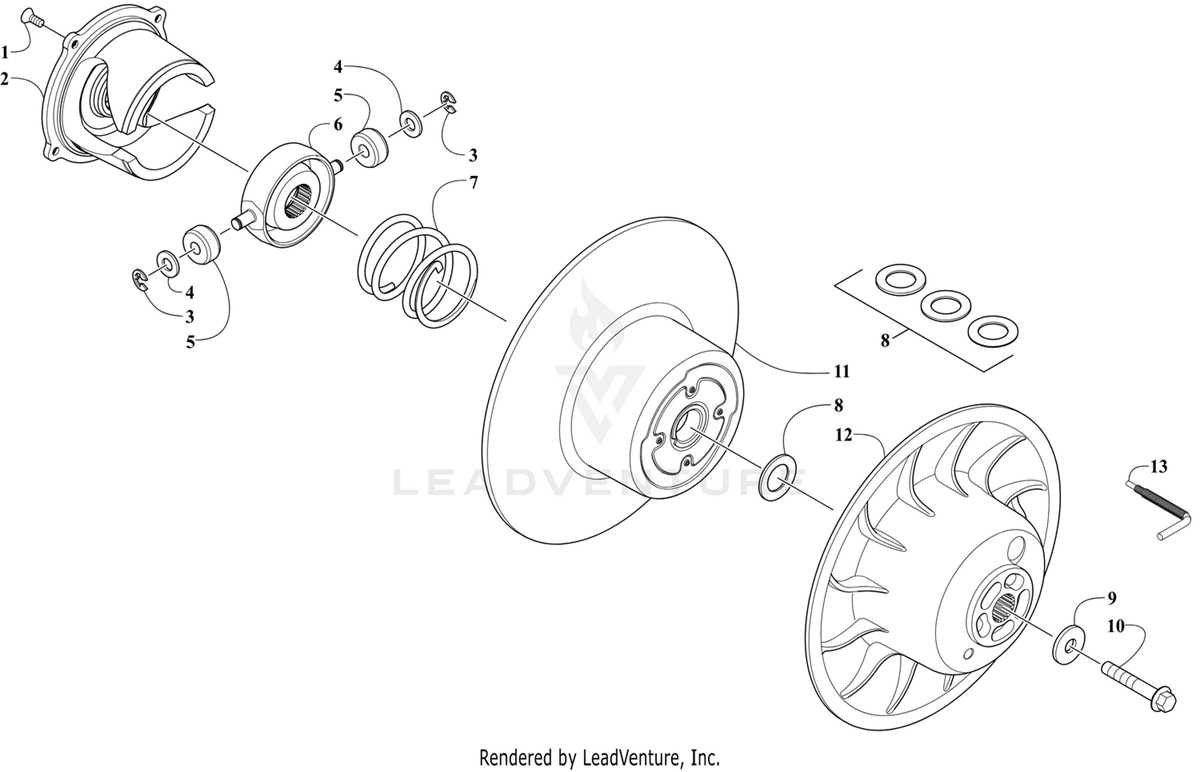

Find the belt drive primary clutch attached to the crankshaft end. Secondary clutches mount on jackshafts, identifiable by their pulley diameters. Note torque limiter placements between engine outputs and driven clutches–these small disks absorb shock loads during engagement.
Track gear ratios by measuring clutch diameters against final drive sprocket sizes. Most schematics label teeth counts; divide driven by driving elements to calculate ratios. Observe chain or gear final drives–silent chains require specific tension paths often marked by tensioner positions in illustrations.
Cooling System Differentiation
Fan-cooled engines display prominent shrouds enclosing impellers near cylinder fins. Liquid-cooled variants feature coolant pumps mounted on crankcase sides, with hoses leading to radiators or heat exchangers. Note thermostat locations within coolant pipes–removeable caps indicate flow checkpoints.
Snow flaps integrate with cooling systems–inspect mount points near drive axles. Hydraulic brake systems couple with heat exchangers on performance sleds; verify reservoir positions above master cylinders in hydraulic schematics.
Locating Manufacturer-Approved Snowmobile Schematics by Model

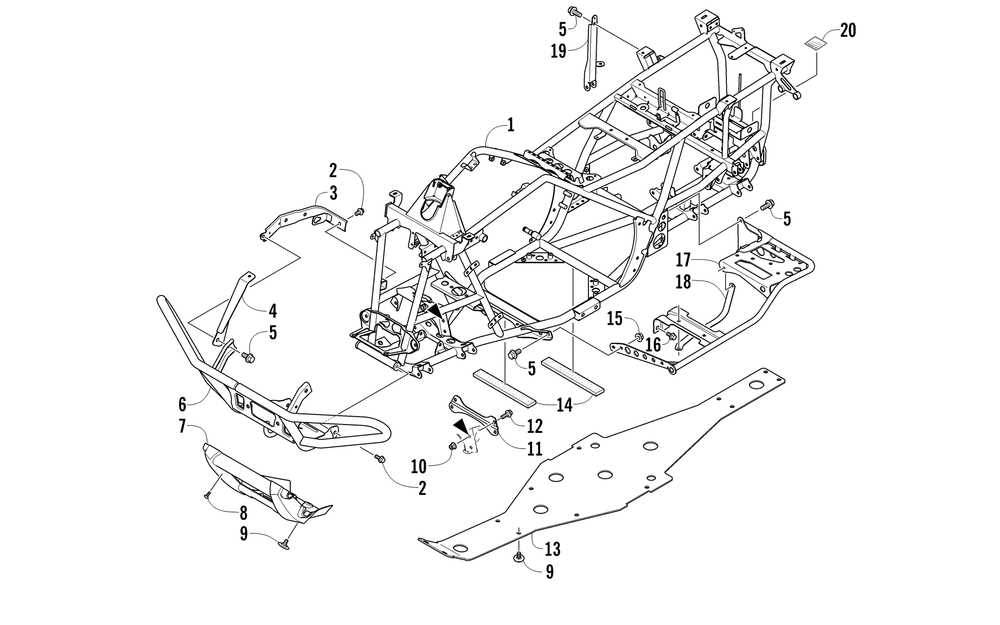

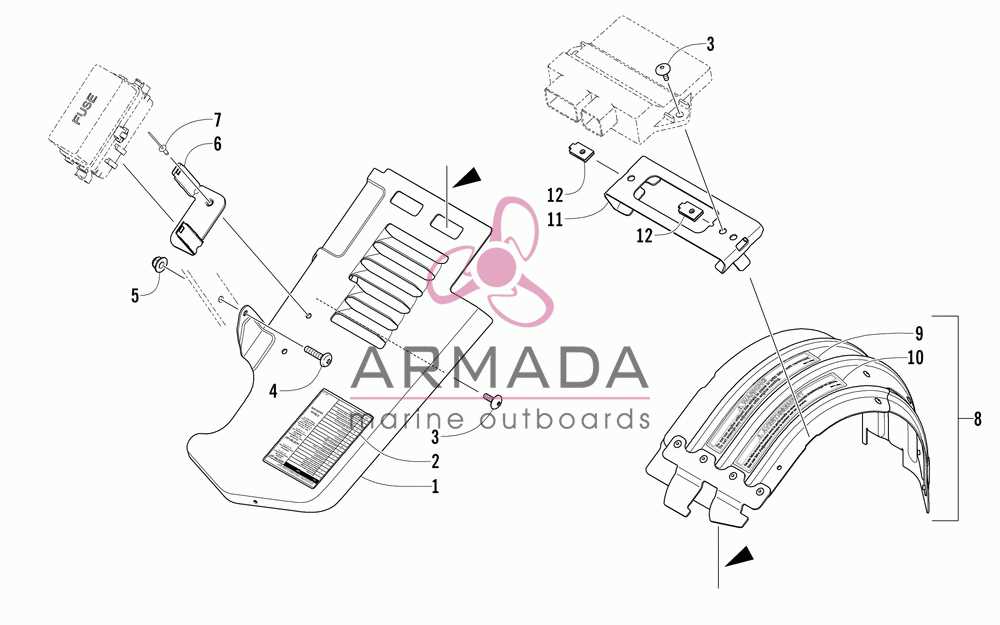

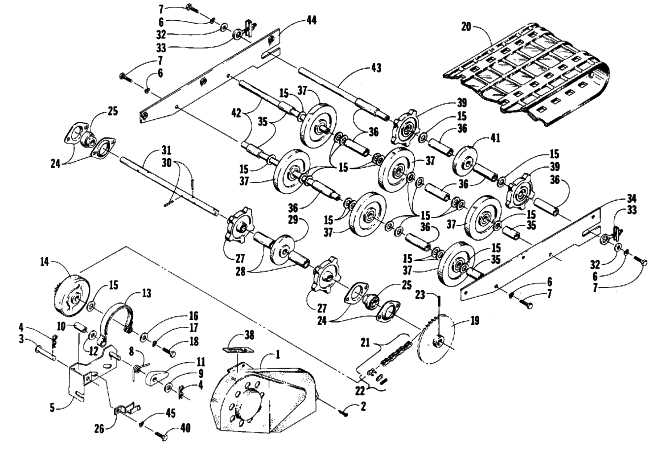

Begin with the official brand’s service portal–arcticsupport.com. Select the exact model year and variant (e.g., ZR 8000 2023, Bearcat 570 XT 2018) to access the exploded-view drawings. These schematics include part numbers, assembly sequences, and torque specifications. For older models (pre-2015), the portal archives PDF manuals with identical detail, though navigation may require downloading entire sections rather than searching by component. Avoid third-party aggregators; OEM drawings guarantee bolt-hole alignment, gasket thickness, and electrical pinouts verified by engineers.
Regional dealers maintain offline archives–contact a service department at a franchised retailer using their internal system, often Polaris’ PartsMatrix or Ski-Doo’s BRP TechLink. Request the specific subsystem (e.g., drivetrain, suspension, electrical) to receive emailed PDFs or printed overlays. Note that dealer schematics sometimes omit proprietary seals or fasteners; for these, reference the original equipment supplier documentation–MPI Outdoors (clutches), Fox Racing Shox (shocks), or NGK (ignition)–which publish component-level diagrams on product support pages.
Guide to Using Schematic Illustrations for Snowmobile Maintenance
Locate the exact breakdown illustration for your model’s engine assembly before disassembling anything. Manufacturer-issued schematics group components by subsystem–exhaust, fuel delivery, clutch–and include exploded views with numbered callouts matching the service manual’s parts list. Cross-reference the callout number directly with the inventory log to confirm availability rather than relying on visual recognition alone.
Print a high-resolution copy of the subsystem you’re servicing and secure it visibly near the workspace. Use a transparent grease pencil to mark components as you remove them, especially fasteners and seals that lack distinct features. Record the order of removal on the printout itself–arrows or circled numbers prevent misplacement during reassembly when torque values differ by location.
Verify fastener specifications against the schematic before reinstallation. Bolts securing the secondary clutch gap, for instance, may carry identical head sizes but vary in thread pitch or length by a single millimeter; substituting one incorrectly risks stripping threads in magnesium casings. Measure each removed fastener with calipers and compare against the annotated dimensions on the exploded view.
Aligning Tolerances and Gasket Positions
- Check gasket placement using the orientation arrows printed on the foil layer of head gaskets–misalignment by 180° restricts cooling channels.
- Apply assembly lubricant to friction zones like piston skirts and wrist pins; the schematic highlights these surfaces with dashed contours.
- Ensure all locating dowels are seated fully–missing one dowel on a stator plate migration allows timing advance to drift 3° and trigger detonation.
Test operational clearances after reassembly using a feeler gauge set. The schematic’s inset tables list ideal gaps: 0.004–0.006 inches for flywheel-to-crankshaft, 0.010–0.012 inches for clutch sheave faces. Record measured values directly on the printout beside the corresponding dimension line for future reference.
Final Validation Steps
- Reconnect electrical connectors in the sequence noted on the wiring overlay–ground circuits preceding power leads.
- Spin drive components manually before engine start to confirm smooth rotation without interference.
- Start the engine and monitor initial idle quality; hesitating idle often indicates a misrouted vacuum line located via the schematic’s color-coded routing guide.
Archive the annotated printouts as a maintenance journal. Highlight any deviations from the factory illustration–custom shims, aftermarket seals–to expedite future overhauls. Digital replication risks corruption; retain physical copies stored in sealed polypropylene sleeves to preserve grease markings and written notes.
