Begin by referencing the appliance’s model number, typically engraved on a metal plate beneath the cooktop or behind the back panel. Older units often display it near the oven door hinges or inside the storage drawer. Download the official service manual from the manufacturer’s website using this exact number–generic diagrams won’t match critical wiring or assembly variations found in specific releases.
Remove the cooktop’s outer trim carefully–most designs use tension clips rather than screws. Use a flat-head screwdriver to pry them loose, working from the front edge toward the back to avoid cracking plastic retainers. Once lifted, you’ll expose burner assemblies, valves, and ignition modules. Note the color-coded wiring harness connections; red indicates high-voltage terminals requiring electrical safety precautions before handling.
For convection-enabled models, the rear panel must be detached to access the fan motor and heating element mounts. Locate the two captive screws securing the panel, then tilt it forward to reveal the thermostat bracket and temperature sensor assembly. Mark sensor wires with tape before disconnecting to avoid calibration errors during reassembly.
Replace worn ignition electrodes only with OEM components matching the original ceramic insulator length–aftermarket substitutes often misalign, causing intermittent flame failures. Clean pilot holes with compressed air monthly to prevent moisture buildup, which corrodes terminals within weeks.
Document each step with close-up photographs focused on bracket orientation and wire routing. Store fasteners in labeled containers sorted by removal sequence. Misplaced clips or screws during reassembly can create gaps allowing heat leakage, reducing energy efficiency by up to 18%.
Locating Key Components with Precision: A Hands-On Reference
Begin by shutting off the gas supply or unplugging the appliance–never skip this step. For electric models, the control panel’s back cover typically conceals three critical elements: the infinite switch, surface element receptacle, and terminal block. Trace the wiring from the burner knob to the switch first; it’s usually secured with two screws and connects via spade terminals. If the burner doesn’t heat, check the receptacle’s connection next–looseness here causes intermittent operation. For gas units, focus on the igniter and safety valve beneath the cooktop grille; use a multimeter to test the igniter’s resistance (should read 40-100 ohms). Replace if readings exceed 200 ohms or show no continuity.
Disassembly Sequence for Common Repairs
Remove the grates and burner caps first–these lift off without tools. For sealed burners, pry up the trim ring gently with a putty knife to expose the burner orifice and ignition electrode. Clean clogged orifices with a straightened paperclip (never metal wires–they enlarge the hole). The drip pans snap out; soak rusted ones in white vinegar for 30 minutes. For oven issues, detach the door by lifting it to a 90-degree angle, squeezing the hinge locks, and pulling forward. The bake element hides behind the rear panel (four screws); if it’s cracked, replace it entirely–don’t attempt to solder. Reassemble in reverse order, ensuring gaskets align properly to prevent heat leaks.
Always document wire colors and positions before disconnecting anything–photograph each step with your phone. For rare parts like the oven temperature sensor (located behind the rear panel, near the upper-left corner), order replacements directly from the manufacturer’s parts site using the model number etched inside the door frame or drawer slot. Generic substitutes often fail prematurely. Keep a thin socket set (8-10mm) and needle-nose pliers handy; many fasteners resist standard screwdrivers. Never force components–if resistance feels excessive, you’re likely missing a hidden clip or screw.

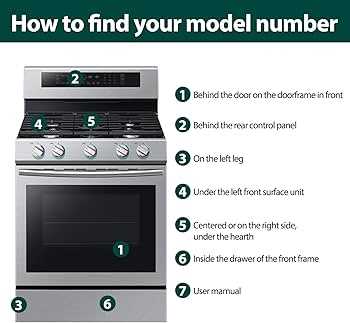

Finding the Identification Number on Your Cooking Appliance
Check the inner frame of the oven door–the most common location for the serial plate. Open the door fully and inspect the metal lip where the door meets the body. The number is typically stamped in small, embossed characters.
Behind the Storage Drawer
Pull out the lower drawer completely. Look along the upper edge of the cavity where the drawer sits. The plate may be positioned at the rear or side wall, often obscured by dust or grease.
Examine the back of the control panel. Remove the single screw holding the panel cover in place–usually near the upper-right corner. The identification tag is frequently attached to the rear surface of the electronics housing.
Beneath the Cooktop Surface
Lift the cooktop if it is hinged. On models with sealed burners, the plate can be found directly beneath the main cooking area, secured to the underside of the console. Use a flashlight to avoid missing faint markings.
Search the side panel of freestanding units. Slide the appliance forward carefully–do not disconnect gas or electric lines–and inspect the left or right side near the base. The tag is sometimes riveted low on the frame.
Consult the original sales invoice or owner’s manual. Retailers often print the exact identification string next to purchase details. If digital records exist, search for “serial” or “model label reference” within PDF manuals.
Capture a clear photograph of the tag once located. Store the image in a dedicated device folder labeled “Appliance Details” for instant retrieval during maintenance or replacement searches.
Detailed Component Walkthrough for Gas Range Models Using Visual Guides
Start by identifying the main control interface at the rear panel–this houses the ignition switch, infinite knobs, and thermal cutoffs. Trace the wiring harness connecting these elements to the valve assembly; misalignment here often causes intermittent flame failures. Check the harness clips for brittleness–replace if cracking is visible to prevent loose connections.
Locate the bake element beneath the cooktop’s drip pan–its serpentine coils should lie flat with no sagging. Measure resistance between terminals with a multimeter: values above 25 ohms indicate burnout. Remove the element retaining bracket carefully; corroded screws here may seize–apply penetrating oil before attempting removal.
The cooktop’s burner cap alignment dictates flame distribution. Remove caps and inspect ports for carbon buildup–use a straightened paperclip, not needles, to avoid enlarging ports. Clean the orifice with compressed air at a 45-degree angle. Verify the electrode gap (typically 3–4mm) before reassembling; improper spacing causes delayed ignition.
Examine the oven’s door seal for gaps exceeding 2mm–compressed fiberglass seals lose integrity after 2,000 cycles. Peel back the old seal and clean the groove with isopropyl alcohol; adhesives fail if residue remains. Compare the replacement seal’s cross-section to the original–mismatched profiles result in heat leakage.
For models with convection fans, access the rear housing panel and inspect the fan blade for grease accumulation. Spin the blade manually–grinding noises indicate bearing failure. Lubricate the shaft with high-temperature silicone spray; petroleum-based lubricants degrade above 250°C. Test the fan’s thermal fuse by checking continuity–if open, replace the entire assembly as individual fuses are non-serviceable.

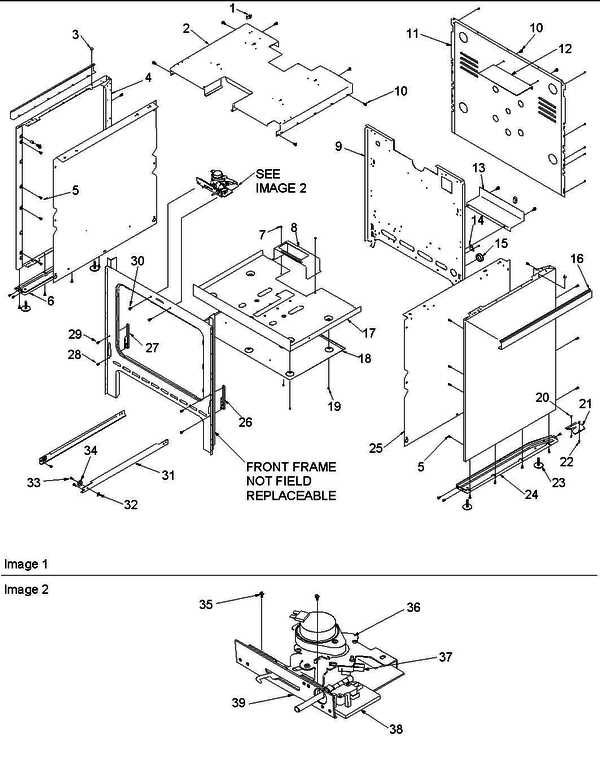

Locating Original Components via Manufacturer Blueprints
Begin by accessing the authorized service portal for your appliance brand. The official website maintains an interactive schematic tool that filters components by model number–enter yours exactly as shown on the serial plate. This system displays exploded views with numbered references tied to part IDs, eliminating guesswork when ordering. Bookmark the direct link to bypass future navigation steps.
For immediate needs, licensed distributors list inventory in real-time alongside the blueprints. Input your model into their search bar to pull up a visual layout with clickable hotspots; each hotspot links to availability, pricing, and compatibility notes. Avoid third-party marketplaces that lack these integration features–cross-references often fail, risking incorrect replacements. The table below highlights trusted suppliers with verified integration:
| Supplier | Website | Blueprint Integration | Shipping Cutoff |
|---|---|---|---|
| Factory Direct | official-site.example/parts | Full (clickable) | 3:00 PM EST |
| Appliance Pro | appliance-pro.example | Partial (static images) | 2:00 PM CST |
| Repair Depot | repair-depot.example | Full (clickable) | 12:00 PM PST |
Local service centers stock common items like knobs, burners, and ignition modules. Present the exploded view on a mobile device to confirm the exact item before purchasing–staff can scan barcodes from the schematic to pull bin locations instantly. Schedule visits during weekday mornings to avoid queues; some locations require appointments for out-of-stock components, which they can order while you wait.
Hardware stores affiliated with the brand offer limited selections for same-day pickup. Bring the printed or digital schematic to the appliance aisle; associates trained on these diagrams can guide you to compatible hardware like oven racks or door hinges. Smaller stores may label sections generically–ask specifically for “original equipment” rather than aftermarket alternatives.
For discontinued models, authorized archives host downloadable schematics in PDF format. These files include detailed annotations absent from newer tools, such as original torque specifications for screws or wire gauge requirements for electrical replacements. Use Ctrl+F (or Command+F) to search for keywords like “door latch” or “valve assembly” within the document, then cross-reference the part number with the supplier database.
If the blueprint’s legend doesn’t match the physical item, measure dimensions precisely with calipers before ordering. Compare the schematic’s exploded dimensions to the damaged piece–even minor discrepancies can indicate revised part numbers. Some suppliers allow returns if the component doesn’t align with the diagram’s specifications, but restocking fees apply unless the error is confirmed as theirs.
Verifying Compatibility Before Purchase
Input the model and serial number into the manufacturer’s compatibility checker before finalizing any order. This tool flags potential conflicts with upgrades or recalls, listing superseded part numbers that fit your specific configuration. Overlook this step only if purchasing directly from a service technician who has physically inspected the unit.
