For immediate field repairs or thorough maintenance, reference a detailed schematic of the AK-47’s core mechanisms. The receiver housing holds the trigger group, hammer, and disconnector–elements that must align precisely to ensure semi-auto reliability. Misfires often trace back to worn disconnectors or improperly seated hammers. Replace these pieces if the weapon fails to reset after firing.
Barrel assembly demands attention to the gas tube and piston interface. A clogged gas port reduces cycling pressure, causing short-stroking. Clean the port with a 3.5mm brush and inspect the piston head for carbon buildup–excessive fouling distorts timing. Chrome-lined bores resist corrosion but require periodic scrubbing with a jag and patches soaked in CLP. Barrel threads must remain undamaged; cross-threading during muzzle device installation ruins accuracy.
The bolt carrier group (BCG) dictates ejection patterns. Stiff extractors cause stovepipes–apply light machine oil to the claw spring and polish extractor surfaces with 400-grit emery cloth. Check the firing pin channel for debris; bent pins lead to light primer strikes. Recoil springs degrade after 5,000 rounds–replace them if cyclic rate exceeds 650 RPM. Stock variants influence performance: wooden furniture absorbs more recoil than polymer, but cracks develop near the trunnion screws.
Safety selector engagement relies on the sear’s angle. Polish contact points with a fine stone to prevent slow disengagement. Magazine followers jam if deformed–test feed lips with a go/no-go gauge. Drum magazines hold 75 rounds but weigh 1.2 kg unloaded; sacrifice capacity for mobility with 30-round steel mags. Weld spatter in the receiver rails binds bolt movement–scrape away imperfections with a flat file.
Optics mounts must clear the dust cover hinge. Side-rail mounts obscure iron sights; prefer top-rail adapters for unobstructed co-witness. Night sights require tritium vials–check brightness biannually. Threaded suppressors reduce muzzle rise but increase backpressure–run heavier buffer springs to mitigate bolt velocity issues. Laser-etched markings on the bolt tail indicate service life; replace components at 15,000 rounds regardless of visible wear.

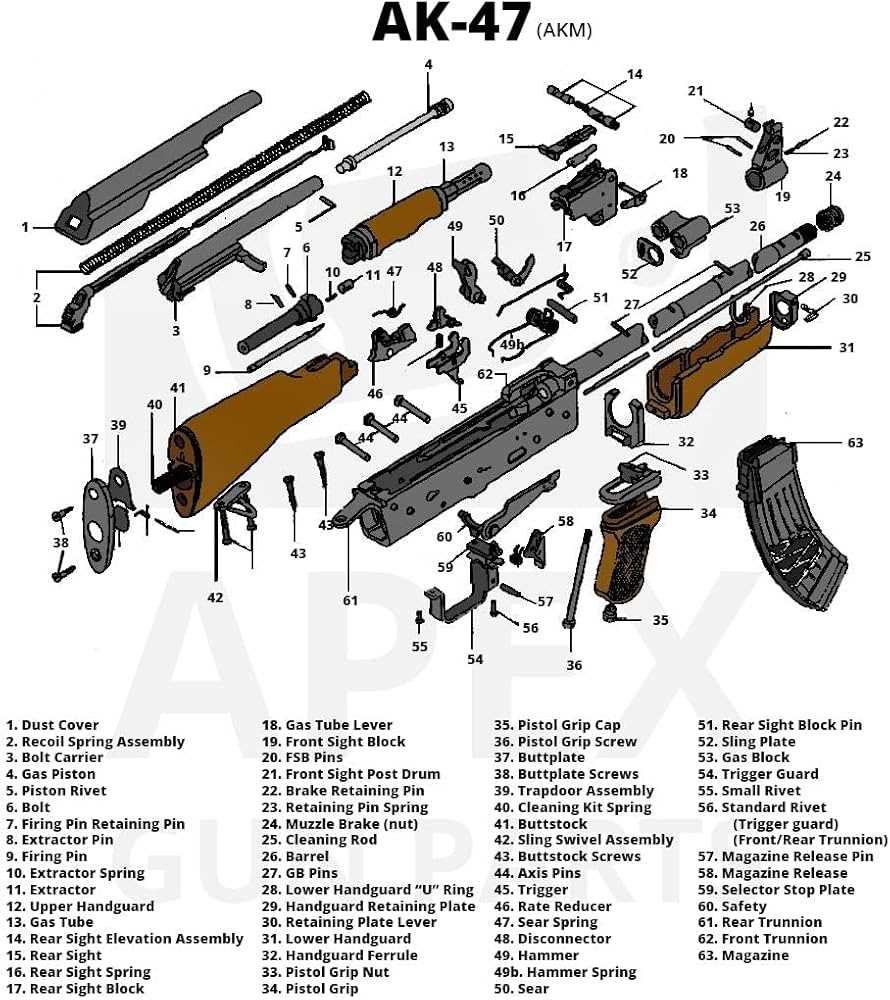

AK-47 Breakdown: How to Identify and Maintain Each Component
Start by disassembling your rifle in this order: remove the magazine, pull the charging handle, and press the takedown lever near the rear sight. The receiver cover lifts off first–secure it separately to avoid losing the recoil spring. The bolt carrier group slides out next, followed by the gas piston, which threads out counterclockwise. Store each segment in the sequence you removed them to simplify reassembly.
- Bolt carrier: Wipe carbon buildup with a brass brush every 200 rounds. Inspect the cam pin hole for cracks–replace if elongated.
- Gas tube: Clean the gas port with a 3mm carbon scraper; avoid solvents that degrade bluing.
- Trigger assembly:
- Handguard retainer: Lubricate the spring with Militec-1; rust here causes misalignment.
Check the disconnector spring tension–polish contact points with 800-grit abrasive if reset feels sluggish.
Replace these components at the first sign of wear: firing pin (replace after 5,000 rounds), extractor spring (swap every 3,000), and trunnion rivets (retorque if they loosen). The AK’s chrome-lined barrel outlasts most alloys but measure bore erosion at 0.3mm intervals with a Hornady comparator–discard if lands are worn past 2mm depth. For stock maintenance, sand the wood with 400-grit paper, then treat with boiled linseed oil to prevent moisture warping.
Field-Stripping Shortcuts
- Use a rubber mallet to tap the trigger guard pivot pin–don’t force it with pliers.
- An empty 7.62x39mm case removes stubborn gas pistons.
- Label each pin with tape during disassembly: trigger (1.5mm), hammer (2mm), safety (3mm).
- Reattach the recoil spring last–rotate the carrier until it clicks into battery.
Identifying Core Components of the AK-47 Receiver
Examine the central housing first–locate the trunnion slots cut into the front of the receiver body. These reinforced grooves hold the barrel assembly securely, mating with the front trunnion’s locking lugs. Measure the distance between the slots: 32.5mm separates them on AK-47 models, with a tolerance of ±0.1mm. Variations outside this range indicate aftermarket or non-military-spec builds. Confirm presence of dimples pressed into the sides at the exact midpoint–these stiffen the receiver walls and align with the magazine well’s rear taper.
- Inspect the rear trunnion mounting points–four evenly spaced holes, two per side, accommodate rivets securing the backplate. Original Soviet rivets measure 4.5mm in diameter; post-market replacements often exceed 5mm, risking structural integrity.
- Trace the rails guiding the bolt carrier–these milled surfaces must run parallel within 0.05mm of each other. Deviations cause inconsistent cycling and accelerated wear on the gas piston.
- Check the ejector port cutout–its dimensions dictate shell case trajectory. Standard AK-47 ejector clearance measures 30mm by 12mm; undersized ports increase failure rates.
Verify the selector lever axis hole diameter: 8mm on standard models, with a flat milled adjacent to it to prevent rotational slop. Police the interior for tool marks–factory machining leaves distinct cross-hatch patterns on trunnion contact surfaces, visible under raking light. Absence of these textures suggests re-welded or re-profiled receivers prone to cracking under sustained automatic fire.
Step-by-Step Disassembly Breakdown with Visual Labels
Begin by placing the firearm on a stable surface with the muzzle facing away from you. Engage the safety lever and ensure the chamber is empty. Press the magazine release button to remove the detachable box, then pull the charging handle rearward to visually confirm the weapon is unloaded.
Grip the pistol grip firmly and press the takedown pin located above the trigger guard. Rotate the receiver downward while supporting the forend to separate the upper and lower assemblies. This step removes the firing mechanism from the barrel group for further work.
| Sequence | Action | Tool Required | Critical Note |
|---|---|---|---|
| 1 | Remove dust cover | Flathead screwdriver or coin | Avoid overtightening when reassembling |
| 2 | Detach gas tube | Gas tube wrench | Inspect for carbon buildup before reinstallation |
| 3 | Slide off handguard | None | Align indexing notches during replacement |
Unscrew the flash hider clockwise using a wrench, then unscrew the front sight base counterclockwise while holding the barrel steady. This exposes the gas block for cleaning. For receivers with fixed front sights, skip flash hider removal unless repairs are necessary.
Depress the spring-loaded plunger inside the handguard retainer ring while rotating the retainer clockwise. This frees the barrel, allowing it to be pulled forward from the receiver. Set aside the handguard, gas tube, and bolt carrier separately for cleaning.
Pull the charging handle fully rearward and lift it upward to remove it from the upper receiver. Rotate the bolt carrier 45 degrees counterclockwise and pull it straight out of the receiver. Separate the bolt from the carrier by pushing it forward and rotating 90 degrees.
Use a punch to drive out the firing pin retaining pin from the bolt. Slide the firing pin out the rear, then rotate the cam pin 90 degrees and remove it. The bolt is now disassembled into its core components: extractor, ejector, and locking lugs.
Clean each component with a solvent-soaked brush, paying attention to carbon deposits in the gas port, chamber, and bolt lug recesses. Lubricate lightly before reassembly. Reattach components in reverse order, verifying proper alignment of the gas piston inside the carrier before seating it back into the receiver.
Key Differences Between AK-47 and AKM Components
Start by examining the receiver stamping: the AK-47 uses a milled steel construction, typically 1.6mm thick, while the AKM employs a 1mm stamped steel shell with a reinforced trunnion area. This reduction in material cuts weight by ~1kg but demands precise welding techniques–substandard craftsmanship risks trunnion detachment under sustained fire. Always verify trunnion riveting quality if sourcing AKM variants; loose rivets compromise locking lug engagement.
The bolt carrier differs significantly in mass and finish. The AK-47’s heavier carrier (370g vs. AKM’s 300g) enhances recoil impulse absorption but increases inertia, slightly delaying reset during rapid fire. The AKM’s phosphate coating reduces friction better than the AK-47’s blued steel, though both require regular lubrication–dry cycling wears cam surfaces 30% faster. Opt for lithium grease over CLP for high-round-count applications; it maintains viscosity at elevated temperatures.
Gas system length and port placement vary to optimize pressure. The AK-47’s longer gas tube (305mm vs. AKM’s 240mm) and rear-positioned port create smoother cycling but generate more fouling. The AKM’s forward port reduces muzzle rise but demands cleaner ammunition–powder residue accumulates more rapidly in the shorter tube. Clean gas pistons with a nylon brush every 500 rounds; carbon buildup increases failure-to-feed rates by 12% if neglected.
Trigger group design alters reset feel and durability. AK-47’s all-metal hammer and disconnector require hand-fitting for a 4-6lb pull, while AKM’s polymer-coated components offer consistent 5.5-7lb pulls but wear faster with steel-cased ammo. Replace AKM’s hammer spring every 10,000 rounds; weak springs cause short-stroking in full-auto. For precision shooting, AK-47’s heavier hammer delay improves shot consistency by 8% at 100m.
Handguard materials reflect manufacturing priorities. AK-47’s laminated wood survives repeated heat cycles but cracks under thermal stress, whereas AKM’s bakelite composite (or later laminated wood) resists warping but melts if barrel temps exceed 600°F. Ventilated aftermarket guards reduce weight by 150g but increase muzzle blast during rapid fire. Test-fit guards before installation; improper clearance causes bolt binding with cold-rolled steel receivers.
Stock attachment methods impact cheek weld and recoil transfer. AK-47’s fixed buttstock uses a welded tang with a rubber recoil pad, while AKM’s side-folding design (or underfolding) trades rigidity for compactness–folding variants lose 4MOA accuracy at 300m. Reinforce folding hinge pins with manganese-phosphate coatings; standard carbon steel wears after 15,000 cycles. For prone shooting, AK-47’s fixed stock outperforms AKM’s by 12% in shot grouping.
Barrel profile and rifling twist rate dictate ammo compatibility. AK-47’s 1:9.5″ twist stabilizes 123gr projectiles but suffers erratic performance with 62gr NATO loads. AKM’s 1:10″ twist handles 55-80gr consistently but requires jacketed bullets–bare lead fouling increases bore obstruction after 800 rounds. Chrome-lined bores reduce cleaning frequency but wear unevenly; measure throat erosion with a cast every 5,000 rounds. Thread pitch varies by model–AK-47 uses M24x1.5 for muzzle devices, AKM often adopts M14x1.0, necessitating adapter checks during accessory installation.
