Replace faulty components with precision by first locating the capacitor near the compressor–it regulates power delivery and is often the first element to degrade. Use a multimeter to confirm its charge-holding capacity; a reading below 5% of its rated microfarads signals replacement. Always discharge stored energy before handling to prevent injury.
The compressor contactor acts as a switch, engaging the motor when thermostat demands cool air. Inspect for pitted or burned contacts, which cause intermittent cycling. Replace with an identical model matching the coil voltage (typically 24V). Misalignment here leads to motor burnout or inconsistent airflow.
Fan blades within the outdoor heat exchanger circulate air across coiled tubing. Grime accumulation reduces efficiency by up to 30%; clean weekly with a soft brush and low-pressure water. Check for bent fins–straighten gently using a fin comb to restore optimal airflow. Ignoring maintenance here accelerates refrigerant leaks due to increased pressure buildup.
Refrigerant lines linking the compressor to the indoor coil require leak checks every six months. Use an electronic leak detector or soapy water test on joints–bubbles indicate escaping gas. Low refrigerant forces the compressor to overwork, initiating early failure. Recharge only after sealing leaks professionally.
Filters positioned before the evaporator coil demand monthly replacement or cleaning. Clogged filters reduce airflow, causing the coil to freeze. A frozen coil signals restricted circulation or low refrigerant. Defrost immediately to prevent water damage to internal wiring and insulation.
Motor mounts and vibration pads dampen noise and absorb operational stress. Cracks or hardening lead to excessive vibration, loosening electrical connections. Replace degraded pads with original-spec rubber compounds to maintain stability. Loose components accelerate wear on adjacent moving elements.

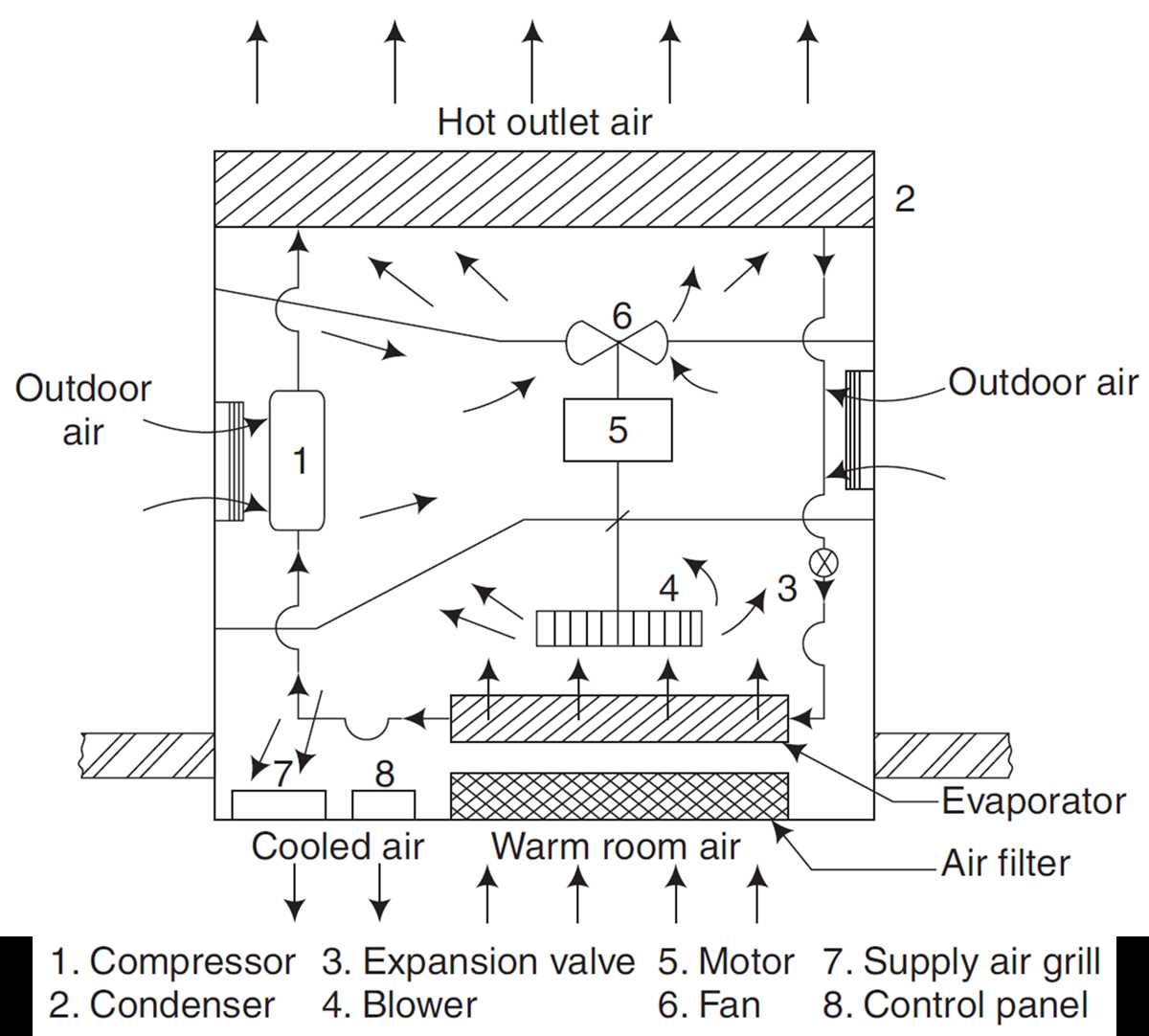

Key Components of an Outdoor Cooling Unit Layout
Begin by locating the fan assembly at the top rear of the outdoor heat exchanger. This component typically includes a motor, blades, and protective grille–ensure the grille is free of debris to prevent airflow blockages. A clogged grille reduces efficiency by up to 30% and accelerates wear on the motor bearings. Clean it quarterly with a soft brush or low-pressure air.
- Motor: Check for unusual noises (grinding, humming) that indicate bearing failure.
- Blades: Inspect for cracks or imbalance–vibration shortens lifespan.
- Grille: Remove leaves, lint, or spiderwebs monthly in dusty environments.
The coil assembly dominates the front and sides of the unit. Its aluminum or copper fins transfer heat from refrigerant to air; bent fins restrict airflow, lowering performance by 15-20%. Straighten fins with a fin comb–work top to bottom, aligning every 2-3 fins per inch. Avoid pressing hard; deformed fins tear easily and reduce heat exchange efficiency.
Refrigerant lines connect the outdoor unit to indoor components. The larger liquid line (often insulated) caries cool refrigerant to the indoor handler, while the smaller suction line returns warm gas for compression. Inspect insulation for cracks; damaged sleeves cause condensation buildup, leading to corrosion. Use closed-cell foam insulation with a minimum R-value of 3 to replace compromised sections.
- Suction line: Warm to touch during operation; icy buildup signals low refrigerant.
- Liquid line: Cool but not cold–excessive frost indicates expansion valve issues.
- Discharge pipe: Hot to touch; abnormally high temps suggest compressor strain.
The compressor sits at the base, often encased in a sound-dampening cover. Listen for irregular rhythms: a clicking relay or steady buzzing may indicate electrical faults. The capacitor–typically a cylindrical canister–stores and releases energy to start the compressor. Test its capacitance annually; a drop below 10% of rated microfarads requires replacement to prevent motor burnout.

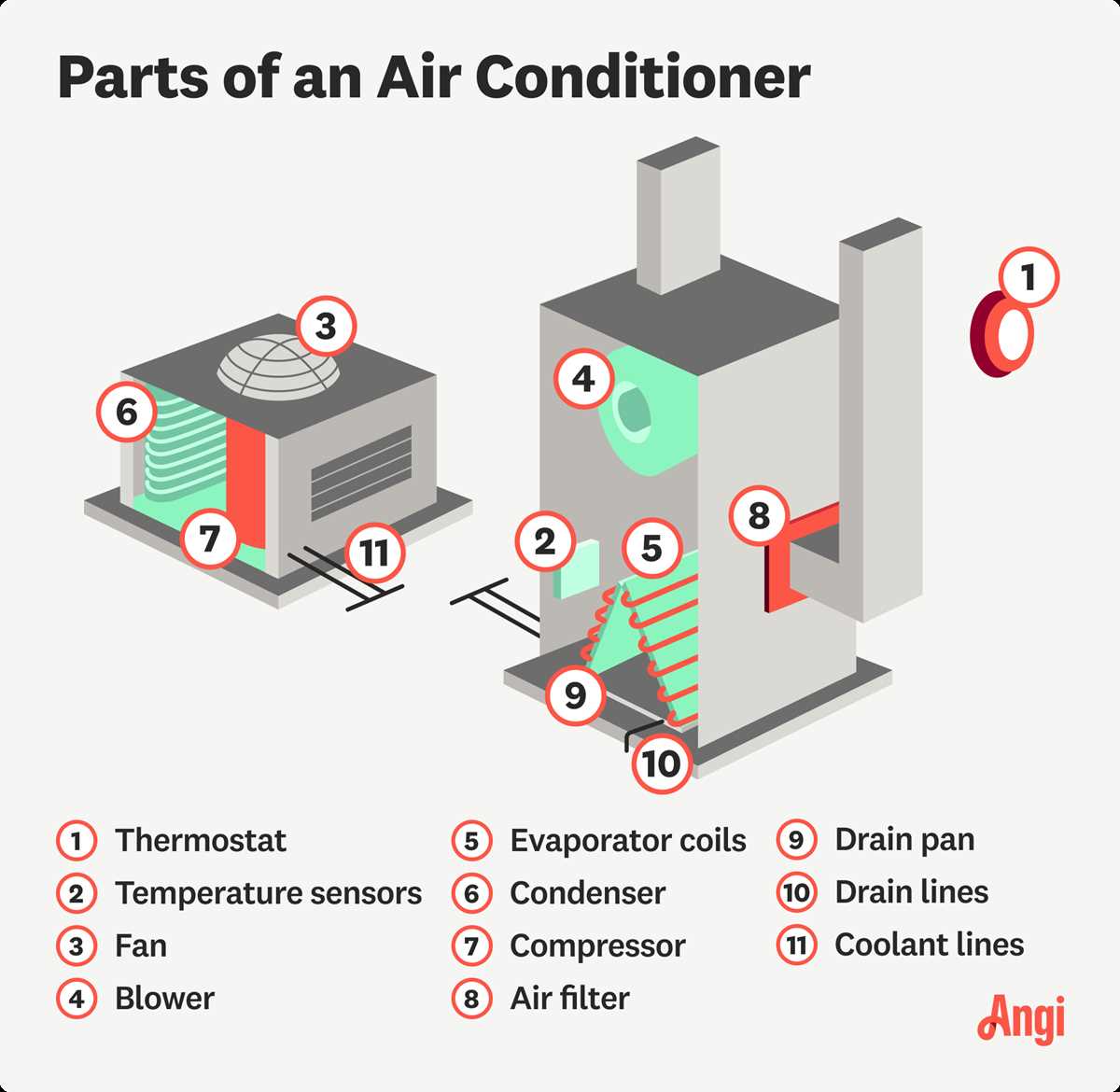

Key Components of an AC Outdoor Cooling Assembly Explained
Begin with the compressor–the core of the outdoor system–positioned at the base near the refrigerant lines. It cycles R-410A or R-32 refrigerant at 300–400 PSI, raising temperatures to ~150°F before pushing gas into the coil. Check for oil leaks around the mounting bolts; discolored stains indicate imminent failure requiring a full replacement, not repairs. Compressor brands like Copeland or Danfoss use scroll designs for efficiency, while reciprocating models (common in older systems) waste 12–18% more energy.
The fin-and-tube heat exchanger wraps around the compressor, typically made of aluminum fins spaced 14–20 per inch with copper tubing. Fins must stay clean; even a 0.04-inch layer of dirt reduces heat transfer by 21%. Use a soft brush or coil cleaner (pH-balanced, non-acidic) every 6 months–pressure washers risk bending fins, creating airflow blockages. If corrosion appears (white/green oxide on copper), replace the coil immediately; patching leaks with epoxy lasts only 3–6 months.
| Component | Material | Failure Signs | Maintenance Interval |
|---|---|---|---|
| Fan motor | Cast aluminum housing, copper windings | Grinding noises, vibration, capacitor bulge | Lubricate bearings annually; test capacitor biannually |
| Expansion valve | Brass body, stainless steel diaphragm | Inconsistent cooling, frost on lines | Check superheat (10–15°F); replace if stuck |
| Relay switch | Plastic casing, silver contacts | Burn marks, “click but no start” | Test continuity with multimeter; replace if >0.5 ohms |
The axial fan (12–24-inch diameter) should spin at 800–1200 RPM, moving 2000–3500 CFM of air. If blades wobble, balance them with a laser balancer tool–3 degrees of misalignment increases noise by 40% and reduces airflow by 15%. Replace blades if tips bend more than 0.1 inches; cracked hubs cause catastrophic failure. For condensate drainage, ensure the P-trap is installed on the discharge line–without it, moisture backs up, corroding the heat exchanger at 3x the normal rate. Use PVC, not rubber hose, for drainage lines; rubber degrades in 2–3 years from UV exposure.
How to Locate and Identify the Outdoor Unit Blower Motor in Schematic Illustrations
Examine the upper section of the wiring layout near the coil assembly–blower motors in climate control systems are typically marked with labels like “Fan Motor,” “Blower,” or “MTR” followed by voltage specs (e.g., “1/3 HP, 230V”). Look for symbols resembling a coil with a shaded circle or oval, often positioned adjacent to the capacitor representation (two parallel lines) on the electrical flow chart.
Cross-reference terminal connections: fan motors usually link to the high-voltage run capacitor via brown and brown-white wires, while the speed taps (if present) connect to corresponding control terminals. Trace the wires from the outdoor unit’s fan blade housing inward–tech documents label these “Fan,” “CFM,” or “Motor Speed 1/2/3” in multi-tap configurations. Single-speed models simplify identification, showing one motor lead exiting the housing.
Verify rotational direction by locating the arrow printed on the motor’s metal casing or embossed in the fan shroud. Diagrams mirror this arrow near the motor symbol, sometimes annotated with “CW” (clockwise) or “CCW” (counter-clockwise). If absent, assume CW for standard 3-blade residential units–reversible motors feature a labeled switch or jumper on the schematic near the fan icon.
Identify thermal protection by finding a dotted line or zigzag symbol branching off the main motor symbol. This denotes internal overload cutout switches (usually bimetal discs) rated between 140°F–200°F. Some layouts indicate these as a separate “OL” (overload) component, positioned between motor windings and power leads. Capacitor-start motors may additionally show a centrifugal switch symbol–usually a circular break in the wiring path near the fan illustration.
Check for shaded-pole vs. permanent split capacitor (PSC) distinctions: shaded-pole motors appear as a single winding with a small, offset “shading coil” (a semicircle loop) near the motor outline. PSC configurations display a split winding with dual capacitor connections (start/run) linked by dotted lines. Voltage-stressed units include a suppression capacitor marked “noise” or “RF,” often a curved symbol at the power entry point.
Compare physical motor dimensions on mechanical drawings: frame sizes NEMA 48 or 56 denote 4- and 5-inch square housings respectively, while fractional HP motors (below 1 HP) occupy less space on the outline. Larger commercial blowers sometimes integrate two-speed or ECM (electronically commutated) motors–these appear as a rectangle with internal wavy lines or transistor symbols labeled “ECM” or “Variable Speed” near the fan blade depiction.
Key Refrigerant Line Connections in Cooling Unit Schematics
Use flare fittings for outdoor heat exchanger assemblies when working with copper tubing under 1 inch in diameter. These connections resist vibration fatigue better than compression joints and require only a torque wrench (typically 12–15 ft-lbs for 3/8″ lines) for proper sealing–over-tightening causes flare compression or cracking.
- Discharge line: Positioned between the compressor outlet and the external coil inlet, this 1/2″ or 5/8″ line must withstand pressures up to 450 psi. Inspect annually for oil traces at joints; excess lubricant indicates seal degradation.
- Liquid line: Runs from the coil outlet to the metering device, sized 3/8″ for most residential systems. Install a sight glass after the receiver-dryer to verify subcooling levels (aim for 10–12°F below saturation temperature).
- Suction line: Connects the evaporator outlet to the compressor inlet, often 3/4″ in diameter. Insulate with closed-cell foam (minimum R-4) to prevent condensation; gaps accelerate energy loss and ice formation.
Brazed connections form the strongest joints but demand precise heat control. Use a nitrogen purge (5–10 CFH) during brazing to prevent internal oxidation; failure to do so can create scale that clogs expansion valves within 6–12 months. For silver-bearing alloys (BCuP-5), maintain 1,100–1,300°F–exceeding this range degrades flux performance and weakens seals.
- Clean tubing ends with a dedicated wire brush, removing all oxidation and debris.
- Apply flux only to the male fitting; excess flux inside lines contaminates the refrigerant charge.
- Heat the joint evenly with a neutral flame, starting at the lowest point of the assembly.
- Touch the brazing alloy to the joint–it should flow immediately into the gap (0.002–0.005″).
- Allow the joint to cool naturally; quenching introduces stress cracks in copper.
Schrader valves require periodic pressure checks–use a dedicated gauge set with a 1/4″ male flare connection. Replace cores if leakage exceeds 1 oz/year, detectable via electronic leak detector at the valve stem. For hermetic systems, avoid swaging tools; pre-flared tubing ensures consistent seal depth and prevents thread stripping on replacement cores.
When routing lines, maintain a minimum 2-inch clearance from sharp edges or moving components. Secure tubing with insulated clamps every 3 feet to prevent vibration-induced fatigue cracks. For aluminum lines, use dielectric unions to connect to copper components–galvanic corrosion accelerates failure rates by 60% if dissimilar metals contact directly.
