For precise repairs on this zero-turn drive system, begin with the control arm linkage–specifically the tension spring (part #82-0123) and its associated clevis pin (#82-0122). These components frequently fail under lateral stress, so replace them in pairs to prevent uneven wear on the swashplate assembly. The pump housing (ref #82-0001) contains internal filters that degrade after 400 operational hours; swap them during regular service intervals to avoid particle contamination in the hydraulic circuit.
The motor case (assembly #82-0200) includes six high-pressure seals (individual #82-0201) arranged in opposing pairs around the output shaft. When disassembling, mark each seal’s original position with machinist’s dye–misalignment by even 0.5 mm disrupts pressure balancing, causing cavitation and rapid slippage. The relief valve cartridge (#82-0311) located at the base of the charge pump must be tested with a 0-5000 psi gauge before reinstallation; factory setting is 3000 psi ±100 psi.
Check the trunnion bearings (part #82-0430) for axial play using a dial indicator before installing the pivot block. Maximum allowable play is 0.003 inches–anything beyond indicates bearing fatigue. The teardown manual (OEM document ZT28-RM) recommends coating the splined output shaft with molybdenum disulfide grease during assembly to prevent fretting corrosion, a leading cause of torque loss over seasons.
Refer to page 27 of the exploded view schematic for torque specs: piston retaining screws (M8) require 35 Nm, while the internal case bolts (M10) demand 60 Nm. Over-torquing distorts the aluminum housing, creating hydraulic leaks through micro-fractures–always use a calibrated torque wrench on final assembly.

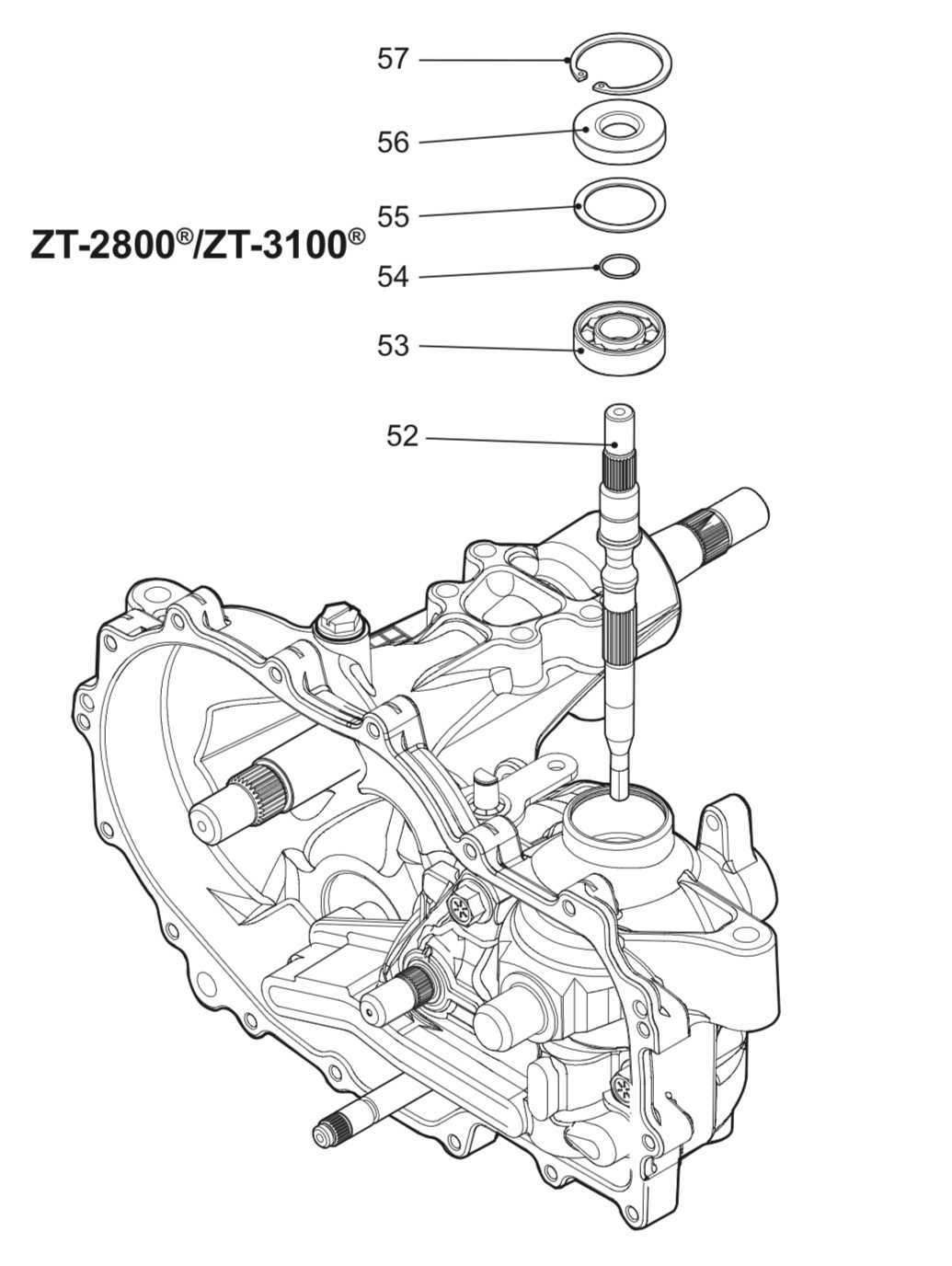

ZT Transaxle Component Breakdown: Essential Schematics
Locate the exploded view schematics for the ZT-28 model transaxle by referencing the OEM manual PN 520663 (rev. 3/2023) or the official parts catalog section 4B–both list critical subassemblies like the charge pump (item 7), internal gear set (items 12–15), and axle shafts (items 22–24) with precise torque specs. For third-party replacements, cross-reference peerless 910-000 or Tuff Torq K46 variants; their input shaft seals (0.625″ ID) and bearing retainers (FAG 6205-2RS) match OEM dimensions but verify tolerances via micrometer before installation.
- Replace control arms (PN 524126) if play exceeds 0.02″ after cleaning linkage points with contact cleaner and lubricating with moly grease (NLGI #2).
- Inspect hydrostatic unit case halves for hairline cracks using UV dye penetrant; welding repairs void warranty but can be sealed with JB Weld SteelStik if leaks are under 2mm.
- For high-hour machines, the filter screen (item 19) clogs frequently–upgrade to a 120-mesh stainless steel filter to prevent bypass damage.
- Torque axis housing bolts to 40 ft-lbs in a star pattern; use Loctite 242 on threads to prevent loosening from vibration.
- Download CAD overlays from manufacturer’s portal (search “ZT service drawings”) to overlay real-time imagery for alignment checks during reassembly.
Finding the ZT 2800 Transaxle ID Tag on Your Equipment
Start by lowering the mower deck to its lowest position and tilting the unit backward so the underside faces upward. Secure the frame with a jack stand or blocks to prevent shifting–direct access to the housing is critical. The ID tag sits on the right side of the transaxle casing, near the input shaft flange. Use a flashlight to spot the metallic label, often obscured by grease or debris.
Wipe the area with a degreaser and lint-free cloth to expose the label clearly. The tag measures roughly 2 by 1.5 inches and displays alpha-numeric codes in embossed or laser-etched text. If corrosion or paint covers the tag, apply a soft brass brush to remove buildup without damaging the characters. Avoid steel wool–it can scratch the surface and make the codes unreadable.
What If the Label Is Missing or Illegible?
Check beneath the unit’s frame rail–some manufacturers attach a duplicate tag there. If neither location yields a readable label, inspect the transaxle’s input and output shafts for engraved numbers. These are less detailed but often include the model prefix (e.g., ZT or ZTX) followed by four digits. Cross-reference this partial code with service manuals or manufacturer databases for confirmation.
For persistent identification issues, measure the transaxle’s width between the mount points–this ZT variant typically spans 18.75 inches. Note the bolt pattern on the axle flanges: 5 bolts on the output side, arranged in a pentagon layout. Compare these dimensions with technical specs from authorized dealers. Photograph the component from multiple angles, including wiring connectors and hydraulic ports, to assist in verification.
If the label remains unreadable, disassemble the transaxle cover where the label attaches–some units embed serial information on the internal casing. Use a borescope or small mirror to scan inside without full disassembly. Document any inside markings, as these often mirror the external tag. Contact customer support with photos, measurements, and noted codes–precise details expedite replacement part matching.
Store recorded codes in a maintenance log or tag the machine with a waterproof label indicating the transaxle variant. This preempts future identification challenges, especially for used equipment where original documentation may be lost.
Step-by-Step Disassembly of the ZT 2800 Compact Drive Unit Housing
Begin by securing the transmission assembly in a bench vise fitted with soft jaws, ensuring the input shaft faces upward. Remove the 14-mm hex bolts fastening the housing halves–note their positions, as three vary in length (M10 x 25 mm at the upper flange, M10 x 30 mm near the charge pump). Mark each bolt with layout dye to avoid misalignment during reassembly. Use a rubber mallet to gently tap the housing seam, creating separation without forcing the gasket out of alignment; never pry between halves, as this risks damaging the aluminum casting.
| Step | Tool Required | Torque Spec (if applicable) | Critical Note |
|---|---|---|---|
| Upper housing bolts (qty 8) | 14-mm socket + torque wrench | 35–38 Nm | Replace crush washers if flattened |
| Charge pump cover | 10-mm hex key | 18–22 Nm | Drain residual fluid before removing |
| Control arm linkage | Snap-ring pliers (external) | N/A | Align linkage mark before disassembly |
Once the halves separate, lift the upper casting straight upward to avoid damaging the piston block hub; it remains seated in the lower shell. Scrape off the anaerobic sealant residue with a plastic scraper–never use metal blades on the machined surfaces. Inspect the bronze thrust plate for scoring; replace if groove depth exceeds 0.003 in. Store internal components in order: lay the piston block, swashplate, and shuttle valve assembly on lint-free cloth in the sequence removed, ensuring no cross-contamination between hydraulic ports and bearing races.
Breakdown of ZT 3100 Drive Assembly Internal Hydraulics
Begin disassembly by locating the charge pump housing at the front of the axial piston unit. Six M6 hex bolts secure the housing–remove them in a star pattern to avoid uneven pressure. Inside, the charge pump’s impeller sits press-fit on the input shaft; pry gently with a plastic wedge to avoid scoring. Check the impeller vanes for pitting; replace if wear exceeds 0.1mm.
The swashplate assembly resides behind the charge pump, held by two dowel pins and three M8 screws. Mark the orientation of the swashplate with a scribe before removal, as reinstallation requires precise alignment for proper displacement control. The servo piston connects to the swashplate via a spherical joint–inspect the joint for play, which indicates worn bronze bushings. Standard clearance is 0.03–0.05mm; replace bushings if measurements exceed 0.08mm.
Key Pressure Zones and Seal Locations
Internal seals divide the unit into low-pressure (inlet) and high-pressure (outlet) circuits. The charge pump seal–a viton lip seal–prevents bypass leakage; replace every 1,200 hours regardless of appearance. Behind the seal, the pressure relief valve (PRV) cartridge threads into the pump housing; remove with a 19mm socket. PRV cracking pressure is factory-set at 8.6 MPa–test with nitrogen before reassembly. The cross-port relief valve, located near the motor output flange, shares identical specs but should be inspected for debris accumulation.
Disassembling the motor assembly requires removing the end cap, held by four torx T50 bolts. Inside, the cylinder block rotates against a fixed valve plate–check for scoring on both surfaces. The valve plate’s kidney ports align with the cylinder bores; misalignment (greater than 0.1°) causes cavitation. Use a feeler gauge to verify plate flatness; deviations above 0.02mm require lapping with 600-grit compound. The piston shoes (10 per unit) float on a thin oil film; inspect shoe retainers for cracks–microscopic fractures lead to catastrophic failure.
Rebuilding demands strict torque specifications. Snug the charge pump housing bolts to 22 Nm, then final-tighten to 28 Nm. The swashplate screws require 45 Nm, applied in pairs. Motor end cap bolts tolerate no more than 55 Nm–exceeding this distorts the valve plate. Pack all tapped holes with molybdenum grease to prevent seizure; aluminum threads strip easily under load. During reassembly, prelube the system with ISO 46 hydraulic oil–failing to do so guarantees dry-start wear.
Common Failure Points and Diagnostic Metrics
Rapid oil temperature rise above 90°C during operation signals internal leakage. Measure inlet pressure with a dial gauge; normal readings hover around 2.1 MPa. A drop below 1.8 MPa indicates a failing charge pump or worn PRV. For motor issues, test rotation resistance at the output shaft–smooth operation requires 3–5 Nm torque. Binding (anything above 8 Nm) suggests seized pistons or misaligned cylinder bores. Replace the entire unit if bores exceed 0.04mm wear; honing kits exist, but precision machining is often cost-prohibitive.
Coolant contamination remains the primary cause of premature wear. Inspect the breather cap filter monthly–clogged filters starve the charge pump. Replace bronze bearings every 2,000 hours, even if visually intact; microscopic fatigue cracks propagate rapidly under cyclic loads. For extended lifespan, upgrade to synthetic ISO 68 oil–viscosity retention reduces shear-related failures by 30%. Store removed components in sealed containers with desiccant packs; moisture accelerates corrosion on polished steel surfaces.
