For precise repairs on your 254 cubic centimeter, single-cylinder engine model, refer to the exploded view illustration in the official service manual. The carburetor assembly sits directly beneath the air filter housing–detachable after removing two 10mm bolts. Inspect the float bowl gasket if fuel leaks persist; replacement requires a 14mm socket to access the retaining nut.
Blade removal demands a torque wrench set to 45 Newton-meters. Park the machine on a stable surface and engage the safety lever before attempting disassembly. The cutting mechanism connects via a splined shaft–align the replacement blade with the keyway to prevent imbalance vibrations during operation.
The drive system’s belt routing diagram appears on page 32 of the technical documentation. A worn belt often slips at the pulley, reducing cutting efficiency–measure width against the 3/8-inch specification before ordering replacements. The idler tensioner spring adjusts automatically, but check for corrosion if the belt fails to retract fully.
Ignition troubleshooting begins with the spark plug gap–set it to 0.024 inches using a feeler gauge. If misfires continue, examine the flywheel key; shear damage disrupts timing and requires replacement of the crankshaft-mounted component. Lubricate the wheel bearings annually with lithium-based grease to prevent premature wear.
Electrical schematics detail the wiring harness connections–trace each lead with a multimeter if the engine stalls unexpectedly. The kill switch circuit often corrodes at the handlebar interface; clean terminals with contact cleaner before securing the 24-gauge wiring with dielectric grease.
Gasoline Mower Schematic: Hands-On Repair Guide
Download the official exploded-view PDF for model 4-digit code Z254F directly from the manufacturer’s support portal–filter by “walk-behind” category and select “engine section first.” Print the sheet at 120% scale to ensure part numbers remain legible under field conditions. Tag critical assemblies: blade adapter (PN 532-00-30-04), wheel gears (PN 532-18-13-63 left / 532-18-13-27 right), and carburetor diaphragm kit (PN 532-19-68-34).
Step-by-Step Component Isolation
- Disconnect spark plug wire, tilt unit rearward–never sideways–to drain fuel bowl before touching the cutter deck.
- Remove four 13mm bolts securing the deck; label each bolt location (front-left / rear-right) with painter’s tape.
- Detach belt tensioner arm using a ½-inch socket; note alignment marks on pulleys for reinstatement.
- Lever out the mulching plug (PN 532-19-68-17) with channel locks–never twist–its retaining clips snap easily.
- Swap air filter element every 3rd deck removal; check PN 532-13-70-01 for cracks in housing.
- Inspect wheel axles for wear: replace if grooves exceed 0.5mm depth; apply nickel anti-seize lubricant (PN 506-04-78-01) during reassembly.
- Test safety switch continuity with multimeter before skipping–red wire to terminal 3, black to chassis ground.
- Torque deck bolts in cross pattern to 25 ft-lbs; over-tightening cracks aluminum castings.
Locating Authorized Schematics for Your 254F Zero-Turn Mower

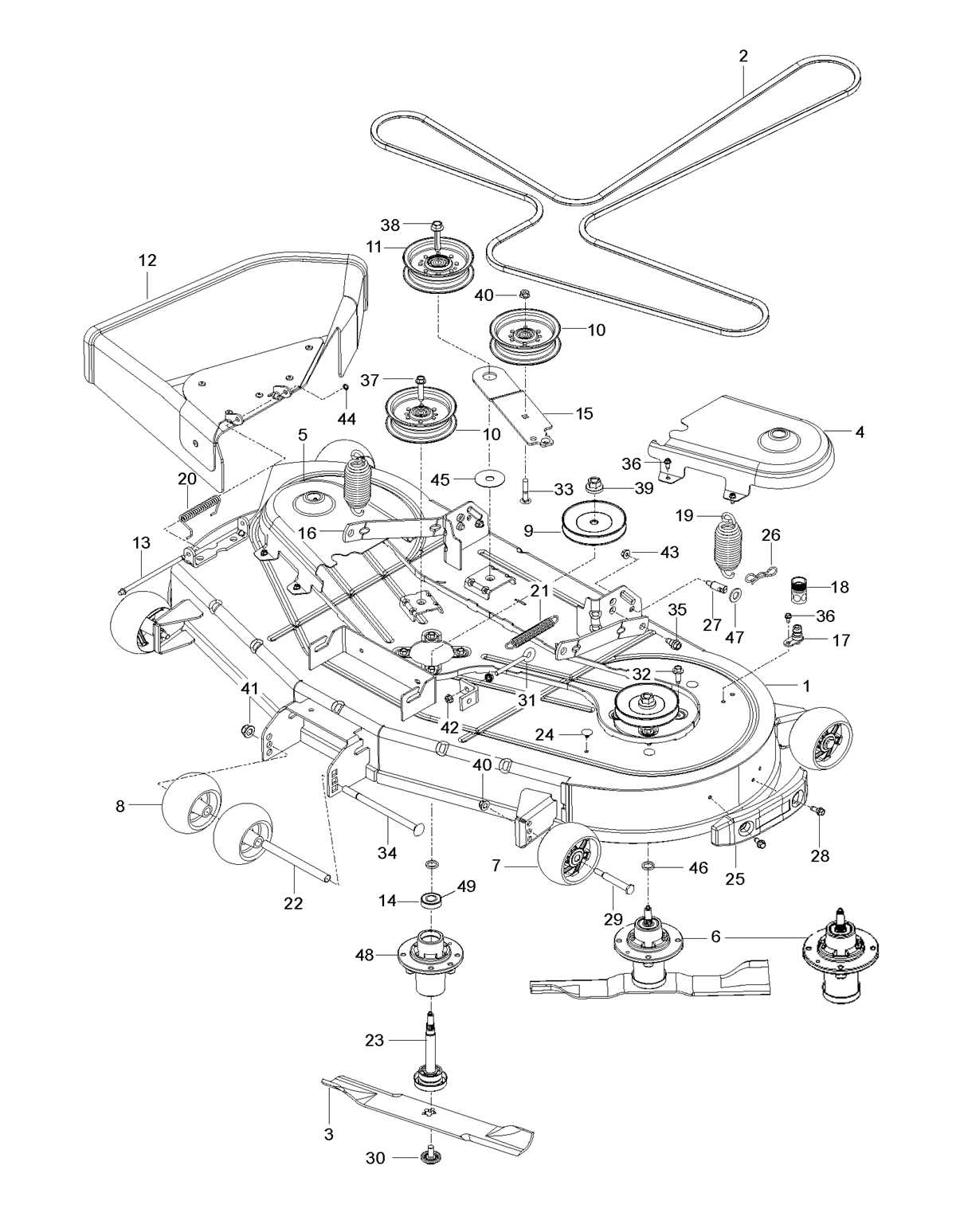

Begin with the manufacturer’s service portal at support.husqvarna.com. Select the “Commercial Lawn Equipment” category, then narrow results by entering the model identifier or serial number in the search bar. The system will generate a scrollable PDF labeled “Illustrated Parts List,” displaying every component with numbered callouts, torque specifications, and OEM part codes–critical for ordering replacements without compatibility errors.
Alternative Sources for Verified Visual Breakdowns
For offline access, authorized dealers maintain printed manuals or USB drives containing high-resolution exploded views. Contact a local service center certified by the brand; they’re required to provide schematics to customers who purchased the unit within the last 10 years. Request the “Service Workshop Manual” section labeled “Fig. 4-1” to “Fig. 4-4,” which isolates the cutting deck, engine assembly, and hydraulic drive.
Third-party databases like Partstree and eReplacementParts cross-reference OEM diagrams with user-uploaded photos, but verify against the official PDF to avoid aftermarket inaccuracies. Filter results by entering the product’s suffix–typically “-01” or “-02″–to match the exact build revision.
Step-by-Step Breakdown of Key Briggs & Stratton 725EXi Series Engine Elements
Begin disassembly by removing the blower housing–secure the flywheel nut with a 22mm socket to prevent crankshaft rotation while loosening the pull starter. The aluminum finned cylinder head (P/N 793850) mates to the block with a 0.004–0.006 in torque-to-yield gasket; replace it if warpage exceeds 0.002 in across the mating surface. Use a torque sequence starting at the center bolts and spiraling outward in 8–10 lb-ft increments up to 160 lb-ft.
| Component | OEM Ref. | Critical Measurement/Tolerance | Tool Required |
|---|---|---|---|
| Piston (cast aluminum, 3-ring) | 791812 | 0.0012–0.0016 in skirt clearance | Dial bore gauge ±0.0005 in |
| Connecting rod (forged steel) | 793164 | 0.0008–0.0014 in big-end bore | Plasti-Gauge 40–75 µm |
| Intake valve (stellite-faced) | 792718 | 0.004–0.006 in stem-to-guide | Feeler gauge 0.001 in resolution |
Inspect the crankshaft’s main journals radiused at 0.125 in–polish with 600-grit wet/dry paper if scratch depth exceeds 0.0002 in. The governor lever (P/N 799815) pivots on a 6 mm bronze bushing press-fit to ±0.005 in; replace if lateral play surpasses 0.008 in. Reassembly requires priming the oil pump: fill the crankcase with 20 oz of SAE 10W-30 before torqueing the sump bolts, alternating diagonally at 120–140 lb-ft in two stages.
Locating and Procuring Components for Your Zero-Turn Mower
Begin by locating the model number plate on the rear frame of your cutting machine. The Z254F’s identifier is typically etched near the engine or under the seat bracket. Cross-reference this number with the official parts manual–available directly from the manufacturer’s support portal or authorized dealers–where exploded-view schematics pinpoint each item’s placement and OEM code. For engine components like blades, belts, or filters, verify compatibility by matching the alphanumeric tag (e.g., “532 19 54-04” for a mulching kit) against the schematic to avoid mismatches between similar-looking alternatives.
Order through verified distributors listed on the brand’s official site; third-party sellers often stock counterfeit or aftermarket substitutes lacking the same tolerances as genuine pieces. Prioritize dealers offering serialized inventory–this confirms authenticity and eligibility for warranty claims. For air filters, spindles, or deck brackets, request the batch date if needed for recalls. Expedited shipping costs less than downtime, so opt for carriers that provide tracking and signature confirmation. Keep a digital or printed record of purchases, noting part numbers alongside installation dates for future diagnostics.
Key Components Prone to Degradation in Your Zero-Turn Mower Model
Inspect the cutting blades every 20–25 operating hours. These high-carbon steel edges endure friction against turf, rocks, and hidden debris, causing gradual dulling or nicks. Locate them beneath the deck–secured by a single spindle bolt accessible via a 15mm socket. Rotate or replace when cutting performance declines, typically indicated by uneven grass height or shredded blade tips.
Replace the drive belt annually or at the first sign of fraying. Positioned between the engine pulley and the transaxle, this reinforced rubber belt endures constant tension and heat. Symptoms of failure include reduced ground speed, squealing under load, or visible cracks. Access requires removing the deck–lift the mower, disengage the PTO clutch, and route the new belt along the factory-specified path to avoid premature wear.
Check the deck spindle bearings every 50 hours. These sealed units support the blades under severe lateral loads. A failing bearing emits a grinding noise or causes excessive vibration. To access, remove the blade and pulley, then press out the bearing using a bearing puller. Replace immediately if play exceeds 0.2mm–ignoring this leads to irreversible spindle damage.
Filters and Fluids: Overlooked But Critical
The air filter should be cleaned every 10 hours in dusty conditions. Located on the right side of the engine, this pleated paper element traps particulate matter that accelerates wear. Tap gently to dislodge debris, or replace if visibly clogged–cost is under $15, but neglect causes a 10–15% drop in engine efficiency within weeks.
Transmission fluid requires replacement at 200-hour intervals. The 220ml reservoir sits beneath the seat–drain via the lower plug, refill with SAE 20W-50 synthetic to the “Full” mark on the dipstick. Dark or burnt-smelling fluid indicates excessive wear and necessitates immediate change to prevent transaxle failure, which costs $300+ to repair.
Spark plugs degrade after 100 hours. The single NGK BPR4ES should be removed with a 13/16″ socket, inspected for electrode erosion or oil fouling. Gap to 0.75mm using a feeler gauge–incorrect gaps cause rough idling or hard starts. Replace at the first sign of misfires; reusable after cleaning, but longevity drops by 30%.
