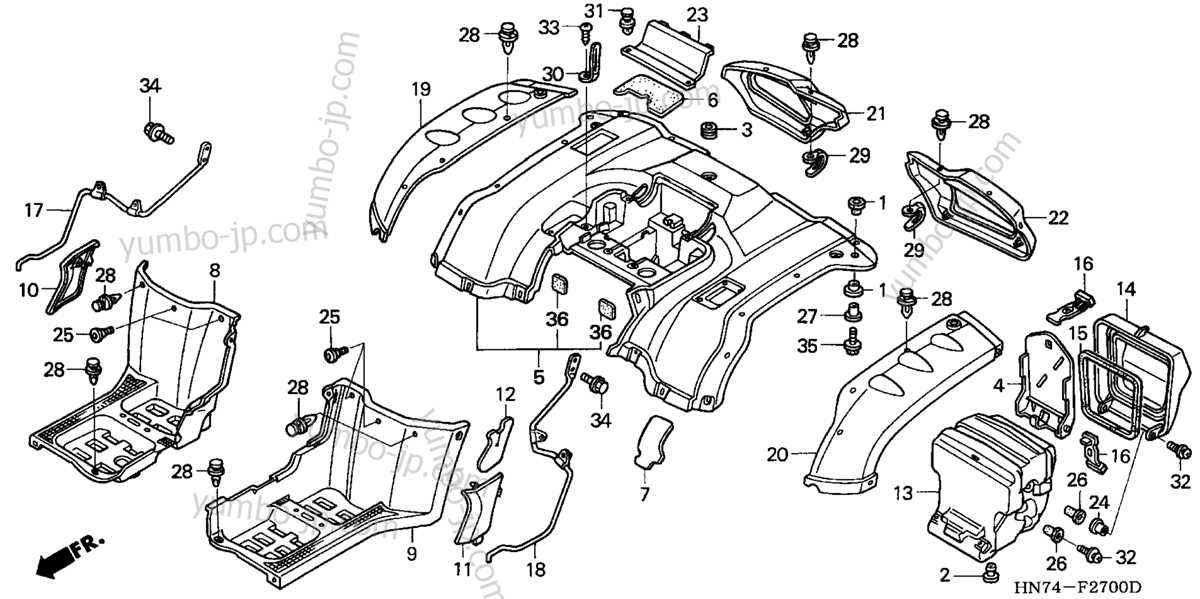

For owners needing to repair or upgrade their utility quad, locating an accurate visual reference is the first step. The official service manual contains exploded-view illustrations of the engine, drivetrain, suspension, and electrical system–critical when diagnosing wear or sourcing OEM replacements. Third-party repair platforms offer digitized versions of these schematics, often with clickable links to compatible aftermarket or genuine components.

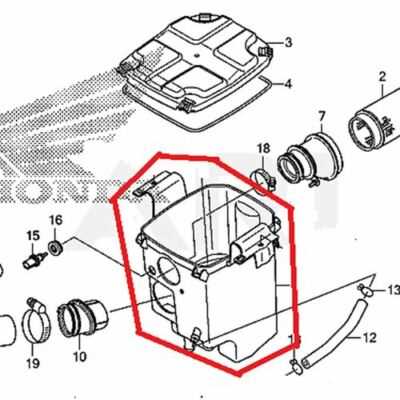

Common failure points like the air intake system, brake calipers, and CVT belt assembly require detailed breakdowns to avoid misassembly. Exploded diagrams highlight torque specifications, fastener types, and gasket placements for reassembly. For models produced after 2015, pay attention to electronic fuel injection components; diagrams for these systems differ from carbureted versions.
Independent forums and specialty suppliers archive PDF schematics for discontinued and rare models, including color-coded wiring harness layouts. When searching, use exact model codes–”TRX420″ variations differ in choke mechanisms and exhaust configurations. Cross-referencing part numbers with the diagram ensures correct fitment, especially for drive shafts, wheel bearings, and steering linkages.
For quick troubleshooting, download high-resolution images of the left-side engine cover, rear differential, and handlebar controls. These areas frequently need adjustments or rebuilds. If the original manufacturer’s resource is unavailable, aftermarket providers like Partzilla or RockyMountainATV offer interactive diagrams with real-time inventory checks.
Visual Breakdown for ATV Component Locations
Locate the engine assembly schematics under section 31M-28 in official service manuals–this segment shows the exact placement of the crankcase cover and clutch housing, critical for disassembly without disrupting torque specs.
Transmission elements appear in group 35N–focus on the shift fork diagram at page 47, where arrows mark tolerances (0.1–0.3 mm) for optimal gear engagement; exceeding these risks premature wear.
Electrical wiring layouts sit in subchapter 99E-6, detailing fuse box pinouts and ground points; trace colored wires (red/yellow for ignition, black/white for neutral) to isolate shorts before replacing sensors.
Front suspension components cluster in 52A-12–use the exploded view to identify bushings PN 51430-HL0-000 and 51354-HL0-010 for linkage replacement; grease Zerk fittings every 50 hours to prevent corrosion.
Accessory mounts like winch plates follow 61B-3–verify bolt torque (22–28 Nm) on aftermarket plates; cross-reference with OEM PN 08L72-MEN-D00 for compatibility.
Cooling system illustrations occupy 19G-8, showing radiator hose routing (upper/lower distinguished by ribbing count); flush with distilled water mixed at 50/50 ratio with coolant to prevent scaling in aluminum heads.
Finding and Reading Your ATV’s 420cc Powerplant Schematic
Begin by retrieving the official service manual for the 2004–2013 TRX420 models–it contains the exploded view on page 3-2. If you lack the original, locate the PDF online using exact keywords: “TRX420FE TM 31TE180” for fuel-injected units or “TRX420FM TM 31TE130” for carbureted variants. Confirm the suffix code matches your engine block casting number to avoid referencing incorrect internals.
| Component Group | Manual Section | Page Range |
|---|---|---|
| Cylinder head assembly | 3–1 | 28–34 |
| Piston & crankshaft | 3–3 | 42–49 |
| Clutch & transmission | 5–1 | 65–71 |
Examine the top-left corner of the schematic–each illustration carries a unique identifier, typically formatted as “31TE-*–FL,” where the asterisks denote sub-assembly and figure number. Cross-reference this code with the parts list on the following pages to pinpoint exact OEM numbers (e.g., 13011-HC5-670 for the exhaust valve). Measure critical dimensions like piston diameter (73.0 mm) or connecting rod length (131.8 mm) directly from the diagram using the scale bar if physical inspection isn’t possible.
Color-coded lines often indicate relationships between components: solid red traces show lubrication pathways, dotted blue marks cooling passages, and dashed yellow lines denote electrical linkages. Trace the oil pump feed circuit starting at the filter housing (item 8 in section 3–4) through the crankcase gallery (item 12) to isolate common failure points like clogged passages or degraded gaskets.
Decoding Torque Specifications From Callouts
Numerical annotations adjacent to fasteners represent tightening sequences or torque values–”7 N·m (0.7 kgf·m)” for the valve cover bolts means 5 lb-ft, applied in a diagonal pattern in three equal increments. Reference section 1–11 for the complete torque chart, noting variations: camshaft sprocket bolts require 22 N·m while cylinder head bolts demand 33 N·m in stage two after an initial 20 N·m.
For post-2010 models, verify emission control labels near the air intake; the schematic may omit updated components like the secondary air injection pump (item 31 in section 6–2). Use a digital micrometer to validate measurements against diagram tolerances–clearance between piston ring ends should not exceed 0.35 mm, while crankshaft end play must remain between 0.05–0.20 mm.
Detailed Disassembly Guide: ATV Front Suspension Assembly
Begin by securing the all-terrain vehicle on a hydraulic lift to prevent movement. Remove the front wheels using a 19mm socket, then detach the brake calipers with a 12mm wrench–hang them aside using a bungee cord to avoid stressing hydraulic lines.
Locate the lower ball joint connecting the A-arm to the spindle. Use a 22mm wrench to loosen the castle nut, then separate the joint with a ball joint press–never strike it with a hammer, as this risks damaging the sealing boot or threads.
The shock absorber mounts at both ends require careful handling. At the upper mount, use an 18mm socket to remove the nut while stabilizing the shock body with pliers. The lower pivot bolts (17mm) often seize–apply penetrating oil and let it soak for 15 minutes before attempting removal.
Inspect the tie rods for wear by grasping each end and checking for lateral play. Replace if movement exceeds 2mm. To detach, loosen the 14mm jam nuts on both ends, then unscrew the rod using an adjustable wrench–mark the threads with tape to preserve alignment during reassembly.
Examine the CV joints by rotating the axle shafts. Cracks or excessive grease leakage indicate failure–replace the entire half-shaft if necessary. Remove the axle nut (30mm) with an impact wrench, then tap the shaft inward using a soft-faced mallet to free it from the hub.
Clean all mounting points with a wire brush before reinstalling components. Lubricate threads on bolts with anti-seize compound, but avoid application on friction surfaces like bushings to prevent slippage. Torque specifications vary: ball joints (45 ft-lbs), shock mounts (35 ft-lbs), axle nut (80 ft-lbs).
Grease the new ball joints using a zerk fitting before installation. For A-arms, apply a thin layer of lubricant to bushings but leave the inner and outer races dry–excess grease attracts dirt, accelerating wear. Recheck all fasteners after 50 miles of operation for loosening.
Align the front wheels using a laser alignment tool. Adjust camber by turning the eccentric bolt on the lower A-arm–No more than 1/8″ deviation from vertical. Improper alignment causes uneven tire wear and steering instability, requiring repeat adjustments within 1,000 miles.
Locating Authentic ATV Drivetrain Schematics Online
Begin your search at the manufacturer’s official service portal. For genuine rear axle assemblies, the brand’s global support site hosts interactive breakdowns under “Model Documentation.” Filter by your vehicle’s year and trim–2004+ models include exploded views with part numbers. Unlike third-party aggregators, these schematics link directly to inventory checks, showing real-time availability and compatibility notices.
Specialized off-road forums archive user-uploaded manuals that often include scanned dealer guides. Search by chassis code (e.g., TRX350 for mid-size variants) and add “torque specs” or “bolt patterns” to narrow results. Veteran riders frequently attach high-resolution PDFs with annotations marking wear points on differential casings or CV joints–details missing from generic catalogs.
Supplier networks like PartSouq or BikeBandit consolidate OEM documentation, but verify their sources. Cross-reference part dimensions in the schematic with your existing components; some diagrams omit tolerance charts or assembly sequences for pressurized lube systems. For older models (pre-2000), contact independent dealerships–they occasionally mail CD-ROMs with legacy service bulletins.
3D modeling repositories like GrabCAD occasionally feature engineer-submitted reconstructions. While not official, these renders help diagnose fitment issues before ordering. Use “isometric” or “section view” filters to examine axle tube welds or ring gear backlash settings–critical for rebuild planning.
Locating Key Electrical Components via ATV Wiring Schematics
Start by tracing the main harness from the battery terminal–this cluster connects to nearly all critical modules. The positive cable (typically red) splits into three primary branches: one feeds the starter solenoid, another delivers power to the ignition switch, and the third runs to the fuse block. Use the schematic’s color codes to verify paths; mismatched hues indicate splices or repairs needing inspection.
Check the ignition switch outputs next. On most models, four wires emerge: two supply accessory circuits (yellow/red and black/white), one powers the ignition coil (black/yellow), and the last triggers the starter relay (green). If the engine cranks but won’t start, focus on the black/yellow line–it frequently corrodes where it enters the coil connector.
- Starter solenoid: A single thick cable (usually red) enters, with a thinner black/white line exiting to ground. Test for 12V at the input terminal while cranking.
- Regulator/rectifier: Identified by six wires–three yellow AC inputs, one red DC output, and two ground wires (green and black). AC lines should read ~14-16V at idle; lower readings point to stator issues.
- CDI unit: Small black box with 4-6 connectors. Critical wires include a white/red (pulse signal) and a blue/white (ignition trigger). Swap with a known-good unit if spark is erratic.
The fuse block sits near the battery, often under a rubber cover. Each fuse corresponds to a labeled circuit on the schematic–compare amp ratings directly. Common failures occur in the 10A accessory fuse (powers lights and taillights) and the 15A ignition fuse. Replace blown fuses only after verifying the circuit for short circuits; repeated failures damage the wiring harness.
Inspect connectors systematically. The stator plug (white, 3-pin) often collects moisture, causing intermittent charging issues. Scrub corrosion with a wire brush, then apply dielectric grease. The main harness plug near the ECU (black, 6-8 pins) houses sensor wires–loose terminals here disrupt fuel injection signals. Squeeze pins gently with pliers to ensure tight mating.
- Locate the ground points first–two primary straps bolt to the frame near the battery, and a third connects near the rear fender. Weak grounds cause erratic electronics; clean paint or rust thoroughly.
- Follow fuel pump wires (pink and green/yellow) back to the relay. If the pump primes but the engine stalls, the relay contacts may need replacement.
- Track sensor wires–MAP sensor (orange), throttle position sensor (orange/blue), and coolant temp sensor (green/yellow). These terminate at the ECU; frayed insulation near moving parts (like the handlebars) causes misfires.
Label every wire with masking tape before disconnecting anything. For tools, use a multimeter with a 20kΩ setting to test resistor-type plug caps–expected readings range between 4,000-6,000Ω. A digital scope helps visualize ignition waveforms if the meter readings are inconsistent. Always disconnect the battery’s negative terminal before probing live circuits.
Store a printed copy of the schematic in a sealed plastic bag under the seat for field repairs. Highlight ground points, fuse assignments, and common failure zones (like the stator connector) with different colors. Update notes after each repair to track recurring issues–patterns often emerge, such as seasonal condensation in specific connectors.
