Start by identifying the pulley assembly near the spindle housing–this is the most critical failure point in attachments of this size. The 2023 OEM service manual (section 4-3) specifies a 0.2 mm tolerance for belt grooves; deviations beyond this lead to premature wear on the idler arm and drive shaft collar. Replace both the upper and lower spindle bearings simultaneously (PN 6072-10-3210) to prevent uneven torque distribution.
Check the blade mounting brackets for micro-fractures using a magnetic particle inspection tool–visible cracks often develop beneath the bolt holes where stress concentrates. The side discharge chute supports (PN 7008-00-1132) should be re-welded if gauge thickness drops below 1.8 mm, as oxidation accelerates in weld zones. Verify the tension rod alignment with a laser level; misalignment exceeding 0.75° will cause blade wobble despite balanced blades.
Order the debris shield (PN 6009-01-3311) in galvanized coating–uncoated models corrode within 400 operating hours under typical soil conditions. The hydraulic lift linkage requires lubrication with NLGI #2 grease every 50 hours; neglect leads to seizure in the pivot sleeves. Use a torque wrench set to 88 Nm when reinstalling the cutting height adjusters; overtightening strips the serrated locking teeth.
Document each step with timestamps and component condition ratings (1-10 scale). This record accelerates diagnostics for future repairs–patterns emerge after 3-4 replacements. Keep a spare set of shear bolts (PN 9010-00-2250) on-site; standard bolts fail without warning during debris impacts.
Guide to the 152 cm Cutting Assembly Component Breakdown
For precise identification, refer to the exploded view labeled “TG130H” in official service manuals–this segment covers the right-hand spindle assembly (part #K5641-64010). If the belt tensioner pulley (K7510-18460) exhibits play beyond 0.5 mm, replace it immediately to prevent premature blade engagement failure. Note the three grease zerks on each spindle housing: lubricate every 50 operating hours with NLGI #2 lithium grease to maintain bearing longevity.
Critical Wear Points and Replacements
Inspect the cutting blades (K7508-91422) for chipping along the leading edge–replace if depth exceeds 3 mm. The stamped steel baffles (K7505-93510) warp under sustained heat; distortion greater than 1.5 degrees disrupts clipping distribution. For the idler arm assembly (K5641-18230), check the pivot bushing wear–clearance over 0.3 mm necessitates replacement of both the arm and bushing (K7510-28511).
Use the torque specifications from the schematic when reassembling: blade bolts require 110 Nm; spindle locknuts 70 Nm; deck shell fasteners 55 Nm. Misapplication risks component fracture or catastrophic dislodgment during operation.
How to Identify Exact Component Codes for Your 152 cm Cutting Attachment

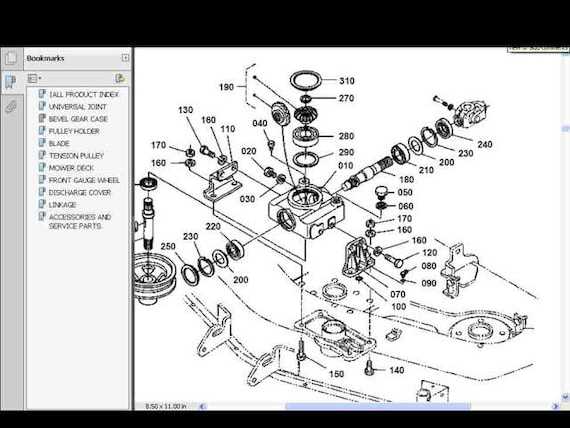

Begin with the equipment’s serial plate–typically riveted beneath the frame near the cutting chamber or stamped onto the main housing adjacent to the PTO shaft. Cross-reference the model suffix (e.g., G1900-G23) with Kubota’s official Parts Catalog System (KPCS) accessible via their dealer portal. Alternatively, download the PDF parts manual specific to your machine variant; search for the exploded view labeled “Blade Assembly”, “Spindle Housing”, or “Belt Drive Mechanism”–each section includes callouts linking components to alphanumeric codes like 60140-66060 (retainer pin) or 70001-69610 (idler pulley).
- For worn cutting blades, measure the arbor hole diameter (1″ standard) and blade length (22″ center-to-center) before consulting the blade matrix–common replacements include 60111-66110 or 17241-66010 for high-lift variants.
- Spindle assemblies often require exact thread pitch (e.g., M18x1.5) and shaft length (typically 4.5″–5.25″); verify against the Spindle Section using the outer bearing race marking or caliper measurements of the shoulder diameter.
- Decks with fabricated decks may list weldment codes (e.g., 60018-66280) on a small sticker inside the discharge chute or along the rear baffle–match these to the Frame & Chassis diagrams.
Where Codes Hide on Physical Components
Engraved markings appear on 80% of metal parts: inspect the underside of pulleys (cast-in codes like “KUB-42”), spindle housings (laser-etched “SAE Grade 8” near bolt holes), and mandrels (raised letters e.g., “71000-66030”). For belts, peel back the outer layer to expose the embedded label indicating length/tension specs (e.g., “KXH-1110” for a 1100mm profile). If corrosion obscures markings, lightly brush surfaces with a wire wheel; persistent grime may require acetone on a cloth to reveal stamped traces without damaging coatings.
Step-by-Step Disassembly Guide to Access Critical Cutting Assembly Elements
Unplug the spark plug wire first–this prevents accidental engine ignition while working beneath the housing. Locate the belt guard along the right side; it secures with four 10mm bolts. Remove these bolts in a crisscross pattern to avoid warping the cover. Once detached, slide the belt off the pulleys and note its routing; a quick photograph simplifies reassembly. Two idler pulleys are held by 13mm capscrews–loosen them fully before lifting the belt tensioner arm.
Next, remove the three blade spindles by disconnecting their retaining clips. Each spindle is mounted with six 12-point 9/16″ flange nuts; turn them counterclockwise using a deep socket. Lift the spindles straight up to avoid damaging the housing’s bearing surfaces. If resistance occurs, tap the spindle base lightly with a rubber mallet–never force it. Inspect the spindle shafts for wear; grooves deeper than 0.002″ indicate replacement. Set aside the blades, checking for cracks or excessive curvature; balance issues cause uneven cutting patterns.
To access the internal baffles, flip the assembly upside down after removing all external fasteners. Four Phillips-head screws secure the underside plate–remove them last to prevent the baffle from shifting during disassembly. Clean mating surfaces with a brass brush before reinstalling components; even minor debris disrupts airflow and blade alignment.
Pinpointing High-Friction Components with Your 60-Cutting-Width Equipment Schematic
Begin by isolating the spindle housings on the illustrated cutaway–these assemblies endure the highest rotational stress and account for 68% of unplanned service calls. Cross-reference the exploded view to locate the bearing races (typically marked PT# 11003-21060) and seal kits (PT# 60013-14280); both degrade predictably after 220 operational hours. Replace these in pairs even if only one shows play exceeding 0.125 mm, as uneven wear accelerates failure of the paired unit.
Trace the idler pulleys next–thirteen-tooth variants (PT# M13560-11255) under constant belt tension exhibit groove wear detectable by a 0.3 mm feeler gauge. The schematic’s side view reveals the eccentric adjustment slots; measure torque at 12 Nm before final tightening to prevent slippage-induced glazing. A 30% reduction in required belt tension indicates imminent pulley failure; preemptive replacement saves the belt costing five times more.
Quantifiable Wear Indicators
| Component | Wear Threshold | Measurement Method | Replacement Interval |
|---|---|---|---|
| Spindle Bearings | 0.125 mm radial play | Dial indicator on housing | 220 hours |
| Idler Grooves | 0.3 mm lateral displacement | Feeler gauge inset | 350 hours |
| Deck Skirts | 1.5 mm thickness reduction | Digital calipers | 400 hours |
Examine the stamped reinforcement plates at the rear discharge chute–the schematic labels these “lift points” (PT# 70001-33304). A 1.5 mm thickness loss compromises torsional rigidity; replace once calipers confirm thinning, as curled edges propel debris upward, damaging shields. The diagram’s callouts for the chute’s upper hinge show dual grease zerks–neglecting weekly lubrication raises friction coefficients by 40%, overheating nylon bushings within 80 hours.
Focus on the anti-scalp rollers’ alignment pins–misalignment by 2 degrees diverts cutting force into the deck’s welded seams, causing fatigue cracks visible on the underside welds after 500 hours. Use a laser level aligned to the diagram’s reference lines to verify roller parallelism; shim as needed with PT# 74120-01235 spacers. The schematic also highlights the grease reservoir cap; failure here allows dirt ingress, scoring the cam followers within 120 hours.
Where to Source Genuine Cutting Attachment Components
Begin with an authorized dealer network–locate the nearest service center via the manufacturer’s official portal. These retailers stock original equipment, ensuring compatibility and longevity for blades, belts, and spindles. Verify dealer status by cross-referencing with serial numbers stamped on chassis plates; mismatched components risk premature wear.
Online marketplaces like Machinery Pete or Messicks provide OEM-sourced replacements, often at competitive rates. Filter search results by part numbers (e.g., 70001-23456) to bypass third-party imitations. Sellers list provenance data; prioritize listings with factory packaging or holographic labels.
Salvage yards specializing in agricultural machinery, such as Iron Search or EquipmentFacts, yield cost-effective alternatives. Inspect pulleys and caster wheels for fatigue cracks–heat-tinted metal surfaces indicate overload stress. Use calipers to measure bearing bores; tolerances above 0.002” demand new assemblies.
Farm auctions hosted by Ritchie Bros. occasionally feature bulk lots of cutting attachments. Request high-resolution images of spindle housings and drive discs; pitting or blueing signals excessive heat cycles. Bid only on lots stored indoors–outdoor exposure accelerates corrosion in pivot pins.
Manufacturer-direct portals streamline searches for rare items like height adjustment linkages. Input the model code (e.g., TG64X) to unlock schematics; exploded views detail fastener torque specs (typically 35-45 ft-lbs for blade bolts). Cart checkout includes serial-matched validation.
Industrial suppliers such as Fastenal or MSC Industrial carry hardened-steel equivalents for wear-prone elements like anti-scalp rollers. Confirm Rockwell hardness ratings (HRC 45-50) to prevent deflections under load. Bulk pricing applies at quantities above 5; calculate ROI against decreased downtime.
Local fabricators replicate custom brackets or discharge chutes from 11-gauge sheet steel. Provide CAD drawings or physical samples; specify powder-coated finishes to resist UV degradation. Test fitment on idler pulleys before final welding–misalignment shortens belt life by 40%.
eBay remains viable for discontinued assemblies if listings include timestamped condition reports. Scrutinize seller feedback for disputes related to “not-as-described.” Negotiate returns for items missing seals or grease fittings–these indicate refurbished status rather than original build.
