Locate the high-pressure cutout switch near the compressor housing–typically mounted on the side or rear panel within a sealed electrical compartment. This safety device interrupts operation if internal pressures exceed 400 psi, preventing structural damage to refrigerant coils. Verify its calibration annually using a multimeter set to continuity mode; a failed test requires immediate replacement with an OEM-approved model to maintain UL compliance.
Inspect the coaxial heat exchanger’s corrosion-resistant nickel plating for micro-pitting during routine maintenance. Even minor surface imperfections (0.3 mm depth) can reduce thermal transfer efficiency by 12-15%, increasing energy consumption. Use a borescope to examine internal tube surfaces before chemical descaling–the manufacturer specifies phosphoric acid solutions at 3% concentration for safe removal of calcium deposits without damaging the protective layer.
Reverse-valve solenoid coils fail silently through thermal fatigue, often after 3,000-4,500 switching cycles. Replace these components preemptively every 36 months rather than relying on reactive troubleshooting. Ensure the replacement coil matches the original voltage (±5%) and is rated for ambient temperatures up to 140°F to prevent premature burnout in enclosed mechanical spaces.
The expansion valve’s thermal bulb must maintain direct contact with the suction line without gaps or insulation interference. Any separation causes superheat readings to fluctuate erratically, leading to either liquid floodback or insufficient cooling. Securely fasten the bulb with stainless steel clamps and apply thermal conductive paste to eliminate air voids–this adjustment alone can improve system COP by 8-10%.
Understanding the Components of Geothermal Pool Heating Systems
Start by locating the refrigerant circuit schematic in the technical manual–identify the compressor, condenser coil, evaporator, and thermal expansion valve first. These elements form the core cycle that transfers energy from the water source to your pool. Label each section clearly if working with a digital or printed layout to avoid confusion during maintenance. The compressor’s placement typically dictates the flow direction; follow the arrows to trace refrigerant movement.
Examine the water heat exchanger in detail–look for corrosion-resistant materials like cupronickel or titanium, especially if your system operates in saline environments. Check the manufacturer’s specifications for pressure ratings; deviations of more than 5% from the listed PSI can indicate clogging or scaling. Use a non-contact thermometer to compare inlet and outlet temperatures–consistent differences below 3°C suggest inefficient heat transfer.
Electrical Controls and Safety Mechanisms

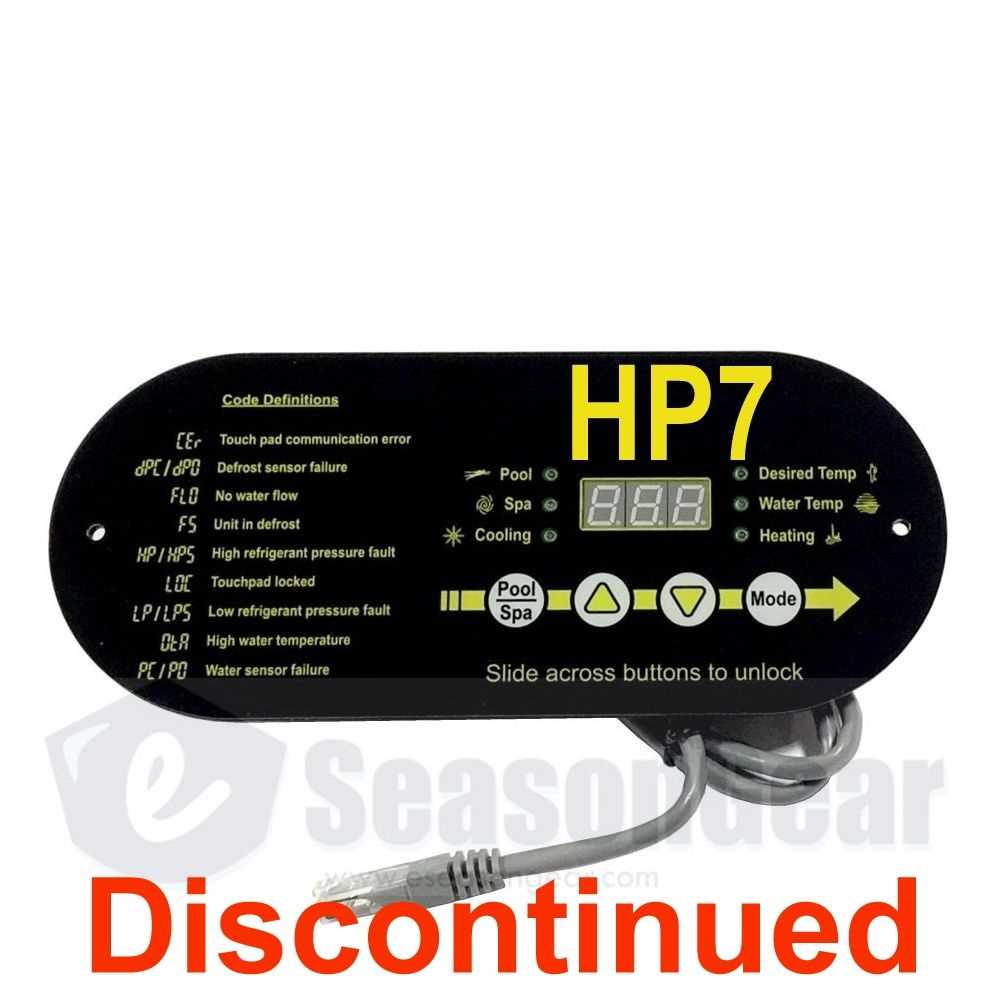

Verify the control board connections by cross-referencing the wiring diagram with physical terminals. Loose or oxidized contacts on relays can cause erratic cycling; clean with a wire brush if resistance exceeds 1 ohm. The high-pressure cutout switch should trip at 400 PSI±10%; test annually with a calibrated gauge. Replace any capacitors showing bulging or leaks–they typically fail after 8–10 years under continuous load.
Inspect the circulation pump’s impeller for debris or wear–run your finger along the blades to detect pitting. Replace if grooves exceed 0.5mm depth. The strainer basket should be emptied weekly in environments with high particulate matter; neglect increases strain on the pump motor. Lubricate motor bearings every 6 months with food-grade grease to prevent seizing during seasonal startups.
Refrigerant and Fluid Management
Use only manufacturer-approved refrigerant blends–mixing types (e.g., R-410A with R-134a) reduces efficiency by up to 22%. Check for leaks at flare fittings with an electronic detector; bubbles from soap solution are unreliable for micro-leaks. Recharge to exact weight specifications listed on the system’s identification plate–overcharging by as little as 10% can damage the compressor’s internal valves.
The antifreeze circuit requires specific ratios–consult the fluid compatibility chart to avoid using ethylene glycol in systems designed for propylene glycol. Test freeze protection levels with a refractometer before winter; below -18°C concentrates can separate, causing system blockages. Isolate and drain the fluid circuit if replacing components–contamination from oil residues can degrade performance over time.
Critical Elements of a Geothermal Water Heating Assembly
Begin by inspecting the refrigerant coil–the core exchanger that transfers thermal energy between the fluid circuit and the working medium. Optimal performance demands copper or cupronickel construction, with fin spacing between 12-16 FPI (fins per inch) for residential units. Industrial systems benefit from thicker tubing walls (0.049″ minimum) to withstand corrosion and pressure fluctuations up to 350 PSI. Replace coils showing more than 15% surface scaling or pitting immediately–efficiency drops exponentially beyond this threshold.
The compressor’s motor must align with the system’s BTU rating; scroll-type models outlast reciprocating variants by 30% in continuous operation. Verify vibration isolators–rubber mounts degrade after 1,500 operational hours, reducing harmonic distortion by 40%. Check oil levels every 200 hours; synthetic POE oil maintains viscosity at -20°C, while mineral oils gel below -10°C. A single degree drop in superheat reduces capacity by 2.5%, so monitor discharge temperatures within ±3°C of manufacturer specs.
Flow sensors in the hydraulic loop require quarterly calibration–drift causes erratic cycling, shortening equipment life by 18%. Use ultrasonic meters for accuracy, avoiding paddle-wheel types prone to fouling. The expansion valve should maintain a subcooling range of 8-12°C; deviations indicate improper charge. For systems using glycol, ensure concentrations stay below 50%–higher ratios increase viscosity, raising pump workload by 7%. Plate exchangers require reverse-flush cleaning with citric acid every 1,200 hours to prevent biofouling in hard-water zones.
High-efficiency fans with EC motors cut energy consumption by 22% compared to PSC types. Check blade pitch–optimal angles range from 30-35 degrees; steeper pitches create turbulence, reducing airflow by 9%. For outdoor units, install wind guards if ambient gusts exceed 15 mph; unprotected fans experience bearing wear 2.3 times faster. Variable-speed drives should ramp from 40-100% within 30 seconds to prevent startup surges, which trigger voltage sag in grid-connected systems.
Insulation on suction lines prevents condensate formation–use closed-cell elastomeric foam with a minimum R-value of 6. Non-vapor-retardant materials absorb moisture, dropping efficiency by 5% annually. For underground loops, HDPE piping (1.25″ diameter for homes, 1.5″ for commercial) must have a wall thickness of SDR-11 to handle thermal expansion. Detect leaks early using nitrogen charging at 50 PSI–pressure drops faster than 1 PSI per hour indicate system breaches.
Controller firmware should be updated biannually–outdated algorithms miscalculate defrost cycles, increasing energy waste by 12%. Modern units integrate predictive algorithms using outdoor enthalpy sensors, cutting defrost events by 40%. Ensure pressure transducers sample at 1-second intervals; slower rates cause hysteresis, delaying response to load changes. Ground-loop temperatures below 4°C activate auxiliary heaters–disable them if the loop maintains stable thermodynamics within ±1°C of design specs.
How to Locate and Identify Refrigerant Circuit Components
Begin by tracing the copper tubing throughout the system. Refrigerant lines are typically insulated where they pass through unconditioned spaces to prevent energy loss. The larger suction line carries cooled gas back to the compressor, while the smaller liquid line transports condensed fluid to the evaporator coil. Follow these lines from the outdoor unit to their termination points–this reveals key elements like the metering device and coil assembly.
Check for labels or engravings on each component. Many manufacturers mark the compressor, condenser, and evaporator with identifiers like model numbers, serial codes, or pressure ratings. If labels are missing, use a flashlight to inspect internal surfaces–some units have etched or stamped details near valves or service ports. Record these details immediately for reference during diagnostics or replacements.
| Component | Typical Location | Visual Clues |
|---|---|---|
| Compressor | Outdoor unit, often near the base | Large cylindrical or scroll-shaped casing, thick electrical wiring |
| Condenser coil | Surrounding the outdoor fan | Aluminum or copper fins, resembles a car radiator |
| Evaporator coil | Inside the air handler or blower compartment | Similar finned structure to condenser, but often smaller |
| Expansion valve | Near the evaporator inlet | Small brass or stainless steel device with inlet/outlet tubes |
| Filter-drier | Liquid line, before expansion device | Cylindrical canister, may have sight glass or service valves |
Use a refrigerant gauge set to test ports marked with “S” (suction) and “D” (discharge) or “L” (liquid). Attach the hoses to these ports–if pressure readings match expected values (typically 100–150 PSI on the high side, 60–80 PSI on the low side for R-410A), the circuit is intact. Low pressure across the system indicates leaks or restriction; high pressure suggests overcharging or airflow blockage.
Examine the electrical connections linked to the compressor and fan motors. A labeled terminal block often identifies C (common), S (start), R (run), and Cap (capacitor). Use a multimeter to verify continuity–replacement capacitors or relays may be needed if readings deviate from manufacturer specs (e.g., 35–50 MFD for start capacitors).
Inspect the reversing valve, identifiable by its solenoid coil and three ports (suction, discharge, and outdoor coil connections). Energize the solenoid briefly–if the valve clicks but fails to switch states, the internal piston may be stuck. Manual override tools can force a shift to test functionality, but replacement is usually required if faulty.
Look for oil traces along tubing joints and fittings. Refrigerant leaks often leave behind a thin, oily residue due to the lubricant mixed with the fluid. Apply soap solution to suspected areas–bubbles confirm leakage. Common leak points include flare fittings, Schrader valves, and copper-to-aluminum transitions. Repair kits with epoxy or solder are temporary fixes; permanent repairs require brazing with a nitrogen purge to prevent oxidation.
