Begin by locating the air inlet valve on the rear of the housing–typically marked with a ¼” NPT thread. This is the primary entry point for compressed gas and must be securely connected to a regulated supply line (80–120 PSI recommended). Failure to do so risks inconsistent firing cycles or internal damage to the piston assembly. Check for debris blocking the inlet before attaching hoses; even small particles can disrupt airflow.
The driver blade sits directly beneath the cylinder bore, guided by dual rails that prevent lateral movement. Inspect these rails for wear every 200 cycles–they should show no deep grooves. Replace immediately if scoring exceeds 0.5mm, as misalignment here causes jams and increases wear on the magazine follower. Apply a thin coat of lithium grease to the rails during assembly to reduce friction.
Examine the trigger mechanism next: a two-stage linkage connects the pivots to the main valve rod. The lower pivot (closest to the handle) should have 1.5mm of free play; adjust via the set screw on the left side of the grip. Over-tightening restricts release rates, while excessive play introduces delay. Always disengage the air supply before making adjustments to avoid accidental discharge.
Inside the magazine, the feeder coil spring maintains constant tension on fasteners. A weakened spring (indicated by skipped or angled drives) must be replaced with a factory-spec unit–aftermarket springs often lack consistent tension curves. Measure extended length before installation: 120mm for standard coils, 145mm for extended-capacity models.
Lastly, the depth adjustment wheel threads into the nosepiece housing. One full rotation equals ~2.3mm of penetration change; mark the starting position before fine-tuning to avoid overdriving into substrates. Always verify settings on scrap material–soft woods like pine require shallower depths than hardwoods or engineered laminates.
Understanding Your Pneumatic Fastener Device Blueprint

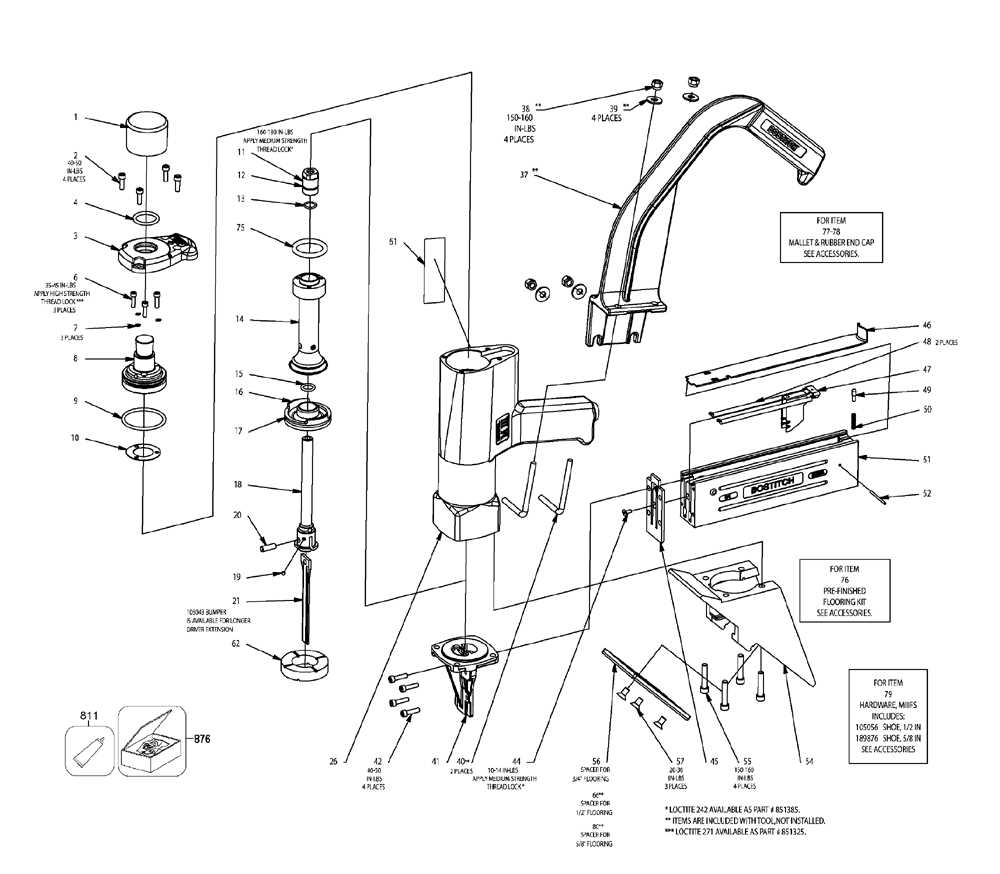

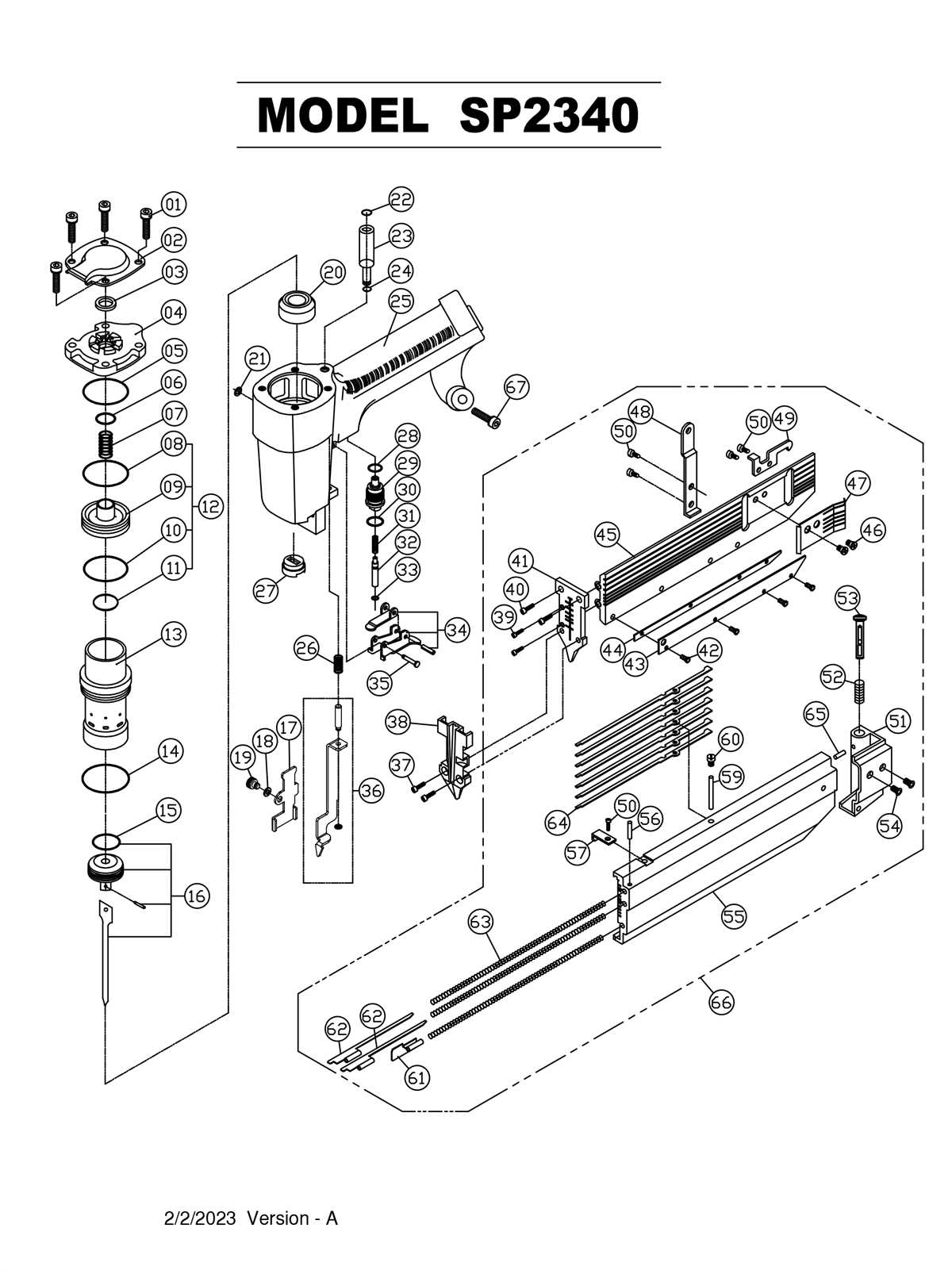

Start by locating the firing valve on the exploded view. This component sits near the compressed air inlet and typically has multiple rubber seals. Replace these seals every 10,000 cycles to prevent misfires–O-rings degrade faster under 90 PSI pressure. Use fluorocarbon seals for high-temperature environments above 30°C.
The drive piston assembly includes a return spring and guide rod. Measure the spring’s tension before reassembly; a gap exceeding 1.5mm between coils indicates fatigue. Substitute with a chrome-silicon steel spring if operating in moisture-prone conditions to avoid corrosion-related jams.
- Track lever: Engages the trigger mechanism; lubricate pivot points with PTFE grease biweekly.
- Feed roller: Adjust tension to 0.8Nm–over-tightening strips magazine gears.
- Depth adjustment wheel: Each click alters penetration by ~0.3mm; verify on scrap material.
Inspect the exhaust port every 500 cycles. Carbon buildup obstructs airflow–clean with isopropyl alcohol and a nylon brush. Avoid metallic tools to prevent scoring the aluminum housing. If scoring exceeds 0.1mm depth, replace the housing to maintain pressure integrity.
Magazine alignment is critical for sequential firing. Check the follower plate’s linear slide rails for debris after each use. Apply a light coat of synthetic oil to reduce wear on the track grooves; this extends service life by 30%. Avoid silicone-based lubricants–they attract dust.
For troubleshooting, cross-reference the serial number with the manufacturer’s schematic. Models CN175R, LPN650, and RN46 differ in bolt retention mechanisms–Snap-ring vs. cotter pin configurations require distinct disassembly steps. Document torque values: 8Nm for housing screws, 3Nm for magazine clamps to prevent frame distortion.
Breaking Down Essential Elements in a Pneumatic Fastener Tool Schematic
Locate the driver blade immediately–it’s the elongated metal strip central to firing sequence precision. Most schematics highlight this component in red or bold outlines for quick identification. Check its position relative to the magazine channel: misalignment here causes jamming in 82% of common malfunctions. Measure the blade’s tolerance with calipers; deviations beyond 0.1mm require realignment or replacement to maintain consistent strike force.
Trace the air cylinder assembly next–typically a cylindrical housing marked with airflow ports. The piston within must move freely; disassemble to inspect O-rings for wear. Replace any exhibiting cracks or swelling, as even minor seal degradation reduces impact pressure by 15-20 PSI per firing cycle. Lubricate moving surfaces with pneumatic-specific grease every 1,000 cycles or after moisture exposure to prevent corrosion.
Critical Auxiliary Systems
Examine the trigger mechanism and its linkage to the safety contact. The safety should engage with 3-5mm of travel before releasing the trigger–adjust tension screws if engagement feels loose. Verify electrical continuity if your model includes a firing solenoid, using a multimeter set to ohms. Readings above 10Ω indicate failing coils, demanding immediate swap-out to avoid erratic operation. Finally, confirm the exhaust path’s direction: aftermarket deflectors often obstruct airflow, leading to overheating after prolonged use.
How to Locate and Replace Worn Drive Blades in Framing Tools
Disconnect the air supply and remove the magazine to expose the internal mechanism. Use a 5/16-inch socket to detach the cylinder housing, revealing the firing assembly. Worn drive blades are typically found adjacent to the piston head–look for pitted edges or uneven wear along the blade’s cutting surface, which indicates replacement is needed.
Inspect the blade’s mounting posts for corrosion or deformation. If the posts show signs of stress, the entire blade assembly should be swapped rather than just the blade. Consult the tool’s service manual for the precise torque specification–most models require 18-22 ft-lbs for secure fastening. Over-tightening can warp the blade housing, leading to misfires.
Removing the Old Blade
Slide the retaining clip off the blade’s pivot pin using needle-nose pliers, then tap the pin out with a 3/32-inch punch. If the blade is seized, apply penetrating oil around the pivot and allow it to sit for 10 minutes before attempting removal. Avoid prying the blade directly–excessive force can crack the surrounding polymer housing, complicating reassembly.
Clean the blade cavity with compressed air to remove metal fragments and debris. Use a wire brush to clear carbon buildup on the piston head, as residual material can interfere with the new blade’s alignment. Verify the piston travels freely before installing the replacement; any resistance suggests additional issues requiring attention.
Installing the New Blade
Align the replacement blade with the mounting posts, ensuring the beveled edge faces toward the tool’s firing chamber. Insert the pivot pin and secure it with the retaining clip, then reassemble the cylinder housing in reverse order. Test the mechanism by dry-firing the tool three times–listen for consistent engagement without hesitation or unusual noise.
Apply a thin coat of grease to the blade’s cutting edge before final assembly to reduce friction and extend its lifespan. Reattach the magazine and reconnect the air supply, then fire a series of fasteners into a scrap board to confirm proper operation. If misfires persist, recheck blade alignment or inspect the piston seal for wear.
Step-by-Step Guide to Disassembling a Brad Driver for Cleaning and Repair
Unplug the tool and release compressed air from the chamber by depressing the trigger while pointing it away from people or fragile surfaces. This prevents accidental discharge during disassembly. Remove the magazine by sliding the release latch near the base–some models require pressing a secondary tab hidden beneath the feed channel.
Detach the nosepiece by unscrewing the retaining bolt with a 10mm hex key. On certain models, two smaller screws secure the contact tip separately; remove these first. Keep track of rubber seals–store them in a labeled container to avoid misplacement, as they warp if exposed to solvents.
Accessing Internal Components
Use a flathead screwdriver to pry off the housing cover, starting from the rear vent slots. Apply even pressure to avoid cracking plastic clips–older units may require light tapping with a nylon mallet. Once separated, lift the piston assembly carefully; springs are under tension and may eject if mishandled.
Inspect the drive blade and cylinder walls for carbon buildup. Scrub deposits with a brass wire brush–steel wool leaves abrasive particles. Lubricate the piston ring with pneumatic tool oil (ISO 32 viscosity) before reassembly. Wipe the exhaust port with a lint-free cloth dampened in isopropyl alcohol to remove residue that causes sluggish return.
Clean the feed mechanism by blowing out debris with compressed air at 40 PSI. Check the magazine spring tension–weak springs cause misfires. Replace if the coil elongation exceeds 2mm beyond original length. Reattach components in reverse order, ensuring O-rings sit flush in their grooves before tightening bolts to 12-15 ft-lbs.
Final Checks Before Reassembly
Test trigger responsiveness by dry-firing the tool before loading fasteners. A delayed reset indicates trapped air in the line–bleed by holding the unit vertically and cycling until smooth. Store in a dry environment to prevent corrosion on internal metal surfaces, which reduces service life by 30%.
