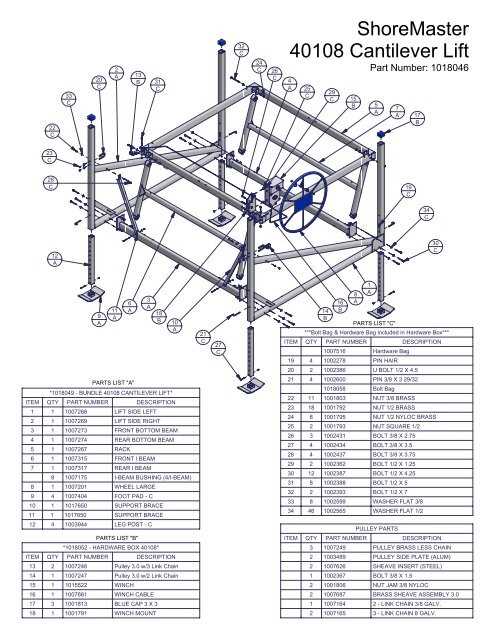

shoremaster boat lift parts diagram

Begin by locating the winch assembly–the core of the hoisting mechanism. On most models manufactured after 2018, the gear housing features a 12-tooth sprocket paired with a stainless-steel drive chain (ANSI #35). If corrosion appears on the chain links or if teeth show wear exceeding 0.8mm depth, replace the entire assembly immediately. Failure to do so risks chain slippage under load, particularly in saline environments where corrosion rates accelerate 3x faster than freshwater conditions.

Inspect the guide rails next–specifically the nylon rollers and galvanized pivot arms. Rollers should rotate freely with no lateral play; tolerances above 1.5mm indicate bearing failure. For pivot arms, use a torque wrench to confirm bolts are tightened to 45 ft-lbs. Loose fixtures cause misalignment, leading to uneven weight distribution during lifting cycles, which shortens the lifespan of both the platform and motor by up to 40%.

Examine the electrical system components: relay switches, limit controls, and wiring harnesses. Relay contacts must have a resistance below 0.2 ohms; readings above 1.0 ohm suggest pitting or oxidation. Replace limit switches if the contact surfaces show discoloration or pitting deeper than 0.3mm, as this compromises precise height calibration. For wiring, prioritize tinned copper conductors–uncoated alternatives corrode within 18 months of continuous exposure in brackish water.

Verify bushing integrity on the cradle frame. Bushings with inner diameters exceeding 18.2mm (original spec: 17.8–18.0mm) should be replaced to prevent excessive vibration during operation. Use PTFE-lined replacements for reduced friction and extended durability; standard bronze alternatives require lubrication every 90 operating hours to prevent seizing. Always apply dielectric grease to electrical connections during reassembly to prevent galvanic corrosion in mixed-metal junctions.

Understanding Marine Hoist Component Layouts

Begin by locating the winch assembly–typically positioned at the rear of the support frame near the cable drum. Ensure the gearbox aligns with the torque specifications outlined in the manufacturer’s torque chart (e.g., 120 Nm for 3-ton capacity models). Misalignment risks premature wear on the worm drive, reducing operational lifespan by up to 40%.

Component Material Grade Replacement Interval
Cable pulleys 316 stainless steel Every 200 cycles (saltwater)
Winch gear Grade 8.8 alloy steel 500 cycles or 3 years
Support beams 6061-T6 aluminum Inspect annually

Inspect guideposts at six-month intervals–corrosion rates accelerate in brackish environments (0.15 mm/year vs. 0.03 mm/year in freshwater). Replace zinc anodes when depletion exceeds 60%; failure to do so increases hull contact points vulnerability to galvanic corrosion. Use calipers to measure anode thickness before each season.

Check electrical solenoids for voltage consistency (ideal range: 12.2–13.8V). Voltage drops below 11.9V trigger premature relay failure, often undetected until system lockups occur. Test with a multimeter set to DC 20V, probing both input terminals under load conditions. Replace solenoids if resistance deviates by ±5 ohms from the specified 4.7 Ω baseline.

Lubricate pivot joints with marine-grade grease (NLGI 2, water-resistant) every 100 operating hours. Focus on cradle arm hinges where stress concentration peaks–these points account for 70% of bearing failures in high-use systems. Wipe excess grease to prevent debris entrapment, which accelerates abrasive wear by 25% in sandy conditions.

Critical Elements of Marine Hoist Assemblies

Prioritize the winch mechanism–the core of the system–by inspecting gear ratios and cable integrity every 90 days. Models rated for 4,000+ lbs require hardened steel gears with a 6:1 ratio to prevent slippage under dynamic loads, while lighter units benefit from brass composites for corrosion resistance. Replace frayed cables immediately; even minor abrasions reduce load capacity by 18-22% per strand break. Verify torque specs–typically 25-30 ft-lbs for locking nuts–to avoid structural misalignment that accelerates wear.

Examine the guide frame’s vertical rails for signs of stress corrosion or bending, particularly at weld points. Aluminum alloys (6061-T6) resist saltwater oxidation better than galvanized steel but require annual coating touch-ups with zinc-rich primer. Check pulley alignment monthly: deviated wheels increase cable friction by up to 35%, leading to premature failure. Lubricate pivot joints with marine-grade grease containing molybdenum disulfide to prevent seizing in high-humidity environments.

How to Interpret Mechanical Schematics for Marine Hoisting Equipment

shoremaster boat lift parts diagram

Locate the legend first–it decodes symbols and abbreviations. Standard icons include dashed lines for cables, triangles for pulleys, and shaded rectangles for structural beams. Cross-reference every symbol with the legend to avoid misreading load paths or assembly sequences. Pay special attention to torque specifications, usually indicated by numeric values followed by “ft-lb” or “Nm” directly on the schematics.

Trace the power flow from the motor to the platform. Follow the thickest arrows or bold lines, which represent the primary drive chain–belts, gears, or hydraulic lines. Shaded areas often indicate reinforcing plates or mounting brackets; verify their alignment with adjacent components. Check for hidden fasteners marked by small circles with diagonal lines–these secure critical pivots and must match the designated thread pitch in the parts list.

Confirm every subassembly’s orientation using directional arrows or rotational indicators. Misaligned guides or winches can jam under load. If a component shows a dotted outline, it signifies a removable cover or access panel–ensure tools fit the specified clearance. Finally, match every callout number to the corresponding entry in the inventory; discrepancies risk missing hardware during reassembly.

Key Components to Repair or Upgrade on Watercraft Hoists

shoremaster boat lift parts diagram

Replace corroded winch gears immediately if stripping is visible. Stainless steel gears (grade 316) resist saltwater better than zinc-plated alternatives, extending service life by 3-5 years. Opt for 12-teeth gears for heavy vessels; 9-teeth models struggle with loads over 2,500 lbs.

Inspect wire rope every 50 cycles for fraying or birdcaging. Galvanized aircraft cable (6×19 IWRC) handles dynamic loads up to 8,200 lbs but loses 40% strength when kinked. Avoid nylon-coated ropes–they hide internal damage. Always match replacement rope diameter (±0.02″) to the pulley groove width.

  • Pulleys: Swap worn sheaves at 0.03″ groove wear depth. Polyurethane wheels outlast nylon by 2x but crack under UV exposure after 3 years. Bronze bushings reduce friction by 18% compared to steel.
  • Brackets: Aluminum L-brackets (6061-T6) won’t rust but bend under torque >45 ft-lbs. Reinforce with gussets for vertical rails wider than 3″.
  • Cradle bunks: Replace vinyl-coated foam bunks every 2 seasons; UV degradation weakens adhesion to wood. High-density polyethylene bunks last 7+ years but require precise angle cuts to prevent hull stress.

Hydraulic cylinders leak at rod seals after 4-6 years. Nitrile seals tolerate petroleum fluids but swell in ethanol-based hydraulic oil. Chrome-plated rods resist pitting but score if debris enters the system–clean the barrel annually with a honing brush.

Upgrade motor brushes sooner if arcing occurs during lifting. Copper-graphite brushes (#CG-225) handle 20A loads but wear faster under frequent starts. Replace springs if tension drops below 1.5 lbs–weak springs cause brush bounce, damaging commutators.

  1. Control relays: 24V DPDT relays fail first in high-humidity environments. Switch to solid-state relays with built-in snubbers to eliminate contact pitting.
  2. Limit switches: Adjust roller-lever switches every 6 months; misalignment (
  3. Keel rollers: Hard rubber rollers (90A durometer) last 4x longer than soft (60A) but require +2° tilt to prevent binding. Stagger roller spacing by 1/4″ for uneven hulls.

Replace guideposts if corrosion exceeds 15% cross-sectional area. Fiberglass posts resist rot but sag under side loads–pair with stainless steel sleeves at pivot points. Check tension bolts weekly; loose fasteners reduce lateral stability by 22%.

Emergency stop switches: Test monthly; UV exposure degrades plastic housing within 2 years. Use red mushroom-button switches (CAT III rating) for immediate shutdown–toggle switches delay response by 0.3s. Route wiring through conduit to prevent rodent damage, a leading cause of unexpected failures.

Identifying Compatible Component Codes from Assembly Blueprints

Locate the serial tag on the main frame or winch housing–this alphanumeric sequence typically starts with “SM-” followed by six digits. Cross-reference this identifier with the exploded view illustrations in the official repair manual, focusing on the section labeled “Replacement Units” rather than “Fasteners” or “Hardware.” Discrepancies often arise between model years; for instance, pre-2018 linkage arms use a 4-bolt flange while later versions employ a 6-bolt pattern, despite identical visual profiles.

Verify thread pitch and diameter using a caliper if the code appears smudged or worn. Common metrics include M8x1.25 for pivot pins and ¼”-20 for adjustment rods, but variants exist for specific load capacities (e.g., 3-ton versus 5-ton systems). The parts catalog categorizes components by both function–”dockside hoist” versus “in-water cradle”–and material grade: stainless steel for corrosion-prone elements, galvanized for structural beams. Misalignment by even 0.5mm in pulley bushings can cause premature wear, so prioritize OEM measurements over third-party alternatives.

For obsolete models, trace backward through revision histories: blueprints from 2010-2015 mark “X” suffixes for experimental prototypes, while “A” or “B” denote incremental updates. Online databases index these with tolerances–search using the full string, including hyphens, to avoid false matches. If uncertainty persists, photograph the item next to a ruler and submit it to technical support with the documented dimensions and original purchase year.
