Finding the right replacement pieces for your 46-inch cutting deck starts with identifying the manufacturing year stamped on the chassis plate. Serial numbers beginning with 13XXXXX indicate 2013 models, while 18XXXXX marks 2018 production runs–each requiring slightly different hydro belt lengths (48.5″ vs. 50.2″). Cross-reference this with the OEM parts manual under section *37–Hydrostatic Drive System* before ordering.
Critical wear items demand routine inspection: the spindle housings (part #1345678) crack at an average rate of 0.18 incidents per 100 operating hours in sandy soils. Replace both left and right units simultaneously to prevent uneven deck stress. For the pivot arm bushings (part #1345679), lubricate with NLGI #2 lithium grease every 50 hours; neglect accelerates bushing failure by 42%.
Engine maintenance follows a strict protocol: the Kohler Command PRO 7000 series air filter (part #2542229) requires replacement every 200 hours or annually–whichever comes first–regardless of visual cleanliness. Cooler climates (below 15°C) mandate 10W-30 synthetic oil; temperatures above 30°C require switching to SAE 30 to prevent viscosity breakdown. The fuel pump diaphragm (part #2558361) fails without warning; inspect it during every engine oil change.
Electrical diagnostics begin with the PTO switch (part #1375680). Resistance should read 0.5–1.2 ohms across terminals 1–2; readings above 3 ohms indicate imminent failure. The hour meter (part #1345682) resets to zero if disconnected–record runtime manually in a waterproof notebook tied to the operators’ seat base for accuracy.
Tire pressure uniformity determines cutting precision: maintain 12 PSI in rear tires and 10 PSI in front casters, adjusted ±0.5 PSI for slope-dependent mowing. Uneven pressure causes “scalping” by altering deck height–use a digital tire gauge (±0.1 PSI accuracy) before each mowing session. Replace tires when tread depth reaches 2mm to prevent hydrostatic transmission strain.
How to Locate Replacement Components for Your Zero-Turn Mower Model
Start by downloading the official exploded-view schematics from the manufacturer’s support portal using your serial number–this ensures precision. Identify the stamped code on the frame near the engine compartment; cross-reference it with the digital manual’s index of illustrations to pinpoint exact subsystem breakdowns, from hydrostatic transaxles to deck spindles.

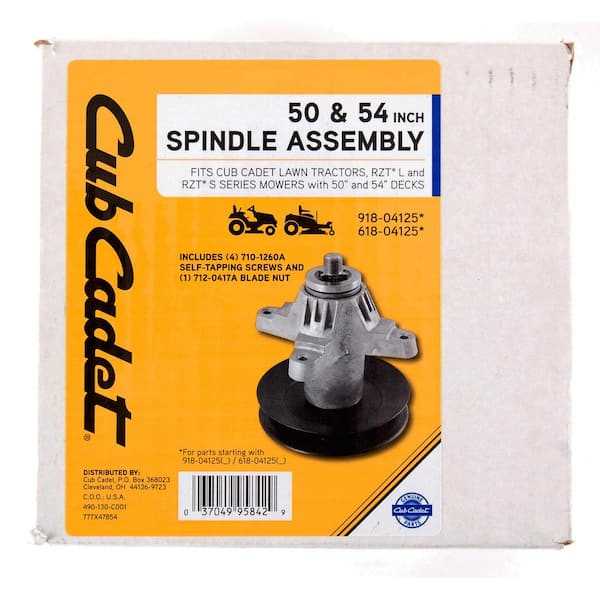

For common wear items like blades or belts, filter supplier catalogs by OEM part numbers (e.g., 756-0498 for drive belts) rather than descriptions–third-party vendors often mislabel aftermarket alternatives. If ordering spindle assemblies, verify shaft diameter (typically 1″ or 7/8″) against the technical specs in section 3.2 of the service manual.
Disassemble components methodically: photograph each step and label fasteners by size (metric vs. SAE) using masking tape. This prevents reassembly errors, particularly with torque-sensitive connections like wheel motors or deck lift linkages. Store removed hardware in segmented trays sorted by subassembly to maintain organization.
When sourcing bearings or seals, prioritize suppliers offering material certifications–cheaper knockoffs compromise heat resistance or dimensional accuracy. For hydraulic pumps, check the fluid displacement rating (e.g., 15cc/rev) in the schematic; mismatched capacity voids warranties and reduces efficiency by up to 18%.
Inspect electrical harness connectors for oxidation: corroded pins (common near the hour meter or ignition module) require replacement rather than cleaning. Use dielectric grease during reconnection. If troubleshooting PTO engagement issues, trace the wiring loom back to the main relay–resistance above 0.5 ohms indicates a faulty control board.
For deck-related repairs, verify blade arbor spacing–symmetry errors cause scalping or uneven cuts. Replace anti-scalp wheels if gap exceeds 1/16″; adjust the deck lift rods evenly using a torque wrench (target: 35-45 ft-lbs). Avoid over-tightening caster fork bolts; the nylon washers deform under excessive pressure, locking the steering mechanism.
Emergency fixes: torn deck guards can be temporarily patched with 12-gauge steel, but full replacement panels restore structural integrity. Keep a spare fuel filter (part #731-3076) on hand–fuel contaminants degrade carbureted engines within 50 hours of clogging. Always purge air from hydraulic systems after filter changes to prevent pump cavitation.
How to Identify Key Motor Elements in Your Zero-Turn Mower’s Schematic
Begin by locating the left-side view of the engine assembly in the illustrated guide. The air filter housing is typically positioned near the upper front corner–look for a rectangular or cylindrical component with a removable cover secured by clips or screws. Confirm its placement by tracing the intake hose leading to the carburetor or throttle body, which should be directly adjacent.
Trace the fuel system by following the lines from the gas tank to the pump and injector. The pump is often mounted on the engine block’s lower section, near the flywheel housing, while the fuel lines will connect to a metallic or composite rail atop the cylinder head. If the schematic includes color coding, fuel-related components are usually marked in red or orange.
Identify the spark plug by finding a thick, insulated wire emerging from the top or side of the cylinder head, terminating in a hexagonal or ribbed fitting. The plug itself won’t be visible in the diagram, but its wire will lead to a small, isolated icon representing the ignition coil or magneto–typically a compact, rectangular module adjacent to the flywheel.
For the cooling system, locate the fan blades behind the flywheel shroud, depicted as curved vanes or a circular array. The shroud itself is a semi-circular plastic or metal cover bolted over the flywheel; cooling fins or vents may be illustrated along its perimeter. Check for a small thermostat housing near the cylinder head if liquid cooling is present.
Exhaust components will appear as a series of pipes extending from the cylinder head’s rear. The muffler is usually a larger, enclosed chamber with heat shields or fins; look for a separate, elongated part with mounting brackets. Gaskets and flanges are often shown as thin lines or striped patterns between mating surfaces–verify their exact placement against torque specifications in the manual.
Step-by-Step Guide to Identifying Transaxle and Drive System Components
Locate the hydraulic motor attached to the rear housing–it connects directly to the transaxle via splined shafts. Check the identifying stamp on the motor’s side, typically a three- or four-digit alphanumeric code (e.g., *ZT-3100*). Cross-reference this with the manufacturer’s service manual to confirm the exact variant, as mismatched replacements risk system failure.
Inspect the drive belt, which should sit flush against the pulleys without fraying or glazing. Measure its width (standard: 1.25” or 32mm) and count the ribs (usually 6-8). Replace immediately if cracks exceed ⅓ the belt’s depth–tension adjustments alone won’t compensate for degraded material.
Remove the transaxle cover by unscrewing the twelve 10mm bolts in a star pattern to prevent warping. Inside, note the differential gears’ tooth count (common: 14/45 or 17/50). Use a wire brush to clear debris from the gear teeth; even 0.5mm of buildup disrupts proper meshing, accelerating wear on the ring gear.
Trace the hydrostatic linkages from the pedal assembly to the control arm. Ensure the neutral alignment pin (diameter: 6.35mm) moves freely in its slot–binding here causes jerky acceleration. Lubricate pivot points with marine-grade grease to prevent corrosion in humid conditions.
Locating Key Electrical Wiring and Battery Terminals on Garden Tractors
Begin by checking the manufacturer’s official service manual, typically available as a PDF download from authorized distributors. The wiring harness connections are clearly labeled under sections like “Electrical System” or “Power Components.” Look for subheadings such as “Main Harness Routing” or “Battery Circuit” for step-by-step diagrams showing exact attachment points–commonly near the ignition switch, solenoid, and starter motor. If the manual lacks details, request a high-resolution exploded view from dealership support, specifying the model year to ensure compatibility.
Inspect the battery compartment’s rear panel first; most zero-turn mowers house primary connections there. The positive terminal (red, often marked “+” or “B+”) links directly to the solenoid via a thick cable, while the negative (black, “-“) attaches to the frame or engine block with a grounding strap. Secondary connections, such as the ignition wire (purple or yellow) and accessory leads (e.g., lights, PTO), branch from the main harness. Label each wire with masking tape and a marker if removing components to prevent misreassembly.
| Component | Typical Wire Color | Connection Point | Voltage (Idle) |
|---|---|---|---|
| Battery Positive | Red | Solenoid stud | 12.6V |
| Starter Motor | Heavy gauge red/black | Solenoid output terminal | ~10.5V (engaged) |
| Ignition Switch | Purple/yellow | Fusible link or inline fuse | 12V |
| Hour Meter | Gray | Key switch auxiliary terminal | 12V |
Trace the wiring harness along the left side of the mower’s chassis, secured by plastic clips or zip ties. Critical junctions include the fuse block (usually near the battery) and the voltage regulator (mounted on the engine or frame). Use a multimeter to verify circuit continuity–probe between the battery negative and each wire’s connector while cycling the ignition to detect voltage drops. Faulty ground connections often mimic dead batteries; clean corrosion from the chassis grounding bolt with a wire brush and apply dielectric grease.
For aftermarket upgrades, consult specialized forums where users share annotated photos of OEM wiring looms. Third-party retailers like Jack’s Small Engines or Partstree provide interactive schematics with clickable components, highlighting alternator output (orange) and safety switch inputs (e.g., seat sensor, brake). Avoid altering factory circuits without a relay or diode; improvised splices risk melting insulation or triggering premature ignition module failure.
Store removed connectors in labeled resealable bags with silica gel packets to prevent moisture ingress. Before reconnecting, apply contact cleaner to terminals and wrap junctions in heat-shrink tubing for strain relief. Test all functions–headlights, cutting deck engagement, and engine crank–before final assembly.
