Begin by examining the movement–the mechanism driving every analog or mechanical timekeeping device. In quartz models, a battery-powered oscillator regulates oscillations (typically 32,768 Hz) via a circuit, transferring energy to a stepper motor that advances the hands. Mechanical variants rely on a mainspring wound manually or automatically, storing torque released through a gear train at controlled intervals. Accuracy depends on the escapement’s precision: a Swiss lever escapement maintains ±2 seconds daily, while a tourbillon minimizes gravitational errors in luxury pieces.
Focus next on the case structure. The bezel, often rotatable, may feature tachymeter scales for speed calculations or countdown functions. Sapphire crystal, 0.8–2.0mm thick, resists scratches with a 9 Mohs hardness rating–exceeding mineral glass (5–6 Mohs) but vulnerable to impacts despite its clarity. Stainless steel cases (typically 316L or 904L alloys) prevent corrosion, while titanium variants offer a 40% weight reduction at the cost of higher machining difficulty.
Inspect the dial layout for functional indicators. Subdials at 3, 6, or 9 o’clock positions commonly track elapsed time, chronograph seconds, or lunar phases. Luminous markers use Super-LumiNova or earlier radium-based compounds, with the former achieving 8+ hours of afterglow. Skeleton designs expose the movement through transparent dials, necessitating meticulous hand-finishing on gear bridges to eliminate tooling marks.
Assemble the strap last. Metal bracelets employ solid links (e.g., Rolex’s Oyster or Omega’s Honeycomb) with micro-adjustments for fit, while leather straps demand quick-release spring bars for tool-free interchangeability. Water-resistant models require gasket seals at the crystal, caseback, and crown–nitrile rubber degrades slower than silicone in prolonged submersion tests (ISO 22810 certification). Avoid magnetism: mu-metal shields protect the movement, but external fields stronger than 1,500 gauss still disrupt accuracy.
Key Components of a Timepiece Illustration

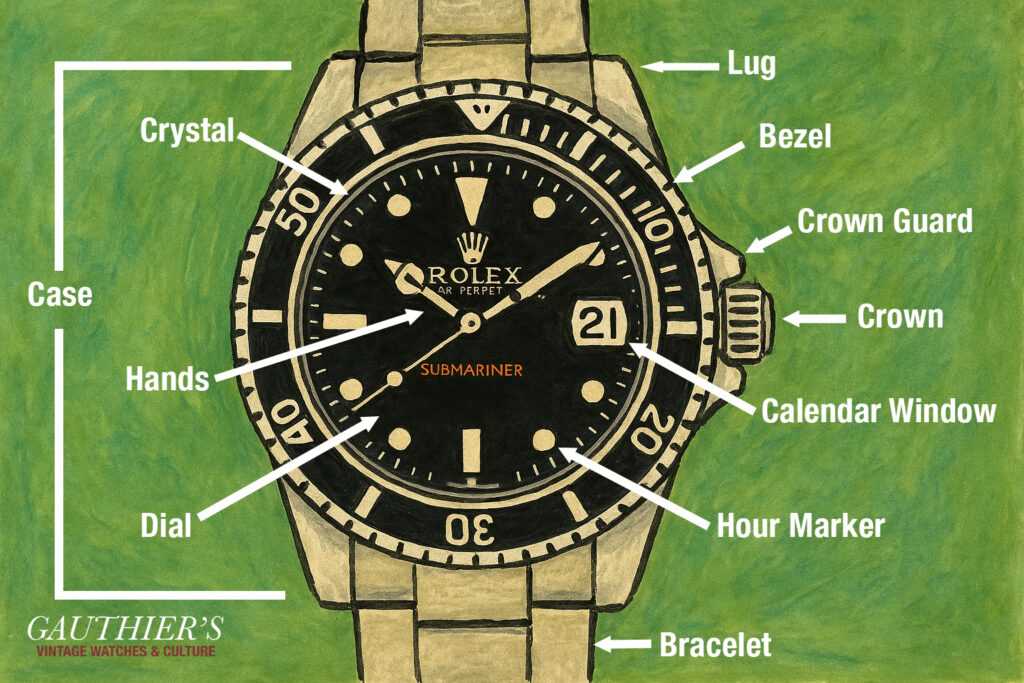

Label the crystal first–it’s the transparent cover protecting the dial, typically made of sapphire, mineral glass, or acrylic. Sapphire resists scratches best; acrylic is lightweight but prone to cracks. Ensure the bezel (the ring securing the crystal) is marked distinctively–it may rotate on dive models for tracking elapsed time or hold fixed tachymeter scales for speed calculations. For luxury pieces, note if the bezel has a coin-edge or smooth finish, as this affects grip and aesthetic.

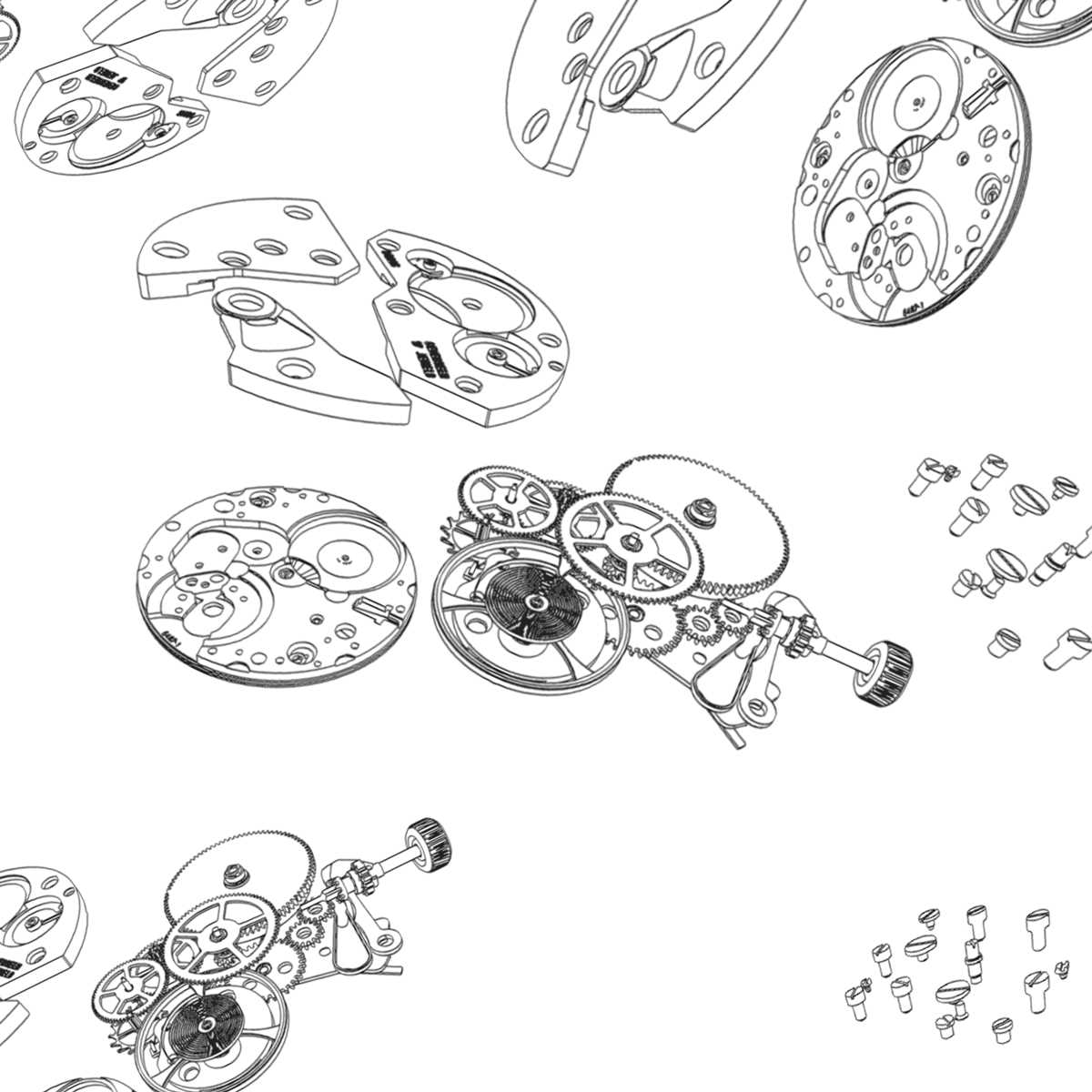

Break down the movement layers beneath the dial:
- Mainplate: the framework anchoring all gears, often brass or steel in high-end calibers.
- Jewels (usually ruby or synthetic): embedded as bearings for gears to reduce friction–count them: 17+ suggests mechanical complexity.
- Balance wheel: the oscillating component regulating timekeeping; its frequency (e.g., 28,800 vph) determines accuracy.
- Escapement: releases energy in controlled increments–pallets and escape wheel must mesh precisely.
- Mainspring barrel: stores energy–uncoated steel in entry-level pieces, blued steel or gold alloys in premium movements.
On the back, highlight the caseback: exhibition-style reveals the movement’s finishing (Côtes de Genève, perlage, or anglage), while solid backs protect against dust and moisture. For water-resistant models, annotate the gasket material–fluorinated rubber lasts longer than standard silicone.
Hidden Functions in Technical Schematics
For chronographs, isolate sub-dials (totalizers) showing elapsed minutes/hours–typically placed at 3, 6, or 9 o’clock. Mark the pusher buttons: the top starts/stops timing, the bottom resets. If the piece has a flyback function, specify the additional gear train allowing instant restart without manual reset. For perpetual calendars, include the month wheel–often a tiny disc with painted numerals–and the leap-year indication (usually a small aperture near the date). Quartz analog hybrids need a clear note on the stepper motor, which converts electrical pulses into seconds-hand jumps.

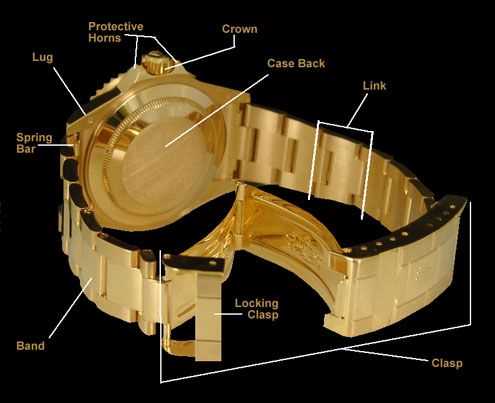

- Examine strap attachment: spring bars vs. screw pins–latter prevent accidental detachment in diving models.
- Check crown threading: 2-3 grooves on screw-down crowns create a watertight seal; smooth crowns indicate basic water resistance.
- Identify luminous material: Super-LumiNova (blue/green glow) outperforms older tritium (dim green).
- For smart timepieces, flag the battery type: lithium-polymer (rechargeable) vs. coin-cell (replaceable).
How to Identify Critical Elements Inside a Timekeeping Mechanism
Examine the balance wheel first–a small, circular oscillating component near the center. Its rhythmic motion, regulated by the hairspring (a delicate coiled strip), defines precision. If the wheel wobbles unevenly or the spring shows kinks, accuracy suffers. Locate it under the dial or through the case back, depending on the construction. A loupe helps confirm its condition without disassembly.
Trace the gear train from the mainspring barrel outward. The barrel, a drum-shaped housing, stores energy when wound. Its teeth engage the center wheel, driving subsequent gears in descending size. Check for worn pivots or misalignment–these cause power loss or erratic movement. Lubricant residue around these points indicates past servicing; dry or sticky deposits signal neglect.

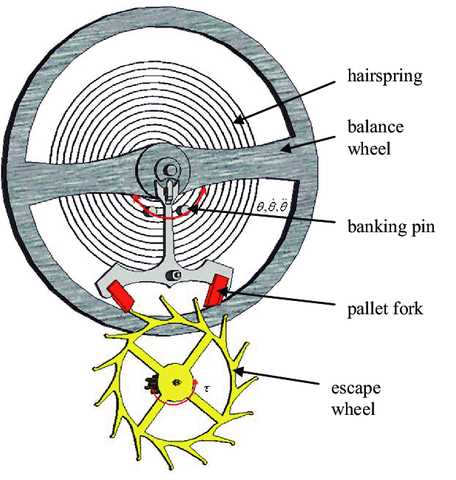

The escapement, typically a lever or pallet fork system, sits adjacent to the balance wheel. It meters energy release, ensuring consistent impulses. Observe its interaction with the escape wheel: erratic ticking or skipping teeth suggest wear. Swiss lever escapements dominate modern designs; look for the pallets’ jewels–ruby or synthetic–contacting the escape wheel’s teeth.
Identify jewels–hardened, polished bearings–scattered throughout. Commonly ruby or sapphire, they minimize friction at critical pivot points. Count them: a higher jewel count often denotes quality, though exceptions exist. Blackened or cracked jewels demand replacement. The regulating mechanism (index pins or screws) near the hairspring fine-tunes accuracy; adjustment here requires a timegrapher.
Inspect the motion works, connected to the dial-side wheels. These transfer energy to the hour and minute hands, translating gear ratios into time display. Loose cannon pinions here cause misalignment; listen for grinding during hand-setting. Colored lubricants–red for synthetic, blue for natural–indicate proper servicing. Missing or discolored grease suggests urgent maintenance.
Step-by-Step Guide to Labeling a Quartz Timepiece Case Back
Remove the rear cover using a case opener–S-Shaped prongs or a Jaxa-style tool work best. Align the groove on the opener with the seam between the cover and the body, then apply steady pressure in the direction of rotation. Avoid excessive force to prevent stripping threads or damaging the gasket.
Inspect the interior surface after removal. A typical quartz movement’s underside includes these marked areas:
| Label | Location | Purpose |
|---|---|---|
| Stem slot | Upper edge near crown tube | Houses winding stem; ensure no debris obstructs engagement |
| Battery compartment | Central or lower section | Holds power cell; note polarity markers (+/-) before replacing |
| Coil block | Near movement plate, often adjacent to circuit | Transmits pulses to stepping motor; verify solder joints |
| Circuit board | Flat plate beneath coil | Processes timekeeping signals; clean with isopropyl alcohol if corrosion present |
| Screw posts | Evenly spaced around perimeter | Secure cover; use non-magnetic precision screwdriver (0.6–0.8mm tip) |
Use a dry erase marker to trace component outlines directly on the cover’s interior. This creates a reusable template for future reference. For intricate models (e.g., Citizen Eco-Drive), add notation for solar cell placement beneath the dial–misalignment here disrupts recharging.
Reinstall the cover after verifying all seals. Rotate it clockwise until a firm click confirms engagement. Test water resistance using a pressure tester if available–target 3 ATM minimum for daily wear. Replace any worn rubber gaskets during reassembly; silicone grease extends longevity by preventing dry rot.
For battery-operated units, check voltage with a multimeter before insertion: 1.5V silver oxide cells are standard; rechargeable lithium variants (3.0V) require model-specific compatibility. Document battery type and installation date on the template to track lifespan.
Store labeled components in separatemicrofiber pouches to avoidscratches. If disassembling for cleaning,organize screws by size and location using foam inserts–confusion here risks stripped holes or loose fittings. Calibration tools (e.g., timegrapher) can verify accuracy post-reassembly; adjust via trimmer capacitor if deviation exceeds ±15 sec/month.
Common Mistakes When Sketching a Timepiece Face Design
Misaligning the hour markers by even 0.5mm disrupts symmetry, making the layout appear amateurish. Use a grid with 12 equal segments–30° increments–to position each index precisely. Apply a protractor for verification, as freehand placement often skews near the 3, 6, and 9 o’clock positions. Avoid relying solely on digital templates; physical measurements on paper reveal errors digital previews miss, like uneven spacing between numerals and the dial’s outer edge.
Neglecting proportional balance between sub-dials, hands, and main markers results in a cluttered or unreadable design. Maintain a minimum 1.5mm clearance between any element’s edge and another component–otherwise, they merge optically. The central seconds hand’s pivot should align exactly with the hour and minute pivots; a 0.2mm offset creates an unsettling parallax effect. Test legibility under dim light; color contrasts below 4.5:1 fail ISO 3864 readability standards.
