For immediate identification of worn or faulty elements in a 4-cycle utility vehicle, refer to the exploded view schematics provided in the official service manual–specifically Section 5, page 42. Critical areas include the carburetor linkage, fuel filter housing, and crankcase ventilation valve. The intake manifold gasket (Part #674-290) frequently fails after 800–1,200 hours of operation; replace it preemptively if compression readings drop below 120 psi.
Examine the throttle body assembly (Part #523-176) for corrosion on the butterfly valve shaft–this causes erratic idling. Clean it with CRC Carb Cleaner every 300 hours. The exhaust muffler baffle often cracks near weld points; inspect it visually and tap with a screwdriver–dull thuds indicate internal failure. Replace with upgraded stainless steel models (Part #890-455) to prevent recurrence.
Use the torque specifications chart on page 118 when reassembling the cylinder head–apply 18 ft-lbs in a spiral pattern starting from the center bolts. The flywheel keyway (Part #341-098) shears under sudden load; install a hardened steel replacement during routine maintenance. For fuel pump issues, test flow rate by disconnecting the outlet hose–minimum output should be 1.5 L/min at 3,000 RPM.
Label all disassembled components with painter’s tape noting orientation and position–critical for the valve train (intake valves face left, exhaust right in the head). The governor spring weakens progressively; adjust tension using the welded tab on the throttle plate screw, not the plastic limiter cap. Keep a multimeter set to 20kΩ for verifying coil resistance–primary circuit should read 0.5–0.8Ω, secondary 8–12kΩ.
Golf Cart Engine Component Breakdown: A Hands-On Reference
Locate the carburetor rebuild kit by identifying the model stamp on the intake manifold–typically a two-letter code (e.g., *KV* or *UD*) followed by a four-digit number. Cross-reference this stamp with the exploded view in the *Service Manual Supplement (2015–2023)* under section 4B. Replace the needle valve first, holding it vertically to avoid damaging the Viton seal during installation. Use a torque wrench set to 5–7 ft-lbs for the bowl nut to prevent distortion of the aluminum casting.
- Exhaust system disassembly: Remove the muffler bracket bolts with a 10mm socket, noting the orientation of the donut gasket–reinstall it with the concave side facing the engine block.
- Ignition troubleshooting: Test the coil resistance with a multimeter: primary circuit should read 0.3–0.5 ohms, secondary 5,000–7,000 ohms. Replace if values deviate by more than 10%.
- Fuel pump priming: Attach a 1/4″ clear hose to the Schrader valve and cycle the key five times to purge air; listen for a distinct click at the pump base.
- Drive belt tension: Measure deflection at the midpoint–standard is 1/2″ under 10 lbs of force. Adjust the rear pulley’s jam nut (15mm) in 1/4-turn increments.
For the rear differential, drain the old gear oil using the 1/2″ square drive plug on the cover. Refill with 80W-90 GL-5 synthetic, using exactly 24 oz–overfilling causes foaming and seal failure. When servicing the braking system, note that the parking brake cable adjuster requires a 3/16″ hex key; turn clockwise until resistance is felt at the rear caliper pivot, then back off 1.5 turns for optimal engagement.
Locating Authentic Schematics for Your Golf Cart Model
Head directly to the manufacturer’s official repair portal at support.ezgo.com and select “Technical Documents.” Filter by your specific vehicle series–look for identifiers like “TXT” on the frame or under the seat–to access downloadable PDF breakdowns. These files include numbered callouts matching OEM replacement codes.
For immediate visual reference, PartsDrop maintains an indexed database with exploded-view illustrations. Search using the chassis serial number stamped on the passenger-side frame rail; cross-reference this with the model year tag near the pedal assembly. Diagrams here often highlight torque specifications for fasteners.
Dealers like Golf Cart King offer interactive schematics where you can toggle layers (engine, drivetrain, electrical) by hovering over labeled components. Their system archives revisions dating back to 1995, useful if restoring an older fleet vehicle. Bookmark the direct link to avoid navigating their main sales pages.
Browse the ArboristSite forum thread where users upload scanned dealer manuals and annotate correction notices not found in digital repositories. One post details a 2006 carburetor recalibration schematic–critical for adjusting fuel mixture post-restoration.
Check ManualsLib for crowd-sourced documentation; enter the exact model variant (e.g., “4-cycle 295 cc”) into their search bar. This platform hosts user-contributed high-resolution scans, including seldom-published hydraulic brake layouts not available on corporate sites.

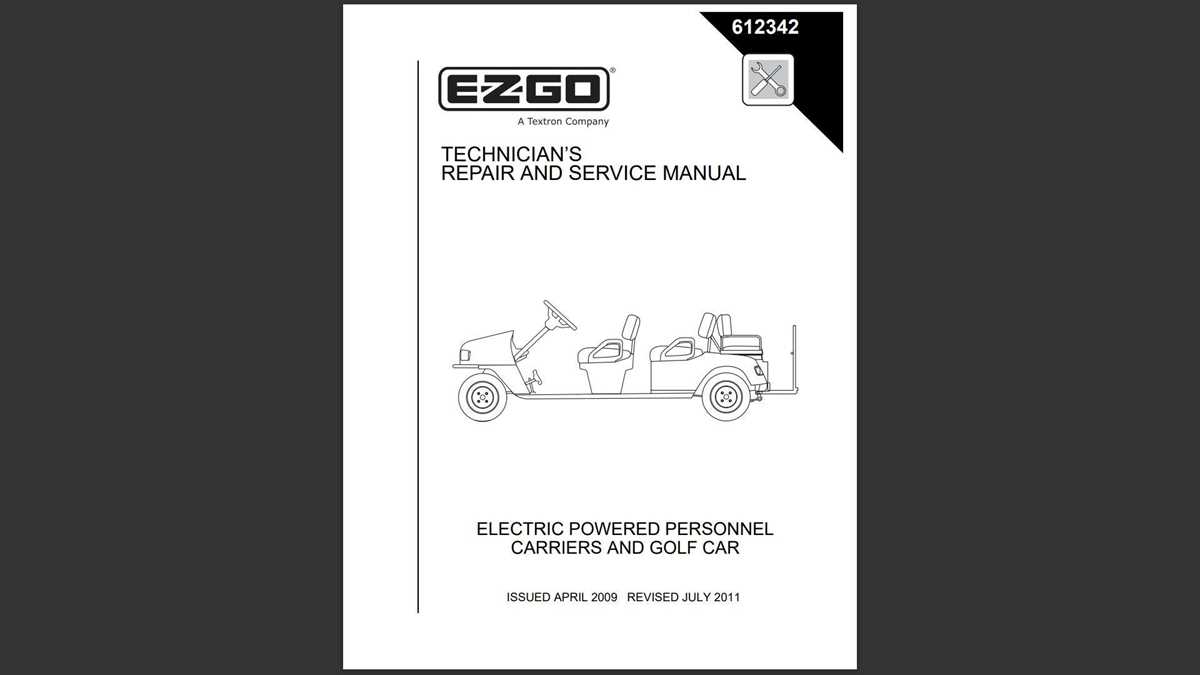

If working on a 2010–2015 unit, request a digital copy from Textron’s customer service citing the 10-digit build code embossed on the firewall. They will email a ZIP containing VIN-matched schematics in less than 48 hours, bypassing third-party inaccuracies.

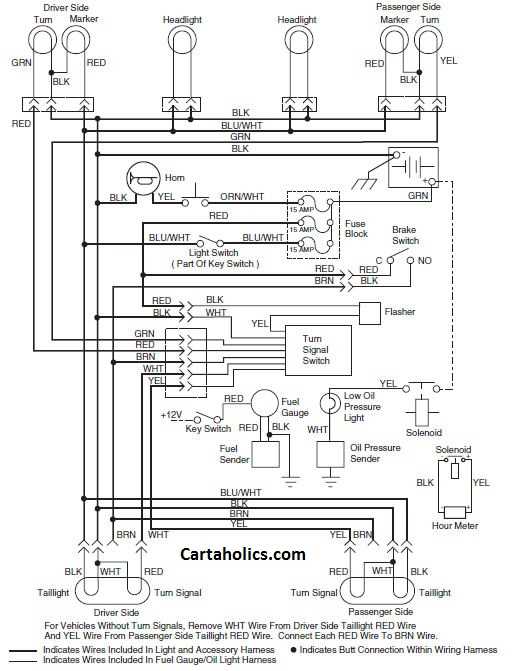

For pre-2000 models, consult Old Golf Cart Forums, where members repair vintage wiring harnesses based on traced diagrams converted from microfiche archives. One pinned post maps a 1998 TXT’s ignition coil connections–relevant if replacing worn connectors.
Store verified schematics locally: right-click each PDF link, choose “Save As,” and name files using the build month, displacement, and system (e.g., “2009_07_350cc_steering_column.pdf”). Organize folders by subsystem–engine bay, rear axle, body panels–to expedite future troubleshooting without relying on live internet access.
Locating Critical Motor Assemblies with Schematic Guidance
Start by isolating the carburetor–its position is typically marked by a cylindrical body with fuel line connections at the front or side of the power unit. Reference the exploded view: look for the air filter housing adjacent to it, distinguished by a mesh screen or pleated paper element. The spark plug wire routes directly to the cylinder head, identifiable by its finned aluminum casting. Verify the flywheel beneath a protective cover–its teeth mesh with the starter mechanism, confirming its role in ignition timing.
Trace the crankcase: follow the oil drain plug (often a hexagonal bolt) to locate the sump, then move upward to identify the piston assembly via the connecting rod’s visible mating point with the crankshaft. The intake and exhaust valves sit above the cylinder, covered by a rocker arm housing–note the pushrods linking the camshaft to these components. Cooling fins, though ornamental, signal proximity to critical heat-exchange zones. Cross-check each element against labeled reference numbers on the technical blueprint to confirm functional relationships.
Step-by-Step Guide to Reading Exploded Views for Maintenance Tasks
Locate the reference number next to each component in the schematic–this corresponds to the manufacturer’s official catalog. Cross-check these numbers with the service manual’s parts list to confirm compatibility before ordering replacements. Misidentifying a single bolt or gasket can delay repairs by weeks.
Note the hierarchy of assemblies in the illustration. Major sub-systems, such as the engine block or transmission casing, are typically grouped and labeled first, followed by smaller fasteners and seals. Use this structure to prioritize disassembly; remove external components before accessing internal mechanisms.
| Schematic Symbol | Component Type | Recommended Tool |
|---|---|---|
| Solid arrow | Primary assembly | Socket wrench |
| Dashed line | Temporary fastener | Flathead screwdriver |
| Dotted outline | Wearable part | Torque wrench |
Isolate fasteners by type before beginning work. Count washers, clips, and O-rings for each assembly section–store them in labeled containers to avoid mixing. A single missing retaining ring can cause a critical failure after reassembly.
Trace the flow of lubricants or fluids through the exploded view. Components like seals and gaskets are positioned to prevent leaks at connection points. Verify their condition during disassembly; replace anything cracked or deformed immediately.
Identify adjustment points marked in the schematic. These may include linkage rods, tension springs, or calibrated slots. Measure their orientation or length before removal to ensure correct reinstallation–some systems require precise alignment for optimal performance.
Check for shaded or cross-hatched areas in the illustration. These often indicate components requiring high heat or specialized adhesives during installation. Review the service manual for torque specifications; improper tightening can compromise seals or strip threads.
Photograph each step of disassembly with a timestamp. Compare these images to the exploded view while reassembling to confirm proper placement of spacers, bearings, or thrust plates. Even symmetrical parts can have directional orientation–flipping a gear or clutch plate may cause catastrophic binding.
Update the schematic with handwritten notes if the manufacturer’s revision is outdated. Mark adjustments or known wear points based on field experience–this customized reference will save hours on future repairs. Store annotated copies digitally alongside the original files.
Frequently Worn Components on Electric Utility Vehicles
Replace brake pads every 6,000–8,000 miles under normal use, or sooner if operating in dusty or hilly terrain. Ceramic pads last longer but cost 30–40% more than organic compounds. Inspect rotors for grooves deeper than 0.015 inches; resurfacing extends life by 2,000 miles, while replacement rotors restore OE stopping power.
Air filters clog in 1,500–2,500 miles depending on dust load. Paper elements trap 95% of 10-micron particles but collapse under moisture; pleated synthetic media handle wet conditions yet require 15–20% more airflow area to match efficiency. Clean with low-pressure air–never water–to avoid filter medium separation.
Ignition & Fuel System Components
- Spark plugs misfire after 50–75 hours under heavy throttle; iridium tips last 100+ hours but need 0.035–0.040″ gap for 14mm thread pitch. Torque to 7–9 ft-lbs to prevent porcelain cracking.
- Fuel filters (inline 10-micron) restrict flow at 12–15 psi drop; bypass valves prevent lean conditions but mask clogged filters until pump failure.
- Carburetor diaphragms tear at 2,000–3,000 miles; ethanol-blend fuels accelerate degradation. Rebuild kits include gaskets for accelerator pump and needle valve–apply 0.002″ sealant to mating surfaces.
Drive belts lose tension after 1,200 miles; squealing at startup signals 20% stretch. Kevlar-reinforced belts withstand 400°F peaks but require pulley alignment within 0.020″ to prevent edge wear. Replace idler pulleys simultaneously–bearing failure cascades into belt shredding.
Suspension & Steering Wear Items
- A-arm bushings split in 1,800–2,200 miles; polyurethane outlasts rubber by 40% but transmits more vibration. Grease zerks extend life by 800 miles if serviced every 300 miles.
- Shock absorbers leak after 1,500 hard landings; gas-charged units fade at 25% compression, while hydraulic models require fluid checks every 500 miles.
- Tie rod ends develop 0.060″ play before binding; taper-locked ball joints need 35 ft-lbs torque to prevent pull-out.
Battery terminals corrode within 6 months without dielectric grease; copper lugs oxidize at 0.005″ thickness loss per year. Deep-cycle AGM cells require 2-hour equalization at 14.8V every 30 cycles to prevent sulfation. Replace cables if resistance exceeds 0.2 ohms per foot.
Tires wear unevenly on hard-packed clay–rotate every 400 miles to equalize tread depth. Lug patterns designed for 4-ply sidewalls fail at 25 psi; 6-ply ratings add 800 miles of puncture resistance. Seal holes under 3/16″ with rubber cement before inserting plugs–larger cuts need two-plug patches.
