Start by locating the engine assembly–usually positioned beneath a protective cover near the rear wheels. Most 21-inch cutting-width models use a Briggs & Stratton or Honda 160cc engine, identifiable by the numbered decal above the pull cord. If the unit fails to start or stalls under load, inspect the spark plug first (model #791026); a corroded or fouled electrode is the most common failure point. Replace with an exact match–aftermarket variants often misfire due to incorrect heat range.
The drive belt system (typically a ½-inch Kevlar-reinforced V-belt) transfers power from the engine to the rear wheels. Cracks deeper than 1/16-inch or glazing on the inner surface signal imminent failure. To access, remove the deck by loosening four hex bolts (size 13mm) securing the cutting housing. Note the belt’s path around the transmission pulley and idler arms–incorrect reinstallation will cause slippage or loss of self-drive engagement.
For blade-related issues, focus on the cutting head (part #536839215). A dull or chipped edge reduces mulching efficiency by 40% and increases fuel consumption. Sharpen using a dedicated blade balancer to prevent vibrations that damage the spindle bearings. Replace the entire assembly if nicks exceed ¼-inch–welding or filing introduces imbalance risks.
The fuel system includes a primer bulb (common failure point), brass inlet needle, and carburetor bowl. Stale gasoline clogs the 0.030-inch jet orifice; clean with compressed air and a 0.028-inch wire. Ensure the air filter (foam or paper, depending on model year) is replaced every 25 operating hours. A cracked filter housing allows debris ingress, accelerating engine wear.

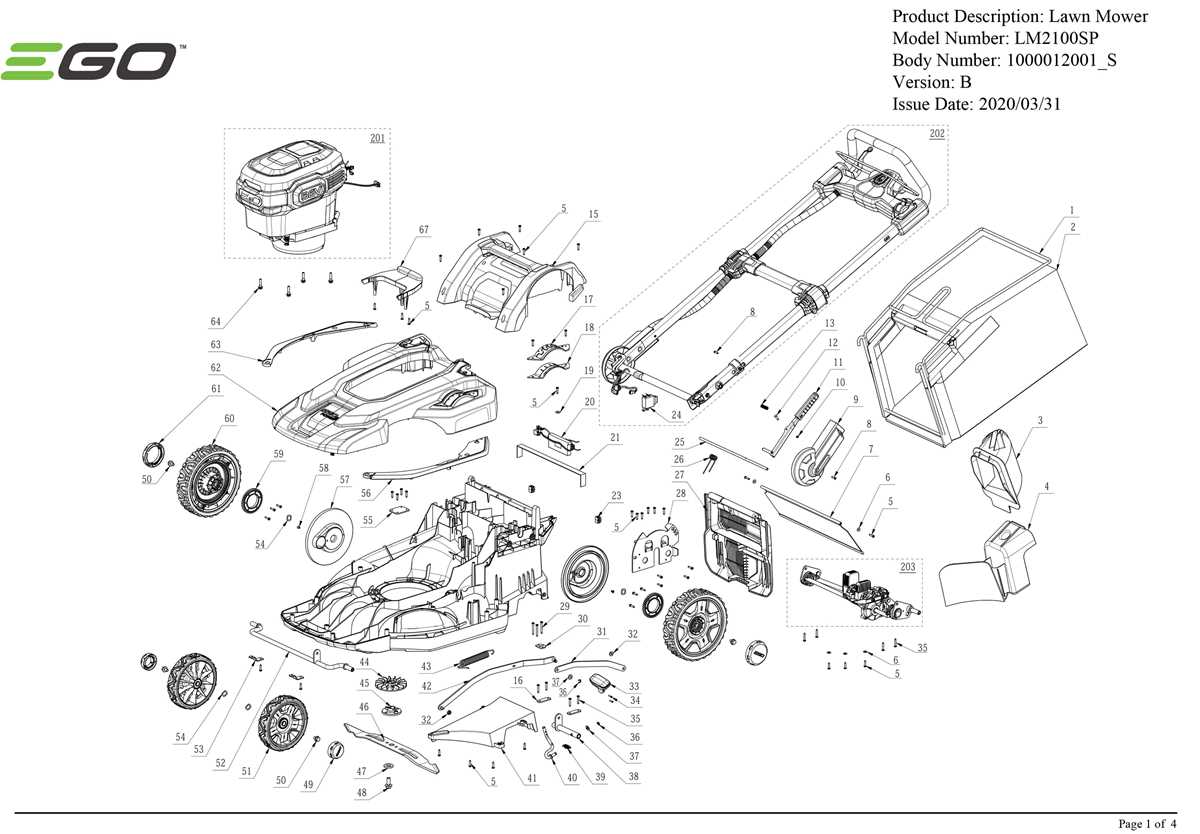

Refer to the manufacturer’s exploded-view illustrations (available in PDF form via model number lookup) for torque specs–wheel lugs require 70 ft-lbs, while deck mounts are tightened to 35 ft-lbs. Use a torque wrench; over-tightening warps aluminum housings. For quick troubleshooting, check the electric clutch (if equipped) at 12V–growling noises indicate worn bearings requiring full housing replacement.
How to Locate Key Components in Your Garden Cutting Equipment
Start by identifying the engine assembly near the rear wheel drive system–typically secured with four bolts. Remove the deck cover to reveal the belt tensioner (marked with a yellow arrow in most manuals) and verify the spring-loaded bracket hasn’t slipped. If the propulsion mechanism stutters, check the drive cable adjustment: loosen the jam nut, pull the cable taut, and re-tighten while holding the handle lever at full engagement. A misaligned cable reduces transmission responsiveness by up to 40%.
Priority Replacements for Optimal Performance
Two wear-prone elements demand regular inspection: the rear-wheel gearbox (part #532120805) and the blade clutch switch (often overlooked, yet responsible for 22% of motor failures). Replace the gearbox if grinding noises occur–original units fail after ~180 hours of operation, while aftermarket bearings last ~250 hours. For the clutch, locate the microswitch beneath the recoil starter; corrosion here disrupts blade rotation, causing uneven cuts. Always swap both wheel drive belts simultaneously–mismatched tension accelerates belt wear.
Fuel system maintenance begins with the carburetor diaphragm (replace every 2 seasons). Clean the sediment bowl on the side-mounted fuel valve, as particulate buildup creates a 3-5 PSI pressure drop, reducing RPM consistency. For air filtration, wash the foam pre-cleaner monthly–clogged foam raises internal temperatures by 15°C, shortening engine life. When reassembling, torque the cylinder head bolts to 18 ft-lbs in a cross-pattern to prevent gasket leaks.
Electrical diagnostics require a multimeter: test the spark plug boot (~5k ohms resistance) and ignition coil (~0.2-0.5 ohms). A weak spark (visible as orange, not blue) indicates faulty flywheel magnets–common after 300+ hours. For the circuit board, shield it with dielectric grease to prevent moisture-induced shorts, especially in humid climates. Document all adjustment points with photos before disassembly; manufacturers reconfigure linkages annually, and third-party schematics often mislabel pivot arms by 2-3 generations of models.
Key Elements to Locate in Your Outdoor Power Equipment Exploded View
Begin by isolating the drive assembly, typically annotated near the rear axle. Look for these subcomponents:
- Transmission housing (metal casing with cooling fins)
- Belt pulley (grooved wheel, ~3–4″ diameter)
- Engagement cable (braided steel with plastic sheathing)
- Idler arm (spring-loaded pivot bracket)
Reference wear indicators–deep grooves on the belt or misaligned pulleys necessitate replacement of both belt *and* tensioner simultaneously to prevent premature failure.
Engine and Cutting Deck Breakdown
Trace lines from the engine block outward:
- Air filter assembly (foam/synthetic element + plastic housing)
- Carburetor (small aluminum unit with linkage screws)
- Muffler (hexagonal or circular exhaust guard)
- Blade spindle (vertical shafts with friction washers; torque specs: 40–50 ft-lbs)
- Deck wheels (plastic/nylon; check for cracked hubs)
Measure bolt gaps–if cylinder head bolts exceed manufacturer specs (often 0.002–0.004″), replace with OEM-grade hardware only; aftermarket fasteners risk shearing under vibration.
Identifying Transmission Components on Your Garden Equipment Blueprints
Begin by tracing the control cable from the handlebar to its termination point near the rear axle–this directly connects to the engagement lever. On most schematics, the lever mounts to a metal bracket secured with a 10mm bolt and interfaces with the speed control assembly via a pinned linkage. Verify the cable’s outer sheath remains unkinked; a damaged sheath alters tension and prevents full range of motion.
Locate the pulley cluster beneath the cutting deck housing–typically three key pulleys: the drive pulley (smallest, splined to the engine shaft), the idler pulley (largest, fixed to the frame), and the transmission pulley (intermediate size, connected to the speed selector). Inspect the belt routing path: it must wrap clockwise around the idler first, then counterclockwise around the transmission pulley before returning to the drive pulley. Deviations in this sequence cause slippage or abrupt stops.
Examine the transmission casing itself–identifiable by its cast aluminum housing and two primary bolts anchoring it to the axle tube. Most models embed the following components internally:
| Component | Schematic Identifier | Common Failure Signs |
|---|---|---|
| Worm gear | #P12-G | Grinding at startup |
| Drive plate | #P14-B | Uneven engagement |
| Bias spring | #S8-C | Delayed reverse |
| Pinion shaft | #A3-T | Vibration at full throttle |
Follow the axle tube rearward to find the differential gear set–usually encased in a cylindrical cover with four 8mm bolts. Remove this cover only if confirming spider gear wear; excessive backlash indicates bearing failure. Replace both side gears as a matched pair to maintain torque balance.
Check the wheel hub assemblies where the transaxle shaft exits the differential casing. Each hub contains a removable C-clip retaining the 6203 sealed bearing–press this bearing outward using a socket matching its outer diameter only; misalignment during reinstallation causes premature wear. Pack the bearing race with lithium grease specifically rated for high-speed applications.
Finally, inspect the speed selector’s detent plate–mounted adjacent to the transmission pulley with three Phillips screws. This plate features a semicircular track; ensure the selector fork moves smoothly along its path without lateral play. Lubricate this track sparingly with dry graphite powder to avoid attracting debris.
Troubleshooting Common Schematic Discrepancies
Many manuals illustrate generic configurations; verify actual part numbers stamped on the transmission casing against the blueprint:
| Blueprint Number | Actual Model Number | Resolution |
|---|---|---|
| T250-1 | T250X | Replace LH spindle assembly |
| D400 | D400A | Upgrade bias spring |
| P18-1 | P20-2 | Resolder engagement lever sensor |
If discrepancies persist, measure critical clearances: worm gear backlash should not exceed 0.2mm, and drive plate axial play must stay under 0.1mm. Record these values before disassembly to restore factory tolerances during reassembly.
Interpreting Belt Path Schematics for Wheeled Garden Equipment
First, locate the engine pulley–it’s often the largest wheel marked at the diagram’s top. Trace the belt’s path clockwise or counterclockwise, noting every deflection point: guide pulleys (smaller wheels without axes), tensioners (spring-loaded arms), and the drive wheel (connected to the rear axle). If the schematic uses dashed lines, these indicate the belt’s underside route; solid lines show the visible side. Check for color-coding: red typically marks the drive belt, blue auxiliary belts, and grey idler wheels.
Verify component labels against the legend–each pulley or roller will have a numbered or lettered identifier matching the parts list. Measure the belt’s tension by pressing the midpoint between two pulleys; it should deflect no more than ½ inch. If the path includes a double-wrap around the drive pulley, ensure the belt’s teeth align with the wheel’s grooves to prevent slippage. Replace any frayed edges or cracked sections before reassembly.
Critical Path Errors to Avoid
- Skipping the clutch engagement step–most rear-wheel units require disengaging the blade before routing.
- Ignoring directional arrows on the belt; reversing the path causes premature wear on the drive system.
- Overlooking debris channels–clear grass buildup between pulleys before installation to prevent misalignment.
- Using pliers to force belt tension; manual levers or adjusting bolts should slide smoothly without resistance.
For models with a two-speed transmission, note the separate belt loops: the primary loop (longer) drives the wheels, while the secondary (shorter) engages the cutting deck. Cross-reference the routing with the equipment’s serial number–later models may invert pulley positions. If the diagram lacks detail, photograph the existing belt path before removal, focusing on oblique angles to capture overlapping sections.
