Start repairs or maintenance by isolating the water inlet valve–common failure points include a clogged screen or faulty solenoid. Replace with OEM-grade valve assemblies (model 207753) rated for 145 psi to prevent leaks. Verify proper seating of the valve with a multimeter; resistance between terminals should read 1,800–2,200 ohms at room temperature.
Inspect evaporator plates next. Corrosion typically begins at the lower left corner; use a 0.025″ feeler gauge to check spacing between fins. Misalignment beyond 0.035″ requires realignment with a torque wrench set to 12 ft-lbs to avoid refrigerant channel distortion. Clean with isopropyl alcohol–never abrasives–to preserve nickel plating.
For condenser coils, backflush with 30 psi air to dislodge mineral deposits. Replace fin stock if damage exceeds 15% of surface area; aftermarket coils often lack the 2.5 mm fin spacing needed for optimal airflow. Verify thermistor resistance (5 kΩ ± 5% at 77°F) before reinstalling probe assemblies.
Check gear motors under load–current draw should not exceed 1.2A at 115VAC. Lubricate bronze gears with food-grade PTFE grease every 500 hours; avoid petroleum-based products to prevent bearing seizure. Seal replaced shafts with OEM gaskets (part 674012) torqued to 8 ft-lbs.
Test bin-level sensors by simulating rising cubes. False trips often stem from corroded contacts; clean with contact cleaner rated for 50 VDC circuits. Replace sensors if hysteresis exceeds 0.5 inches–adjustable models allow recalibration via set screws.
Visual Breakdown of Commercial Cooling Equipment Components
Begin by locating the evaporator plate–typically identified by its geometric ridges or grid pattern. This core element interacts directly with refrigerant, dictating thermal exchange efficiency. Misalignment or scale buildup here will reduce output by up to 23%, so verify positioning and cleanliness during routine inspections.
Examine the water distribution system, often concealed beneath a snap-on cover. Spray nozzles (commonly six to eight in industrial models) must dispense liquid evenly across the evaporator. Partial blockages skew freezing cycles, evidenced by hollow centers in formed cubes. Test flow by temporarily removing the collection bin and observing spray trajectories–correct deviations using a 2mm wire probe without disassembling the housing.
Critical Wear Points & Replacement Intervals
| Component | Lifespan (hours) | Failure Symptoms | Inspection Tool |
|---|---|---|---|
| Refrigerant compressor | 12,000–15,000 | Unusual vibration, reduced cooling | Decibel meter (threshold: <58 dB) |
| Float valve assembly | 8,000–10,000 | Erratic water level, overflow | Multimeter (continuity test) |
| Bridge sensor | 5,000–7,000 | Incomplete freezing cycles | Infrared thermometer (-10°C tolerance) |
Harvest mechanisms require precise timing adjustments. The rake arms–usually stainless steel–should engage the frozen product for 3–5 seconds at 120 RPM. Extended contact risks shattering, while premature disengagement leaves residual layers. Calibrate using the service panel’s “harvest duration” setting, incrementing by 0.5-second intervals until clean separation occurs.
Troubleshooting via Schematic Cross-References
Reference the electrical ladder schematic to isolate faults. The control board (item 47 in most manuals) governs sequence initiation; failed relays here manifest as stalled cycles. Verify input voltage at terminals TB1 and TB2–expected range: 115–125V AC. For mechanical assemblies, trace the refrigerant path from condenser coils to expansion valve; frost on copper tubing indicates localized restrictions, necessitating vacuum evacuation before recharging.
Key Elements of a Commercial Freezing Unit Blueprint

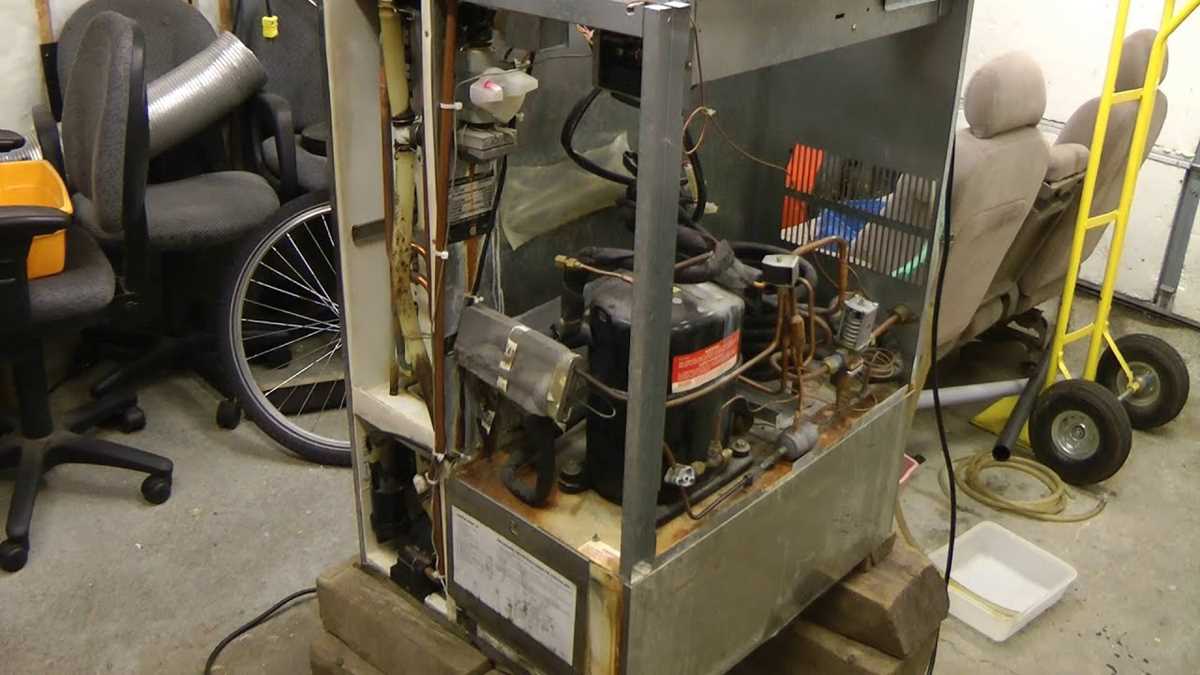

Locate the refrigeration cycle components first–compressor, condenser, evaporator, and expansion valve–as they form the operational backbone. The compressor, typically marked with high-voltage warnings, sits near the base, while the condenser coils occupy the upper rear section. Trace refrigerant lines between them; thicker pipes indicate liquid flow, thinner ones signal vapor.
Examine the water system next. Identify the reservoir, pump housing, and distribution tubes leading to the freezing plates. Look for a float switch or sensor assembly–this regulates water levels and prevents overflow. On older models, a mechanical timer may appear instead of electronic controls.
Critical Wear Items and Safety Mechanisms
- Bin thermostat: Mounted inside the storage area, this cuts power when internal temperatures rise above -1°C (30°F).
- Water inlet valve: Filters debris before entering the system; a clog here reduces cube formation speed.
- Defrost heater: Located beneath the evaporator, it activates during harvest cycles to detach cubes from plates.
- High-pressure cutout switch: Protects the compressor by interrupting power if refrigerant pressure spikes.
Check electrical schematics adjacent to the main blueprint panel. AC wiring should route through a dedicated breaker–look for color-coded labels (L1/L2 for power, neutral in white or gray). Control boards often cluster near the user interface, featuring microprocessors or relays that coordinate freeze and harvest phases. Ground connections must terminate at a designated chassis point to prevent shorts.
Inspect gasket seals around doors and service panels. These prevent ambient air infiltration, which degrades efficiency. Measure gap uniformity; deviation exceeding 3mm warrants replacement. Lubrication ports (for motors or bearings) appear as small, capped holes–use manufacturer-specified grease only.
Diagnostic Symbols on Schematics
- Dashed lines = Low-voltage signal or control circuits.
- Solid arrows = Primary power flow (208–240V AC).
- Triangle with exclamation = High-pressure hazard zone.
- Wavy line = Heating element or defrost coil.
- Dotted box = Optional or model-specific component.
Verify serial number alignment against the blueprint’s revision code. Variations between units built pre-2018 may include legacy sensors or analog gauges (e.g., capillary tubes instead of electronic pressure transducers). Reference the legend for abbreviations–common ones include “EVAP” (evaporator), “COND” (condenser), and “COMP” (compressor).
Photograph each subsystem before disassembly, noting cable ties, bracket positioning, and torque specs for fasteners. Replace any corroded fittings immediately; brass or copper components resist oxidation better than aluminum. Keep a multimeter set to 200Ω resistance mode handy to test continuity across safety switches during reassembly.
Step-by-Step Guide to Locating the Evaporator Plate and Water Distribution Tubes
Shut off power to the unit and disassemble the front panel by removing the two Phillips-head screws securing it. The evaporator plate sits directly behind the refrigerant coils–identify the thin, corrugated aluminum surface spanning the width of the compartment. Trace the copper lines entering and exiting this plate; these demarcate the edges. Water distribution tubes attach to the top edge, secured with plastic clips; press the clips inward to release them without twisting.
Inspect the distribution tubes for calcification buildup–if present, soak them in a 1:3 vinegar-to-water solution for 30 minutes, then flush with distilled water using a syringe. Reinstall by aligning the tubes with the slots along the evaporator’s top rim; verify each tube’s nozzle sits centered over the plate’s ridges to ensure even flow. Misalignment causes uneven freezing, detectable by thin or hollow cubes.
Reattach the front panel, securing screws until snug–over-tightening cracks plastic mounts. Restore power and initiate a cleaning cycle to confirm water dispenses uniformly across the entire evaporator surface.
How to Interpret Electrical Schematics with Component Layouts
Locate the power source symbol–typically a battery or terminal block–on the wiring chart first. Trace its connections to the main control panel using solid lines, ignoring dashed or dotted indicators at this stage, as they denote auxiliary circuits or non-powered signals. Cross-reference each wire’s color code with the physical assembly guide to confirm terminals on relays, compressors, and motors before proceeding.
Identify switches and protective devices early. Thermal cutouts and pressure sensors appear as normally closed contacts in schematics but must align with their labeled positions in the exploded view. Verify their reset mechanisms or manual overrides if included, noting whether they interrupt the primary voltage path or a low-voltage control loop. Misalignment here risks unintended activation cycles.
Match each motor and solenoid to its corresponding circuit branch. A three-phase compressor motor, for example, will show three winding connections branching from a common point; compare these against mounting bracket labels in the assembly illustration. Ensure capacitor values–if present–are sized per the schematic’s annotated microfarad rating to prevent startup failures.
Follow control signals from the PCB or timer module to actuators. Dashed lines often represent signal paths rather than current flow; confirm their endpoints coincide with relays or indicator lights in the parts breakdown. Replace generic labels like “CN1” or “J12” with actual pin assignments if the wiring chart lacks detail to avoid confusion during troubleshooting.
Test continuity sequentially along high-current paths. Use a multimeter set to ohms, probing between terminals marked in both documents while the equipment is disconnected. Residual resistance readings above 0.5 ohms suggest corroded contacts or undersized wiring–cross-check against torque specifications for terminal screws listed in the mechanical drawings.
Document discrepancies between the schematic and physical layout immediately. Redline changes directly on both documents if a transformer tap or fuse rating differs, as these variations impact voltage regulation. Store revised copies alongside service logs for future reference; inconsistencies unresolved in initial calibration often resurface as intermittent faults.
