Begin by locating the actuator drive rod (component #LFC-823) beneath the seat frame–it connects the lifting mechanism to the main power unit. Refer to section 5B of the official repair manual for torque specifications: 12-15 ft-lbs for all M8 bolts securing the rod to the housing. Over-tightening voids the warranty and risks stripping threads.
Examine the SC-45 control box mounted under the left armrest. The wiring harness (pinout listed in table 3) terminates at the 9-pin connector; mismatched connections will trigger error code E3, requiring complete system reset via the service port. Use a multimeter set to 20V DC to verify voltage at each terminal–expected readings range from 4.8V (yellow wire) to 12.2V (red wire).
For the dual-motor linkage, mark pivot points A and B with grease before disassembly. The rear mechanism (part #RMT-11) must be aligned within 2mm of the factory notch–misalignment causes uneven lifting and premature gear wear. Replace the nylon bushings (item #BU-9) every 18 months or at the first sign of friction noise; silicone-based lubricants degrade the material.
Check the gas spring assembly (component #GS-22) for nitrogen leaks by spraying soapy water at the valve stem–bubbles indicate failure. Replacement units must match the original 1200N compression rating; higher ratings strain the inner frame welds. When reinstalling, apply thread-locking adhesive (Loctite 242) to the mounting bolts to prevent loosening from vibration.
Calibrate the limiter switch (part #LSK-7) after any reassembly. Power on the unit, then hold the up/down buttons simultaneously for 8 seconds until the LED flashes twice. If the sequence is incorrect, the system defaults to a 45° lift angle, potentially unbalancing lightweight users.
Understanding Mobility Recliner Component Schematics
Identify the motor assembly first–located beneath the seat base, secured by four bolts (M8×25). Remove the under-seat panel (12 screws, Phillips #2) to access wiring harness connections labeled M1 (main drive), M2 (secondary actuator), and B+/B- (battery terminals). Disconnect the harness gently: press the locking tab on female connectors before pulling apart.
Common Replacement Items and Their Locations
- Hand control module: Attached to the right armrest, secured by a single Torx T15 screw. Replace if buttons stick or fail to register inputs.
- Footrest linkage: Two scissor arms (left/right) connected via 5mm pins. Lubricate with lithium grease every 6 months; replace if bent or showing >2mm play.
- Upholstery attachment clips: 18 nylon clips (9 per side) along the bottom edge. Snap-on design requires no tools–pull firmly to release, push to reattach.
- Transformer block: Mounted on the rear base frame. Input: 120VAC, output: 24VDC. Verify fuse (3A, 250V) before replacing.
- Trace control board circuits using a multimeter. Probe
TP1(5V reference) andTP2(signal ground)–readings outside 4.7-5.3V indicate regulator failure. - Check actuator gears for stripped teeth. Test by manually rotating the motor shaft; resistance >5Nm suggests internal wear (average lifespan: 8-12 years).
- Inspect all hinged joints for stress cracks. Pay special attention to weld points on the lift mechanism’s lifting arm–cracks >3mm render the unit unsafe.
Key Elements in an Elevating Seat Mechanism Blueprint
Begin diagnostics by locating the actuator assembly–typically positioned beneath the base frame. Verify the motor’s voltage input (usually 24V DC) against the manufacturer’s specs before disassembly. A multimeter reading outside ±0.5V indicates a failing power supply or loose wiring harness. Check the gearbox for stripped teeth or excessive play; if wear exceeds 1mm axial movement, replacement is non-negotiable. Document torque settings for reattachment–most models require 15-18 Nm for mounting screws.
Critical Wear Points and Replacement Thresholds
| Component | Failure Signs | Replacement Criteria | Tools Required |
|---|---|---|---|
| Actuator rod | Bending, uneven extension | 0.3° deviation from straight axis | Digital caliper, hex keys |
| Control box | Intermittent circuit response | 2+ faulty relay tests (continuity ≤ 5Ω) | Soldering iron, oscilloscope |
| Gas spring | Leaking hydraulic fluid | Visible seepage or | Spring tester, torque wrench |
Scrutinize the scissor linkage pivots for corrosion; apply molybdenum disulfide grease to pitted joints exceeding 0.2mm surface depth. Replace nylon bushings if compression exceeds 10% of original thickness. For electronic assemblies, cross-reference resistance values against the OEM’s tolerance bands–deviations above ±5% signal imminent PCB failure. Always secure ground connections with star washers to prevent voltage drop under load.
How to Identify and Source Components Using Illustrated Schematics

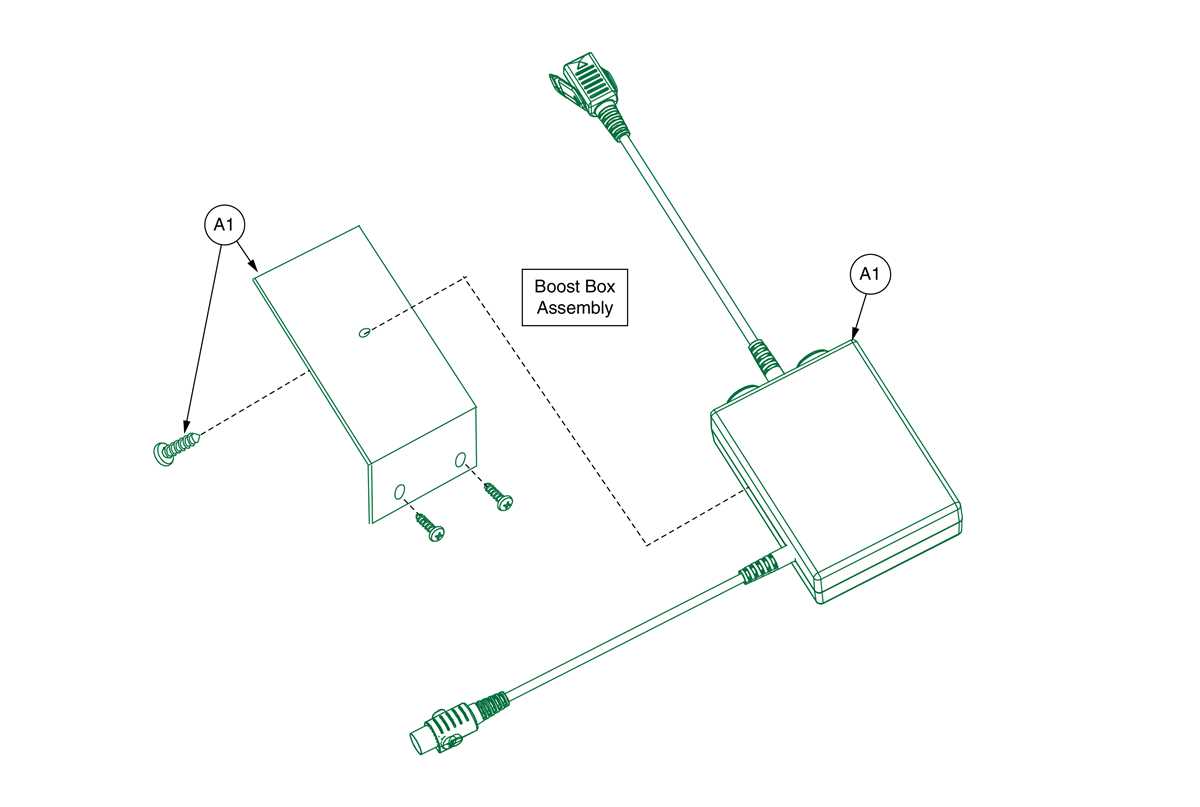

Locate the manufacturer’s breakdown sheet for your mobility aid model–this is typically available in the user manual or on the official product support page under “Technical Resources.” Each exploded view includes numbered callouts corresponding to a parts list; cross-reference these with the defect you’ve observed. For example, if the motorized base fails to recline, examine the actuator assembly section (usually section C) rather than the armrest subassembly (section A).
Use the serial number stamped on the underside of the frame to filter results–this narrows search down from thousands of generic listings to exact matches. Online retailers like MedMart, 1800Wheelchair, or even specialized forums like RepairClinic archive schematics alongside inventory links. Avoid third-party marketplaces with sparse seller ratings; verified distributors mark diagrams with SKU-specific compatibility warnings.
Compare the visual cues on the schematic with physical wear patterns. A worn lift mechanism track will show scuffing on the inner rails–this corresponds to replacement rails listed in section D-3 on most breakdowns. If the backrest vibrates excessively, inspect both the motor coupling (section E) and pivots (section B-5); schematics group related clusters with dashed outlines for quick identification.
Measure critical clearances before ordering. Actuator shafts, for instance, tolerate deviations under 0.5mm–most schematics include a tolerance table beneath the assembly drawing. If measurements deviate, return to the breakdown sheet and verify adjacent components; an oversized bushing may indicate misidentification. Hardware kits often bundle fasteners like M8x25 screws–confirm thread pitch with a caliper if the exploded view lacks specifics.
Print the illustrated schematic at 100% scale to align with physical dismantling. Label each removed piece with masking tape notes corresponding to the callout numbers; this prevents reassembly errors. Hydraulic dampers, for example, require precise orientation–look for arrow markers on both the part and its schematic depiction.
For discontinued models, consult archived schematics on Fixya or ManualsLib. These often preserve earlier revisions with alternate suppliers listed in sidebar notes. If the actuator lacks a model stamp, trace wiring harness colors back to the control module–diagrams label connectors by pinout (e.g., “white/blue – tilt sensor output”). Cross-check with OEM firmware updates, which sometimes correct labeling errors in older versions.
Assemble a microfiche of frequently replaced items–solenoids, potentiometers, battery cages–with direct links to suppliers. Schematics typically rank components by failure rate; prioritize those highlighted in red or with double-outlined borders. Bookmark these digital breakdown sheets on your device for offline field troubleshooting.
Key Components Prone to Degradation and Their Schematic Locations

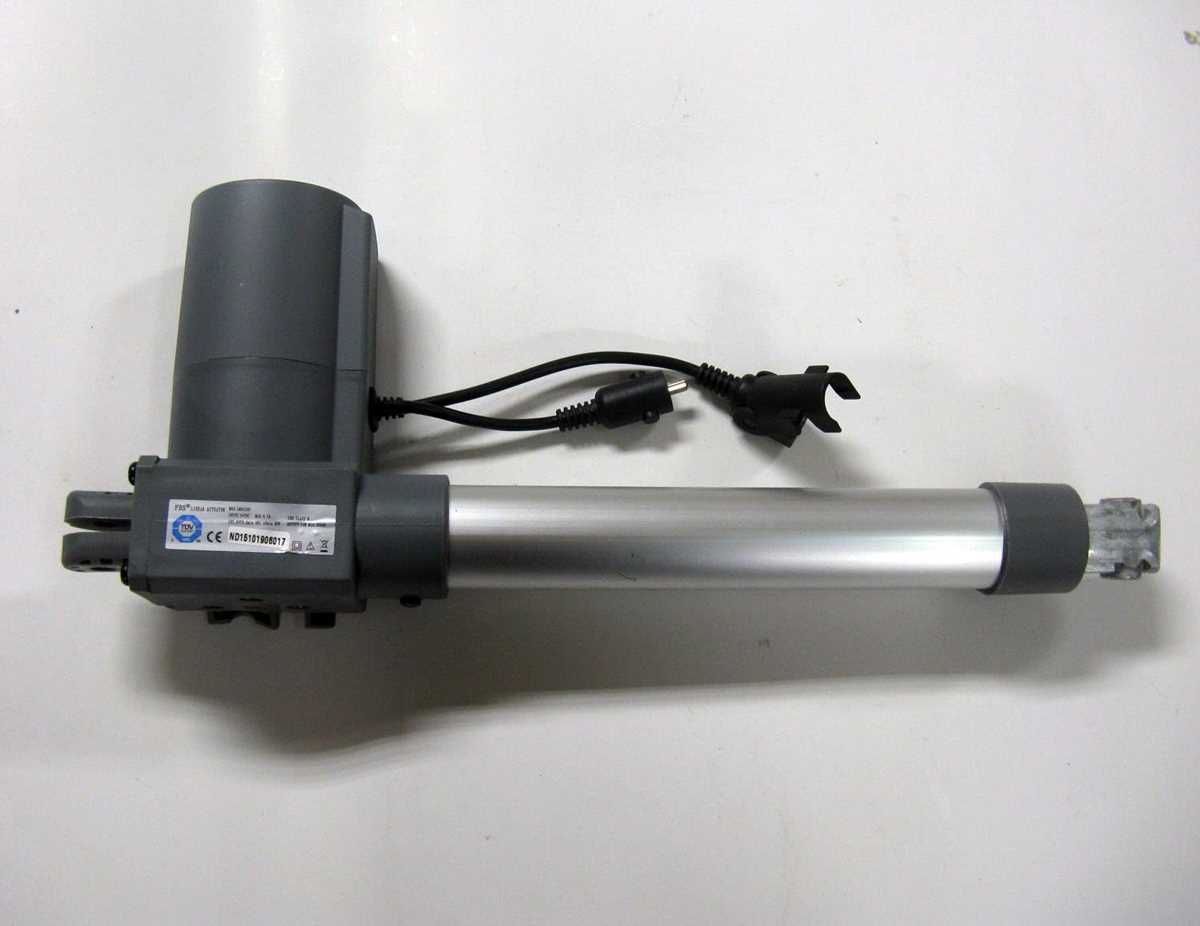

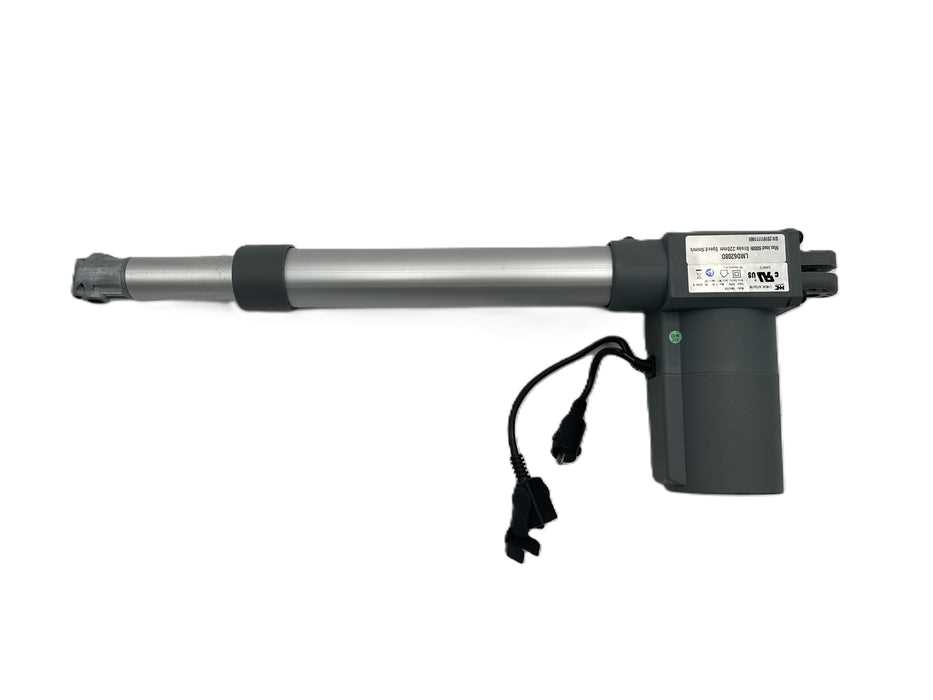

Inspect the actuator assembly first–its failure often triggers intermittent movement or complete loss of reclining function. Locate this unit beneath the seating base, connected via dual pivot points; schematics typically depict it mid-frame along the lower cross-member. Replace worn gears or stripped screw threads if resistance increases during elevation or lowering cycles.
Hand controls degrade faster than mechanical assemblies. Verify button responsiveness monthly; schematics show these mounted on the right armrest edge, encased in a removable panel. Corrosion inside micro-switches or frayed ribbon cables account for 60% of reported malfunctions–clean contacts with isopropyl alcohol or swap the entire unit if double-clicks occur.
- Gas springs lose pressure within 18–24 months under daily use. Schematic symbols mark them as cylindrical rods near rear legs; check for leaks via hydraulic oil stains on the floor.
- Footrest linkage arms develop play at the pivot joints–tighten or replace bushings if sagging exceeds 12mm.
- Base rollers crack under lateral stress; schematics indicate them as polyurethane discs beneath the front legs–rotate quarterly to prevent uneven wear.
Upholstery attachment points weaken where screws penetrate plywood reinforcements. Schematics highlight these spots as red circles along the seat perimeter. Secure loose fasteners immediately–vibration accelerates wood splitting, leading to torn fabric in high-stress zones like lumbar edges.
Electrical Connections and Failure Signs
Schematics denote the 24V transformer near the rear crossbar–test output voltage drops below 22V indicate overheating due to dust buildup in the cooling vents. Clean vents annually with compressed air; replace the transformer if buzzing occurs under load.
- Limit switches prevent over-extension; schematics position them at both ends of the actuator track. Test by manually engaging each switch–delayed clicks signal worn contacts.
- Battery backups drain prematurely if not cycled monthly. Schematic symbols place them adjacent to the power inlet–swap if runtime falls below 30 minutes.
Power cords fray at strain relief points, especially where they exit the base. Schematics mark this hotspot near the left rear leg–inspect for exposed wiring quarterly and reroute if bending radius exceeds 50mm. Use dielectric grease on connectors to prevent oxidation in humid environments.
Swivel bearings seize after 3 years if unlubricated. Schematics show these beneath the seat plate–apply graphite powder to raceways yearly. Replace if rotation resistance surpasses 4.5 Nm torque to avoid motor burnout.
