Start by locating the combustion chamber identification plate–typically mounted on the front panel or interior side wall. This label lists critical specifications: input BTU/hour, voltage requirements, and model compatibility. Cross-reference the number with the manufacturer’s service manual to avoid mismatched replacements. Incorrect pairings will reduce efficiency by up to 22% and may trigger safety circuits.
Examine the ignition assembly next. Modern units use dual-rod electrodes spaced 3–5mm apart, angled at 45° relative to the burner port. Corrosion on the ceramic insulator or bent tips disrupt spark formation. Clean with 1200-grit sandpaper; never use wire brushes. Replace if resistance exceeds 2Ω across the spark gap–common failure point after 12,000 operating hours.
The heat exchanger flange must maintain a gas-tight seal. Check for hairline cracks using a dye penetrant test. Even minor leaks allow flue gases into air distribution paths, elevating CO levels above 9ppm–OSHA’s permissible exposure limit. Replace cracked sections immediately; patching with sealants voids warranties.
Observe the draft inducer motor impeller clearance. Standard gap: 0.8–1.2mm between wheel and housing. Misalignment causes erratic draft pressure, leading to premature shutdown due to pressure switch faults. Measure using a feeler gauge before seasonal start-up. Lubricate bearings every 2,500 hours with synthetic PAO-based grease.
Label all wiring connections with color-coded heat-shrink tubing. Common color scheme: red for 120V, blue for neutral, yellow for 24V control, green ground. Photograph connections before disassembly–voltage fluctuations above 5% during startup indicate capacitor degradation. Replace run capacitors rated below 7.5μF if microfarad readings fluctuate.
Understanding Your Gas Heating System’s Component Layout
Begin by locating the combustion chamber assembly, typically positioned at the base of the unit. This section includes the burner orifices, flame sensor, and ignition system–critical for safe operation. Reference the model’s service manual to confirm the exact alignment, as configurations vary by series. For example, models produced between 2015-2020 use a single-stage burner, while newer variants feature dual-stage or modulating designs.
Inspect the heat exchanger next. This coiled or tubular component transfers thermal energy from combustion gases to circulating air. Look for discoloration or warping, which signals overheating. Models with secondary heat exchangers, common in condensing units, require additional checks for drainage paths to prevent corrosion.
Identify the blower motor and wheel assembly, usually mounted above or beside the heat exchanger. Verify the motor’s RPM range–typically 1000-1600 RPM for residential units–and ensure the wheel spins freely without debris buildup. Lubricate bearings annually if the motor lacks sealed bearings, using manufacturer-recommended grease.
Electrical and Control Components
Trace the wiring harness from the control board to the thermostat, limit switches, and rollout sensors. Use a multimeter to test continuity across safety switches; a reading above 0.5 ohms indicates a fault. The high-limit switch, often preset to trip at 200°F, protects against overheating–adjust only with precise tools to avoid voiding warranty coverage.
Examine the draft inducer motor, situated at the flue outlet. This component creates negative pressure to vent exhaust gases safely. Listen for irregular noises during operation, as worn bearings or a cracked impeller impede performance. Replace the inducer if runtime exceeds 10-15 seconds before ignition, a sign of reduced efficiency.
Check the condensate drain system in high-efficiency models. The trap and secondary drain port must remain unobstructed to prevent water damage or premature shutdowns. Acidic condensate can corrode aluminum components; neutralize drain lines with limestone granules if pH levels drop below 3.0.
Maintenance-Specific Insights
Clean the air filter monthly, especially in units with variable-speed blowers. A clogged filter reduces airflow by up to 30%, forcing the system to cycle longer. Replace pleated filters every 90 days; permanent filters require washing with mild detergent and thorough drying before reinstallation.
Verify the gas valve’s operation by monitoring pressure readings at the manifold. Natural gas models require 3.5–7.0 inches of water column (WC), while propane units need 10–13 inches WC. Use a manometer to detect leaks; even minor deviations cause incomplete combustion, producing carbon monoxide risks.
Locating Authorized Component Blueprints for Your HVAC Unit
Begin with the manufacturer’s dedicated support portal–accessible at support.tempstardirect.com. Enter your serial number (found on the interior panel or rating plate) into the search field to generate a precise schematic tailored to your equipment variant. For instant access, select the “Downloads” tab, then filter by “Technical Resources” to retrieve exploded views, wiring layouts, and replacement guidelines in PDF format. If off-site linkage fails, contact the authorized dealer network; certified service centers maintain internal databases with model-specific documentation not always mirrored online.
| Resource | Access Type | Verification Method |
|---|---|---|
| TempStarDirect Support | Online | Serial/MODEL match |
| Local Dealers | In-person/Phone | Proof of purchase |
| ICM Controls Tech Hub | Online Library | Part number cross-reference |
| Emerson Climate Technologies | PDF Repository | Model prefix validation |
Locating Critical Heating System Elements Through Schematic Reference
Begin by isolating the ignition assembly in the layout–typically annotated near the base of the combustion chamber. Look for symbols resembling a spark gap or a pilot flame icon, often accompanied by a label like “igniter” or “flame sensor.” If the schematic uses color coding, these components will frequently appear in red or orange. Cross-reference the identified area with the legend to confirm function; misidentification here can lead to incorrect troubleshooting of flame failure.
Trace the heat exchanger network next, marked by serpentine or tubular shapes spanning the core. Most schematics differentiate primary and secondary coils by thickness or dashed lines. The primary exchanger handles combustion gases, while secondary coils preheat incoming air–failure to distinguish them risks misdiagnosing airflow restrictions. Note the condensate drain if present; it’s often depicted as a small outlet below the exchanger, prone to clogging in high-efficiency models.
- Blower motor: Positioned adjacent to the air handler, marked by a fan icon and labeled “blower” or “motor.” Check for voltage ratings (usually 120V or 240V) printed nearby–mismatched power sources damage windings.
- Control board: Centralized cluster of rectangles with pin connectors. Look for terminology like “ECM” or “variable speed”–these dictate blower timings and staging.
- Pressure switches: Tiny circles labeled “high/low limit” or “flue pressure.” Verify tube paths to diaphragms; kinked tubing triggers false lockouts.
Examine the venting setup, particularly for condensing units. The schematic will show dual pipes–a larger intake (fresh air) and a smaller exhaust (combustion gases). Identify the inducer motor (circular fan symbol) driving this system; its failure mimics draft-related errors. For sealed combustion systems, confirm the concentric pipe termination outdoors; improper sizing causes heat exchanger corrosion.

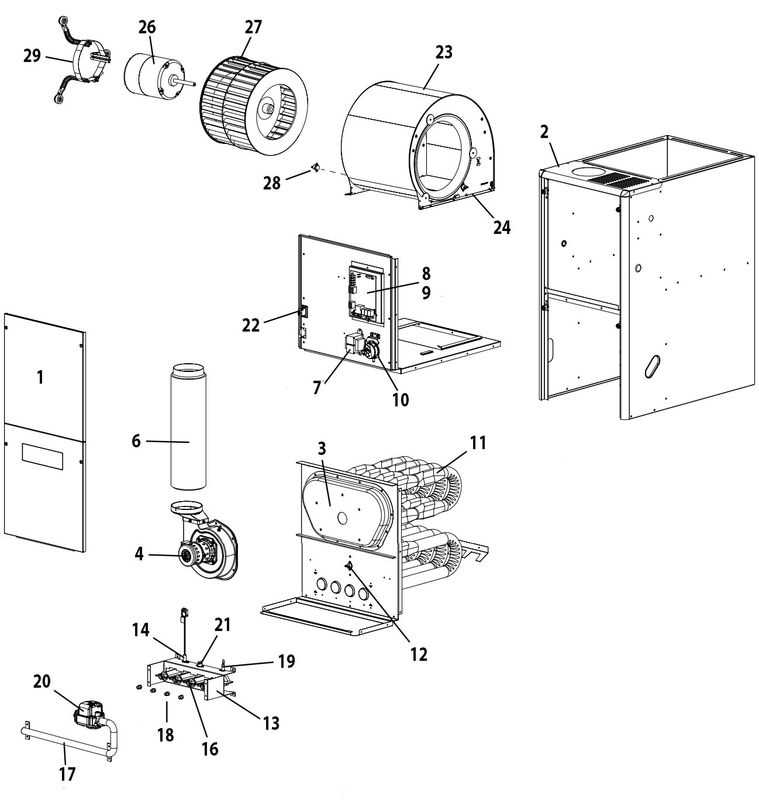

Use the schematic’s exploded views for filter and access panels–rarely highlighted but critical for maintenance. Filters appear as rectangular slots before the blower, while panels are dashed outlines with latch symbols. Ignoring these leads to unfiltered air entering the coil, reducing efficiency by up to 15%. Verify the filter’s MERV rating if specified; incompatible ratings restrict airflow or fail to capture particulates.
How to Interpret Your Climate System Blower Unit Schematic
Locate the legend first–most schematics label components with alphanumeric codes (e.g., MV-12, BR-5). Cross-reference these with the accompanying key, which often sits at the bottom or side margin. Ignoring this step leads to misidentifying assemblies, especially in dual-speed motor configurations.
Trace the airflow path starting at the intake grille (usually marked with arrows or dotted lines). Follow the blower wheel, scroll housing, and motor mount in sequence. Pay attention to dashed lines–they indicate hidden elements like electrical harnesses or mounting brackets behind the main assembly.
Isolate the drive system section. Look for symbols: a circle with intersecting lines denotes bearings, while solid rectangles signal capacitor locations. If the schematic includes voltage ratings near contacts (e.g., 120V, 240V), note these–they affect replacement compatibility for relays or start compressors.
Examine connector pinouts near the motor. Most diagrams use color-coding (red=power, blue=neutral) or numbered terminals (L1, T2). Mismatching these durante reassembly risks circuit damage. Some schematics include torque specs–typically ft-lbs for set screws–critical for preventing shaft slippage.
Check for ancillary components like limit switches or pressure sensors. These appear as small squares or triangles attached to tubing in the assembly. Verify their placement against the schematic if troubleshooting overheating–they often trigger shutdown sequences.
Use a multimeter to confirm continuity on depicted circuits. Probe between labeled test points (TP-1 to TP-4) while referencing the schematic’s voltage expectations. Discrepancies here pinpoint faulty motor windings or burnt fuse holders before disassembly begins.
