Begin by locating the mixing valve assembly behind the wall panel–typically a rectangular or circular metal housing secured with two to four screws. Remove the panel carefully to avoid damaging the finish or nearby plumbing. Most recreational vehicle models use a single-handle control mechanism that integrates temperature and flow regulation. The core elements include a cartridge, diverter spout, and wall-mounted trim plate. For precise disassembly, check the manufacturer’s exploded view; brands like Delta, Moen, and AquaMagic often provide detailed schematics in owner manuals or on official repair portals.
Examine the internal valve for signs of wear–hard water deposits, corrosion on brass or chrome surfaces, or cracked O-rings. The temperature limiter (often a small plastic or metal clip near the cartridge) can degrade over time, leading to scalding risks. Replace it immediately if it appears brittle. For models with pull-out sprayers, disconnect the hose at the base first, then inspect the spout connector–a common failure point due to mineral buildup. Use a basin wrench to loosen tight fittings, applying penetrating oil if threads refuse to budge.
When sourcing replacements, match the exact cartridge model number–typically etched on the base or printed on a label inside the housing. Generic “universal” cartridges often fail to align properly, causing leaks or inconsistent water flow. For older RVs, verify thread compatibility: ½-inch NPT is standard, but some European or custom builds may use metric sizes. Always test water pressure after reassembly; irregular flow often indicates a misaligned aerator screen or debris trapped in the spray head. Keep a spare set of washers (usually ¼-inch flat rubber or silicone) in your repair kit–failure to replace them during maintenance leads to persistent drips.
If the wall-mounted trim plate spins freely or feels loose, tighten the screw behind the handle first, then check the escutcheon plate’s mounting bracket. Many RV setups use a thin metal bracket secured with a single Phillips-head screw; corrosion here compromises stability. For diverter issues (where water leaks from both the spout and sprayer simultaneously), focus on the diverter stem–a brass or ceramic rod often overlooked during routine checks. Clean it with a soft brush and white vinegar solution to dissolve mineral deposits before reinstalling.
Reassembly follows the reverse order: secure the cartridge first, then the trim plate, and finally the handle. Apply plumber’s grease to O-rings to prevent binding. Test the unit in stages–first with low water flow, then gradually increasing pressure–to isolate any residual leaks. If the handle resists turning, the limit stop may be misadjusted; consult the specific brand’s adjustment procedure (e.g., Delta’s requires rotating the cartridge stem while holding the stop in place). Documentation for these steps often exists in mobile home plumbing guides under “single-lever valve repairs” or “compact bathroom systems.”
Understanding Your RV Plumbing Control Assembly Components
Identify the valve cartridge first–it’s the core of temperature and flow regulation. Replace it with an OEM model (e.g., Danco 10698 or Fluidmaster 400CR) to avoid compatibility issues. Non-branded cartridges often fail under pressure fluctuations common in mobile units. Check for leaks at the stem base; a loose packing nut (typically ¾” hex) causes 60% of drips.
| Component | Common Issues | Replacement Cost (USD) |
|---|---|---|
| Handle (lever/knob) | Stripped splines, corrosion | 8–25 |
| Escutcheon plate | Cracked sealing gasket | 5–18 |
| Pressure balance spout | Sediment buildup, worn O-rings | 30–70 |
| Retainer clip | Brittle from hot water exposure | 2–6 |

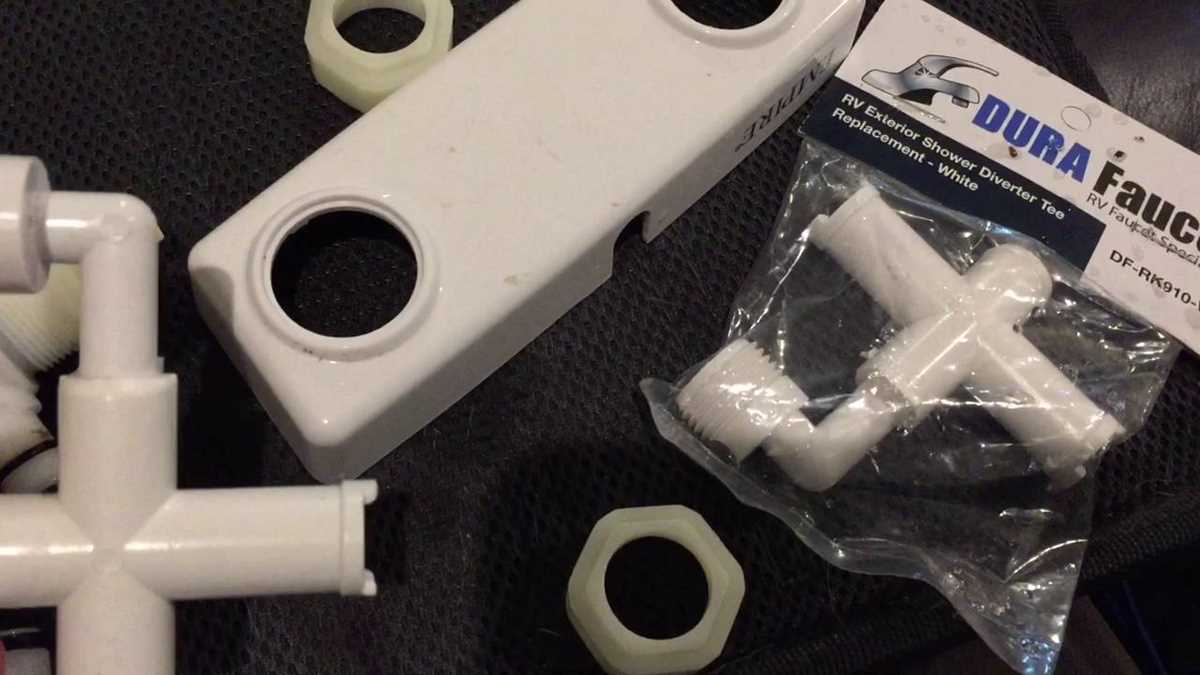

Inspect diverter switches before disassembly–corrosion here affects outlet routing. For Delta units, use a Teflon tape wrap (¼” width) on diverter threads to prevent seizing. Grohe assemblies require a 22mm socket for escutcheon removal; standard 9/16″ sockets damage the finish.
Replace supply lines if they’re older than 5 years. Copper flex lines corrode at fittings; braided stainless steel lasts 12+ years. Use dielectric unions when connecting dissimilar metals (e.g., brass to galvanized steel) to halt electrochemical decay. Torque fittings to 15 ft-lbs–overtightening strips threads.
Verify part numbers against your RV model’s plumbing schematic. Forrest River and Winnebago use distinct valve stems (FR: 3/8″ hex vs. W: 7/16″). Keystone units often integrate a flow restrictor (5.5 GPM) behind the aerator–remove it only if pressure drop impedes performance. Keep a multimeter on hand; faulty solenoid valves mimic leaky seals.
How to Locate Key Elements in Your RV Wash Station Valve Setup
Begin by isolating the control panel near the spout–most recreational vehicle wash stations use a single-handle design, recognizable by its circular or lever-shaped grip. Rotate the grip counterclockwise to extend water flow; this action exposes the cartridge seated beneath. The cartridge secures the temperature and pressure balance; look for a cylindrical brass or plastic housing with two or three ports at the base. If your unit includes a diverter for a secondary outlet, such as a handheld sprayer, locate the small button or sliding switch adjacent to the main valve–pressing or shifting it redirects flow without requiring disassembly.
Inspect the escutcheon plate–this decorative trim ring conceals mounting screws and seals the gap between the valve body and wall surface. Pry it gently with a flat-head screwdriver if it’s press-fit, or unscrew it if threaded; beneath, you’ll find retaining nuts securing the valve assembly. Note the presence of O-rings or washers around the spout base and under the handle–these rubber seals deteriorate over time, causing drips. When replacing them, match the diameter precisely; most standard setups measure 1/2″ or 3/4″ ID.
Trace the hot and cold supply lines backward from the valve body–they typically terminate at shutoff valves under the sink or behind an access panel. Label each line before disconnecting to avoid cross-threading during reinstallation. If your system includes an anti-scald device, it’s usually integrated into the hot-side inlet; test its function by gradually increasing temperature–water should never exceed 120°F abruptly. For models with an adjustable flow restrictor, remove the aerator from the spout tip–it threads off counterclockwise–and clean any debris trapped inside to restore consistent pressure.
How to Take Apart Your Camper’s Bath Control Valve for Fixes
Shut off the water supply first–twist both hot and cold inlet valves clockwise until fully closed. Drain residual pressure by turning the handle to the open position for 5 seconds, then return it to closed.
Remove the trim plate screws–usually two at the base of the handle assembly. Use a 1/8-inch hex key or flathead screwdriver depending on the model. Store screws in a small container to prevent loss.
- If the handle won’t lift, check for a hidden set screw beneath the temperature indicator cap.
- Lever-style knobs may require gentle prying with a plastic tool to avoid scratching.
- Twist the cap counterclockwise if threaded–some designs have a press-fit collar.
Disconnect the cartridge retaining clip–often a U-shaped wire or plastic ring. Slide needle-nose pliers into the notches on either side and pull straight out. If stuck, tap lightly with a screwdriver handle to loosen corrosion.
Extract the internal valve core using pliers–grip the brass stem firmly but avoid twisting, as side-to-side leverage works best. Rock slightly if resistance is felt; forcing it may damage the housing grooves.
- Inspect O-rings on the removed stem–deformities or cracks indicate replacement.
- Check the cartridge seat inside the valve body for mineral buildup or pitting.
- Compare the stem length with a new unit; worn stems often leak around the spout.
Clean all components with white vinegar for 10 minutes if lime deposits are present. Rinse with clear water and dry thoroughly before reassembly. Lubricate O-rings with silicone grease to prevent future sticking.
Reinstall in reverse order–ensure the cartridge seats fully into the body before securing the clip. Test for leaks at half-open position before finalizing trim plate attachment. If drips persist, disassemble again and verify seating alignment.
Key Components of Camper Wash Valves and Fixes
Replace worn valve cartridges immediately–OEM models (e.g., Danco 10750X, Delta RP4607) last 2–5 years before leaks develop; aftermarket units (FRP or PEX-compatible) cost $12–$28 and fit 90% of RV units. Cartridge pullers (under $10) prevent stem damage during removal; grease O-rings with silicone compound to avoid seizing. Check water restrictors (standard .5 GPM)–if flow weakens, bypass inline restrictors or upgrade to adjustable brass flow controllers for precise temperature control without scald risk.
Brass diverter assemblies corrode over time; swap for stainless-steel or ceramic-coated models ($18–$45) to eliminate cross-flow leaks. Handle sets with universal splines (Moen 1224 or Kohler K-7430) simplify retrofits–match spline counts (usually 12 or 24) before purchase. For wall-mounted units, secure escutcheons with marine-grade adhesive to stop water ingress behind paneling; cracked spacers (often overlooked) require replacement–measure depth accurately (3/8″ to 3/4″ common) to prevent leaks.
