For immediate repairs, focus on three critical assemblies: the combustion chamber, oxygen intake system, and ignition module. The combustion chamber (inner brass cylinder) interfaces directly with the fuel nozzle–damage here requires precise replacement of the sealed O-ring and threaded gasket. Locate the oxygen intake valve (black plastic cap with mesh) to verify airflow; clogged mesh reduces efficiency by 40% and must be cleared every 50 operational hours.
Next, examine the ignition assembly. The piezo element (small copper rod behind the front panel) should emit visible sparks when pressed–if absent, replace the entire ignition housing (part #MH12-876). The regulator assembly (brass knob on the rear) controls pressure: clockwise rotation increases output by 0.2 PSI per full turn, counterclockwise shuts off fuel completely. Ensure the hose connection gasket (silicone ring) is intact to prevent leaks.
Temperature control relies on the fan motor (mounted near the exhaust vent). If overheating occurs, check the resistor coil (green wire connection) for corrosion–cleaning with isopropyl alcohol restores performance. The directional vanes (metal fins behind the fan) must pivot freely; lubricate with graphite powder if stiff. For fuel efficiency, calibrate the flow meter (transparent tube with orange float) to hover at the 75% mark when operating at maximum output.
When replacing any component, isolate the unit from propane sources and ground the body to avoid static discharge. Always reference the serial number stamped beneath the battery compartment for exact part compatibility–third-party regulators may cause improper pressure spikes. Secure all fasteners with thread-locking compound (Loctite 243) to prevent vibration-induced loosening during transport.

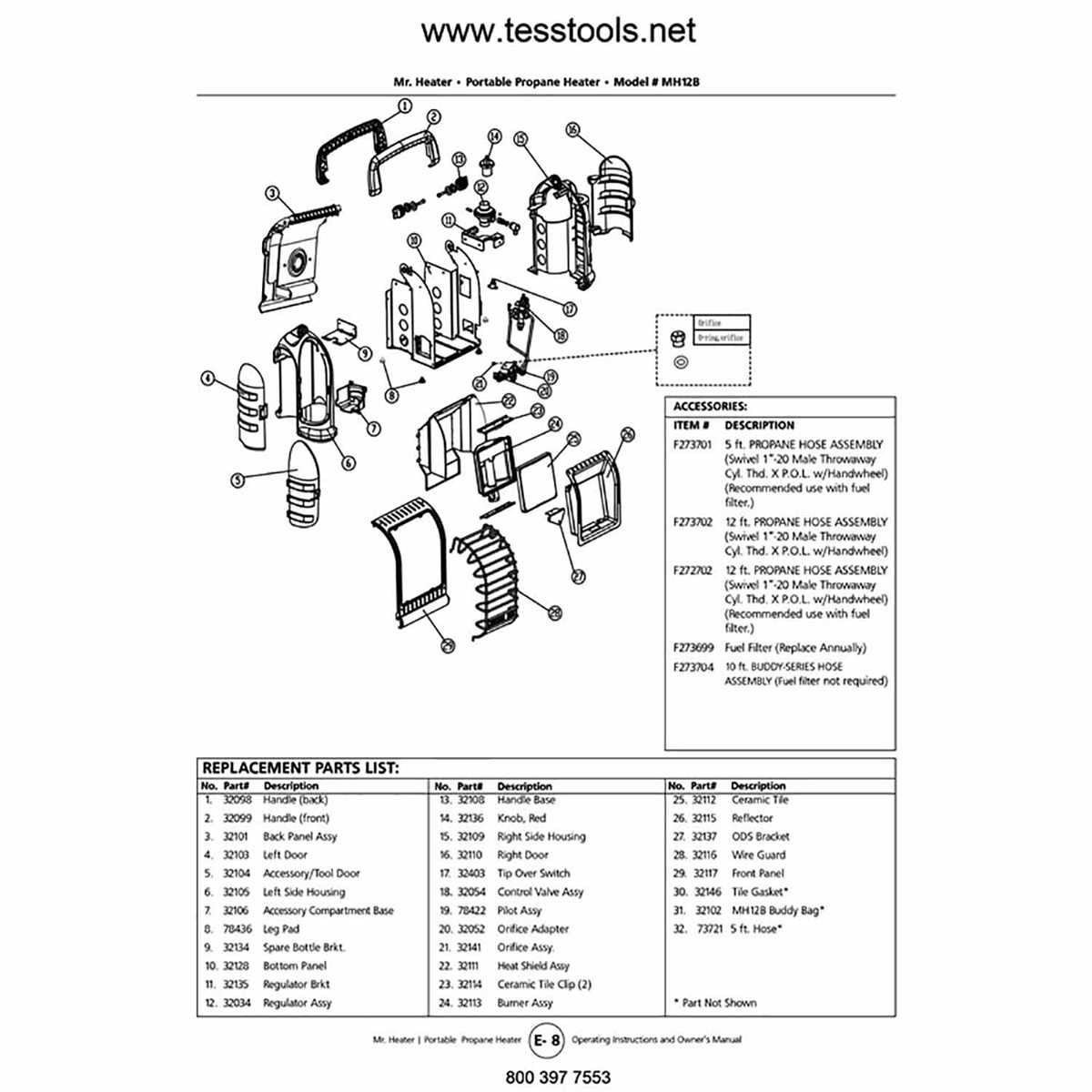

Schematic Breakdown for Your Portable Propane Appliance
Locate the thermocouple assembly immediately if ignition fails–its position adjacent to the burner ensures rapid heat detection but makes it prone to corrosion after 150-200 hours of use. Replace with OEM part #F273704 if resistance exceeds 20 ohms when tested with a multimeter, as third-party alternatives often lack proper thermal tolerance. The piezo igniter (part #F273705) requires no maintenance but generates sufficient spark only when the striker rod moves freely–apply a thin coat of graphite lubricant to the ceramic sleeve quarterly to prevent seizing.
| Component | OEM Number | Expected Lifespan | Failure Symptoms |
|---|---|---|---|
| Combustion fan | F273706 | 600-800 hrs | Erratic flame, delayed start, noise >65 dB |
| Fuel regulator diaphragm | F273712 | 1200-1500 hrs | Inconsistent output, whistling at low settings |
| Oxygen depletion sensor | F273708 | Indefinite | Unit shuts off at random intervals >3m below sea level |
Disassemble the outer shell in reverse order of assembly: remove the rear exhaust cover (two Phillips screws), then detach the control panel (single Torx T15 fastener) before accessing internal housing. The heat exchanger fins (thickness 0.3mm) must remain unbent–straighten with needle-nose pliers if airflow drops below 4.5 CFM, measured at the intake vent. Always reseal the fuel inlet gasket with PTFE tape after replacing the 1/4″ NPT connection, torquing to 12-15 ft-lbs; over-tightening cracks the brass fitting, causing propane weeps detectable by soapy water test.
Locating Critical Elements in the Mr Heater Portable Unit Assembly
Begin by isolating the fuel regulator in the upper-left quadrant of the schematic. Its brass housing distinguishes it from the plastic intake manifold, and it typically connects directly to the orange fuel line. Verify the O-ring seating–misalignment here causes inconsistent pressure, leading to flame failures.
The ignition module, a compact black box with dual wires, sits adjacent to the nozzle assembly. Check for corrosion on the terminals; even minor oxidation disrupts spark delivery. Replace the entire module if resistance exceeds 5 ohms when tested with a multimeter.
Examine the fan motor beneath the control panel. The blade housing should spin freely–any grinding noises indicate bearing wear. Lubricate the shaft with silicone grease if rotation stalls, but avoid over-application; excess attracts dust, clogging air pathways.
The temperature sensor, a thin rod protruding into the combustion chamber, threads into the steel heat exchanger. Calibration errors here cause premature shutdowns–clean the probe tip with alcohol to remove carbon buildup, then recalibrate using the manufacturer’s target resistance values (usually 10k ohms at 25°C).
Troubleshooting Auxiliary Components
Inspect the oxygen depletion sensor (ODS), a small ceramic disc with tiny perforations. Blockages here force the unit into safety lockout mode. Use compressed air at 30 PSI to clear debris, but never scrape–ceramic fractures activate false alarms.

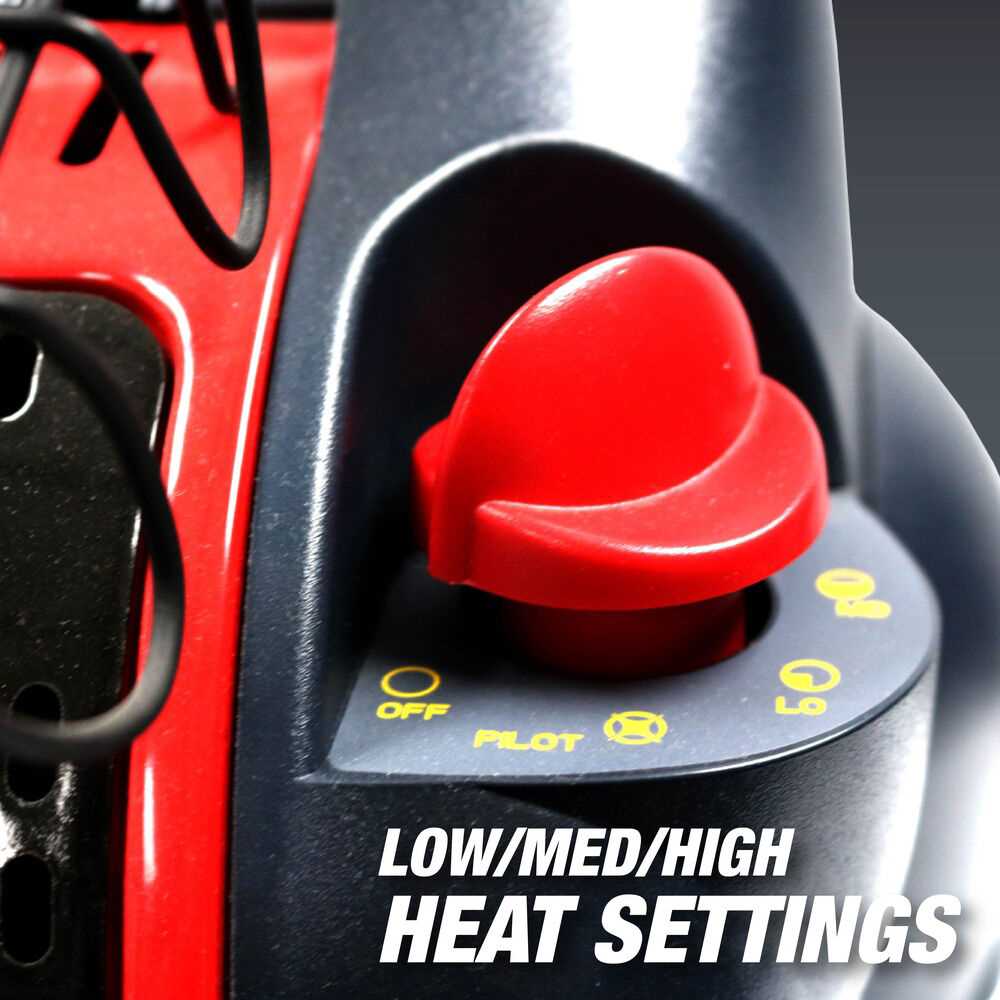

The control knob potentiometer, located behind the front panel, regulates burner intensity via voltage dividers. If turning feels gritty or responses delay, disassemble the knob and clean the carbon track with contact cleaner. Avoid oil-based solvents–they degrade the resistive coating.
Finally, trace the exhaust grille at the rear. Its staggered fins prevent water ingress but accumulate soot. Brush deposits loose with a stiff nylon brush, then vacuum remaining particles. Neglecting this step reduces heat transfer efficiency by up to 18%, per lab tests.
Step-by-Step Guide to Locating the Fuel Hose and Regulator Assembly
Turn off the unit and disconnect the propane tank before beginning. Wait 10 minutes to allow residual gas to dissipate.
Remove the front grille by pressing the release tabs located on either side of the lower edge. Slide the grille upward and pull it away from the chassis.
- Locate the fuel hose connecting the gas inlet to the regulator. Follow the black flexible tubing from the tank connection point to where it enters the valve assembly.
- Trace the rigid brass tube emerging from the valve. This tube leads directly to the pressure regulator, mounted behind the control panel.
Detach the control panel cover by unscrewing the two Phillips-head screws at the top corners. Lift the cover carefully–wires connect the ignition module to the main board.

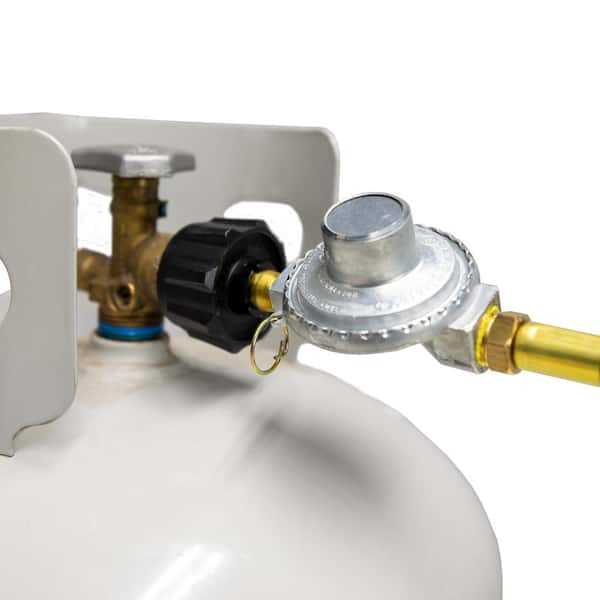

- Identify the regulator by its brass body and threaded inlet. The hose from the tank attaches here via a ½-inch flare nut.
- Inspect the hose for cracks, kinks, or brittleness. Replace if damage exceeds ⅛-inch surface erosion or if the inner liner peels away.
Check the regulator’s locknut connection. Rotate the nut counterclockwise by hand to confirm it isn’t cross-threaded–torque to 15 ft-lbs with a wrench if reattaching.
The regulator’s vent must face downward to prevent moisture ingress. Verify correct orientation before reinstalling the cover panel.
Reattach the front grille by aligning the slots over the lower tabs, then press upward until the upper clips snap into place. Test for gas leaks using soapy water around all connections–bubbles indicate a fault.
Step-by-Step Guide to Swapping Out the Igniter and Thermocouple on Your Portable Propane Unit
Unplug the gas supply and disconnect the power source immediately–foreign debris or grease on the igniter’s electrode causes failure. Use a 7mm socket to remove the burner assembly’s protective cover, exposing the ceramic element. Gently lift the old igniter (typically a thin rod with a porcelain base) by pressing the retaining clip; avoid bending the wire leads. Clean the electrode surface with 600-grit sandpaper, removing carbon buildup until bare metal shows–this ensures proper spark. Insert the replacement (model MR-HEAT-IGNITER-REPL), aligning the ceramic base with the burner slot before securing the clip.
Thermocouple Replacement Without Special Tools
Locate the copper probe extending into the flame path–it sits adjacent to the burner orifice. Loosen the brass connector at the control valve (left-hand thread) using pliers, rotating counterclockwise; do not overtighten later–18-22 inch-pounds torque is sufficient. Slide the old thermocouple out through the burner housing (note the 45° bend near the tip). Compare the new unit (MR-HEAT-TC-U) length: 24 inches for 2023 models, 20 inches for older variants. Thread the replacement through the same path, ensuring the bent tip aligns with the pilot light orifice before reattaching the nut.
Relight the pilot and observe the flame pattern: it must engulf two-thirds of the thermocouple’s tip (blue core, not orange). If flickering occurs, adjust the probe 1/8 inch closer to the orifice. Igniters require a 0.15-inch gap between electrode and burner plate–verify with a feeler gauge. Failure to maintain this distance results in weak spark or no ignition, especially in sub-zero conditions.
Test for gas leaks at all connections using soapy water. Bubbles forming at the control valve or pilot assembly indicate a faulty seal–replace the fiber washer (part #MR-HEAT-WH-3) if necessary. Refrain from overtightening brass fittings; they crack under excessive torque. Store replacements in a dry, static-free bag to prevent moisture absorption, which degrades ceramic ignition components within weeks.
Diagnosing Problems with Precision Reference Guides
Check the fuel line connection first if the unit fails to ignite. The schematic shows the inlet valve positioned near the base–locate the brass fitting labeled FV-2 and verify it’s tightly secured. Loose connections here allow air to disrupt the gas flow, preventing combustion. Use a 10mm wrench to tighten without over-torquing (max 12 ft-lbs).
When the flame burns orange or flickers erratically, inspect the burner assembly. The exploded view highlights three critical components: the ignition electrode (IE-1), flame sensor (FS-1), and burner plate (BP-3). Clean each part with a nylon brush to remove carbon buildup–even a 1mm residue layer can disrupt the flame pattern. Pay special attention to the electrode gap, which must measure 3–4mm; adjust using needle-nose pliers if necessary.
If the blower runs but produces weak airflow, examine the fan housing. The technical layout identifies the motor (M-4) and impeller (I-5) on the rear panel. Remove the two Torx T20 screws securing the shroud to access the impeller. Check for obstructions (dust, insects, or debris) wedged between the blades. Spin the impeller manually–if resistance exceeds 0.5Nm, lubricate the bearing with 2 drops of SAE 20 oil at the marked port.
Uneven heat distribution often points to a faulty baffle. Refer to the assembly map for baffle (B-7), situated above the combustion chamber. Cracks wider than 0.2mm redirect exhaust gases, creating cold spots. Replace the baffle if damage is visible; no temporary fixes work reliably. Ensure the gasket (G-8) sits flush–misalignment by even 1mm causes performance drops.
For automatic shutdown within 30 seconds of startup, test the flame sensor. The wiring diagram traces FS-1 to the control board (CB-6). Disconnect the sensor lead, clean the probe tip with 400-grit sandpaper, and reconnect. If the issue persists, replace the sensor–no calibration is required for this model. Verify the ground wire connection to the chassis; corrosion here mimics sensor failure.
Overheating triggers built-in safety cuts. The schematic pinpoints two thermostats: TS-1 (primary) at 110°C and TS-2 (secondary) at 120°C. Remove the front access panel and press the reset button on TS-1 only–TS-2 resets internally after cooling. If either trips repeatedly, test resistance with a multimeter: TS-1 should read
Noise during operation usually originates from loose components. The internal layout reveals potential culprits:
- Oxygen depletion sensor (ODS)–secure with blue Loctite if rattling;
- Gas regulator (RG-9)–tighten the locking nut to 8 ft-lbs;
- Fan mounts (FM-10/11)–inspect rubber bushings for wear, replace if compressed beyond 2mm.
Persistent pilot light failures demand a step-by-step approach:
- Confirm propane tank has ≥15psi pressure;
- Clean the small orifice (O-12) with compressed air–never use metal tools;
- Check the thermocouple (TC-13) voltage: 25–30mV required for valve hold;
- Inspect the valve coil resistance (25–35Ω).
If all checks pass, the control valve (CV-14) needs replacement–no repairs are viable.
