Begin by identifying the primary assembly layout. Most residential heating systems follow a standard configuration: the combustion chamber sits at the base, flanked by the blower motor on one side and the heat exchanger on the opposite end. Refer to the technical schematics supplied in the user manual–typically found on pages 12–15 under “Internal Structure”–for exact positioning. If manuals are unavailable, check the manufacturer’s service portal using the serial number stamped on the unit’s outer panel.
For troubleshooting, focus on three critical sections: the ignition assembly, airflow regulator, and control board. The ignition module, often marked with red or yellow wires, sits near the burner tray. A faulty module will display error codes E2 or E4 on digital readouts. The airflow regulator–located behind the air filter–uses a pressure switch to monitor combustion efficiency; clogs here trigger safety shutdowns. The control board, encased near the top, manages all sequences–inspect for burnt traces or swollen capacitors.
When replacing elements, prioritize OEM-matched components. Third-party substitutes may void warranties or misalign with voltage specifications. Use part numbers etched on existing pieces–e.g., NGM-2430B for blower motors or NGX-8920A for flame sensors–to ensure compatibility. Disconnect power before handling; residual current can damage circuits. For visual guidance, cross-reference exploded-view illustrations with labeled callouts–usually Figure 3 in service documents–before disassembly.
After installation, perform a trial ignition cycle. Observe the startup sequence: the inducer motor activates first (listen for a 15-second hum), followed by ignition (blue flame with minimal flicker). Deviations indicate misaligned components–recheck the burner orifice and gas valve pressure (set to 7.0–7.5 inches WC for natural gas). Record readings with a multimeter; baseline values are listed in Appendix B.
Understanding Heating Unit Component Layouts
Locate the ignition assembly near the burner tray–typically marked on technical schematics with a small flame symbol. Verify its alignment with the gas valve: misplacement by even 2-3mm can disrupt ignition cycles and trigger error code 32 on E2 control boards. Use a multimeter to confirm 24V across the igniter terminals before adjusting; readings below 22V suggest transformer issues requiring replacement, not recalibration.
Blower Wheel and Pressure Switch Troubleshooting
Avoid assuming clogged filters cause airflow faults–inspect the blower wheel first for debris lodged between vanes, which reduces CFM by up to 18% even when filters appear clean. Rotate the wheel manually while observing the pressure switch tubing for kinks; undetected obstructions here generate false low-fire signals. For high-efficiency models with secondary heat exchangers, check condensate drains weekly–blockages mimic primary heat exchanger failures by triggering limit circuit trips.
Steel secondary heat exchangers corrode internally after 7-9 years; monitor flue gas temperatures monthly–spikes above 180°F indicate scaling. Replace with aluminized steel units if corrosion exceeds 1mm depth; aftermarket aluminum coils last 30% longer but require annual acid flushes to prevent pitting. Label all removed components with wire colors and connector types before servicing–Melexis sensors, for example, use proprietary 8-pin plugs easily confused with standard thermocouples.
Locating Precision Component Schematics for Heating Units Online
Start directly at the manufacturer’s official support portal–accessible via Nortek Southern Comfort. The site archives exploded-view illustrations for legacy and current product lines, searchable by model number. Select the “Support” dropdown, then “Manuals & Literature” to pull engineering layouts including wiring, blower assembly, and ignition sequences. For older units (pre-2015), filter by year; accuracy exceeds third-party aggregators.
HVACPartsShop (hvacpartsshop.com) cross-references OEM schematics with compatibility tables, letting users match blowers, relays, and limit switches across different configurations. Enter the full model designation–e.g., “9233415U”–to generate a scrollable, zoomable PDF. Inventory tags indicate whether an item is active or discontinued, saving diagnostic time.
Key Databases for Technical Blueprints
| Source | Feature | Access Cost | Model Coverage |
|---|---|---|---|
| Manufacturer Portal | OEM-certified exploded views | Free | All series from 1995–present |
| HVACPartsShop | Part-specific cross-links | Free preview; PDF download $2.99 | North American market models |
| eBay Motors (Seller PDFs) | Scanned vintage schematics | Varies; typically $0–$5 | Discontinued lines 1980s–2010 |
| RepairClinic | Interactive troubleshooter with visual callouts | Free; pay-per-part ordering | Residential indoor units |
RepairClinic (repairclinic.com) overlays schematic layers with repair videos–click any red-highlighted section to view replacement steps for capacitors, flame sensors, or draft inducer motors. The site’s “Common Symptoms” filter narrows diagrams to the malfunctioning subsystem, cutting search friction. Account registration unlocks full-screen downloads.
For out-of-production models, eBay’s Motors category often hosts seller-uploaded scans of original service manuals. Search for “schematic” + the exact unit label–for instance, “MBVC heating unit exploded view.” Ratings above 98% signal scan clarity; request preview images before bidding.
Alternative Platforms with Niche Detail
YouTube channels specializing in HVAC teardowns–such as Word of Advice TV or HVAC Tech Tips–embed annotated schematics directly into repair tutorials. Videos tagged “wiring diagram” or “sequence of operation” demonstrate how combustion chambers, pressure switches, and control boards interconnect, often pinpointing failure routes not evident in static PDFs.
Local supply houses like Johnstone Supply or Carrier Enterprise maintain physical archives of product binders. Call ahead with the serial plate details; staff may photograph or email relevant pages, circumventing paywalls on generic directories. Some branches permit in-person access–bring a smartphone for quick scans.
Facebook groups dedicated to HVAC technicians occasionally share rarer engineering packets under restricted privacy settings. Search for “[Model Number] Owner’s Group”–membership often requires proof of trade affiliation. Admins organize files into albums segmented by component type, reducing sifting through unrelated threads.
Critical Elements Highlighted in Heating Unit Schematics

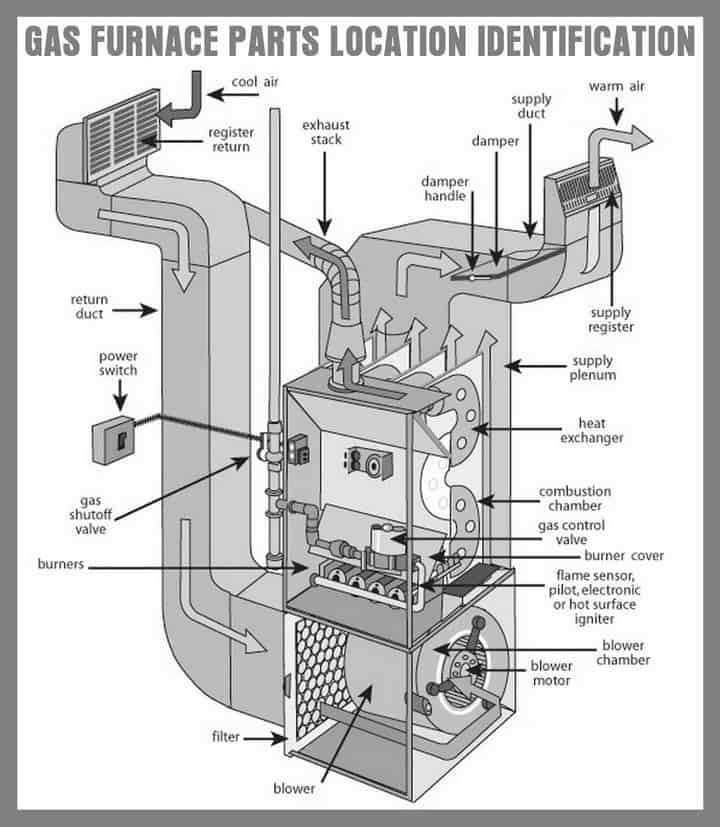

Locate the heat exchanger at the core of the system–its serpentine metal tubing or clamshell plates dictate efficiency. Verify material thickness (typically 24-gauge aluminized steel) and check for corrosion-resistant coatings if the model operates in coastal climates. Replace if thermal fatigue creates micro-cracks detectable via dye penetration testing.
Gas valves appear as rectangular boxes with inlet/outlet ports labeled for natural or propane lines. Confirm pressure settings (1.5–5.0 WC inches for manifold) against label stickers on the valve body. Manual reset overheating limits integrate into this assembly–account for variations in reset temperature tolerances (±15°F) between single-stage and modulating units when calibrating.
Blower motors mount vertically along the airflow path, distinguishable by CFM ratings stamped on the housing. Direct-drive configurations dominate newer series, while belt-driven alternatives occur in high-static-pressure specs. Record amperage draw at full load (0.9–1.5A for 1/3HP variants) and inspect capacitor microfarad ratings (.5–25 MFD) before voltage tests.

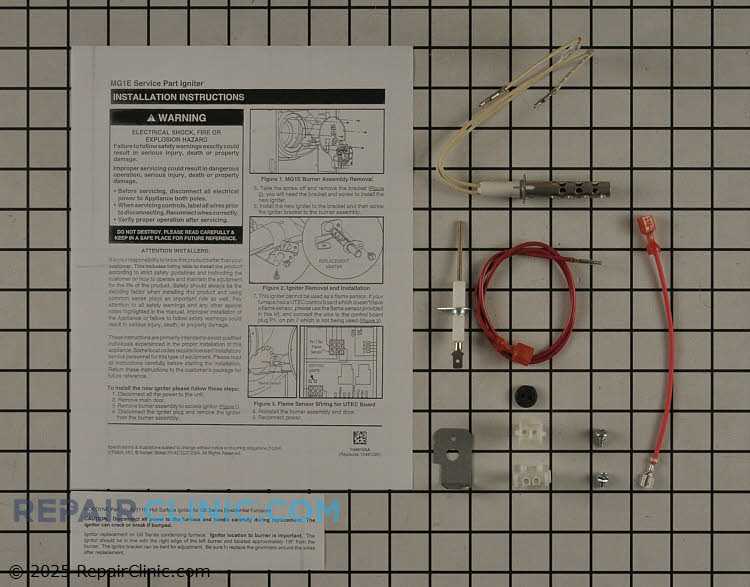

Ignition sequences differ: silicon nitride hot surface igniters operate at 800–1200°C, whereas intermittent pilot systems require 24V thermocouple continuity confirmations. Flame sensors extend as nickel-chromium rods near burners–clean with emery cloth (never steel wool) at 90-day intervals; oxidation alters millivolt output thresholds.
Combustion chambers include bimetallic draft inducers with plastic impellers designed for 3450 RPM at no-load conditions. Visible draft pressure switches monitor -0.03″WC pull; calibrate vacuum hose diameters to prevent false lockouts on high-altitude installations (6,000+ ft elevation compensation adjustments apply).
Control boards cluster near electrical compartments, displaying LED blink codes mapping to fault codes. Cross-reference with service documentation for secondary error interpretations–3 flashes could denote flame rollout switch trips or limit circuit malfunctions depending on series iteration. Always isolate power via main breaker before probing digital interfaces to prevent IC surge damage.
Decoding Electrical Blueprints for HVAC Heating Units
Identify the power source first–usually a labeled terminal block or transformer output marked “R,” “C,” “24V,” or similar. Trace these lines to the control board to confirm voltage consistency (typically 24V AC for low-voltage circuits). Discrepancies here indicate faulty wiring or a failing transformer.
Locate the thermostat connections. Most schematics show three critical wires:
- R (Red): Power supply from the transformer.
- W (White): Heat call signal, triggering the burner or heating element.
- C (Common): Completes the circuit for thermostat operation.
If additional wires exist (e.g., G for fan control), verify their routing matches the legend, often printed near the board or on the reverse of the access panel.
Follow the heat call wire (white) from the thermostat to the relay or sequencer. On fuel-based systems, this activates the ignition control module; on electric models, it engages heating coils directly. Check for inline components like limit switches or sail switches–if open, they interrupt the circuit to prevent overheating.
Examine safety circuits next. High-limit switches (often red wires) and pressure switches (typically three-wire connections) should be normally closed. Test continuity with a multimeter: resistance should read near 0 ohms when engaged. Open circuits here halt operation until the fault clears.
Component-Specific Wire Colors
Color standards vary but commonly follow these patterns:
- Black: Line voltage (120V/240V) to motors or heat strips.
- Blue: Blower motor or inducer motor connections.
- Orange/Yellow: Interlocks for gas valves or electric igniters.
- Brown: Auxiliary components like humidifiers or UV lamps.
Cross-reference colors with the schematic’s legend, as aftermarket repairs may deviate from factory standards.
For variable-speed motors, locate the control module–often a separate box with labeled pins like “COM,” “LO,” “MED,” “HI.” These correspond to speed taps; incorrect jumper settings cause improper airflow or motor failure. Check for labeled capacitors (oval-shaped, usually near the motor) and verify their microfarad (µF) rating matches the schematic.
- Power down the unit at the circuit breaker.
- Remove the access panel to expose the internal wiring.
- Compare wire colors and connections against the schematic one-to-one.
- Use a multimeter to test continuity across safeties and relays.
- Reassemble only after confirming all connections match the blueprint.
Misinterpreted wiring can bypass safeties, leading to component burnout or hazards. Always document deviations from the schematic for future reference.
