Locate the inner spray arm assembly (part #DD91-00247B) by removing the lower rack and turning the locking ring counterclockwise. This component distributes water at 3.2 GPM–replace it if jets show calcium deposits exceeding 0.5mm or if rotational speed drops below 20 RPM. Keep a torx T20 driver on hand for secure fastening; loosened screws cause uneven spraying patterns.
Check the detergent dispenser door latch (part #DD35-00063C) for cracks wider than 0.3mm or spring fatigue. The latch must engage within 1.5 seconds of cycle initiation–delayed action indicates wear. Apply food-grade silicone lubricant sparingly to the pivot points to prevent sticking without contaminating water lines.

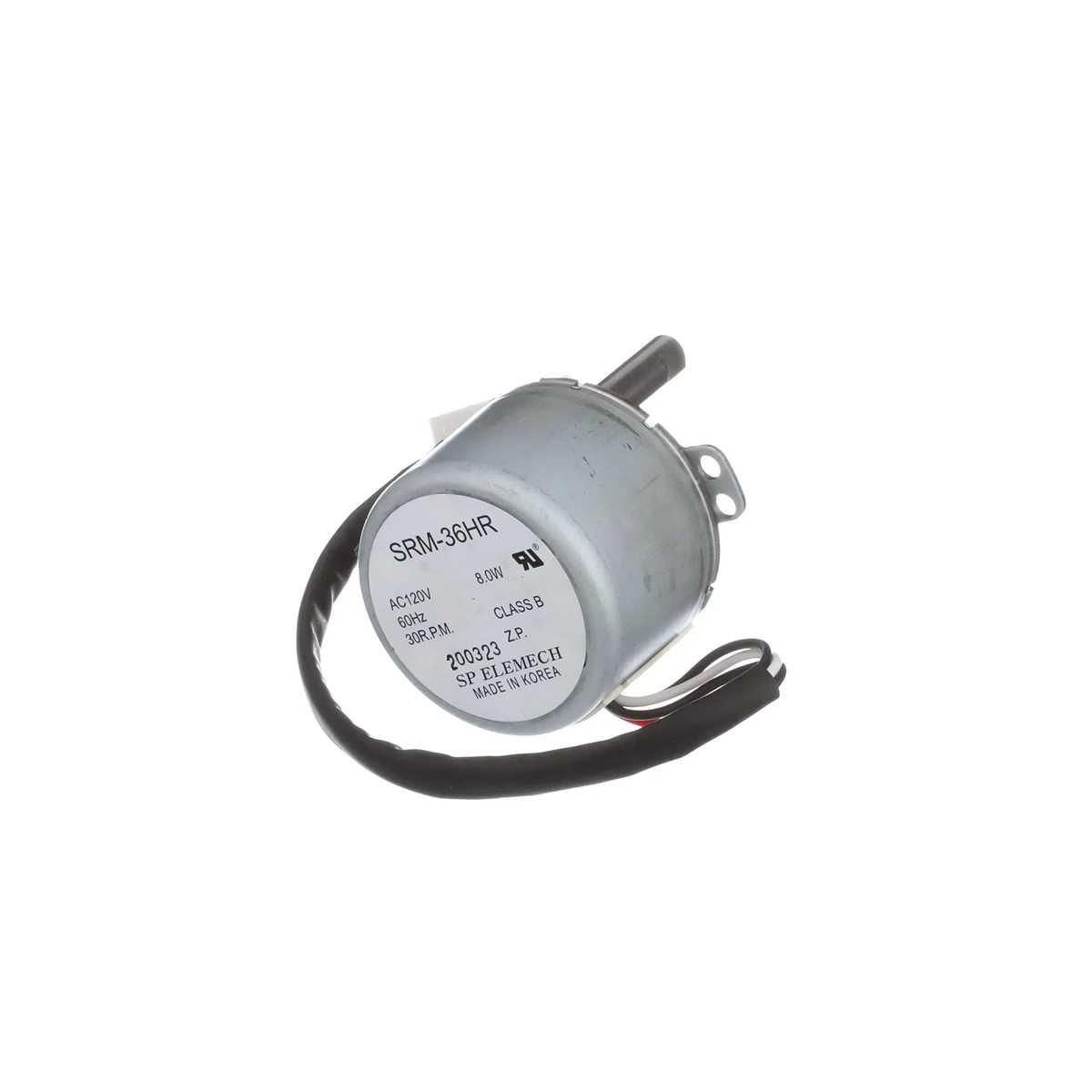

The circulation pump motor (part #DD61-00454B) operates at 120V/60Hz with a 15A draw. If the unit fails to reach 80°C during the sanitize cycle, test continuity across the thermal cutoff fuse (part #DD36-00011A). A reading outside 0-0.5Ω confirms failure–replace both components simultaneously to avoid repeated disassembly.
Inspect the filtration system every 90 cycles. The coarse mesh (part #DD65-00130A) traps particles ≥0.8mm, while the fine filter (part #DD65-00131A) captures debris down to 0.1mm. Rinse under 50°C water to dissolve grease buildup; ultrasonic cleaning extends lifespan by 40%. Ensure the seal ring (part #DD59-00102A) sits flush–misalignment causes drainage leaks of up to 0.3L per cycle.
For the heating element (part #DD35-00001B), verify resistance between 23-27Ω. A reading below this range risks tripping the 20A breaker–replace if corrosion exceeds 5% of the surface area. Use a high-temperature epoxy rated to 200°C when sealing minor pinholes, but never exceed 3mm repair diameter.
How to Locate and Replace Components in Your DW80R9950UG Dishwasher

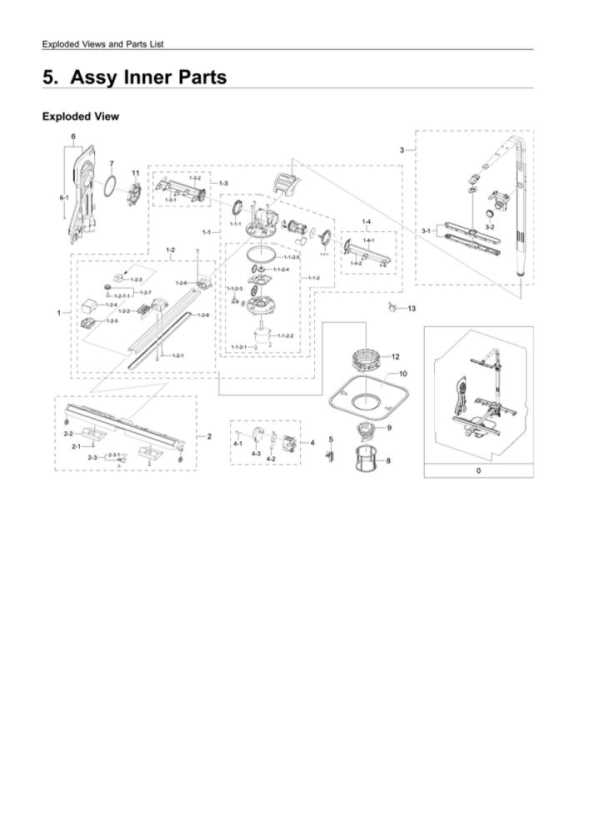

Start by downloading the official exploded view schematic from the manufacturer’s service portal using model number DW80R9950UG. Key assemblies like the sump pump (part #DD98-00583A) and upper spray arm (DD62-00171A) are labeled with numeric identifiers–match these to the illustration before disassembly. If the door latch fails, inspect part #DE93-01132A for wear; replacement requires removing the inner door panel with a T20 torx driver.
Pro tip: The turbidity sensor (DD31-00325B) often triggers error codes–clean its optical lens monthly with isopropyl alcohol. For drainage issues, the check valve (DD31-00154B) inside the drain hose may clog; flush it with warm water or replace if cracked. When servicing the circulation pump (DD62-00903A), disconnect power and relieve water pressure by running a rinse cycle first.
Replace the detergent dispenser assembly (DD97-00580A) if leaks occur–remove the lower kickplate and access screws beneath the door. The filter assembly consists of three components: coarse mesh (DD64-00222A), fine mesh (DD32-00050A), and microfilter (DD31-00214A)–rinse these quarterly to prevent residue buildup. For noise complaints, check the dish rack wheels (DD66-00160A) and bearing tracks (DD55-01080A) for debris.
Use a multimeter to test the heating element (DD97-00584A) for continuity–replace if resistance exceeds 50 ohms. The control board (DD92-01867A) is secured behind the front panel; label each wiring connection before unplugging to avoid misinstallation. Always store removed hardware in labeled bags with corresponding diagram references to streamline reassembly.
Finding the Detailed Assembly Illustration for Your High-Capacity Dishwasher
Access the authorized service portal by entering *service.samsungsupport.com* in your browser–this is the only verified source for official schematics. Locate the model number engraved on the inner door frame or along the right side panel; input it precisely in the search field labeled “Manuals & Diagrams” without spaces or special characters.
Download the PDF labeled “Exploded View” rather than the basic user guide–this file includes numbered callouts for every component, from spray arms to the detergent dispenser assembly. If the portal requests login credentials, register using the same email linked to your appliance purchase; activation may take up to 24 hours.
For offline reference, print pages 12-18 of the exploded view and tape them inside a kitchen cabinet near the unit–this ensures instant access to torque specifications, part codes, and replacement sequences when disassembling the wash pump or rack rollers.
Third-party sites like *appliancepartspros.com* or *repairclinic.com* offer searchable diagrams, but cross-verify every item number against the official illustration to avoid mismatched hardware. Note that screws under the base plate require a T20 torx driver, while retaining clips for the door latch demand plastic prying tools to prevent cracking.
If the official portal returns no results, contact support via chat with the serial number ready–agents can email the schematic directly within 48 hours. Include high-resolution photos of the control panel and interior tub if the model identifier yields ambiguous matches.
Store downloaded files on a cloud service synced with your mobile device–mechanics often reference these mid-repair, especially when aligning the upper spray arm or replacing the turbidity sensor buried beneath the filter assembly.
Bookmark the exploded view’s URL in your browser’s “Offline Access” list–power outages or network issues during repairs can stall progress when critical details like wire harness routing or seal placement go unverified.
Keep a digital notepad listing all dismounted components in reverse order of removal. This prevents reassembly errors with parts like the door springs or float switch, which must be reinstalled with specific orientation to retain proper water-level detection and cycle functionality.
Key Component Recognition with Schematics

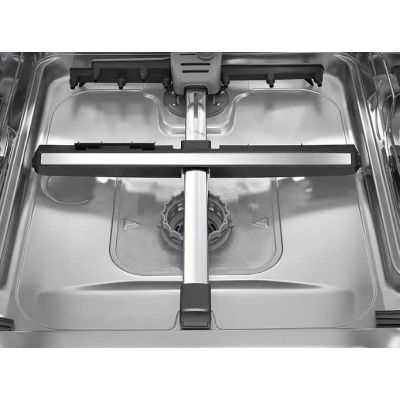

Locate the spray arm assembly by cross-referencing its outline–typically a branched, fin-like shape near the base of the tub–with item number 12 on the illustrated breakdown. Verify compatibility before ordering by measuring the length from the hub to the outermost nozzle: replacements must span 380±3 mm to prevent misalignment and water pressure loss. If corrosion appears on the stainless steel interior, inspect adjacent plastic clips (item 19) for brittleness; matching replacements require a torque of 0.5 Nm to secure without cracking.
| Component | Common Indicators for Replacement | Visual Reference Markers |
|---|---|---|
| Door latch mechanism | Intermittent lock errors, audible click failure, visible misalignment | Triangular cutout on door frame, paired with micro-switch symbol near item 5 |
| Detergent dispenser tray | Residue buildup in compartments, cracking at hinge points | Rectangular slot lined with rubber gasket (upper-left quadrant) |
| Heating element | Extended cycle times, lukewarm final rinse, mineral deposits on coil | Circular flange beneath filter assembly, labelled HFE |
Check the lower tub seal for warping or embedded debris–replace if gaps exceed 1 mm or if the cross-section deviates from the original 2.5 mm thickness. Use only fluorocarbon-based lubricant on the pump impeller bushing (item 34); petroleum-based alternatives will degrade the polyamide housing.
Step-by-Step Breakdown for Accessing Internal Components Using the Schematic

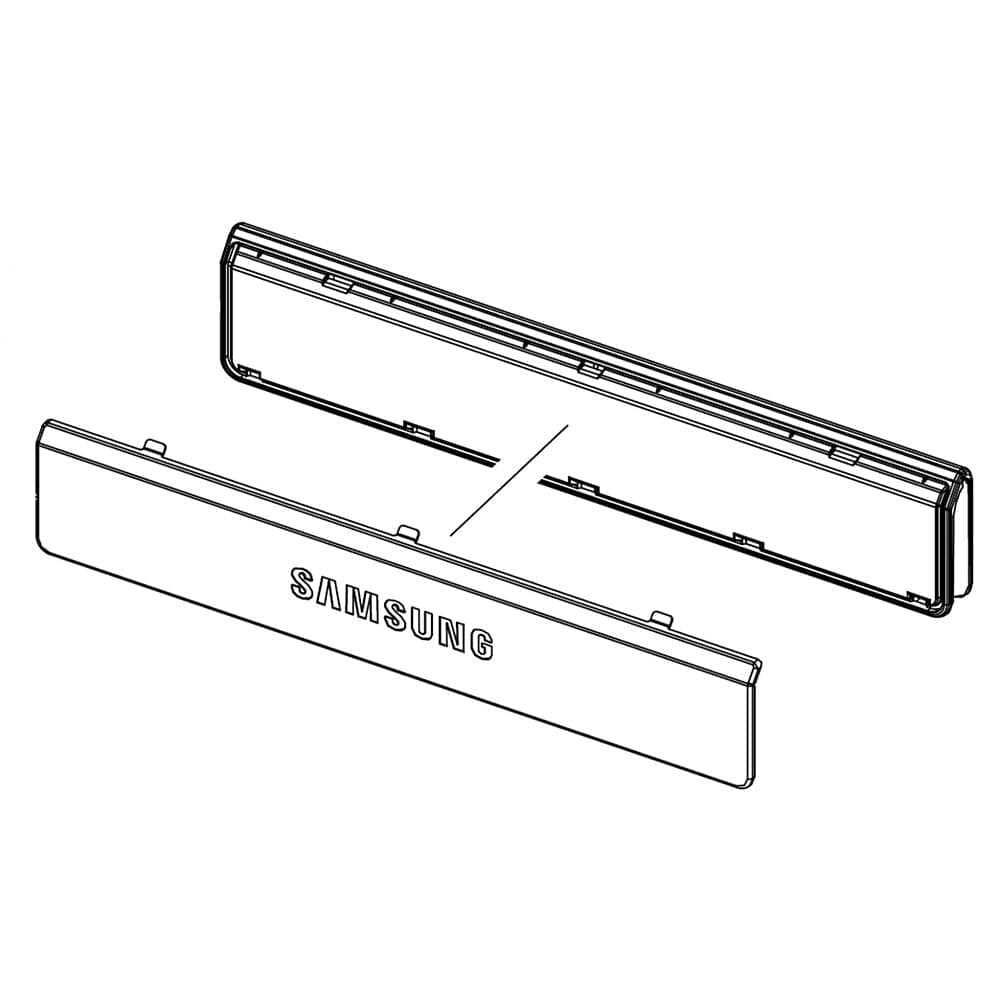

Detach the outer door panel first by locating the six Torx T20 screws along the inner edge–two at the top, two mid-way, and two near the base. Use a magnetic screwdriver to prevent fastener loss, as these screws secure the control interface and detergent dispenser. The schematic’s exploded view (section A-7) will clarify screw placement if ambiguity arises. Lift the panel upward and swing it outward; a hinged tab at the bottom will remain attached–do not force it.
Disconnecting Electrical and Water Lines
Unplug the power cord from the rear before proceeding. The wiring harness connection for the control board is snap-locked; press the release tab firmly to avoid damaging the pin connectors. For water supply lines, twist the compression fittings counterclockwise using adjustable pliers, but only after shutting off the water source and draining residual pressure by running a short cycle. The drain hose clamp (schematic ref. B-12) requires a flathead screwdriver to loosen; rotate the clamp 90 degrees to slide it off the hose barb.
Remove the lower access panel by releasing four clips–two on each side–with a flathead tool inserted into the slots. The heating element and circulation pump are visible once the bottom tray is lifted; refer to schematic section C-3 for wire routing to avoid misalignment during reassembly. For stubborn components, apply a penetrating oil like PB Blaster 10 minutes prior to removal. Always ground yourself to prevent static discharge when handling circuit boards.
Identifying and Resolving Common Faults Using the Technical Schematic
Locate the control board (labeled MB2560JN-00 on reference sheets) immediately if the appliance powers on but fails to start cycles. Disconnect power, remove the inner door panel, and inspect for corroded solder joints near resistor R22 or swollen capacitors on the logic section. Replace the entire board if diagnostics show error code 4E or 9E–partial repairs often fail within weeks.
Key symptoms pointing to pump failure:
- Water drains slowly or not at all after cycle completion.
- Grinding noise during drain sequences.
- Error 5C displayed consistently.
Access the pump (component WP100) by removing the lower kick plate. Check the impeller for debris–clear obstructions with a 3 mm Allen key if rotation is stiff. Test the motor windings with a multimeter: readings should stabilize between 12–25 ohms. If outside this range, install a replacement unit (OEM part #DD80R20375A)–third-party alternatives frequently leak.
If heating elements cycle irregularly or water remains cold, focus on the high-limit thermostat and heater coil. The thermostat (labeled HL1 on schematics) typically fails at 85–90°C triggers; test continuity with probes on terminals 1–4. The coil itself (resistance 20–30 ohms) rarely burns out first–suspect loose wiring harnesses at connector CN58 if intermittent heating occurs. Secure connections with dielectric grease.
Door latch failures present as:
- Unit fails to initiate despite button presses.
- Repeated clicks from the solenoid without engagement.
- Error dE or LC flashing.
Disassemble the door outer panel to reach the microswitch assembly. Test voltage at the solenoid–absent current often traces to a fractured trace on the main harness, not the switch itself. Replace the entire latch module if solder reflow doesn’t restore 5V DC signal consistency.
For spray arm blockages, remove the lower rack and unscrew the center nut securing the arm. Flush jets with a 0.8 mm wire–calcium buildup here mimics detergent dispenser failures, but diagnostics will show 3C or 7E. Verify the turbotube bearing hasn’t seized by rotating the arm manually–seizure warrants full manifold replacement (OEM #DD650100782A) rather than lubrication.
Noise during operation isolates to either the wash motor (error 3E) or circulation pump bearings. If vibrations emanate from the rear left, replace the motor mount bushings–never attempt realignment. For pump bearing wear, listen for a high-pitched whine: the entire pump assembly must be replaced, as bearings are pressed and not serviceable. Always verify torque specs on mounting bolts (22–25 N·m) to prevent future misalignment.
