Begin with the combustion assembly if replacing mufflers or carburetors–item numbers C-4812 (exhaust) and V-7390 (fuel system) appear on most exploded views. These components align directly beneath the fuel tank, secured by three M5 screws (12mm length). Mark threads with Loctite 243 before reassembly to prevent loosening under vibration.
Locate the cutting head housing at the base–look for part H-2945 (gearbox cover) to uncover the drive shaft interface. Remove the retaining clip (U-shaped, 3.2mm wire) to release the shaft. Inspect the clutch drum (D-6188) for scoring; grooves deeper than 0.3mm require replacement. Store the clutch springs in descending order of tension (5.5N to 6.2N) to maintain consistent engagement.
For throttle cable adjustments, trace the inner sheath from the handle to the carburetor linkage. The sheath should protrude 3-5mm beyond the control housing (P-1420). Trim excess length with diagonal pliers–avoid bending the coiled wire core, as this distorts the 1:1.5 ratio between trigger pull and butterfly valve movement.

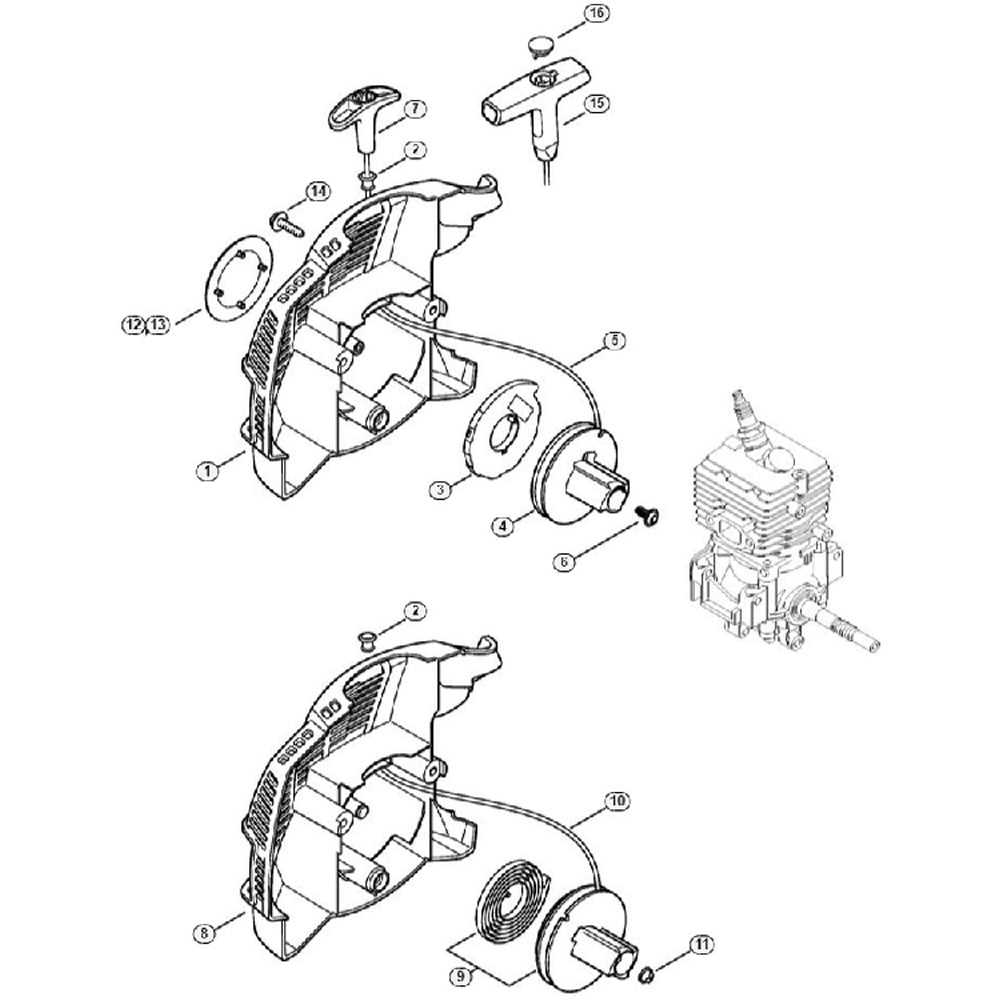

When servicing the starter assembly, detach the recoil housing (R-9023) first. The pawl mechanism (two pieces, S-3015) sits on a spring-loaded pivot–clean both faces with 800-grit wet sandpaper if engagement feels sluggish. Apply a single drop of SAE 10W-30 to the pawl pivot; excess oil attracts dust, causing premature failure.
Air filter maintenance starts with removing the cover (A-7091), held by a single torx T25 bolt. Tap the filter element (X-4410) sharply against a hard surface to dislodge debris–never use compressed air, as this ruptures the dual-density foam layers. Replace the element if oil saturation exceeds 70% by visual inspection.
How to Locate Components for Your FS 56 RC Trimmer: A Practical Breakdown
Download the official exploded view schematic directly from the manufacturer’s service portal using the model number “FS 56 RC.” The document splits into three primary sections: engine assembly, cutting head, and shaft. Each section lists items with numbered callouts–cross-reference these with the 10-digit part codes printed on your trimmer’s housing or engine casing. Misidentifying components (e.g., carburetor gaskets vs. reed valves) leads to costly shipping delays.
Critical wear-prone elements require immediate spotting:
- Fuel lines (item 4136-120-2700) crack after 120-150 hours–replace in pairs.
- Air filter (4225-120-0200) clogs every 25 hours; rinse with soapy water, air-dry.
- Spark plug (NGK BPMR7A) fouling at 50-hour intervals.
- Drive shaft coupling (4136-190-0503) shears under stress–check torque at 30 Nm.
Remove the trimmer’s plastic cowling (fasteners: 2 × M5 bolts) to access the crankcase. Note the orientation of the recoil spring–reassembly errors cause starter failure. The piston ring gap (0.15-0.35 mm) demands feeler gauges; wider gaps indicate honing needs.
Order consumables in bulk to reduce downtime:
- Mixed fuel (50:1 ratio) expires after 30 days–store in opaque containers.
- Line spool (4182-720-2700) for semi-automatic heads–wind under 1.5 kg tension.
- Throttle cable (4136-736-6501) stretches; adjust free play to 1.5-2 mm.
Key Elements of the FS 56 RC Trimmer Breakdown Illustration
Locate the engine housing first–its aluminum casing, marked with “4-MIX” near the air intake, confirms the model’s hybrid combustion system. The cylinder head, typically secured by four bolts (M8x25), sits atop this assembly and requires a 10mm socket for disassembly. Verify bolt torque at 12 Nm before proceeding to avoid thread stripping.
Examine the carburetor linkage next. The FS 56 RC employs a Zama C1Q-S27 unit, identifiable by its three adjustment screws: idle (LA), low speed (L), and high speed (H). Use a 3mm hex key to calibrate; baseline settings are LA=1.25 turns, L=1.5 turns, and H=1.75 turns from lightly seated. Deviations beyond 0.25 turns indicate wear or fuel contamination.
| Component | Material | Fastener Spec | Tool Required |
|---|---|---|---|
| Air filter cover | Plastic (PA6GF30) | M5x16 (2x) | Torx T25 |
| Starter rope pulley | Fiberglass-reinforced nylon | Retaining clip (Ø12mm) | Snap ring pliers |
| Spark arrestor screen | Stainless steel mesh (304) | M6x12 (3x) | 10mm socket |

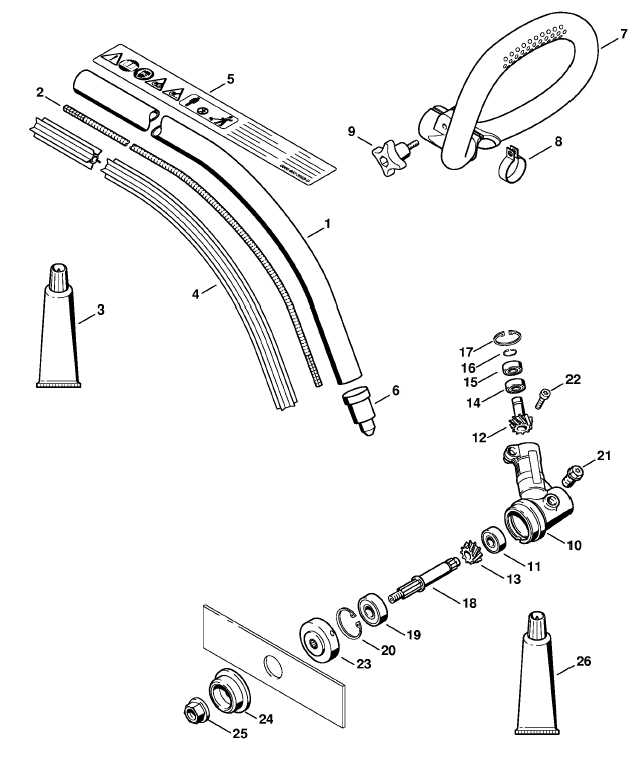

Inspect the drive shaft coupling at the gearbox juncture. The FS 56 RC’s flexible shaft connects via a 12-tooth spline (Ø8.5mm), secured by a circlip. Corrosion on the spline interface–common after 150 hours of use–requires replacement with OEM part #4140-190-0201 to prevent power loss. Lubricate new couplings with PAO-based grease (NLGI 2) before installation.

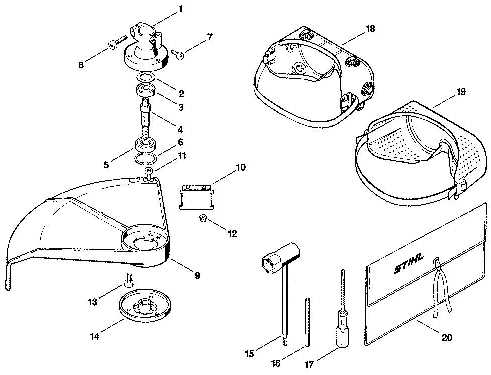

The cutting head assembly uses a bump-feed spool (part #4140-710-5205) compatible with 2.0mm-2.4mm monofilament. Verify feed port alignment by rotating the spool counterclockwise until audible clicks occur–irregular clicks signal worn pawls. Replace the spool if filament ejection requires excessive force (>2kg at 40cm length).
Check electrical continuity across the ignition coil terminals. Resistance should read 0.2-0.5Ω between primary terminals and 5-10kΩ across secondary leads. Values outside this range indicate moisture ingress; dry components for 24 hours at 60°C or replace with unit #4140-400-1300. Ensure flywheel magnets clear the coil by 0.3-0.5mm–adjust via shims if interference generates misfires.
Reassemble clutches with attention to spring tension. The FS 56 RC uses three clutch shoes (part #4137-160-2002) with centrifugal force activation at 3,200±200 RPM. Test engagement by running the unit at half throttle–slippage suggests worn shoes (OEM spec: 6.2-6.4mm thickness) or contaminated friction surfaces. Clean with isopropyl alcohol; replace springs if free length exceeds 17mm.
Step-by-Step Assembly Guide for the FS 56 RC Trimmer Components
Begin by laying out all elements from the exploded view on a clean, flat surface. Identify the drive shaft housing–it’s the longest tubular piece–and align it vertically with the threaded end pointing upward. Secure it temporarily using a vise or clamp, ensuring it doesn’t rotate during assembly. Attach the flexible drive cable into the housing first, sliding it until it bottoms out; the squared end should sit flush inside the gear case.
Slide the gear case onto the housing, rotating it slightly to engage the splines with the drive cable. The gear case should lock into place with an audible click. If resistance is felt, stop and check for misalignment–force can damage internal teeth. Thread the three mounting screws clockwise, alternating between them to apply even pressure. Tighten in stages to 8-10 Nm; overtightening strips threads.
Important: Before proceeding, verify the throttle trigger moves freely. Install the throttle assembly by positioning the linkage rod into the carburetor lever, then snap the trigger into its housing. A misaligned rod causes unreliable engine response. Secure the carburetor with two screws, torquing to 5 Nm. Connect the fuel line, ensuring the arrow on the filter points toward the tank.
Mount the cutting head by inserting the remaining drive cable end into the spool. Rotate the spool counterclockwise until it clicks–this locks the cable. Slide it onto the shaft, aligning the tab with the slot. Press firmly until the spool seats fully. If replacing the line, wind 2.4 mm cord in the indicated direction, leaving 10 cm excess for cutting; incorrect winding causes jams.
Attach the deflector shield above the cutting head, securing it with the provided bolt. The shield’s orientation matters–place it so the curved edge faces downward, protecting legs from debris. Recheck all bolts after initial use; vibrations loosen fasteners over time. For muffler assembly, align the gasket between the engine and muffler, then tighten bolts crosswise to 12 Nm. A missing gasket leads to overheating.
Fill the fuel tank with a 50:1 gasoline-oil mix, using two-stroke oil only. Close the tank tightly–air leaks prevent starting. Prime the carburetor by pressing the bulb five times; wait 30 seconds for fuel to reach the chamber. Pull the starter rope briskly; hesitation indicates improper priming. Store remaining components, screws, and tools in the original packaging for future reference.
How to Find and Purchase Spare Components for the FS 56 RC Trimmer
Start by identifying the exact model number engraved on the trimmer’s housing–usually near the engine or shaft. The FS 56 RC has distinct variants (e.g., early vs. late production runs), and mismatched components can cause malfunctions. Check the serial number against Stihl’s official serial number lookup to confirm compatibility before ordering. Many dealers mistakenly list generic items, leading to frustration when the wrong clutch assembly or carburetor arrives.
Official dealers remain the most reliable source for genuine replacements. Locate an authorized service center via the brand’s website–filter by “power tools” and “trimmer components.” Avoid third-party marketplaces unless the seller provides a factory part number and clear photographs of the item next to its original packaging. Commonly misordered elements include:
- Spark plug (NGK CMR6H, gap 0.5mm)
- Air filter (part #4145-120-1001 for foam, #4145-124-0203 for paper)
- Fuel filter (6431-007-1002, 2.5mm inside diameter)
- Drive shaft (curved vs. straight–verify with calipers)
For hard-to-find items like throttle cables or recoil starters, contact the manufacturer’s support directly. Include the serial number, a description of the failure (e.g., “starter rope snaps at 3-inch pull”), and request the internal service bulletin if available. Some older models have superseded parts–ask for the replacement’s part number explicitly. Example: the FS 56 RC’s original muffler (4145-140-0300) was replaced by #4145-140-0302 in 2018.
When ordering online, compare prices across three verified retailers before purchasing. Genuine carburetors, for instance, range from $50–$75, while knockoffs often fail within 50 operating hours. Note shipping restrictions–some sellers exclude items like fuel lines or primer bulbs from international shipments due to air transport regulations. Always request a proforma invoice specifying:
- Full part number (including revision suffixes)
- Weight (for customs declarations)
- Country of origin (Germany vs. Brazil vs. China–affects warranty)
After receiving the shipment, cross-check the item against the invoice immediately. Genuine mechanical pieces (e.g., clutch housing #4145-161-0200) feature laser-etched logos and machined finish; counterfeit versions often have rough edges or inconsistent paint. Test-fit electrical components (e.g., ignition module #4145-400-1300) on the trimmer before reassembly–some dealers have restocking fees for unopened returns. Keep the original box and packaging for warranty claims, as damaged items during shipping must be reported within 48 hours.
