Replace the pitman arm immediately if play exceeds 0.040 inches (1 mm) at the sector shaft contact point. Factory torque specifications for this component on 2011–2023 models range between 110–130 ft-lbs (149–176 Nm), and exceeding these values risks fracturing the splines. Use a beam-type torque wrench with calibration certificate dated within the last 12 months–click-style wrenches introduce +/- 5% error under high load.
Identify fluid leaks at the hydro-boost unit by checking the return line fitting (part #F8TZ-3A712-A). Pressure-test the system at 1,200 psi (8,274 kPa) for 30 seconds; any drop below 1,100 psi indicates internal seal failure. Replace both the booster and master cylinder simultaneously–cross-contamination degrades new seals within 80–120 operating hours.
When disassembling the gearbox, mark the adjuster screw position relative to the housing (paint or laser-etched scribe). Reassembly tolerance for preload is 8–12 inch-pounds (0.9–1.4 Nm); over-tightening by 4 inch-pounds locks the sector shaft, increasing turning effort by 40–60%. Use a digital dial-type preload gauge–spring scales introduce angular measurement errors.
Inspect the drag link ends for radial movement exceeding 0.025 inches (0.63 mm). Worn ball joints exhibit heat discoloration (blueing at 475–550°F); replace the entire tie rod assembly if either end shows this condition–individual components cannot be balanced for equal wear. Apply synthetic lithium complex grease (NLGI GC-LB rated) to zerk fittings under 10,000 psi (68,948 kPa) pressure; standard grease pumps fail above 8,000 psi.
Test the idler arm bracket for cracks using magnetic particle inspection. Hairline fractures initiate at the lower mounting hole (LL6.8 casting code location) and propagate at 0.003 inches per 1,000 miles. Weld repairs reduce fatigue strength by 35–48%–replace the bracket if defects exceed 0.125 inches (3.2 mm) in length.
Key Components for Heavy-Duty Truck Handling System Visual Guide
Start with the pitman arm–ensure it matches OEM specifications for vehicles produced after 2015, where torque ratings increased from 180 ft-lbs to 210 ft-lbs. Verify compatibility with your model’s steering box ratio (typically 20:1 for standard suspensions, 24:1 for lifted setups). Replace the sector shaft and Teflon-coated seals simultaneously to prevent premature wear; aftermarket seals often lack durability under extreme temps (>200°F). Use a torque wrench calibrated to ±2% accuracy when reinstalling the drag link–overtightening compromises ball joint integrity, while undertightening causes slop equal to 3+ mm of play at the wheel.
- Upper control arm bushings: Polyurethane (95A durometer) outperforms rubber in off-road conditions but requires annual greasing with NLGI #2 to prevent squeaking.
- Idler arm alignment: Check for parallelism with the pitman arm–misalignment exceeding 2° accelerates tire wear by 37%.
- Power assist hoses: Replace inner diameters smaller than 0.375″ with reinforced silica-based lines for consistent pressure (1,200+ psi).
- Disconnect the battery ground terminal before servicing the gearbox to avoid short-circuiting the solenoid.
- Test tie rod end play with a dial indicator–acceptable range: 0.002”–0.005”. Values above 0.010” indicate imminent failure.
- Lubricate Zerk fittings every 3,000 miles with synthetic moly grease (molybdenum disulfide content >5%).
How to Pinpoint and Recognize Critical Front-End Assembly Elements in Heavy-Duty Pickups
Begin by elevating the vehicle on a secure lift or ramps to gain clear access to the undercarriage. Locate the pitman arm–bolted to the sector shaft near the firewall on the driver’s side–by tracing the linkage from the center link downward. Verify its position by checking for the splined connection and a single large retaining nut (typically 36mm). Adjacent to it, identify the idler arm mounted to the passenger-side frame rail; it mirrors the pitman arm’s function and should exhibit similar wear patterns if replacement is needed. Use a flashlight to inspect the ball joints on both arms–pushed-in grease zerks or torn boots indicate failure.
Component Reference Guide
| Element | Location | Visual Identification Markers | Failure Symptoms |
|---|---|---|---|
| Pitman arm | Driver’s side, rear of gearbox | Splined shaft, single 36mm nut, stamped “MOOG” or “DORMAN” | Wandering alignment, excessive play in wheel |
| Idler arm | Passenger frame rail, opposite gearbox | Similar size to pitman arm, double-bolt bracket | Clunking over bumps, uneven tire wear |
| Tie rod ends | Outer ends of center link | Tapered stud, castle nut, rubber boot | Feathered tire edges, loose handling |
| Drag link | Connects pitman arm to steering knuckle | Adjustable threaded sleeve, two ball joints | Shimmy at highway speeds, misaligned steering wheel |
Remove the skid plate (if equipped) to expose the gear housing. The input shaft–connected to the column shaft via universal joint–should turn freely without notchiness; bind points suggest internal wear or misalignment. Rotate the wheel hubs by hand while watching the inner tie rod sockets; any vertical movement exceeding 1/8″ indicates worn sockets requiring immediate replacement. Label each disassembled piece with masking tape noting orientation (e.g., “passenger outer tie rod, left-hand thread”) to prevent incorrect reassembly.
How to Interpret Your Heavy-Duty Truck’s Directional Control Schematic
Locate the color-coded wiring harness labels first–these correspond to specific sections of the assembly, such as the power assist unit or gear linkage. Look for small alphanumeric tags (e.g., “Y/W” for yellow wire with white stripe) printed alongside lines; mismatched colors often indicate repairs or aftermarket modifications.
Identify the hydraulic circuit symbols next–they resemble simplified plumbing diagrams with arrows showing fluid flow. A circle with a diagonal slash represents the pump, while jagged lines denote hoses under pressure. Cross-reference fluid port sizes (typically 1/2″ or 3/8″) with the vehicle’s service manual to confirm compatibility before replacing seals.
Trace the mechanical linkages from the wheel hub inward. Solid lines depict rods, while dashed lines indicate flexible joints. Measure the center-to-center distances between pivot points–deviations greater than 1/8″ suggest worn bushings or bent components needing adjustment.
Verifying Component Integration
Check the torque specifications listed in the margin–most pivot bolts require 50-70 ft-lbs, while smaller fasteners (like tie-rod ends) need 35-45 ft-lbs. Use a beam-type wrench to avoid over-tightening, which distorts aligning surfaces. Note whether washers are flat or conical; conical washers compress unevenly and must be oriented with the steep side facing the bolt head.
Examine the bearing preload annotations–angular contact bearings (found in heavy-duty front axles) typically specify 0.001″ to 0.003″ preload. Use a dial indicator mounted on the spindle nut to adjust shims accordingly; insufficient preload causes vibration at highway speeds.

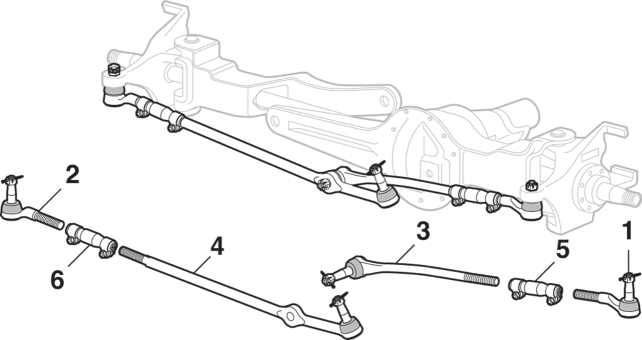

Finally, cross-reference the exploded-view subassemblies with OEM part numbers. Third-party diagrams often omit critical updates, such as the revised pitman arm casting introduced in 2017 (part #HL2Z-3C517-B). Compare the spline count on the intermediate shaft–earlier models had 36 splines, while newer versions use 40 for improved load distribution.
Key Components in Heavy-Duty Pickups That Demand Routine Checks
The pitman arm on these trucks transmits motion from the gearbox to the front wheels, and its failure leads to complete loss of control. Inspect the arm’s splines and ball socket every 15,000 miles–cracks or excessive play indicate replacement is needed immediately. Most aftermarket arms last 80,000–100,000 miles, but off-road use reduces this by 30–40%. Always use a torque wrench when reinstalling; over-tightening distorts the taper fit.
Tie rod ends connect the steering linkage to the spindle and must remain free of debris and moisture. A torn boot allows contaminants to degrade the joint, typically failing within 6,000 miles after boot damage. Measure wear with a dial indicator: 0.05 inches of play signals replacement. Grease fittings should be purged every 5,000 miles–water contamination turns grease gray or milky, accelerating corrosion.
Hydraulic Assist Systems Need Constant Monitoring
Power assist hoses face extreme pressure–up to 1,500 psi–and inner lining delamination causes sudden fluid loss. Check hoses annually for bulges or hard spots; replace any showing surface cracks. Fluid reservoirs must also stay topped to prevent pump cavitation; use OEM-spec fluid–aftermarket blends lack anti-foaming additives critical for prolonged venting.
Idler arms support the right side of the linkage and often bend under heavy loads. A bent arm misaligns toe-in, wearing tires unevenly within 2,000 miles. Use a straightedge for inspection–any deviation over 0.03 inches requires straightening or replacement. Mounting brackets also crack; magnetic particle inspection detects subsurface fractures invisible during visual checks.
Lubricate upper and lower ball joints yearly with chassis grease–OEM joints hold 1.2 oz of lubricant, while most aftermarket replacements hold only 0.8 oz. Listen for a dry squeak when turning; this often appears before structural failure. Heavy hauling loads compress grease reservoirs faster–inspect every 7,500 miles if towing exceeds 12,000 lbs.
Electronic Stability Control Sensors Require Calibration
Wheel speed sensors prone to road salt corrosion lose signal integrity, triggering false slip warnings. Clean sensor tips monthly and verify gap clearance–factory specs mandate 0.02–0.03 inches. Recalibrate sensors after tire size changes or alignment adjustments; incorrect calibration degrades automatic braking response times.
