If you’re restoring a late 19th-century snap-action sidearm, begin by securing a detailed exploded view of its mechanical layout. The hinged-frame model manufactured under the U.S. Arms Co. brand–typically chambered in .32 or .38 caliber–features a distinctive pivoting breech mechanism. Focus first on the latch assembly, as wear here often leads to misalignment. Inspect the crane arm and barrel hinge pin for corrosion or stress fractures, especially in units stored in damp environments.

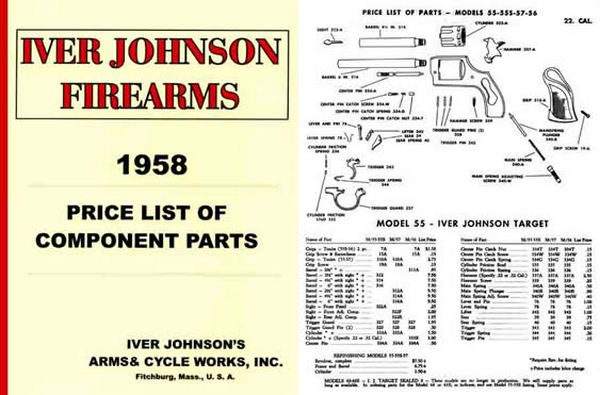

For precise reassembly, reference the numbered components in the factory blueprint–usually divided into three primary subsystems: the barrel group, frame internals, and trigger mechanism. The extracting star (critical for simultaneous cartridge ejection) frequently requires lubrication with a light mineral-based oil to prevent binding. Pay close attention to the hammer sear engagement, where even a 0.2mm deviation can cause unreliable ignition. Use a micrometer to verify tolerances on the firing pin protrusion–ideally between 1.5mm and 1.8mm for consistent primer strike.
When sourcing replacements, prioritize original forge marks on the trigger guard and sideplate–aftermarket replicas often lack the correct tempering, leading to premature metal fatigue. The main spring (a flat leaf design) should be tensioned to 3.5–4.2 lbs of pressure for proper hammer fall; weaker springs risk light strikes, while excessive tension may damage the firing pin hole. Store disassembled components in a rust-inhibiting silica gel bed if the restoration spans multiple sessions.
For troubleshooting misfires, isolate the issue by testing each subsystem: dry-fire the action first to confirm the sear/hammer interface is intact, then verify cartridge alignment by inspecting chamber mouth wear patterns. A common failure point in these designs is the ejector rod bushing–replace it if the rod wobbles more than 0.1 degrees from true. Finishing touches should include a protective coating of cold-bluing solution for iron parts, though avoid oversaturation on threaded components to prevent galling.
Understanding Firearm Break-Action Schematics
Begin disassembly by verifying the hammer is in the half-cock position–this prevents spring tension from ejecting components violently. The latch release lever on the left frame must be depressed while rotating the barrel assembly downward; failure to align the cylinder properly before this step risks damaging the crane pivot or stripping the locking lug threads. Reference a numbered exploded view to identify the ejector rod spring (part #42-8) and its retaining plate (#43-1), which often require needle-nose pliers for removal due to corrosion buildup in models produced before 1940.
Critical wear points include the hand spring (#25), mainspring (#19), and cylinder stop (#34)–replace these if measurements show less than .045” thickness or 15% deformation from original specs. The cylinder flute alignment notch should engage the stop with an audible click at 20° rotation; misalignment indicates a bent crane arm or worn extractor cam. Lubricate friction points with molybdenum disulfide grease sparingly–excess attracts fouling and accelerates spring fatigue. For historical variants like the Second Model Safety Automatic, note the unique hammer-block pin (#58) which requires precise indexing to the cylinder locking bolt (#36) during reassembly.
Key Elements of the Swing-Out Cylinder Firearm Assembly
For precise identification, begin by locating the hinge mechanism–the pivot point where the barrel assembly separates from the grip frame. This component is typically secured by a transverse pin and often shows signs of wear if the weapon has seen frequent use. Check for manufacturer markings near this joint; early models often include serial numbers or proof stamps here. The hinge must move freely but without excessive play–excessive lateral movement indicates wear in the locking lugs or latch.
- Barrel cluster: Includes the forcing cone, rifling, and ejector rod housing. Measure bore diameter (usually .32 or .38 caliber) to confirm compatibility with spare components. Inspect the ejector rod for straightness; bends here disrupt cylinder alignment. The extractor star should rotate smoothly when the cylinder swings out–stiff movement suggests debris in the ratchet or worn return springs.
- Cylinder assembly: Contains chambers, the ratchet, and hand (pawl). Remove the cylinder by pressing the thumb latch while supporting the barrel. Examine the ratchet teeth for chips–each tooth engages the hand during rotation. Missing or deformed teeth cause timing issues, leading to misfires. Lubricate lightly with dry-film lubricant; oils attract fouling.
- Grip frame: Houses the trigger, hammer, and mainspring. Disassembly requires removing grip panels first–look for hidden screws beneath escutcheons. The hammer rebound spring must exert even pressure; weak springs result in light strikes or failure to cock. Check the trigger pivot pin for wear; elongated holes affect sear engagement.
Verify latch engagement by closing the barrel cluster against the frame–it should snap securely without hesitation. If the latch fails to hold, inspect the locking bolt (beneath the hammer) for damage. Replace if threads are stripped or the bolt face shows excessive rounding. For firearms with a safety, test the hammer block by dry-firing with the safety engaged–no movement should occur. Grease the pivot areas sparingly; over-lubrication attracts grit, accelerating wear in high-friction zones like the cylinder stop slot.
Step-by-Step Disassembly Process for the Rotating Chamber and Ejector Assembly
Begin by ensuring the firearm is unloaded: visually inspect each chamber and the barrel. Press the latch release–typically located on the left side of the frame–to swing the barrel and cylinder assembly forward. Hold the frame firmly with one hand while supporting the barrel shroud with the other to prevent sudden movement. Detach the crane arm by removing the hinge pin (often a small screw or push-button retainer) securing it to the frame; slide the arm outward to fully separate the cylinder from the firearm.
Extracting the Ejector Star and Rod

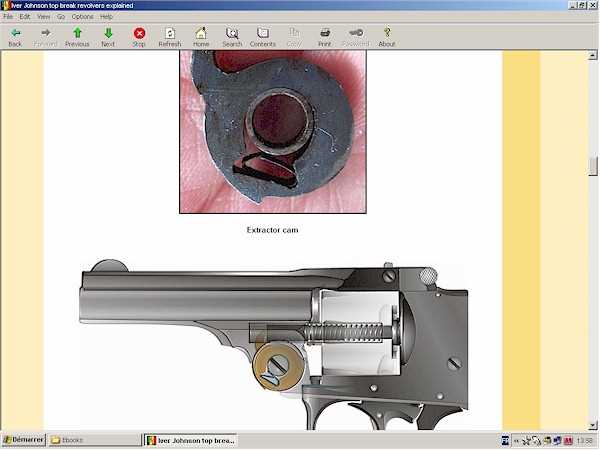

Rotate the cylinder counterclockwise to align one of its flutes with the stop notch on the frame–this exposes the ejector rod’s base. Use a punch or small screwdriver to depress the ejector rod’s retaining spring (situated behind the cylinder’s rear face) while pulling the rod gently outward. The ejector star should slide free; if stuck, tap lightly with a nylon mallet. Inspect the star for burrs or wear–minor imperfections can be smoothed with a fine file, but excessive damage requires replacement. Clean the rod’s threads with a brass brush to remove carbon buildup before reassembly.
Inspecting and Reassembling Components
Check the cylinder’s interior for debris or pitting; use a bore brush and degreaser for stubborn fouling. Reattach the ejector star by aligning its notches with the cylinder’s chambers–press firmly until it seats flush. Thread the ejector rod back into the star, ensuring it turns freely without binding. Reinstall the crane arm by inserting the hinge pin and securing it with the retaining screw (2-3 inch-pounds of torque). Swing the barrel assembly closed, testing the latch’s engagement; any play indicates a misaligned crane arm or worn latch spring–adjust accordingly before final testing.
How to Locate and Replace the Hammer and Trigger Assembly
Disassemble the firearm by first securing the cylinder frame. Use a gunsmithing screwdriver to remove the sideplate screws–typically two or three–located near the grip. Store screws in a magnetic tray to prevent loss. Once the sideplate is removed, note the spring tension on the sear and hammer strut; these components may release abruptly. Gently restrain them with a fingertip before fully separating the plate.
Identify the hammer and trigger assembly by tracing the firing sequence: the trigger engages the sear, which releases the hammer under mainspring pressure. The mainspring connects to the hammer via a stirrup or strut; disconnect this link by lifting the hammer slightly and sliding the stirrup off its hook. For triggers, locate the rebound slide–it returns the trigger to firing position–before unscrewing the pivot pin. Replace worn parts by matching dimensions exactly; a 0.003-inch tolerance error can cause misfires. Use calipers to measure:
| Component | Critical Measurement (inches) | Tool Required |
|---|---|---|
| Hammer pivot | 0.125 ±0.001 | Digital calipers |
| Sear engagement surface | 0.060 ±0.0005 | Needle-point micrometer |
| Trigger pull weight | 3.0–4.5 lbs (adjust spring) | Trigger pull gauge |
Reassemble by aligning the hammer strut with the mainspring stirrup. Confirm the stirrup’s hook engages properly–misalignment causes light strikes. Test trigger reset by cycling the action dry; the trigger should click cleanly without binding. If the rebound slide sticks, polish its channel with 600-grit aluminum oxide paper. Avoid lubricants near firing mechanisms–use dry graphite powder sparingly on pivot points only. Reinstall the sideplate with screws torqued to 12–15 inch-pounds; overtightening distorts the frame.
Function-check the assembly by loading dummy rounds (snap caps) and dry-firing. The hammer should fall crisply with consistent trigger pull weight. If the trigger feels gritty, disassemble and inspect for burrs on the sear or rebound slide. Remove burrs with a fine-cut needle file, then polish with jeweler’s rouge. Repeat until smooth. Replace any springs showing fatigue–permanent deformation–or shot peening, as these indicate stress fractures. Finalize with a live-fire test: groups should cluster tightly at 10 yards if timing and lockwork are correct.
