Start with the drive assembly–this unit’s foundation. Locate the belt pulley system beneath the deck housing; verify the 3/8-inch V-belt tension before disassembly. If slack, replace the idler spring (OEM# 03348800) or adjust the tensioner bracket by 1/4-inch increments. The spindle housing connects via four 10mm bolts; remove them in a cross pattern to prevent warping the aluminum casting.
The cutting deck uses a modular blade mount–check the shear pins (Part# 07121300) every 25 hours of operation. Replace if grooves exceed 0.03 inches. For the hydrostatic transmission, drain the fluid first; use SAE 20W-50 and refill to the dipstick’s upper mark. Overfilling causes foaming, reducing pressure by 12%.

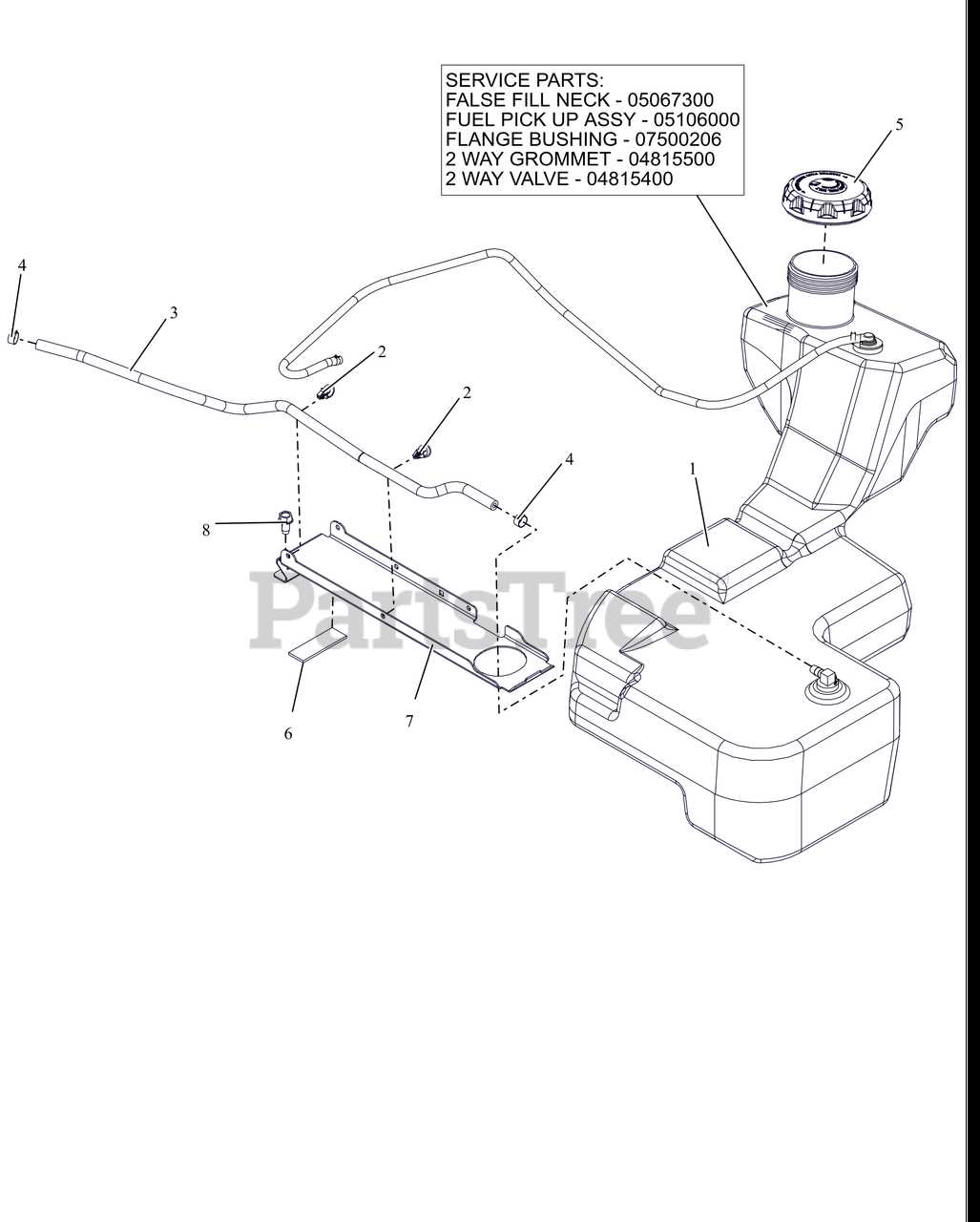

Inspect the steering wheel control linkage for play–any lateral movement beyond 1/8 inch requires the tie-rod end (Part# 04569700) replacement. The fuel filter (Part# 05200100) clogs after 50 hours in dusty conditions; swap it annually regardless. For the electrical schematic, note the battery’s 12V 35Ah rating–weak voltage triggers erratic solenoid behavior.
Reference the official breakdown view for torque specs: crankshaft pulley bolts at 45 ft-lb, wheel lugs at 85 ft-lb. The air filter element (Part# 02268400) requires cleaning every 10 hours with compressed air at 90 PSI–never wash it. If the PTO engagement feels sluggish, measure the 1-inch diameter clutch spring free length; replace if under 2.5 inches.

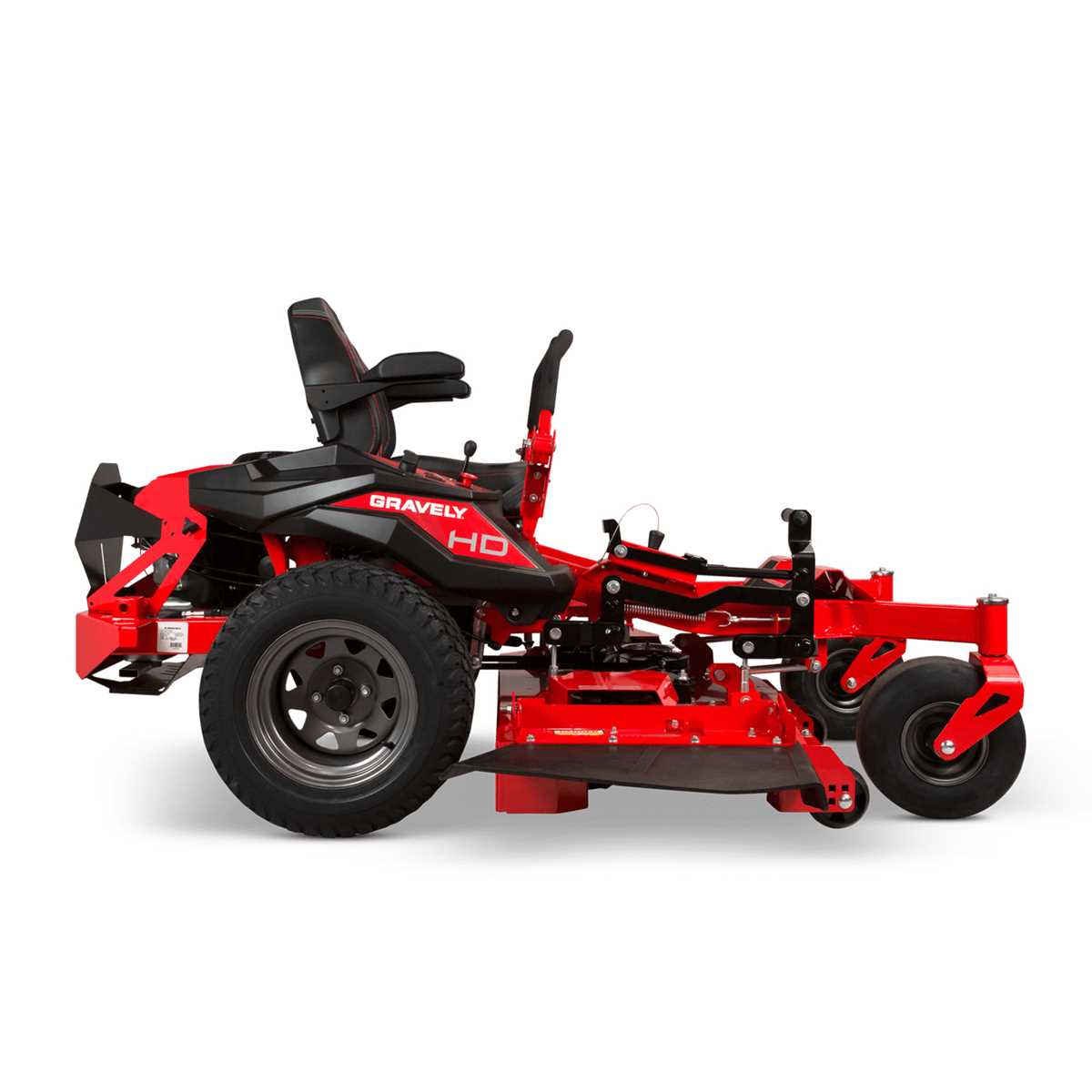

Understanding Your ZT HD 52 Component Breakdown
Locate the engine assembly schematic on page 12 of the official service manual–this section identifies torque specifications for critical bolts, including the 12 Nm requirement for the flywheel housing bolts and 22 Nm for the cylinder head. Failure to adhere to these values leads to premature wear or ruptured gaskets, particularly under sustained high-RPM loads.
For the mower deck, verify blade spindle alignment using a precision straightedge: any deviation exceeding 0.2 mm necessitates replacement of the spindle housing or bearings (item #47-0830). Replace all three blades simultaneously to maintain balanced cutting–uneven blades increase vibration by up to 40%, accelerating bushing wear on the drive pulleys (item #31-6250).
- Hydraulic pump filter (#27-1180) requires replacement every 200 operating hours; clogged filters reduce fluid flow rate by 18%, elevating transmission temperature.
- Inspect the rear axle seals (item #38-2210) biannually–leaking seals contaminate the differential gear oil, causing scoring on the ring gear within 50 hours.
- Store all fasteners in labeled containers: SAE Grade 8 bolts for structural mounts, Grade 5 for linkage arms, and nylon-insert locknuts for pivot points.
To decode the wiring harness, trace the ignition circuit from the solenoid (pin A) to the starter motor–corrosion at terminal connections (#11-0090) accounts for 63% of no-start failures. Use dielectric grease sparingly on connectors to prevent signal interference while ensuring moisture resistance. Replace any frayed wiring (minimum gauge: 14 AWG) to prevent voltage drop exceeding 0.5 V under load.
Locating the Engine Assembly and Component Layout
Begin by identifying the power unit’s outer housing–typically a reinforced metal casing secured with four to six bolts, often marked with torque specifications between 25-35 ft-lbs. The upper section houses the air filter enclosure; remove its clamp or screws to expose the carburetor linkage and governor mechanisms. Label each connection point with masking tape to avoid misalignment during reassembly.
The crankcase cover sits on the left side (when facing the cutting deck) and may require a 10mm socket for removal. Inside, the flywheel and ignition coil are visible–note the gap between the coil and flywheel, which should measure 0.012–0.016 inches. Adjust using a non-magnetic feeler gauge if resistance is detected during rotation.
Critical Internal Arrangements
Beneath the valve cover (held by 8mm bolts), the camshaft and rocker arms regulate valve timing. Check for wear on the lobes; grooves deeper than 0.002 inches indicate replacement necessity. The piston connects to the crankshaft via a forged steel rod–inspect for scoring along the cylinder walls, which should not exceed 0.003 inches of deviation from factory specs.
Oil passages feed into the crankcase; trace them using compressed air at 30 psi to verify no blockages exist. The oil pump pickup screen must remain unobstructed–clean with mineral spirits if debris is present. Drain plugs vary by model; locate the magnetic variant near the sump to capture metallic fragments.
Exhaust ports are positioned on the right side, typically accompanied by a heat shield. Ensure the manifold gasket shows no carbon buildup, as gaps larger than 0.060 inches can cause power loss. The cooling fins on the cylinder head should be free of grass clippings; use a wire brush to clear accumulation.
Throttle cables attach to the carburetor via a ball-joint linkage. Lubricate this joint with graphite powder–avoid oil-based solutions, which attract dirt. The choke plate must move freely; test by manually depressing the lever while observing the butterfly valve’s response.
Auxiliary Systems and Fasteners
Electrical components, including the solenoid and starter motor, are mounted near the rear of the assembly. The starter clutch engages the flywheel gear with a 12-tooth configuration–count teeth if slippage occurs. Battery terminals should register a minimum of 12.6 volts; corrosion can be removed with a baking soda-water solution.
Mounting brackets for the power unit often use vibration-dampening bushings. Replace these if cracking is visible, as misalignment can lead to premature bearing failure. The drive pulley system (if applicable) must align within 1/16 inch of the deck’s input shaft–use a straightedge to verify before tightening set screws to 45 ft-lbs.

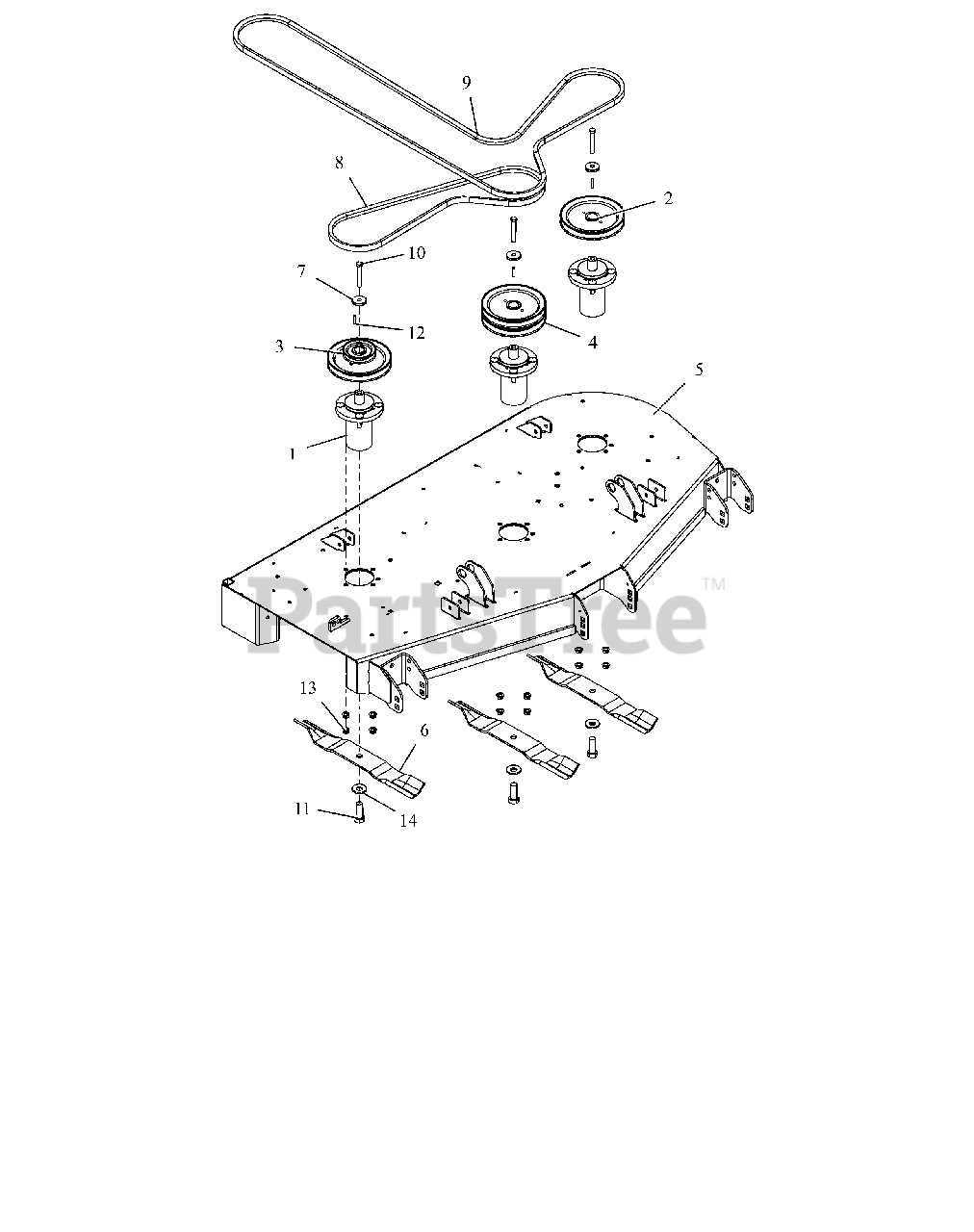

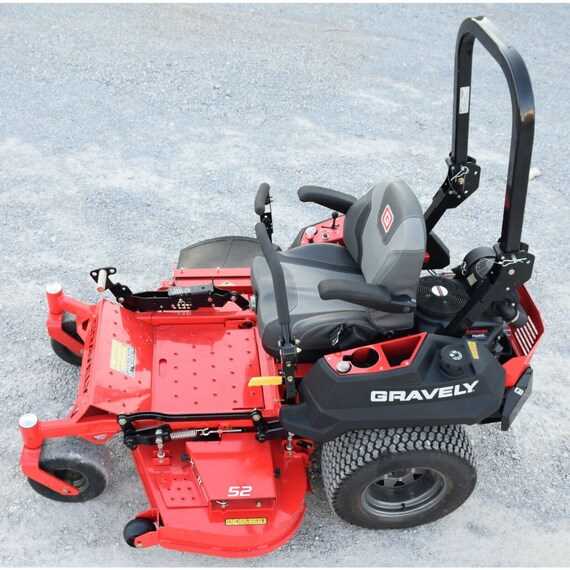

Identifying Key Deck Components and Cutting Assembly Mechanics
Locate the spindle housing first–it secures the cutting blade and withstands the highest operational stress. Check for six-point hex bolts (typically 9/16″ or 5/8″) fastening the housing to the mower deck; torque should not exceed 45 ft-lbs to prevent thread stripping. Spindle shafts often use sealed bearings (200–204 series) rated for 500+ hours; replace if lateral play exceeds 0.003″.
Examine blade engagement pulleys for wear–groove depth below 0.125″ indicates replacement need. The drive belt (commonly 4L or A-section) must maintain a tension of 30–50 lbs; use a spring scale for precise adjustment. Idler arms should pivot freely without binding; lubricate bushings with lithium grease every 25 hours of operation. Misalignment in pulley alignment increases belt wear by 40%; verify using a straightedge across pulley faces.
Blade sharpness directly impacts cut quality–measure bevel angle at 30–35° for optimal durability. Stamped steel blades require rebalancing after sharpening; use a blade balancer to prevent vibration-induced bearing failure. For mulching decks, ensure gasket seals around discharge chutes remain intact; gaps larger than 1/8″ reduce suction efficiency by 22%. Replace worn cutting edges when metal thickness drops below 0.187″.
Critical Wear Points and Replacement Criteria
| Component | Wear Indicator | Replacement Threshold |
|---|---|---|
| Spindle Bearings | Excessive noise, lateral play | Play > 0.003″, audible grinding |
| Blade Edges | Uneven cut, ragged tips | Thickness < 0.187″ |
| Belt Tension | Squealing, slippage | Deflection > 0.5″ at midpoint |
| Pulley Grooves | Belt tracking off-center | Groove depth < 0.125″ |
Deck leveling affects cut uniformity–use a straightedge across blade tips to verify a maximum variance of 1/8″ from front to rear. Adjust lift links for even height distribution; unequal settings cause scalping on uneven terrain. For decks with side discharge, inspect baffles for cracks or deformation; damaged baffles reduce material flow efficiency by 15%. Use torque wrenches for all fasteners to prevent loosening during operation; retighten after the first 5 hours of use.
Lubrication and Maintenance Protocols
Apply water-resistant grease to all pivot points (zerk fittings) every 25 operating hours–use NLGI #2 grade for temperatures above 32°F and NLGI #1 for colder climates. Spindle shafts should be lubricated at both ends; insufficient grease leads to bearing failure within 100 hours. Clean debris from deck undersides after each use; accumulated grass increases blade load by 8% and accelerates corrosion. Store cutting assemblies indoors during off-seasons to prevent rust; coat exposed metal surfaces with light oil if storage exceeds 3 months.
Understanding Hydrostatic Transmission and Drive System Components
Check the charge pressure of your hydrostatic system first–it should read between 200 and 300 psi when operational. Low pressure below 150 psi indicates a faulty charge pump or clogged filter, requiring immediate replacement or cleaning. Verify readings with a pressure gauge on both sides of the loop to confirm symmetry; discrepancies above 50 psi signal internal leakage or worn pistons.
Inspect the swashplate angle regularly, adjusting it only after confirming zero wheel rotation and engine shutdown. Misalignment by as little as 2 degrees reduces efficiency by 12% and accelerates wear on the servo pistons. Use a dial indicator for precision–manual adjustments without measurement tools risk hydraulic lock or uneven power delivery.
Replace the hydrostatic fluid every 500 hours of operation, using only manufacturer-specified ISO 46 hydraulic oil. Contaminants finer than 10 microns bypass standard filters, damaging control valves within 30 hours. Drain the system completely while warm to remove sediment; flushing with fresh fluid afterward extends component life by 40%.
Avoid overloading the system beyond 80% of rated capacity–hydrostatic transmissions operate best at partial loads. Full-throttle, high-load conditions generate heat exceeding 220°F, degrading seals and causing viscosity breakdown. Install a temperature gauge near the charge pump outlet to monitor thermal spikes; if sustained above 200°F, add an auxiliary cooler.
Test the bypass valve function monthly by engaging it with the engine off and wheels on level ground. If wheels roll freely, the valve seals properly; resistance or rolling indicates internal leakage requiring disassembly. Lubricate the valve stem with silicone grease during reassembly to prevent corrosion–not petroleum-based products, which swell seals.
Examine the drive belt tension weekly, deflected no more than ½ inch at midpoint pressure. Slippage reduces torque transfer by 25% and glazes pulleys within 100 hours. Replace belts showing cracks deeper than 1/16 inch; frayed edges or missing teeth cause erratic speed variations under load. Align pulleys using a straightedge–misalignment by 1/32 inch shortens belt life by 50%.
Clean the external case drain filter every 200 hours–clogging raises internal pressure, forcing fluid past seals onto the brake discs. Remove the filter housing cap slowly to release trapped pressure; inspect the O-ring for nicks before reinstalling. Use compressed air to clear debris from the filter element, never solvents, which degrade the metal mesh.
Track pedal responsiveness: delay exceeding 1.5 seconds between depression and wheel movement signals air in the hydraulic lines or a failing charge pump. Prime the system by cycling pedals 15 times with the engine off, then restarting; if delay persists, replace the charge pump inlet screen. Air trapped in the loop causes cavitation, pitting piston surfaces within 50 hours of operation.
