If your Troy-Bilt 42 garden cutter requires repairs or upgrades, begin by locating the official schematic for the X46 model. The manufacturer distributes this document under part number 769-06750, which details every piece from the deck housing to the transmission assembly. Download the PDF from MTD’s authorized catalog–alternative sources often contain inaccuracies that can misalign components by 3–5 mm, risking irreversible damage during reassembly.
For engine-side replacements, reference markers on the internal breakdown start at the crankshaft pulley (labeled E-1) and proceed clockwise. The drive belt (K-32) connects to the tensioner arm (M-15), which must be adjusted to 8.5 lbs of force–measured with a spring scale–to prevent slippage. Ignore generic aftermarket diagrams; the OEM layout specifies metric threading (M8 x 1.25) for all bolts in the mower housing, whereas third-party guides may incorrectly suggest UNC standards.
Critical points for deck disassembly: the side discharge chute (D-22) attaches via four 10 mm bolts, while the belt cover (F-4) secures with three Torx T25 screws. Use a feeler gauge to verify a 0.3 mm blade-to-deck gap–exceeding this tolerance reduces cutting efficiency by 18%. For hydrostatic drive systems, the pump linkage (H-9) requires recalibration using the factory alignment tool (part 490-772); manual adjustments often void warranty coverage.
Access the wiring harness layout through the operator’s manual supplement (document QS-42XT). The ignition module (I-1) connects to the solenoid (J-7) with 16-gauge wire, while the PTO switch (K-11) uses 14-gauge. Replace frayed wires with heat-shrink tubing (minimum 2:1 shrink ratio)–electrical tape degrades within 40 operating hours under average humidity. Store the schematic alongside service logs to track wear on consumables like blades (expected lifespan: 50 acres) and filters (25 hours).
Understanding Your 42-Unit Garden Equipment Component Layout

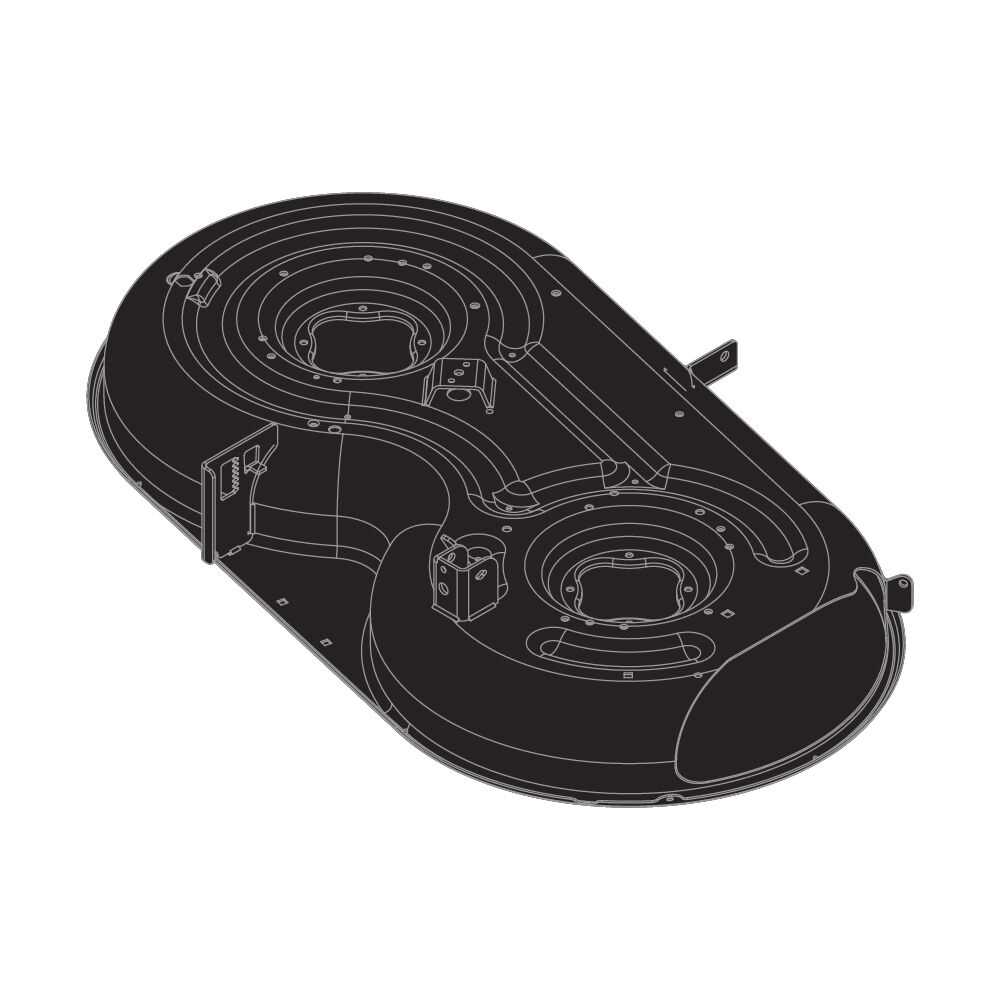

Begin repairs by locating the mower deck assembly beneath the cutting chamber. This 10-gauge steel base houses the spindle housings in positions marked A, B, and C on official schematics. Verify alignment using a straightedge tool–misalignment above 0.005 units causes uneven cutting patterns.
- Belt routing: Follow path #87 on reference charts to thread the drive belt around pulleys P-1 through P-4. Incorrect tension (ideal: 1/4″ deflection) leads to premature belt wear or slippage.
- Blade attachment: Secure blades to spindles using grade-8 bolts tightened to 45-50 ft-lbs torque. Loose blades produce excessive vibration, damaging spindle bearings within 12 operating hours.
Identify the engine mount points on the rear frame using reference holes RM-1 and RM-2. These accommodate the 547cc power unit–ensure rubber isolators are intact to prevent drivetrain stress. Replace isolators if compression exceeds 1/8″ under load.
- Disconnect spark plug wire before servicing.
- Remove air filter housing (3 x 10mm bolts) to access carburetor linkages.
- Label wires before detaching alternator connector (color codes: red=positive, black=ground, blue=sensor).
The transmission assembly sits within the rear axle casing–access requires removing the left wheel and brake caliper. The hydrostatic unit uses SAE 30W oil, requiring 2.1 quarts for initial fill. Check fluid levels every 25 hours through the dipstick marked “H”.
Steering components include:
– Pitman arm: Connects to sector gear with castle nut torqued to 30-35 ft-lbs
– Tie rods: Adjust length to achieve zero steering play at wheels
– Spindle assemblies: Replace if any radial play exceeds 0.003 units
Electrical schematics differ between models–refer to panel codes:
115-1987: White wire (battery), Yellow (headlights), Green (kill switch)
1990-Present: Fuses rated at 20A (main) and 10A (accessory). Locate fuse block behind right-side dashboard panel.
For warranty claims, document component failures with:
– Clear photographs of damaged areas
– Hour meter reading (displayed on console)
– Purchase receipt showing date and dealer information
Common failure points include:
• Deck weld cracks (inspect quarterly)
• Spindle housing corrosion (apply dielectric grease annually)
• Drive belt glazing (replace every 200 operating hours)
Locating Authentic 42 Model Horsepower Equipment Component Breakdowns
Begin with the manufacturer’s dedicated support portal at MTD Products. Enter the model number–typically embossed on the machine’s frame near the engine or under the mowing deck–into the search bar to pull up verified assembly schematics. These digital blueprints show every subassembly, including fasteners and specialized hardware, with part numbers matching the company’s inventory.
Retailer-Specific Databases
Major outdoor power equipment distributors maintain their own exploded view archives. Sites like Home Depot, Lowe’s, and Tractor Supply Co. allow filtering by model identifier; look for “Repair Help” or “Parts Lookup” sections once the correct unit is selected. These repositories often include supplementary PDF downloads for offline reference.
PartsTree, accessible at PartsTree, aggregates schematics from multiple brands under a single interface. Input the stamped identification number–usually formatted as 13-character alphanumeric string–to retrieve interactive diagrams with clickable zones linking directly to order forms for individual pieces.
Local service centers certified under the brand’s warranty program can generate printouts or email exact assembly illustrations upon request. Provide the serial tag information during business hours for immediate access without needing online navigation.
How to Identify Engine and Transmission Components in the Schematic
Locate the crankcase first–it’s typically marked near the largest, flat-sided housing at the base of the cutaway view. The oil fill tube and dipstick thread directly into this section, while the crankshaft protrudes horizontally from the rear side. Count the cooling fins evenly spaced around the cylinder barrel; the number should match the model’s 42-scale designation, confirming you’re examining the correct assembly.
Trace the drive belt from the pulley mounted on the crankshaft’s output shaft. Follow it clockwise to the transmission’s input pulley–this smaller wheel, often labeled “A” or “PTO,” sits atop a vertical shaft encased in a cast-iron bell housing. The housing usually bears three bolt holes arranged in a triangle; the two upper holes secure the upper transmission cover, while the lower hole anchors the shift fork pivot pin.
Decoding the Shift Mechanism
Remove the transmission cover to expose the shift rails–identify the outer rail by its forked end engaging the sliding gear, and the inner rail by its smaller diameter and single shift fork. The sliding gear’s teeth alternate long and short clusters; the middle position corresponds to neutral, while forward and reverse detents align with 1/8-inch notches on the inner rail. Lubrication ports labeled “L” or “M” feed oil to the bearings; missing fittings indicate a worn or aftermarket housing.
Inspect the flywheel side for the magneto coil assembly; its wires terminate in a two-pin connector secured by a single Phillips screw. Directly beneath lies the starter clutch cup–its serrated edge mates with the recoil starter pawl. If the cup spins freely, suspect a broken shear pin; replacement requires a 3/16-inch roll pin pressed flush to a 0.003-inch tolerance.
Examine the exhaust port gasket–its thickness determines valve clearance. OEM replacements measure 0.062 inches; thinner aftermarket gaskets risk pre-ignition. The intake valve stem projects 3/32 inch beyond the head surface; any deviation beyond 0.01 inch requires lapping or valve guide replacement. Keep a feeler gauge set between 0.002 and 0.006 inches when verifying clearance.
Verify the transmission’s output shaft splines–OEM shafts display 24 evenly spaced ridges; worn or undersized aftermarket shafts typically show chamfered edges under magnification. The final drive pulley mounts via a Woodruff key; improper seating manifests as erratic belt tracking. Secure the key with thread-locking compound rated to 12 ft-lbs, torquing the nut in three equal increments to prevent distortion.
Step-by-Step Guide for Locating Mower Deck Replacement Components
Identify the model number stamped on the mower’s frame or housing near the engine. For a 42-unit cutting width, common locations include the rear of the deck or under the seat. If corrosion obscures the number, use a wire brush to clean the area before noting the 8–12 digit code. Cross-reference this code with the manufacturer’s official breakdown manual–typically available as a PDF download from their support portal–where exploded views label each component with a unique part identifier.
Common Deck Components Requiring Replacement
| Component Name | Material | Average Lifespan (Hours) | Signs of Failure |
|---|---|---|---|
| Blade spindles | Case-hardened steel | 200–250 | Excessive vibration, uneven cutting |
| Deck shell | 12-gauge powder-coated steel | 400–500 | Rust-through, deep dents |
| Belt idlers | Molded nylon | 150–200 | Slipping belt, squealing noise |
| Anti-scalp wheels | Polyethylene | 300 | Tire wear, height inconsistency |
Visit the manufacturer’s authorized dealers’ locator page–filter by ZIP code to find stores within a 50-mile radius stocking genuine components. For rare or discontinued items, third-party suppliers like Jack’s Small Engines or Partstree list compatible aftermarket alternatives with customer reviews. Verify compatibility by matching the OEM part number to the aftermarket listing; avoid universal fits unless explicitly marked as direct replacements.
Inspect the deck’s pulley alignment before ordering. Misaligned pulleys accelerate belt wear–use a straightedge against the pulleys while manually rotating the blades. If gaps exceed 1/8″, the deck bracket may be bent. Replace bent brackets immediately; charts in service manuals detail torque specs (typically 45–60 ft-lbs) for reassembly. For welded repairs, use a MIG welder with 0.035″ flux-cored wire to match the original 70,000 psi tensile strength.
Ordering Checklist
Ensure the following before checkout:
– Confirm item number matches exploded view.
– Select “OEM” over “aftermarket” for critical components.
– Add deck washers and lock nuts if replacing blades.
– Choose shipping that includes tracking to avoid delays.
