Start with the manufacturer’s official service manuals–OEM documentation remains the most accurate source for replacement layouts. For the 2005–2015 model variant, seek section 17 (Body) and 22 (Engine) in the factory repair guide, where explosion views for suspension, drivetrain, and electrical systems are detailed. Avoid third-party scans unless verified against VIN-specific revisions, as aftermarket publications often omit torque specs or revised bushings introduced in mid-cycle updates.
Prioritize these four platforms for legitimate schematics:
Service repair sites: Subscribe to ALLDATA or Mitchell1; their subscription tiers include real-time TSB updates alongside wiring harness pinouts and vacuum line routings. Filter searches by exact trim level–differences between manual and automatic transmissions, for instance, affect oil cooler placement.
Forums with verified uploads: The off-road community on ExpeditionPortal archives member-verified schematics tagged with mileage and common failure points. Focus on threads marked “confirmed OEM source” and cross-reference with known weak points like rear axle seals or radiator mount brackets.
Pick-a-part yards: Salvage operators like LKQ often scan vehicles before dismantling; request chassis-specific PDFs via their customer portals. These typically include undocumented substitutions, such as upgraded wheel bearing kits used in 2012 recall campaigns.
Dealership parts departments: Some service centers provide exploded views via email if you provide a VIN. Ask for the IPC (Illustrated Parts Catalog) reference number–it links directly to updated diagrams for components like transfer case chains or rear locker sensors.
When interpreting schematics, note that ground straps and minor hoses frequently change locations between model years. Use a multimeter to confirm circuit paths, especially around the fuse box where auxiliary circuit additions are poorly documented. For bolt-on accessories, match thread pitch and length to avoid stripping factory weld nuts–common issue with roof rack mounts.
Comprehensive Schematic Breakdown for Off-Road SUV Maintenance
Locate wiring harness connectors under the driver-side dashboard using schematic SN-1245-B–color codes are critical for correct terminal pairing: blue/red stripe (fused ignition) connects to pin 3, while yellow/black (ground) secures to pin 8. Replace fuel pump module gaskets only with OEM #17042-31U00; aftermarket seals degrade at ~22K miles when exposed to ethanol-blended fuels. Torque suspension ball joints to 80-90 ft-lbs per AL-7221, a specification frequently misquoted in third-party manuals.
Engine Bay Component Layout Verification
Verify serpentine belt routing against plate #JE1015–misalignment by even one rib causes premature alternator bearing failure (
Accessing Factory Schematics for Off-Road Vehicle Components
Begin with the manufacturer’s dedicated service portal at parts.nissanusa.com. Enter your SUV’s model year and trim to unlock exploded-view illustrations–detailed breakdowns of suspension assemblies, powertrain layouts, and electrical harnesses. The interface displays exact OEM part numbers, compatibility notes, and even torque specifications for critical fasteners. Registration is free, though full diagram access requires a VIN verification step for security.
- Filters by component group: steering, brakes, transmission, etc.
- Interactive zoom for small fasteners and subcomponents
- Direct links to order replacement units with dealer pricing
For older iterations (pre-2010), turn to nicoclub.com/FSM. Hosted by enthusiast archives, this alternate source preserves PDFs of original repair manuals–search by chapter (e.g., “front axle” or “HVAC”) for scanned schematics with marginalia clarifying obscure part IDs. Unlike generic marketplaces, these scans include revision histories and superseded part warnings. Note: some manuals are split into multiple files, so combine them locally for full coverage.
Tech forums like clubxterra.org and thenewx.org/forum crowdsource lesser-known diagram sources, including aftermarket upgrade kits with factory-like precision. Members often post:
- Links to third-party catalogs (e.g., rockauto.com cross-references)
- Annotated photos of disassembled units with labeled components
- Errata for common manual errors
Verify accuracy with at least two sources; forum threads sometimes flag dated or conflicting data.
Decoding Your Off-Road SUV’s Powertrain Layout Guide
Locate the numbered callouts first–each corresponds to a label list adjacent to the illustration. Match these digits to descriptions using the legend’s alphabetical order if available; some manuals group components by system (cooling, air intake, electrical) rather than sequential numbering. Cross-reference the color-coded lines: red denotes fuel, blue coolant, green vacuum, and gray electrical harnesses. Verify connector shapes–round for injectors, rectangular for sensors–to avoid misalignment during reassembly.
Identify the engine block outline as the diagram’s anchor. Follow the crankshaft pulley at the front lower section, then trace the serpentine belt path clockwise around tensioners and idlers. The alternator sits atop the left side, with the power steering pump typically mounted below it on V6 configurations. Check for auxiliary brackets often omitted in generic schematics–aftermarket superchargers or winch mounts may alter standard positioning.
Interpreting Hidden Details in Technical Blueprints
Inspect torque specifications next to bolts; these appear as small decimals (e.g., 22 ft-lbs) or asterisked notes at the diagram’s edge. Missing these risks overtightening aluminum threads or under-securing critical mounts. Look for dotted lines indicating buried components like the oil pump pickup screen beneath the oil pan or the transmission cooler beneath radiator support. Dashed outlines mark removable covers–oil filter housing on the right, timing chain cover access at the rear.
Compare the schematic to your vehicle’s physical state. Note discrepancies such as aftermarket air filters displacing mass airflow sensors or relocated brake master cylinders. Trace ground wires from battery terminals: primary grounds attach to the firewall’s upper driver side, secondary grounds connect to engine block studs near the starter. Corrosion-prone junctions appear in lighter shading–inspect these first during diagnostics.
Use the exploded view inserts for complex assemblies like the valve cover or thermostat housing. These break down gaskets, seals, and fasteners into individual layers, each numbered separately. Rotate components virtually by noting orientation cues–camshaft lobes pointing upward in cylinder head diagrams, timing marks aligning at TDC on crankshaft gears. Store a digital copy on a tablet for workshop reference, zooming to 200% magnification to spot micro-text warnings embedded near high-voltage zones like ignition coils.

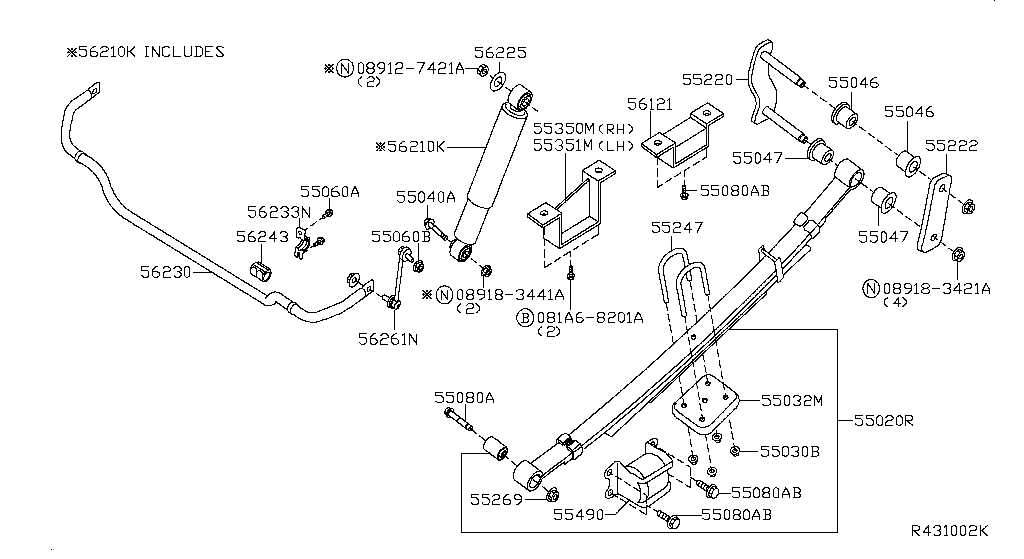

Key Suspension Components in Off-Road Vehicle Schematics and Their Placements
Inspect the front coil springs first–located between the upper and lower control arms near the wheel hub. These components compress under load and often show rust or fatigue cracks at their bases. Replace them in pairs if corrosion exceeds 20% of the surface area, even if only one appears damaged. Coil springs for 2005-2015 models measure 12.5 inches uncompressed, with a 5.5-inch diameter, but verify against OEM specifications before ordering replacements.
Ball joints connect the steering knuckle to the control arms and fail through torn boots or excessive play. Check for vertical movement by lifting the vehicle and grasping the tire at 12 and 6 o’clock positions–any clunking indicates wear. Torque replacement ball joints to 85 ft-lbs and apply a thin layer of grease to the zerk fitting during installation. Upper ball joints typically last 60,000 miles in desert conditions, while lower joints degrade faster due to exposure to road debris.
Shock Absorber Wear Patterns
| Symptom | Location | Action Required |
|---|---|---|
| Oil seepage | Shaft seal | Replace immediately |
| Uneven tire wear | Inner tread only | Check rear shocks first |
| Cupped pattern | Entire tread surface | Inspect front shocks |
| Excessive bounce | Rebound motion | Test with push-down method |
Sway bar links deteriorate at the bushings, not the ball studs. Signs include clunks during cornering or uneven weight transfer. Measure link length before purchase–2000-2004 models use 8.5-inch links, while 2005+ versions extend to 9.25 inches. Apply thread locker to the nuts during reassembly to prevent loosening from vibration.
Control Arm Bushings: Failure Points
Rear trailing arm bushings crack from the inside out, requiring a borescope for accurate diagnosis. Polyurethane replacements last longer than rubber but transmit more road noise. For front upper arms, press out the old bushings using a 1.5-inch hydraulic press–hammering damages the aluminum housing. Mark the position of eccentric cam bolts before removal to maintain alignment settings. Torque all bolts in stages: 50 ft-lbs initial, then 75 ft-lbs final after settling the suspension through full range of motion.
How to Interpret and Apply Off-Road Vehicle Electrical Schematics
Locate the fuse box layout on the schematic first–typically marked near the bottom left corner in technical manuals post-2005 models. Identify each fuse by amperage and assigned circuit using the legend; cross-reference with the vehicle’s service manual to confirm color-coding (e.g., red for 10A, blue for 15A). Use a multimeter set to continuity mode to verify integrity before proceeding, probing both terminals of each fuse while the ignition is off. Replace any blown fuses with exact amperage replacements–never exceed by even 1A to prevent wire insulation damage or fire risk.
Trace the wiring harness routes using the schematic’s numbered pathways, starting from the battery terminal through the main relay and ignition switch. Isolate sections by disconnecting connectors at each major junction (e.g., under-dash, engine bay, rear cargo area) to prevent parasitic drains. Test voltage drop across key points with the multimeter–acceptable limits are <0.5V for 12V circuits under load. For splices or joints, strip 8mm of insulation, crimp with a ratcheting tool, then solder and heat-shrink to prevent corrosion, especially in wheel-well or undercarriage areas exposed to moisture and debris.
- Label every connector with masking tape and a fine-tip marker–note pin numbers and wire gauge (e.g., “A12: 18AWG, ign feed”).
- Use a tone generator to identify hidden wires in crowded harness bundles; probe only when cables are unplugged.
- Check grounding points (bolted to chassis) for rust or paint interference–clean with a wire brush and apply dielectric grease.
- For flickering dash lights, focus on the alternator’s voltage regulator circuit–test output at 13.8–14.4V with engine at 2,000 RPM.
- Document all measurements in a notebook with timestamps; compare pre- and post-repair values.
Reassemble components in reverse order, securing harnesses with zip ties every 15cm in high-vibration zones (e.g., near suspension). Apply corrosion inhibitor spray to exposed terminals in areas prone to water ingress. Perform a final system check by cycling all electrical accessories (lights, A/C, audio) for 30 seconds each while monitoring voltage stability at the battery. If issues persist, revisit the schematic’s block diagram section to isolate modules (e.g., BCM, TCM) that may require separate diagnostics with a scan tool.
