Replace the multiport valve assembly every 5–7 years, even if seals appear intact–micro-fractures develop from thermal cycling and chlorine exposure, leading to bypass leaks. The lateral cluster (part #SPX1081Z1) requires inspection after 2,000 operational hours; corroded laterals restrict backwash flow by 30–40% and increase pressure drop across the tank. Use a digital pressure gauge (0–30 PSI range) mounted 6 inches downstream of the pump outlet–gauge placement on the filter housing yields readings inflated by 2–5 PSI due to turbulence.
Label tank internals with UV-resistant vinyl decals before disassembly; improper reassembly of the standpipe bracket (part #SP0714T) causes misalignment, reducing sand retention efficiency by 18%. The diffuser plate (part #SPX1084C1) must sit centered atop the standpipe–offset positioning creates uneven particle distribution during filtration cycles. Sand media (16/30 grade silica) should be replenished in 250-pound increments to maintain a minimum 12-inch clearance between the top of the bed and the internal diffuser, preventing channeling that shortens filter life by 22%.
Inspect the tank body for spider cracks around weld seams using a 1000-lumen LED flashlight; hairline fractures propagate under cyclical pressure loads (typically 15–25 PSI) and compromise structural integrity. Lubricate the valve handle O-rings (part #SPX3200Z2) with silicone-based grease every 6 months–petroleum-based lubricants degrade EPDM rubber, increasing friction torque by 12–15 ft-lbs. The drain plug assembly (part #SP1031B1) must be tightened to 45 in-lbs; overtightening strips the threads, leading to water loss at a rate of 0.75 GPM under normal operating conditions.
Equip the system with a 2-inch union coupling between the pump discharge and filter inlet–threads on standard 1.5-inch connectors fatigue after 8–10 years, elevating the risk of catastrophic failure during vacuum cycles. The air relief valve (part #SP0717) should open at 18 PSI; if venting occurs at lower pressures, replace the internal spring–compressed springs cause prolonged bleed times, reducing pump prime efficiency by 9%. Record pressure differentials weekly; a rise of 8–10 PSI above the clean system baseline indicates either sand degradation (replace media) or clogged laterals (clean or replace).
Understanding Your Equipment Component Layout
Locate the multiport valve at the top of the vessel–this controls backwashing, rinsing, and filtration. Ensure the handle aligns precisely with each labeled position; misalignment causes leaks or improper flow. The standpipe, often 1.5–2 inches in diameter, runs vertically inside the tank and connects to laterals at the base. Check for cracks in laterals before reassembly, as damaged ones reduce efficiency by allowing bypass.
- Air relief valve (usually 1/4″ brass) – releases trapped air during startup.
- Pressure gauge (0–30 PSI) – indicates clogging when readings exceed baseline by 8–10 PSI.
- Waste line – directs backwash water away; secure with 1.5″ PVC fittings.
- Laterals – six to eight curved plastic nozzles spaced evenly; replace if threads strip.
Drain plugs (typically 1″ or 1.25″) at the tank base allow sediment removal. Use Teflon tape on threads to prevent seepage. Media depth should measure 18–20 inches for residential models; overfilling strains the pump. When replacing o-rings, match the durometer (usually 70–90 Shore A) for a watertight seal.

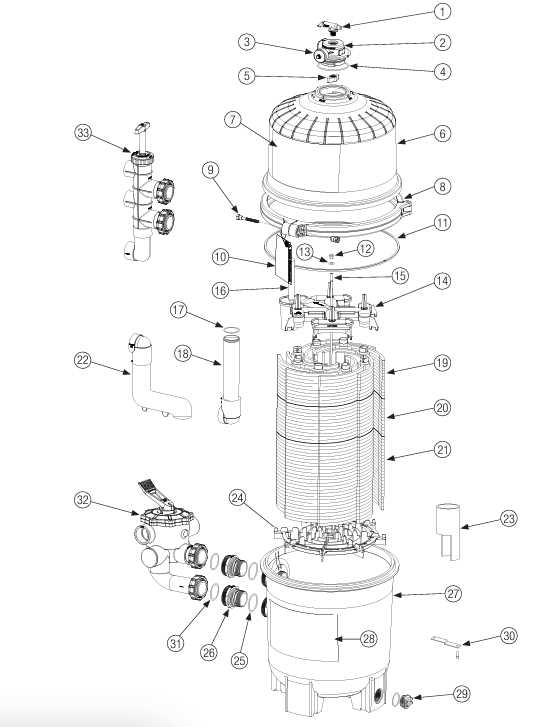

Locating Critical Elements in Your Pool Equipment Assembly Exploded View
Begin with the multiport valve positioned atop the tank–verify the selector dial aligns precisely with labeled settings (e.g., “Filter,” “Backwash,” “Rinse”). Misalignment here disrupts water flow, causing inefficient filtration or equipment strain. Check the O-ring at the valve base for wear; a compromised seal introduces air leaks, reducing system pressure and performance. Replace if cracks or deformation are visible.
The pressure gauge should register 10–20 PSI during normal operation–values below indicate clogged media or a bypass, while spikes above 30 PSI signal excessive debris accumulation. Remove the gauge periodically to inspect the internal screen; accumulated sediment here skews readings. Adjacent, locate the air relief tube: open this during startup to purge trapped air–failure to do so creates hydraulic resistance, forcing the pump to overwork.
Inside the vessel, the under-drain assembly sits at the base, consisting of laterals (finger-like extensions) and a central hub. These distribute water evenly during operation; cracked laterals allow silica grains to escape, contaminating the pool. Inspect by disassembling the tank–replace any damaged components immediately. Above, the media bed support (a perforated plate or gravel layer) prevents sand migration into the plumbing; confirm its integrity during seasonal maintenance.
Finally, examine the clamp band securing the lid–ensure it’s torqued to 25–30 ft-lbs to prevent leaks under pressure. Loose bands corrode faster due to moisture exposure. Lubricate the clamp’s threads annually with silicone grease to extend lifespan. For the pump linked to this system, confirm the impeller spins freely: obstruction here mimics filter issues but originates upstream. Disassemble the pump housing if flow rates drop unexpectedly.
Step-by-Step Breakdown of the Multiport Valve Assembly and Its Replaceable Components
Begin disassembly by shutting off the pump and relieving pressure from the system. Rotate the valve handle clockwise to the “Closed” position before loosening the clamp band securing the multiport valve to the tank. This prevents residual water from draining unexpectedly. Place a towel beneath the valve to catch minor spills–residual moisture is inevitable even after proper shutdown.
The clamp band typically requires a 10mm socket or adjustable wrench for removal. Once detached, carefully lift the valve assembly away from the tank, noting the orientation of the gasket between the valve body and tank. This gasket ensures a watertight seal; inspect it for cracks or flattening, as damage here leads to leaks during operation. Replace it immediately if compromised, using only silicone-based O-rings rated for pool equipment.
Key Internal Components and Their Functions
Inside the valve, locate the rotor–this cylindrical component directs water flow based on the selected setting (e.g., “Filter,” “Backwash,” “Rinse”). The rotor sits on a spring-loaded plunger; depress it fully to disengage the handle, then rotate the rotor 90 degrees counterclockwise to remove it. Check the rotor’s seal face for wear; grooves or scoring indicate the need for replacement. Use a micrometer to measure tolerance–any deviation beyond 0.005 inches warrants a new rotor.
The valve stem, linked to the handle, operates within a housing that contains six to eight ports, depending on the model. Each port aligns with a specific function, controlled by the rotor’s position. Remove the stem by unscrewing the bronze nut at the handle base, then extract it with pliers if corrosion has seized the threads. Apply Teflon tape when reassembling to prevent air leaks–this is critical for maintaining prime during pump cycles.
Beneath the rotor lies the wear plate, a thin disk that absorbs friction from the rotor’s movement. This part degrades faster than others due to constant abrasion. Inspect it for thinning or pitting; replace it if thickness falls below 1.5mm. Apply a thin layer of pool-grade lubricant (such as Dow Corning 111) to the wear plate and rotor seal face during reassembly–this reduces friction and extends component life by up to 40%.
Troubleshooting Common Failures
If the valve handle feels stiff or fails to click into position, the issue often lies in the cam mechanism. Remove the handle and inspect the cam’s teeth for stripping; damaged teeth prevent proper engagement with the rotor. Replace the cam if teeth are worn or if the handle moves without resistance–this indicates a broken spring inside the handle assembly.
Leaks from the valve’s side ports usually stem from failed O-rings on the port plugs. Remove each plug with a 1-inch socket, clean the threads with a wire brush, and replace the O-rings with Viton-grade seals (not standard rubber) to withstand chlorinated water. Torque the plugs to 15 ft-lbs–overtightening cracks the plastic housing. Finally, test all settings with the pump running; listen for air hissing or water escaping–both signs of improper sealing.
Locating and Replacing the Central Riser and Distribution Components in Your Pool Cleaner
Shut off the pump and relieve system pressure by opening the air relief valve. Rotate the multiport valve handle to the “Winterize” or “Closed” position if available; otherwise, secure it to prevent residual water flow. Drain the tank completely by removing the drain plug at the base–excess water can complicate disassembly and add unnecessary weight.
Mark the tank’s rim with a grease pencil at two opposite points to align the clamp band precisely during reassembly. Loosen the band’s locking bolt with a socket wrench, turning counterclockwise until the halves separate. Lift the upper dome straight upward–forceful twisting can snap brittle plastic fittings or dislodge seated o-rings.
Inspect the central riser tube for cracks, especially near the base where stress fractures commonly develop. Grip the tube firmly and pull upward with steady force; it should release with a slight resistance. If adhered, tap the base gently with a rubber mallet–not metal–to avoid damaging threads. Replace immediately if any pitting or hairline cracks are visible.
The lateral assembly typically consists of 6 to 8 individual fingers, each with slotted openings. Check for sand buildup inside the fingers; accumulated grit reduces flow efficiency and can block water return. Soak the entire assembly in a vinegar solution for 30 minutes if mineral deposits are present, then rinse under high-pressure water. Replace any fingers with broken slots–these cannot be repaired and compromise filtration.
Coat new o-rings with silicone grease before installing the riser tube, ensuring a snug fit around the base flange. Align the tube perpendicular to the tank bottom before securing the clamp band–misalignment causes uneven pressure distribution and potential leaks. Refill the tank with water before restarting the pump to purge air pockets and prevent dry-running damage.
