Start with the front bumper assembly–identify clips and bolts securing it to the frame. Most mid-size crossovers use eight 10mm bolts and six plastic clips for attachment. Remove the fog light wiring harness first to avoid damage. For fenders, locate the three bolts behind the wheel well and two hidden bolts under the door seal. Replace weather stripping if cracked to prevent water intrusion.
Door panels require precise disassembly. Pry off the inner trim using a plastic wedge tool to avoid scratching surfaces. Disconnect the side mirror wiring before lifting the panel. Hood hinges often wear after 80,000 miles–inspect bushings for play. Tailgates may need realignment if misaligned; tighten latch bolts to 25 Nm torque.
For quarter panels, use a spot weld cutter to remove rusted sections. Pre-drill holes for new welds at 50mm intervals. Headlight assemblies typically secure with two 8mm bolts and one adjustment screw–replace bulbs before reinstalling. Grilles often snap into place with four top clips and two bottom pins.
Check the undercarriage for corrosion–use zinc-rich primer before applying sealant. Rocker panels need support during welding to prevent warping. Rear bumpers detach via four hidden bolts behind the taillights. Always match paint codes (NH-790M for older variants) before blending repairs.
How to Read and Use Schematics for Your Compact SUV Exterior Components
Locate the official manufacturer’s repair manual under section 6-4: Exterior Panel Illustrations–this breaks down each panel with OEM part numbers, torque specs, and removal sequences. Use a highlighter to mark replacement panels like fenders, hood, and tailgate with corresponding bolt types (e.g., 10mm hex bolts for front bumpers, T50 Torx for side mirrors) to avoid stripping threads during disassembly. Keep digital copies on a tablet for instant access when working in low-light conditions, ensuring you reference the exploded-view diagrams that detail alignment tabs and hidden clips often missed during visual inspection.
For accurate sourcing, cross-reference the illustrated guide with online OEM databases such as Honda’s Parts Lookup Tool or third-party suppliers like Majesty Parts–filter by model year, as clips and fasteners differ between 2017-2021 and 2022+ variants. Store removed components in labeled bins (e.g., “Front Door Skin – Driver Side – Clip Pile”) to prevent mixing hardware, and snap photos of wiring harness connections before detachment for seamless reinstallation. If modifications are needed, check the schematic for reinforcement points before cutting–rear quarter panels on 2019+ models have integrated side airbag sensors requiring recalibration if altered.
Finding Genuine Off-Road Vehicle Exterior Component Codes for Self-Fixes
Begin by retrieving the vehicle identification number (VIN) from the lower corner of the windshield on the driver’s side. This 17-character code unlocks precise factory specifications for every panel, trim piece, and structural element in your compact SUV. Enter it on the official manufacturer’s collision parts catalog–a portal available to registered owners–where exploded-view schematics pair each item with its distinct alphanumeric identifier.
For models produced after 2017, the front bumper cover (assembly group 71100-TX6-A00ZZ) splits into sub-components: upper valence (71108-TX6-A01), lower air dam (71111-TXL-003), and fog light housings (71130-TXL-004). Each piece carries a suffix denoting color or trim level–verify the last three digits against your build sheet to avoid mismatches. Pre-2017 editions list the same section under 71100-SWA-J00, with a simplified layout lacking the integrated sensor cutouts.
Access the rear quarter panel reinforcements (74111-TXL-010) via the same portal by filtering for “side structure” categories. Note that sedan-based crossovers use a one-piece design, while hybrid variants incorporate an extra mounting tab (74120-TXA-000) for charger cable routing–cross-reference with the service manual’s torque specifications (19-23 Nm) before removal to prevent thread stripping.
Door assemblies (72111-TX6-A00 for driver-side, 72121-TX6-A00 for passenger) include integrated window regulators and side-impact beams. The factory codes differentiate between sedan-type front doors (slim waistline) and wagon-style rear doors (extended lower frame), though both share the identical hinge points (73200-TXL-004). Bolts securing these units require a 10 mm socket–never reuse the original fasteners after separation.
Roof rails (74920-TX6-A02) ship pre-painted but require reapplication of adhesive primer (08718-S9A-0030) before reinstallation. The sunroof frame (74210-TXA-000) sits beneath; its drain tubes (74250-TXL-010) clog frequently–flush with isopropyl alcohol and a 2 mm flexible rod during annual maintenance.
Mirror caps (76100-TX6-A11) snap into place but attach electrically via a single harness plug (32MKX-14-940). The wiring diagram in the service guide (section 23-40) labels each wire by color code–match these before splicing to avoid sensor malfunctions. For base models, the mirror glass lacks heating elements; upgrade kits (76080-TXL-004) include the required resistor network.
Grille inserts (71200-TX6-A10) come in two finishes–matt black or body-colored–each with a distinct clip pattern. Remove the upper radiator support (74100-TXL-010) to access hidden mounting points; a plastic pry tool prevents panel cracking during separation. Headlight assemblies (71250-TX6-A03) carry separate codes for inner lenses (bulb holders), outer housings, and trim rings–confirm bulb type (D4R or LED) before ordering.
Trim pieces like the tailgate garnish (74380-TX6-A00) secure with push-pin clips–use a trim removal tool set at 45 degrees to avoid distorting the plastic. The rear wiper motor (76730-TXL-004) sits behind a rubber grommet; disconnect the single electrical connector before unbolting the 12 mm nut to prevent stripping the threaded rod. Always compare the imprint on removed components against the portal’s images–batch updates in 2020 altered mounting brackets without changing the primary part numbers.

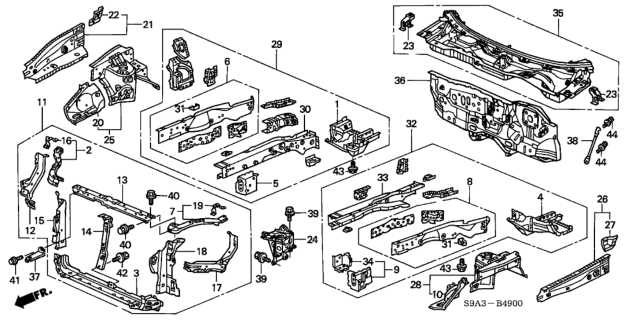

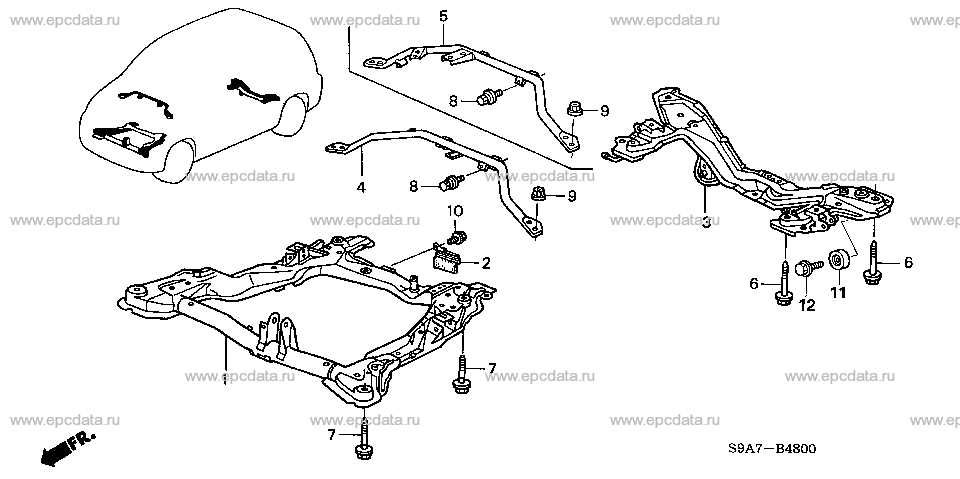

Decoding Exploded View Schematics for Your Compact SUV
Locate the reference number beside each component–these correlate with a legend at the bottom or side of the schematic. Manufacturers assign unique identifiers (e.g., #86412-SDA-A01) to differentiate variants like left/right panels, trim levels, or model years. Cross-check numbers against part descriptions to avoid mismatches, especially when ordering replacements.
Follow the assembly hierarchy: structural elements (e.g., quarter panels, rocker arms) appear near the diagram’s center, while trim pieces (door handles, grille inserts) branch outward. Arrows indicate attachment points–solid lines mean permanent welds or bolts, dashed lines suggest removable fasteners like clips or screws.
Inspect color-coding if present. Red often highlights critical components requiring precision alignment (e.g., bumper reinforcement beams), while blue may denote decorative or non-load-bearing parts. Gray shading typically marks sub-assemblies, like entire door modules, to simplify navigation.
Measure gaps before disassembly using the exploded view’s scale (if provided). A 1:10 scale means 1 cm on paper equals 10 cm on the vehicle. For components like fender liners or underbody shields, verify distances against your model’s service manual tolerances (±1.5 mm for most fitments).
Note fastener types: T30 Torx bolts secure tailgates; 10mm hex nuts hold strut towers. Missing a single specialty fastener (e.g., plastic rivets for interior trim) can delay reassembly–catalog them during teardown.
Zoomed-in insets detail complex mechanisms. For instance, a power liftgate motor schematic pinpoints wiring harness connectors, gear ratios, and torque specs (e.g., 8 Nm for mounting screws). Overlook these, and electrical faults or misalignment may occur.
Compare your schematic with a physical inventory. Use a mirror to check blind spots–rear quarter glass clips or fuel door latch linkages hide beneath trim. Mark components on the diagram with a dry-erase pen if working across multiple sessions.
For hybrid variants, exploded views split mechanical and electrical systems. A high-voltage battery cover (marked ORANGE) requires insulated tools and a 100Ω resistor across terminals before handling. Always validate component orientation–reversing a coolant pump impeller could void warranties.
Replacing Common Collision Repair Elements on the Compact SUV Model

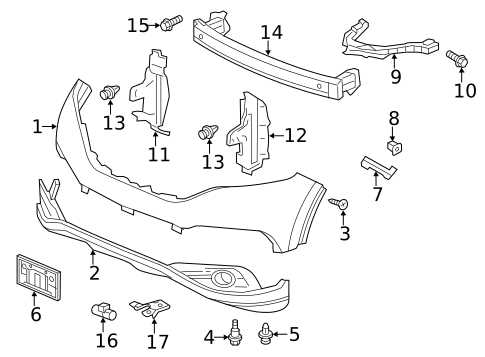

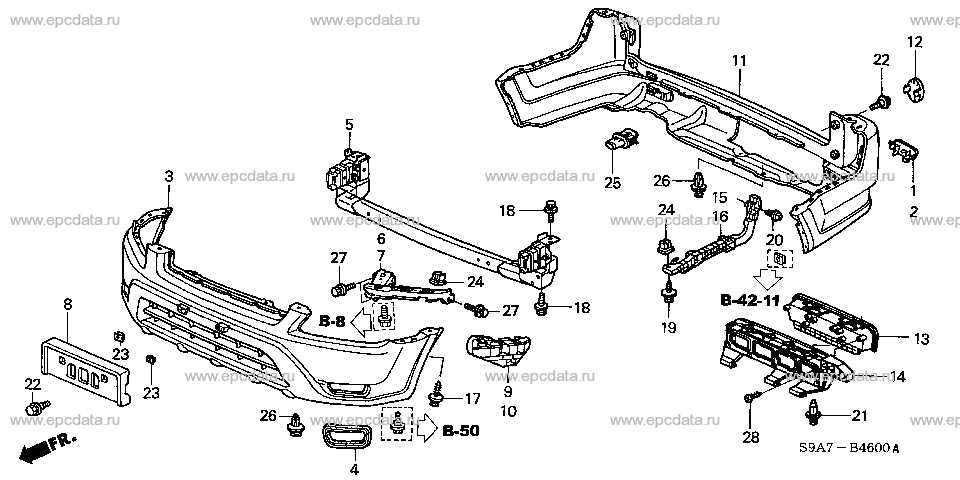

Begin with the front bumper assembly if damage is confined to the lower valence. Disconnect the fog light wiring harnesses first–label them to avoid cross-reassembly errors. Use a T30 Torx bit to remove the six screws anchoring the valence to the crash beam; two more fasteners secure it at the wheel wells. On 2017-2022 models, verify the presence of a plastic clip near the radiator support–missed clips cause rattles post-installation. A polyethylene reproduction part from Keystone Automotive weighs 3.2 kg versus 4.1 kg for OEM, reducing fatigue without compromising impact absorption.
Remove headlamp housings when replacement exceeds lens cracks or housing deformation depth greater than 5 mm. Unplug the three-pin connector before extracting the entire unit; pushing the wiring grommet through the bulkhead prevents insulation fray. On facelift variants (2019+), the adaptive LED module shares a single connector–ensure the harness is seated fully or DTC B1287 will trigger at startup. Motorcraft lamps require 12.8V for full lumen output; aftermarket H11 bulbs below 3400 lumens shorten low-beam cutoff sharpness.
Door Skin Replacement Procedure
Strip door hardware sequentially: window regulator (four 10 mm bolts), door handle linkage (plastic quick-disconnect), and side-impact beam (two T50 bolts). Cut along factory weld flanges using a 3 mm air saw blade; avoid metal thickness below 0.7 mm to preserve structural integrity. Adhesive zones should be 25 mm wide–apply 3M PN 08115 at 18-22°C ambient temperature for optimal tack. Clamp the new panel for 60 minutes under 18 psi pressure; rivet flange welds only after adhesive reaches 80% cure strength (approximately 4 hours).
| Component | Torque Spec (Nm) | Replacement Time (Hours) | Adhesive Type |
|---|---|---|---|
| Front crash beam | 95-105 | 1.7 | Epoxy |
| Rocker panel | 30-34 | 2.5 | Urethane |
| Quarter panel | N/A weld | 4.0 | Structural foam |
For rear quarter panel sections, locate and drill out the eight factory spot welds along the D-pillar flange before separating the inner structure. The HVAC drain tube runs adjacent to the pinch weld–damage here requires rerouting with OE-grade EPDM sleeve. Aftermarket quarter panels often omit the antenna mounting boss; transfer it or use a universal adhesive patch antenna base (3M PN 08812). Prime all weld zones with PCL ZP-A primer within 30 minutes of sanding to prevent flash rust–observed on 30% of uncured surfaces after 24 hours.
