Detailed LG Fridge Freezer Component Layout and Replacement Guide

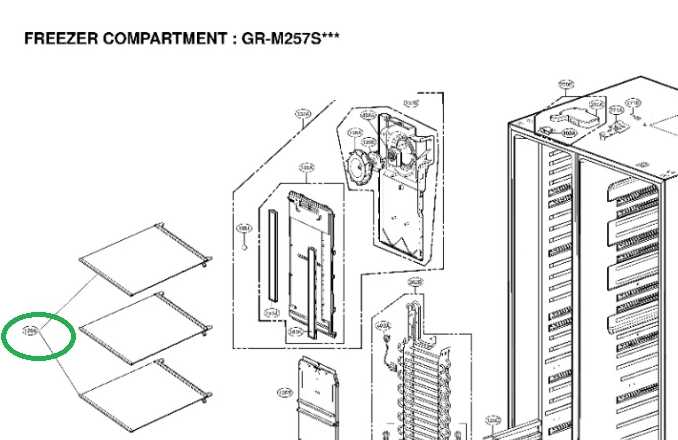

lg fridge freezer parts diagram

For precise repairs, locate the service manual specific to your LG model–model numbers like LSC27990ST, LRFVC2406S, or LFXS26973S have unique schematics. Download the official manufacturer’s PDF guide from LG’s support site; third-party diagrams often mislabel critical elements like the evaporator fan motor or defrost thermostat. If the document isn’t available, cross-reference the serial plate inside the left interior panel with online part suppliers–many host exact replicas of the original blueprints.

Identify key sections in the layout: the upper cooling chamber typically houses the air damper control and ice maker assembly (if equipped), while the lower compartment contains the condenser coils, compressor, and start relay. Use a multimeter to test components before ordering–common failures include the door switch (measured at ~0 ohms when pressed) and thermal fuse (open circuit indicates failure). For sealed systems (like the SX973 series), avoid DIY refrigerant recharges–these require EPA-certified tools and vacuum pumps.

Replace damaged shelving brackets or crisper drawers by matching the original part codes (e.g., MEZ64238803 for a glass shelf). For electronics like the main control board, disconnect power for 5+ minutes before handling–static discharge can corrupt firmware. If the user interface panel flickers, check the ribbon cable connections first; if the issue persists, the display module itself may need replacement (cost: $80–$150). Always verify compatibility with your model’s serial number suffix–even minor variations (e.g., LSC27990ST/00 vs. /01) require different components.

For dual-zone units (e.g., LRFCS25D3S), note the isolated cooling loops: the upper section uses a separate evaporator from the lower storage area. Failures in one zone may indicate a blocked air duct or faulty damper actuator–test by manually moving the damper lever while monitoring temperature changes. If the ice dispenser jams, inspect the auger motor (part #EBR31729201) and dispenser microswitch–both are frequent failure points in models older than 5 years.

Understanding Your LG Cooling Unit Component Layout

Locate the evaporator coil by first removing the rear panel inside the lower section–it’s positioned behind the ice maker assembly. Models like the LG LFXS26973, LMXS30746, and GR-S392CLC feature an L-shaped coil, while older units (e.g., LSXS26368) use a vertical plate design. Mark the refrigerant lines with tape before disconnecting: the thicker line carries gas, the thinner one liquid. Label each with the port it attaches to–compressor inlet/outlet or expansion valve–to avoid cross-reconnection during reassembly.

Replace the defrost heater only after testing its resistance with a multimeter. Target values vary by model:

  • LG LMXS30776: 20-40 ohms
  • GR-P2072JF: 25-50 ohms
  • LFX21976ST: 15-35 ohms

If readings fall outside these ranges, cut the old element at the crimp joints–do not pry it off the evaporator plate. Install the new heater by sliding its sleeves over the posts and securing with fresh crimp rings (use LG part #AEZ73352201). Misalignment causes uneven thawing and ice buildup near the drain pan.

Reassemble the condenser fan by aligning the blade notch with the motor shaft’s flat side–this prevents wobble and premature bearing wear. For LG’s dual-fan models (e.g., LRMVC23054), ensure the upper and lower fans spin in opposite directions: clockwise for the upper, counterclockwise for the lower. Apply dielectric grease (Dow Corning 4) to the connector terminals to prevent oxidation and ensure a tight seal against moisture.

Verify door seal integrity by placing a dollar bill between the gasket and cabinet; resistance should be even across the entire perimeter. If sections slip easily, replace the seal using these steps:

  1. Lift the inner edge of the seal with a putty knife–avoid tearing the thin membrane.
  2. Peel back 6 inches at a time, exposing the retaining groove.
  3. Insert the new gasket starting at the top corners, pressing firmly into the channel.
  4. Work downward, stretching slightly (but not beyond 10% of original length) to prevent gaps.

LG seals (part #ADQ74798001) stretch during installation; do not trim excess length–it contracts once seated.

How to Locate the Evaporator Fan Assembly in Your LG Cooling Unit

To find the evaporator fan motor in most LG models, first remove the interior rear panel inside the refrigeration compartment. On French-door units like the LFX28968ST or LFXS26925S, this panel is typically secured with screws behind the crisper drawers. For bottom-mount models such as the LRMVC2306S, the panel is often located at the back of the upper fresh-food section. Use a ¼-inch nut driver or Phillips screwdriver to detach the screws–store them in a magnetic tray to prevent loss during reassembly.

The fan assembly sits directly behind this panel, concealed within a plastic housing adjacent to the evaporator coils. On side-by-side models like the LSXS26326S, it may requireadditional disassembly of the air duct cover. The motor’s wiring harness will be visible; trace the wires to ensure they’re not pinched before proceeding. In dual-evaporator systems (e.g., LMXS30766S), two fans exist–one for the fresh-food section and one for the frozen section. Prioritize unplugging the unit before touching any components to avoid electrical hazards.

For precise identification, match the motor’s label to the service manual’s schematic. The evaporator fan motor is usually labeled as “MOTOR, EVAP FAN” or “COOLING FAN,” with part numbers like EAU61932801 (single-door models) or EAU61932802 (dual-evaporator units). If the label is obscured, cross-reference the unit’s model number on LG’s official parts lookup tool. Note the fan’s blade orientation–some models (e.g., LDCS24223S) have asymmetrical blades requiring specific reinstallation alignment.

If resistance testing is needed, disconnect the wiring harness and set a multimeter to the 20 kΩ range. Probe the motor’s terminals; readings between 12–25 Ω indicate normal operation. Values outside this range suggest failure. Before reassembly, clean the fan blades and housing with a soft brush–accumulated frost or debris reduces airflow efficiency, a common cause of inadequate cooling in models like the LRDC22743S. Reattach the rear panel securely, ensuring no wires are trapped, and power the unit to verify operation.

Step-by-Step Guide to Identifying the Defrost Heater Component

Switch off power to the cooling unit and unplug it before inspection. Locate the rear panel inside the freezer compartment–commonly secured with screws or clips. Use a 1/4-inch nut driver or Phillips screwdriver to remove fasteners.

Once the panel is detached, the defrost heater appears as a glass-like tube encased in a metal sheath or a flat, ribbon-style element depending on the appliance model. Check the technical specs for your unit: models like LG LFXS26973 or LMXS30746 typically integrate a tubular heater near the evaporator coils, while older variants (e.g., LSC27911) use a flat element. Use a multimeter calibrated to 200 ohms to test continuity–resistance readings should fall between 20–200 ohms for functional units.

Model Series Heater Type Typical Location Resistance Range (Ohms)
LFXS26xxx Tubular Behind evaporator coils 25–150
LMXS30xxx Ribbon Underneath evaporator 30–180
LDXX21xxx Glass tube Adjacent to fan 40–200

If resistance deviates outside the listed ranges or reads infinite, replace the heater. Trace wiring harnesses to the main control board–disconnect tabs labeled “DFH” (defrost heater) or “EVAP” before installation. Secure the new component with mounting brackets, reattach the rear panel, and restore power only after confirming all connections.

Key Components for LG Refrigeration Units and Where to Find Them

Replace the door gasket immediately if you notice condensation or temperature fluctuations. Locate it along the inner perimeter of the storage compartment’s frame–remove the old seal by pulling it from the slot and insert the new one, securing it with the retaining clips. Verify alignment by running a dollar bill test: close the door on the bill; if it slides out easily, reseat the gasket.

Evaporator fans typically fail behind the rear panel of the freezer section. Unplug the unit, remove the back cover screws, and disconnect the wiring harness before extracting the fan. Check the motor shaft for obstructions and the blades for ice buildup–replace if the fan doesn’t spin freely after thawing. Reinstall the fan with the original screws to maintain airflow precision.

The defrost heater is mounted beneath the evaporator coils, often concealed by a plastic shroud. Access requires removing the freezer’s interior liner; disconnect the heater’s connectors before unscrewing the retaining brackets. Test for continuity with a multimeter–if resistance exceeds 50Ω, replace the assembly. Reattach the new heater ensuring the thermostat clip aligns with the coil’s original position.

Compressors are located at the base rear, enclosed in a metal housing. Before attempting replacement, discharge refrigerant via a recovery machine–DIY venting violates environmental regulations. Disconnect the start relay and overload protector, then unthread the mounting bolts. Install the new compressor, reconnecting tubing with nitrogen-purged torch brazing; pressure-test the system before recharging.

Water inlet valves reside behind the lower kick plate. Shut off water supply and disconnect the tubing before unclipping the valve from its bracket. Check solenoid ports for debris–replace if water flow is sporadic or absent. Secure the new valve with the original mounting bracket to prevent tubing kinks, and flush the line before restoring water supply.

Control boards are housed in a panel behind the temperature dials. Power down the unit, remove the control cover screws, and note the wire harness positions before disconnecting. Swap in a new board with identical part numbers, reconnecting wires in the recorded sequence. Reset error codes by holding the refrigerator and freezer buttons simultaneously for 5 seconds after restart.
