Begin repairs by locating the front fascia assembly under the hood lining–its mounting points connect to the upper rail supports via four 10mm bolts and two plastic clips on each side. The radiator support panel sits directly behind, secured with six Torx T30 screws, which must be removed before accessing the headlight housings. Avoid prying near the sensor clusters; use a trim removal tool to detach the grille perimeter clips without damaging the wiring harnesses.
For quarter panel replacements, remove the rear taillight assemblies first–each unit is held by three 8mm nuts and one hidden clip behind the lens. The lower bumper cover overlaps the wheel well liner by 40mm; mark its position with tape before detachment to ensure proper realignment. The rocker panel molding attaches with adhesive and five rivets–heat application with a heat gun at 150°F softens the glue for clean separation.
The liftgate outer skin conceals three adjustment bolts behind the license plate bracket; loosen these incrementally to achieve even gaps–factory specifications require 3.5mm spacing at the top and 4.2mm along the sides. Door skins attach with weld studs and adhesive; a spot welder with 5mm electrodes ensures reinstatement without warping. Always cross-reference measurements with a 1:1 scaled reference chart before cutting or drilling.
Fender flares fasten with twelve push-pin rivets and two Phillips screws–remove the wheel well liner first to access hidden clips near the suspension mount. The mirror caps snap onto a metal bracket secured by a single star bit screw (T20); disconnect the heated mirror wiring before separation. Hood hinges allow 1.8° of lateral adjustment–use a feeler gauge to verify alignment before tightening.
Reference Guide for Vehicle Exterior Component Identification
Begin by locating the hood latch release under the dashboard on the driver’s side–press the lever to pop the front panel without damaging the hinge mechanism. The under-hood assembly includes a support beam that distributes stress evenly across the frame; verify its alignment if replacing the main closure panel to prevent misfitting during reassembly.
Door assemblies contain multiple layered elements: exterior skin, intrusion beams, and acoustic insulation. When sourcing replacements, match OEM specifications for gauge thickness–aftermarket panels under 0.8mm may compromise structural rigidity during side impacts. Use a caliper to confirm measurements on both the upper and lower door frames, focusing on the weld points near the B-pillar.
| Panel Location | Recommended Material | Fastening Method |
|---|---|---|
| Front fender | Galvanized steel (1.0mm) | Spot welds + adhesive |
| Rear quarter panel | High-strength steel (1.2mm) | Plug welds |
| Roof | Lightweight aluminum (0.9mm) | Laser brazing |
Tailgate seals rely on dual-layer weatherstripping–inspect for cracks at the corners where the seal intersects with the rear glass. Apply silicone-based lubricant sparingly to preserve elasticity; petroleum-based products degrade rubber over time, leading to moisture intrusion. Remove the interior trim panel by unscrewing Torx T20 bolts before detaching any wiring harnesses connected to the rear wiper or defogger grid.
Bumpers integrate energy-absorbing foam and reinforcement bars–compare crush zone dimensions before purchasing replacements. The front apron panel houses sensor mounts for adaptive cruise control; ensure proper alignment to maintain system calibration. When installing, torque bolts to 25-30 Nm in a cross-pattern sequence to prevent warping of plastic components.
Mirror housings contain heating elements, blind-spot cameras, and turn signals–disconnect electrical connectors first by pressing the release tabs, not by pulling wired plugs. The side view glass attaches via adhesive strips; heat the area with a heat gun at 60°C for 2 minutes to soften bonding before removal. Replace with fresh urethane adhesive rated for automotive use, allowing 24 hours curing time before testing adjustment motors.
Wheel arches require protective coatings to prevent corrosion–clean the flange area thoroughly before applying seam sealer. Use a wire brush to remove rust from existing welds, then prime with zinc-rich epoxy before painting. For OEM-grade finishes, apply basecoat in three thin layers, allowing 10 minutes flash time between applications, followed by clearcoat with 5% hardener added.
Finding Genuine SUV Exterior Component Catalog Codes
Start by checking the inner side of the door jamb on the driver’s side. Original equipment identifiers are often stamped on a metal plate or adhesive label, typically listing the VIN alongside panel-specific codes. For the 2014–2023 model generations, the format usually begins with 53 (front fenders), 61 (hood), or 68 (rear liftgate), followed by a five-digit number. If the tag is missing or illegible, remove the interior trim around the wheel well–some assemblies have etchings molded into the plastic or metal substrate.
Access the manufacturer’s electronic parts catalog for precise matches. The official portal uses a search filter requiring the model year and component group (e.g., Body Exterior → Front Door → Door Shell). Each listing includes exploded views with individual item numbers, such as 67801-0E010 for a left front door skin (2020–2023). Third-party databases may transpose digits or omit revision suffixes, so cross-reference with the VIN to confirm compatibility.
Alternative Verification Methods
Inspect the underside of bumpers or spoilers–molded injection points often carry tiny alphanumeric stamps. For example, a rear quarter panel mold might display 85971-41020, indicating the tooling reference. If physical markings are absent, measure critical dimensions: door skins should align within 1.5mm of factory specifications at hinge points, and hoods must clear the radiator support by 4.8mm (2017+ models). Deviations suggest aftermarket duplication.
Consult dealer service bulletins for superseded numbers. Components like tailgate assemblies experience periodic updates, reflected in suffix changes (e.g., -A1 → -A2). These revisions are documented in technician portals under TSB-00931 for the 2019 facelift. Ignoring revisions risks misaligned mounting holes or incompatibility with integrated sensors (particularly for models with blind-spot cameras).
Decoding Prefixes and Suffixes
The first two digits indicate the component category (e.g., 58 for rear bumper covers, 64 for roof panels), while the final three digits denote unique identifiers. Suffixes like -AC1 or -AD2 signal minor modifications–replace only with an exact match to avoid fitment issues. For hybrid variants, additional codes account for aerodynamic adjustments: 08721-48020-B2 specifies a front fascia with active grille shutters.
Store receipts and shipment documentation sometimes include barcodes with full catalog codes. If ordering online, filter results using the OE number field–not descriptions, which may vary across suppliers. Avoid listings lacking the original manufacturer’s hologram sticker (located on the reverse side of exterior panels), as counterfeit units often omit this anti-tampering feature.

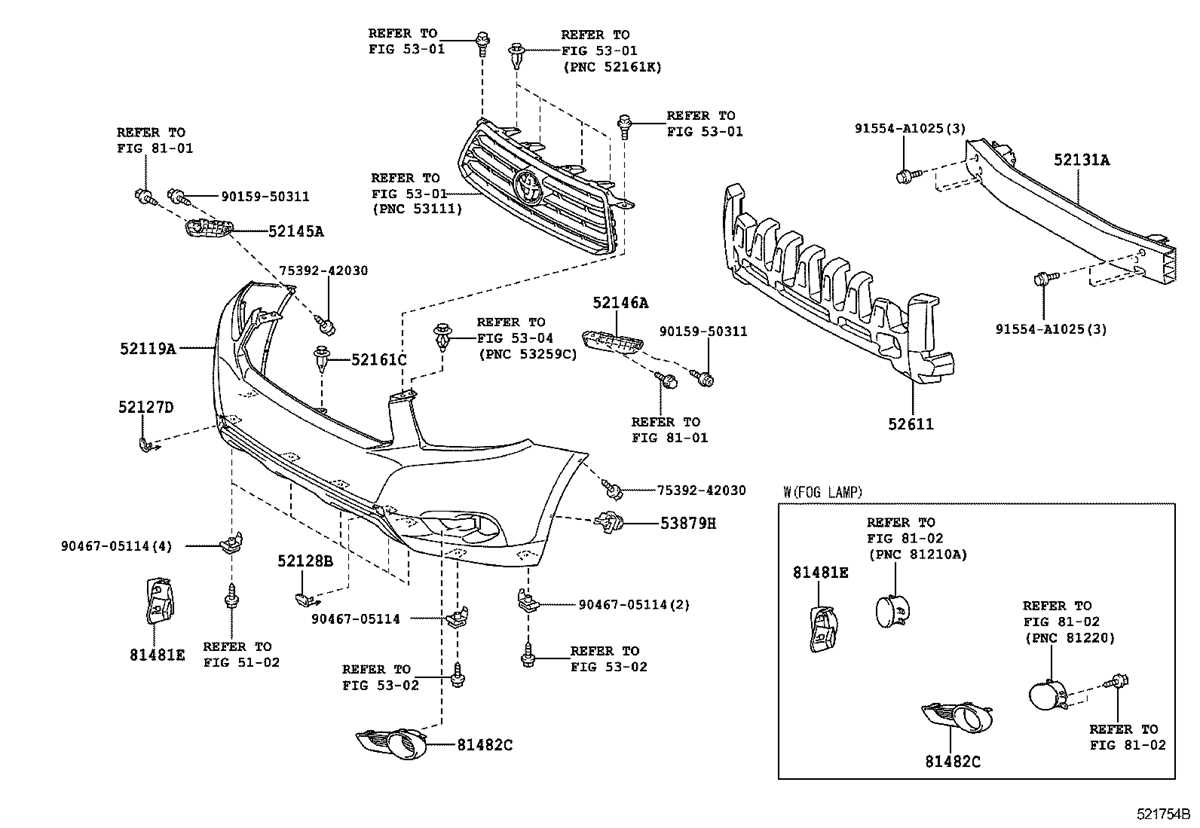

Step-by-Step Guide to Removing and Replacing Front Bumper Components
Begin by disconnecting the negative battery terminal to prevent electrical shorts. Locate the 10mm bolts securing the under-engine splash shield–typically four per side–and remove them. Slide the shield downward to access the bumper reinforcement bar.
Identify the fog light wiring harness near the bumper corners. Depress the release tab and disconnect the plug, then set it aside. For models with adaptive cruise sensors, remove the three Torx T25 screws holding the radar module in place before detaching it from the bracket.
Remove the wheel-well liners by unfastening six plastic clips along the fender edge and three more near the rocker panel. Peel back the liner to expose the bumper fasteners. Use a trim removal tool to pry off the black plastic retainers securing the bumper to the fender–repeat on both sides.
Locate the two 14mm bolts at the base of the headlight housing (one per side) and remove them. These bolts anchor the bumper to the chassis. Next, find the four 12mm bolts behind the grille–two on each side–hidden behind plastic covers. Remove the grille if necessary by releasing its six clips.
Support the bumper with one hand while removing the final two 10mm bolts beneath the headlights. Gently pull the bumper outward to disconnect it from the alignment pins. For vehicles with parking sensors, disconnect the wiring harness before fully separating the bumper.
To replace components, reverse the steps: align the bumper with the chassis pins, reattach wiring, and secure bolts in crisscross pattern to 22–28 Nm torque. Reinstall the wheel-well liners, fog lights, and radar module before testing all electrical connections.
Inspect the new bumper for proper fitment before finalizing installation. Check for gaps between the bumper and fenders–adjust using shims if necessary. Reconnect the battery and verify all lighting functions, including turn signals and sensors, before road testing.
How to Spot Key Exterior Trim Components on Your SUV
Examine the front fascia first–look for integrated fog light housings, often mistaken for turn signals due to their position below the bumper. On newer models, these housings feature a distinct rectangular shape with a clear lens; older variants may have a rounder design. Check for cracks or discoloration, as UV exposure and road debris frequently degrade the plastic over time. If replacing, ensure compatibility with your trim level: LE models lack chrome accents, while Limited editions include polished surrounds.
Side skirts and rocker panels require close inspection for rust or dents, especially near wheel wells where salt and moisture collect. The lower door trim also bears a clip system securing it to the frame–use a trim removal tool to avoid breaking tabs when detaching. Hybrid versions include unique aerodynamic inserts beneath the doors; these reduce drag but are prone to scratches from curbs. Match paint codes precisely: “040” (Super White) or “1G3” (Silver Sky Metallic) vary slightly between manufacturing years.
Rear Trim Details You Might Overlook
Locate the tailgate spoiler–a functional and aesthetic element that improves airflow but often suffers from loose adhesive. Press firmly along the edges to test for gaps; if separation exists, clean both surfaces with isopropyl alcohol before applying fresh 3M VHB tape. The rear bumper cover includes parking sensor cutouts (if equipped); these sensors nestle into pre-drilled cavities–misalignment during reinstallation causes false alerts. For off-road trims, the rear diffuser integrates with trailer hitch covers; ensure bolts torque to 35 ft-lbs to prevent rattling.
Tackle door handles and mirror caps last–these small but visible pieces wear fastest. Plastic handles on base trims lack keyless entry pads, while premium variants embed them in the outer shell. Mirror caps house turn signals and auto-dimming glass; remove the entire assembly to access wiring harnesses if LEDs fail. Always disconnect the battery before working with electrical components–shorts in these circuits can drain modules overnight.
