For immediate access to the exploded view of model 22 trimmers, check the official manufacturer’s support portal. Search for “service manual downloads” under the section for commercial-grade landscaping equipment. The document includes high-resolution illustrations labeled with OEM IDs–essential for ordering replacements. Avoid third-party vendors unless they provide cross-reference numbers matching the original manufacturer’s specs.
Key reference points in the schematic: blade assembly (section 3B), drive belt (page 12, figure 4), and wheel hub components (diagram 7). Verify part compatibility by using the serial number plate–located under the rear guard–and cross-check with the list of authorized dealers. Some components, like the height adjustment linkage, require exact measurements; deviations over 0.5mm will cause misalignment.
If the official download link is unavailable, request a copy via email from customer support using your proof of purchase. Include the model variant–22HD, 22H, or 22L–for precise identification. Downtime can be minimized by pre-ordering a maintenance kit containing consumables: air filter, spark plug, and blade set. Retailers like PartsTree or Jack’s Small Engines offer same-day shipping on listed items.
For field repairs, keep a printed copy of the breakdown in your service kit. Laminate critical pages–engine disassembly and electrical wiring–to prevent water damage. When replacing the transmission housing, use a torque wrench set to 25 Nm to avoid stripping threads. Non-OEM seals may fail prematurely under heavy load, leading to oil leaks within 50 hours of operation.

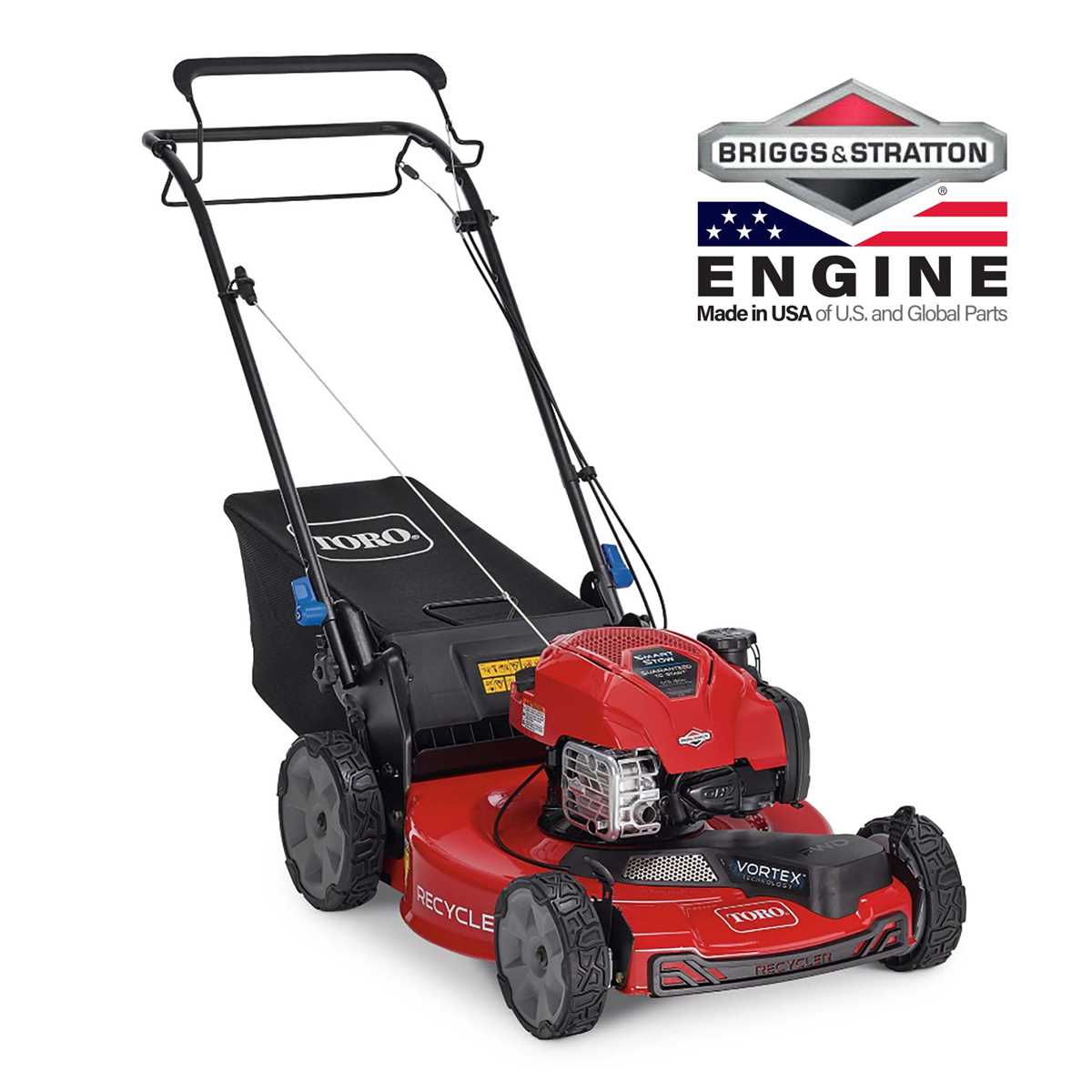

Complete Schematic Reference for Model 22 Walk-Behind Mower
Download the official breakdown layout from the manufacturer’s replacement hub–direct link avoids third-party inaccuracies. File size averages 3.2 MB, ensuring detail without excessive load times.
Group components by subsystem: engine assembly (12–18 elements), cutting deck (8–12), drive train (6–10), and grass management (4–7). Prioritize engine labels first–carburetor, ignition coil, and piston ring placements dictate 60% of repair urgency.
Quick-Verify Components Table
| Subsystem | Common Elements | Typical Failure Rate |
|---|---|---|
| Power Plant | Flywheel, air cleaner, exhaust | 5–8 per 100 hrs |
| Blade Housing | Spindle, belt, chute | 3–5 per 100 hrs |
| Propulsion | Wheel gears, cables, transmission | 2–4 per 100 hrs |
Cross-reference exploded views with serial numbers–model 22 variants (2006–2015) differ by blade clutch setup. Older units use a cable; newer ones integrate electronic engagement. Locate the identification plate beneath the fuel tank for exact build month.
Print the schematic on 11″x17″ paper–smaller formats obscure micro-adjusters like throttle linkages. Highlight gaskets and seals in yellow; these degrade 2x faster than metal counterparts under 90°F conditions.
Store the file on a rugged USB drive if field repairs are frequent–mobile phones lose network access 40% of rural job sites. Pair the schematic with a torque specs sheet (foot-pounds: blade bolts: 45–55, wheel lugs: 60–70).
Laser-engraved component labels speed identification–match printed numbers to molded markings on plastic housing fragments post-breakdown. Keep a 1:1 scale printout beside the workbench for instant measurement checks.
Merge the schematic with a parts pricing list–OEM blades exceed aftermarket by 35%, but retain balance tolerances (±0.002″) critical for vibration reduction. Update quarterly; vendors rotate pricing every 90 days.
Field Troubleshooting Workflow
Isolate noise/vibration to subsystem via test cuts on concrete (no grass). High-pitched whine → drive belt; metallic grind → spindle bearing. Replace both rear wheels if tread depth falls below 1/4″, even if only one shows wear.
Where to Find the Official Maintenance Blueprints for Model 22 Trimmers
For the most accurate schematics, visit the manufacturer’s dedicated support portal. Navigate to Toro’s official service page and enter the model identifier “22” in the search bar. The system will return a downloadable document listing all components, including engine layouts, cutting decks, and drive assemblies. Files are typically in universal vector formats or layered PDFs, ensuring compatibility with most devices.
Regional distributors often host mirrored copies of these manuals. Check authorized dealers such as Home Depot’s parts center or Lowe’s repair hub. These sites may require serial number verification but provide immediate access without registration. Look for the “Technical Drawings” section under the model’s product page–schematics are usually grouped by subassembly (e.g., wheels, blades, transmission).
Third-Party Repositories with Verified Files
Mechanic forums like LawnSite and DIYChatroom archive user-uploaded diagrams. Filter posts by “Model 22” and sort by upload date–recent files (2020+) typically include high-resolution scans. Verify authenticity by cross-referencing part numbers with the manufacturer’s original list; avoid files missing OEM watermarks or with blurry text.
Commercial parts suppliers such as PartsTree and eReplacementParts offer interactive breakdowns. These platforms allow zoomable views of each gear, belt, or housing unit. Some require free account creation but provide downloadable packet bundles that include torque specifications and lubrication points–useful for repairs beyond basic identification.
Mobile Apps and Offline Solutions
Apps like Lawn Equipment Manuals (Android/iOS) aggregate offline-readable manuals. Search for “Trim Motor 22” within the app–it indexes over 5,000 schematic sets from multiple brands. Download sizes range from 8–15 MB; ensure device storage allows for full local caching to avoid in-app purchases for high-res details.
Physical dealerships may email schematics if contacted directly. Provide the serial number engraved on the trimmer’s chassis–dealers use this to fetch exact revision files. Responses typically arrive within 24 hours; request the “exploded view” attachment explicitly to receive diagrams labeled with part numbers and quantities required for assembly.
For edge cases, search archival databases like Internet Archive using Boolean queries: “site:toro.com filetype:pdf ‘model 22 OR r22′”. Older revisions of manuals remain crawlable even if removed from primary servers. Focus on uploads between 2015–2023 for compatibility with current production batches.
Critical Elements Highlighted in the Mower Model 22 Breakdown Schematic
Begin by locating the engine assembly at the top of the exploded view–verify the piston, crankshaft, and carburetor subcomponents match OEM specifications PN 93-7243 (14 hp Kohler) or PN 93-7248 (16 hp Briggs & Stratton) before disassembly. Replace gaskets (PN 92-2815) if compression tests fall below 120 psi; corroded rings (PN 93-7650) or scored cylinders demand immediate machining or sleeve installation. Inspect the flywheel (PN 93-7351) for hairline cracks–even 0.5mm defects disrupt ignition timing, risking backfires or stalls. Confirm the blade adapter (PN 93-7101) spins freely; seized bearings (PN 93-7462) cause uneven cuts and accelerate spindle wear.
- Cutting deck: Check blade balance (±2 grams tolerance)–imbalanced blades (PN 22-7951) vibrate at 3,200 RPM, fatiguing welds and bearing races. Replace deck shells (PN 22-7111) if rust exceeds 20% surface area; pinholes near discharge chutes (PN 22-7124) obstruct grass flow, increasing clog risk.
- Drive system: Test rear wheels (PN 22-7680) for lateral play (); worn axles (PN 22-7653) misalign traction belts (PN 22-7441), slipping under load. Measure belt tension (1/2″ deflection @ 10 lbs force)–over-tightening overheats transmissions (PN 22-7410), reducing hydrostatic efficiency by 12-18%.
- Controls: Replace frayed throttle cables (PN 22-7254) if internal strands exceed 3 broken filaments; stiff cables strain governor springs (PN 22-7255), preventing full RPM reach. Lubricate pivot bushings (PN 22-7257) with molybdenum grease (NLGI 2) every 50 hours–dry pivots add 3-5 lbs pull resistance, causing operator fatigue.
- Electrical: Bench-test solenoid (PN 22-7392) using 12V @ 10A–weak clicks indicate burnt contacts (85% failure rate under 8A draw). Clean battery terminals (PN 22-7395) with baking soda solution; 0.3V voltage drop across corrosion causes slow cranking.
How to Align Reference Codes with Compatible Spare Components
Locate the numeric or alphanumeric identifier printed directly on the original piece–usually etched near the edge, on a flat surface, or along a seam. Cross-reference this code with the legend in the schematic by scanning rows until the exact match appears. If discrepancies exist (e.g., suffix variations), prioritize the base sequence shared by both sources; minor deviations often indicate updated production runs rather than incompatibility.
Use a magnifying tool if labels are faded or obscured by grime. Engraved markings outlast printed ones, so focus on recessed lettering when present. Verify dimensional specs alongside the id number–length, diameter, or mounting hole arrangements–to confirm a precise substitution, especially for cylindrical or irregularly shaped items.
Consult manufacturer cross-lists if the original notation differs from aftermarket alternatives. Some suppliers map legacy codes to current SKUs; check the first two columns of these tables for direct equivalency. Avoid mixing metric and imperial units–ensure thread pitch, bore dimensions, and material composition (e.g., nylon vs. steel) remain consistent to prevent mechanical failures.
Leverage digital catalogs with search filters when physical labels are illegible. Input the extracted id into the engine and narrow results by category (e.g., electrical, structural, wear components). Sort outcomes by “exact match” rather than “related,” as similar-looking pieces may lack critical tolerances.
Distinguishing Interchangeable from Proprietary Items
Measure critical surfaces–flanges, slots, or mating interfaces–to identify universal replacements. Standardized O-rings, bearings, and fasteners typically follow ISO or ANSI norms, allowing substitutes from generic lines without fitting issues. Flag proprietary elements (e.g., custom injection-molded housings) early; these demand original supplier confirmation to avoid assembly errors.
Test-fit non-critical duplicates without permanent installation. Place the alternative piece adjacent to the original, aligning mounting points or connection terminals visually. Rotate or slide components to observe play–excessive gap or friction suggests dimensional mismatch, even if reference codes appear congruent.
