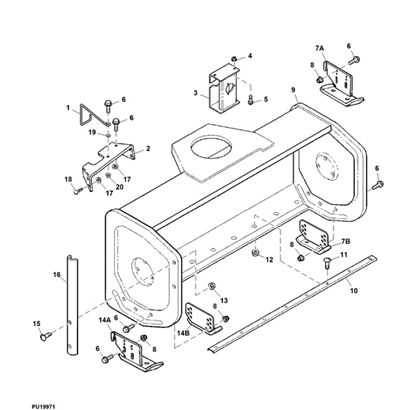

For immediate reference, download OEM schematic PN_AX54-6612 from the manufacturer’s service portal using serial number lookup. This exploded view covers all impeller housing assemblies, shear pins (part 8T-060), and auger gearbox components (M127723) most prone to winter wear. Verify the decal on the left frame rail near the chute–serial ranges 060000–069999 require slightly modified discharge deflector arms (AM125447).
Replace worn skid shoes (M144449) in pairs to maintain even ground clearance; uneven wear distorts the chute rotation linkage (M100884). Auger belt 54016 must be tensioned to 60–70 lbs deflection at mid-span–exceeding this range fractures the drive pulley hub (A150977). Retighten wheel lugs (14–16 ft-lbs) after every 50 operating hours; vibration loosens flange bolts, risking rim separation.
Access electrical diagrams via wiring harness guide WG-AX54–note that early units (pre-2015) use a 3-prong ignition switch (P154644), while later models integrate a relay (R112233) for auxiliary lighting. Grease zerks (L110108) every season; NLGI #2 lithium complex prevents water ingress in the pinion shaft bearings. If the gearcase leaks, replace the output seal (533033) and inspect the housing bore for grooves–rechroming may be required.
Order consumables in bulk: impeller shear pins (8T-060), auger scraper blades (M112735), and chute rotator gears (M106919) fail predictably. Use a torque wrench–overtightening the impeller hub (M106788) strips splines, while undertightening allows slippage. Keep a printed schematic in the maintenance log; digital diagrams often omit critical torque specs for fasteners.
Locating Key Components for Your 54-Inch Winter Attachment
Begin by identifying the augur housing assembly–typically labeled as part number M163945. This casting anchors the entire front intake mechanism and connects directly to the gearbox via four hex bolts (size #13). Verify torque specs at 45-55 ft-lbs; over-tightening risks fracturing the housing flanges. Keep a 3/8″ drive torque wrench on hand during reassembly.
Critical blades nested under the intake chute are M149869 (left) and M149870 (right). Each blade measures 14.5″ in cutting diameter and tapers to 3/16″ thickness; replacement thresholds are 1/8″ wear or 0.12″ chipping. Store spares in anti-seize coated bags to prevent moisture corrosion during seasonal storage.
Torque Specifications for Drive Components
| Component | Part Number | Fastener | Torque (ft-lbs) | Thread Sealant |
|---|---|---|---|---|
| Gearbox Mount | LVA11350 | #10-32 | 25-30 | Medium-strength |
| Augur Shaft Coupling | M172405 | 1/2″-20 | 70-80 | None |
| Wheel Hub Bolts | M128735 | M10x1.25 | 50-60 | High-strength |
Refer to the official technical manual (TM2182) for exploded views–avoid third-party scans as scale distortions misalign critical measurements. Shear pins (M137901) require annual replacement regardless of visual condition; failure during operation shears the augur shaft internally, disabling the unit.
Electric clutch (LVA10291) engages at 9.5 amps under load; verify engagement via multimeter (clip-on ammeter) by monitoring draw spikes when toggling the dashboard switch. Wire gauge on the harness must exceed 14 AWG; undersized wiring risks thermal fuse blowouts (part M113252) during prolonged discharge cycles.
Routine Wear Items Checklist
Inspect these elements every 50 operating hours:
- Skid shoes (part M131992)–replace at 1/4″ wear or cracking.
- Belt (M169159)–check for fraying or 0.04″ stretch beyond original length.
- Impeller (LVA11344)–vibration indicates imbalance; resurface or replace.
- Sheave (M115101)–groove wear exceeding 0.08″ depth mandates replacement.
How to Locate Manufacturer-Approved Schematics for the 54-Inch Clearing Attachment
Start with the brand’s primary support portal at Deere.com/parts. Enter the model identifier “54” in the search field, then filter results by “Exploded Views.” The site generates machine-specific visual breakdowns, including gearbox assemblies, auger housings, and shear pins, each labeled with part numbers that match OEM replacements. If the schematic doesn’t load, clear browser cache–older PDFs sometimes require re-caching to display correctly.
Alternative Sources for High-Resolution Schematics
GreenPartStore hosts downloadable exploded views categorized by component group, such as impeller fans or skid shoes. Registration isn’t mandatory, but creating a free account removes session-based download limits. Another option: PartsTree offers interactive 3D previews–hover over any element to reveal its part code, pricing, and compatibility notes with competing attachments like the 56-inch variant.
Local dealers maintain physical service manual libraries; call ahead and request the “PC12345” document–this internal reference aligns with the 54-inch unit’s official schematic. Some dealers grant temporary access to their internal system if you provide proof of ownership. Avoid third-party auction sites; the schematics they sell often omit updates to torque specifications or refractory updates introduced in 2022.
Critical Elements in the Model 54 Impeller Assembly Schematic
Start by locating the augmenter housing (part #M131810) at the rear of the impeller unit–its primary function is channelling discharge while preventing blowback. Verify the deflector chute (assembly #BM22986) rotates freely; lubricate the pivot bearings every 25 hours of operation using lithium-based grease (NLGI #2). The shear bolts (hardware #M104592) securing the impeller to the drive shaft must be replaced immediately if stripped–standard-grade substitutes will fail under load.
- Impeller blades (#M117126): Inspect for erosion along the leading edges; replace if wear exceeds 1.5mm.
- Gearcase assembly (#M153479): Drain old lubricant (80W-90 hypoid) at 50-hour intervals; refill to the lower inspection port level.
- Skid shoes (#M108523): Adjust clearance to ⅛ inch above surface–uneven wear indicates misalignment.
Check the electric clutch (#BM16420) for voltage drop under load (nominal 12.5V at engagement); resistance above 0.3Ω requires replacement. The auger drive belt (#M141583) should deflect no more than ½ inch under 10 lbs pressure–adjust idler pulley tension if deviation exceeds 3/16 inch. For storage, disengage the clutch, run the engine dry, and coat unpainted surfaces with corrosion inhibitor (#M115949).
How to Precisely Identify Compatible Components for Your Model 54 Blower
Locate the serial number plate on the machine’s frame–typically affixed near the engine housing or under the chute–and cross-reference it with the illustrated breakdown to pinpoint exact replacements. The numbering system in the exploded view follows a hierarchical sequence: primary assemblies (e.g., auger housing, impeller) list major groups, while subcomponents like shear pins or belts appear under corresponding callouts. Use a magnifying glass to read etched part numbers on worn components; these often differ from the diagram labels but serve as direct matches for ordering.
Leveraging the Visual Guide for Efficient Repairs
Isolate the functional group of the damaged element before consulting the chart: wear plates correspond to the auger section (pages 3-5), while drive components cluster under the gearcase (pages 6-8). Verify shaft diameters and spline counts for augers or impellers against the schematic’s dimensional callouts–mismatches risk premature failure. For electrical components, trace wires in the wiring harness diagram to ensure connectors align with the original pin configuration. Keep a multimeter handy to test continuity on replaced switches or solenoids before final installation.
Key Replacement Components in Your Model 54 Snow Clearing Attachment
Start by inspecting the auger blades–they endure the most friction and show wear first. The original equipment shear pins are designed to break under excessive load, protecting the gearbox. Replace them with identical diameter OEM-spec pins; generic bolts risk damaging internal transmission gears. The diagram highlights three critical zones: the left auger housing, the impeller chute, and the discharge assembly–each contains components with lifespans shorter than the machine frame.
Wear plates on the impeller cage degrade unevenly due to ice buildup. Check for grooves deeper than 2 millimeters–these reduce throwing distance by 30%. Aluminum plates warp; hardened steel replacements last twice as long but require precise torque (12–15 ft-lbs) to avoid stripping threads. The diagram labels fastener locations; mismatched bolts cause misalignment, increasing chute clogging frequency.
Cutter bars along the intake skid shoes wear down to bare metal after 150–200 hours in gravel-heavy snow. Flip them before replacement to extend service life–most models allow double-sided use. Polyurethane skid shoes resist corrosion but crack under impact; steel variants handle uneven terrain but gouge pavement. The exploded view shows two adjustment slots; improper spacing causes ice bridging, stalling the unit.
Drive belts stretch and fray within two seasons if operated at full throttle in sub-zero temperatures. Replace both the fan belt and impeller belt simultaneously–mismatched tension causes premature failure. The parts breakdown identifies belt width and tooth count; aftermarket belts with incorrect profiles slip, reducing power transfer by 18%. Lubricate idler pulleys with high-temperature grease; dry bearings seize, snapping belts under load.
Chute deflector gears strip if frozen snow packs into the mechanism. Disassemble and pack with marine-grade grease–the diagram specifies lubrication points overlooked in maintenance manuals. Replace nylon gears with brass for heavy use; they tolerate impact better but require periodic adjustment to prevent chute drift. The gear housing gasket often leaks; a torn gasket lets moisture in, corroding internal linkage within months.
Electric starter brushes wear down quickly if the unit is used for short intervals. Inspect annually; brushes shorter than 5 millimeters fail under cold crank. The wiring harness guide in the schematic shows splice locations–chafed wires disable the safety switch, preventing startup. Replace the entire harness if corrosion is visible; patching leads to intermittent failures in sub-zero conditions.
