Replace a faulty solenoid on a gasoline-powered transporter by locating it near the controller–typically mounted on the frame under the driver’s seat. Use a 10mm wrench to disconnect the main battery cables first, then swap the old unit for part #31717G01. This avoids voltage spikes during installation. Verify correct polarity before reconnecting: the thicker cable attaches to the battery-side terminal, marked with a “+” symbol.
Servicing the drive motor requires removing the rear body panel (fastened with six Torx T25 screws). The motor housing connects via four hex bolts (8mm); support its weight during disassembly to prevent bending the axle shaft. Label the two small control wires–red/white to pin A, black/blue to pin B–to avoid reversing gear logic. Grease the splines of the replacement motor (part #41217U01) with lithium-based lubricant before reassembly to prevent premature wear.
Adjust the speed sensor alignment on electric models by rotating the magnet wheel so the hall-effect sensor (part #28206G01) sits within 1-2mm of the wheel’s edge. Misalignment triggers error code 44-1, causing sudden jerking or loss of power. Clean the sensor surface with isopropyl alcohol before reattachment–dust accumulation distorts readings. Follow up with a multimeter check: sensor resistance should read 560-600 ohms at room temperature.
Rebuilding a worn steering column starts with removing the dashboard cover (secured by two Phillips screws behind the glove box). The tilt mechanism uses a shear pin (part #12345G02) that snaps under excessive force; replace it if the column no longer locks. Apply thread locker to the four clamp bolts torqued to 15 ft-lbs to prevent loosening. Re-test the steering wheel play–maximum allowable deviation is 1.5cm measured at the rim.
Understanding Your Electric Vehicle Component Blueprint
Start by locating the battery compartment schematic–usually on page 3 of official service manuals. Label each cell position (A1 through D6) with a permanent marker before disassembly to avoid misplacement during maintenance. Most 36-volt models feature six 6-volt units wired in series, while 48-volt variants use eight.
Motor Assembly Breakdown
Trace the drive system layout by identifying these core elements:
| Component | Typical Position | OEM Part Number Range |
|---|---|---|
| Series Wound Motor | Rear axle housing | 20000-UP – 20999-UP |
| Solenoid | Adjacent to motor | 30000-UP – 30999-UP |
| Speed Controller | Under seat or dashboard | 40000-UP – 42999-UP |
When replacing the motor brushes, use a caliper to measure wear–discard if under 0.25 inches. Failure to do so risks damaging the commutator surface, requiring costly resurfacing.
Examine the rear differential layout: identify the ring gear teeth count (typically 64-72) before ordering replacements. Use a gear ratio calculator to verify compatibility with your model year–1994-2001 units often differ from 2002+ designs in spline count.
For electrical troubleshooting, test voltage at the solenoid terminals with a multimeter while activating the accelerator. Readings should jump from 0 to full battery voltage instantly–any delay indicates solenoid failure or wiring corrosion. Clean connections with a wire brush and apply dielectric grease to prevent oxidation.
Steering and Suspension Layout
Inspect the spindle assembly diagram before attempting wheel bearing replacements. Note the tapered bearing arrangement–install the larger bearing cup facing inward. Torque specifications vary: 12-15 ft-lbs for 2005 models, 18-22 ft-lbs for 2010+ units. Cross-reference with the serial number plate to confirm.
Mastering Schematics: Pinpointing Critical Assemblies in Electric Vehicle Blueprints
Begin by isolating the power source section. Most manufacturer schematics cluster the battery, main fuse, and solenoid within a distinct rectangular border. Trace the thickest cable lines–they invariably lead to these components. Verify the voltage notation adjacent to the battery terminals; standard units display 36V, 48V, or 72V. Any deviation suggests non-standard modifications or potential wiring errors.
Locate the controller housing next–a compact metal enclosure typically mounted near the motor or under the driver seat. The diagram will depict it as a box with multiple thin wires fanning out. Count the wires; original systems use either 8 or 12 conductors. Check for color-coding consistency: red (power), black (ground), yellow (throttle signal), and blue (regen braking). Variations in wire count or color indicate aftermarket adjustments affecting performance.
Identify the drive motor by following a single heavy-gauge cable from the controller. The schematic renders it as a cylindrical shape with two protruding terminals. Confirm the model number engraved on the motor casing–common variants include Series 300, SE, or SD. Cross-reference this with the voltage rating on your battery cluster; mismatched voltages risk overheating.
- Charger port: Search for a small circular icon near the front or side panel, connected via thin wiring to the battery. Original chargers connect via Anderson plugs; third-party units may use Deans or XT60 connectors.
- Direction switch: Illustrated as a rectangular block with three terminals (F, R, N). Older models use mechanical switches; modern units integrate solid-state relays.
- Throttle potentiometer: Represented as a crescent-shaped icon with three wires–usually red, black, and green. Test continuity with a multimeter; resistance should gradually increase with pedal depression.
Check the brake system markers–look for a distinctive horseshoe symbol connected to the controller via two wires (usually white and blue). Mechanical brakes show cable housing; hydraulic units include a brake fluid reservoir icon. Ensure the emergency/parking brake lever correlates to a separate schematic symbol (often a small circle with a diagonal line) linked to brake pads.
Scan for auxiliary components: headlights appear as bulb icons with thin ground wires; turn signals include a flashing relay box. Heaters–found in 72V models–are square symbols with two large terminals. Verify fuse ratings adjacent to these symbols; insufficient values risk blown circuits under load.
Cross-examine physical locations by referencing the legend. Most schematics include numbered callouts–match these to labels on the vehicle frame. Partial assemblies like rear differentials appear as gear clusters; count teeth ratios if modifying gearing (e.g., 10:1 for hill use, 12:1 for flat terrain). Note bolt size specifications (typically 10mm–15mm) adjacent to mounting brackets.
Validate electrical readings against the schematic’s voltage drop tables. Critical test points include:
- Controller input: 47V–51V (48V system) ±0.5V tolerance.
- Motor output: Matches controller input minus 1V efficiency loss.
- Accessory bus: 12V ±0.3V for lights/radio.
Discrepancies between measured values and diagram annotations signal failing components–prioritize those with >5% deviation.

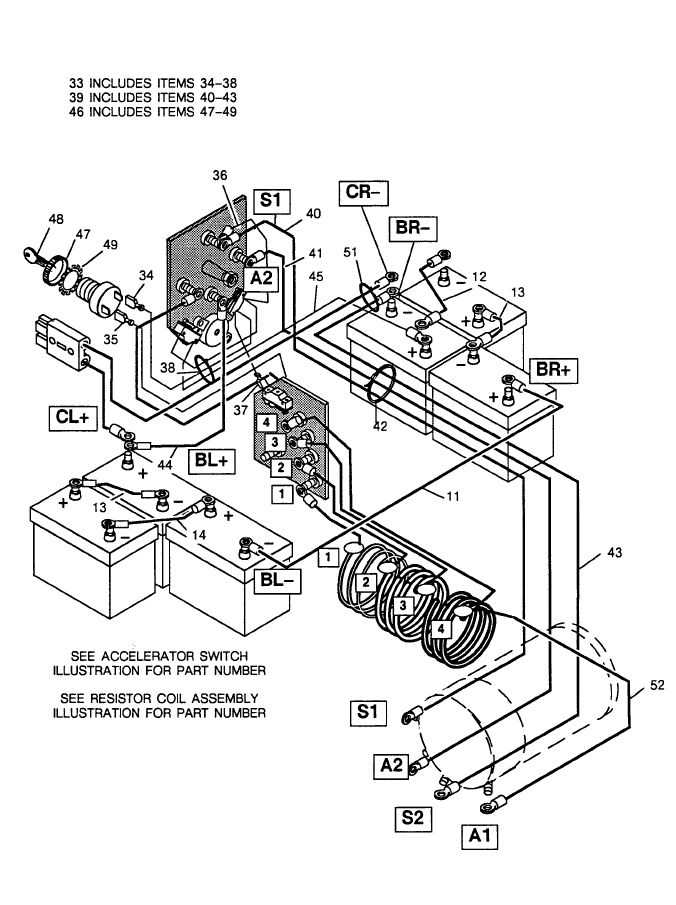

Step-by-Step Guide to Reading Electrical Wiring Schematics for Utility Vehicles
Locate the battery symbol first–its terminals mark the system’s power source. Identify the positive (+) and negative (-) leads connecting to the main fuse (typically 100-200 amps). Trace these lines to the solenoid, noting the single thick cable splitting into two thinner wires for accessories. Verify the fuse rating matches the schematic; mismatches cause intermittent failures.
Follow the ignition switch wiring next. The diagram shows a three-position switch: off, run, and start. Each position corresponds to distinct circuit paths–off breaks all connections, run powers key components, and start engages the motor starter. Check for resistors or diodes inline; these prevent backfeed that damages sensitive electronics.
Decoding Relay and Solenoid Paths
Examine relays (usually square or rectangular blocks) and their numbered pins. Pin 85 connects to ground, pin 86 receives control voltage, pin 30 is the power input, and pin 87 outputs to accessories. Swap relays if accessories like lights or horns malfunction; the diagram’s legend specifies each relay’s function. Avoid guessing–incorrect placements risk short circuits.
Inspect the speed controller (black rectangular unit). The schematic details its six wires: battery positive, battery negative, throttle input, motor phase wires (A, B, C), and a key-switch lead. Use a multimeter to confirm voltages: 48V or 36V across the battery leads, ~5V for throttle signals, and ~0V at rest for motor phases. Deviations indicate controller degradation or throttle faults.
Map the charging circuit separately. The AC charger’s plug (round three-prong or Anderson connector) connects to internal rectifiers and capacitors. Trace the path to the battery; corrosion here disrupts charging. Replace damaged connectors with identical pin configurations–aftermarket parts may not handle the vehicle’s amperage.
Label each wire with masking tape during disassembly. Schematics use color codes (red = power, black = ground, yellow = signal) but aftermarket repairs often deviate. Cross-reference wire gauges: starter cables require 4 AWG, accessory leads use 12-16 AWG. Reversing gauges creates fire hazards. Reassemble by matching tape labels to the diagram–skipping this step risks incorrect connections.
Key Wearable Components and Their Precise Locations in Electric Vehicle Schematics
Replace the solenoid (mounted on the driver-side frame rail near the battery tray) every 12–18 months or at the first sign of slow cranking. Its two small terminals connect to the ignition switch and the starter motor; corrosion here mimics dead-battery symptoms. Use a multimeter: voltage should read 12 V when the key is turned–anything below 9.6 V confirms a defective unit.
Battery Pack and Charging Circuit Essentials
- Voltage regulator sits beneath the center console, bolted to the chassis. Remove the plastic cover to access its four wires: red (12 V input), yellow (field), green (sense), and black (ground). Inspect the solder joints–cracks here cause erratic charging.
- Battery interconnect cables (1/0 AWG) link each 6 V cell in series. Check the lead terminals weekly for sulfation–white crust reduces amperage by 15–20 %. Clean with baking soda paste, then torque to 12 ft-lbs.
- Onboard charger is tucked under the rear seat. Its AC inlet (NEMA L6-20P) must match the outlet; misalignment melts the internal fuse (15 A) within minutes.
Drive-system components degrade predictably. The drive belt (located beneath the floorboard, behind the motor) sheds teeth at 1,800–2,200 miles. Count grooves: fewer than 35 visible on the inner arc indicates replacement need. Replace with a Kevlar-cord variant–cuts stretch from 4 % to 0.8 %. For the rear axle bearings, press out the old 6206-2RS units using a 40 mm bearing puller; pack the new ones with Mobilgrease XHP 222–never lithium, as it thins above 110 °F.
