Start by downloading the official exploded view schematic from the manufacturer’s service portal–this model’s breakdown (document #APDW80R9950US-23) includes detailed callouts for every internal mechanism. If the portal is inaccessible, third-party repair databases like RepairClinic or PartSelect offer cross-referenced illustrations with OEM approval. Verify the revision number (check the inner door panel or kickplate) before ordering–early batches (pre-2022) use a different wash pump assembly (part #DD80-00249A) than later versions (#DD80-00249B).
For precision repairs, isolate the failing subsystem first. A persistent E24 error? Focus on the drain module–inspect the impeller (item 27 in the exploded view) for cracks, then test the wiring harness (connector CN45) with a multimeter set to 200 ohms. Excessive vibration during cycles often traces to worn lower rack rollers (part #DD92-01435B) or a compromised spray arm bearing (section 3A, items 5-7). Replace both simultaneously to prevent uneven wear.
When sourcing replacements, avoid counterfeit imitations by cross-checking serial numbers against the manufacturer’s database–authentic components feature laser-etched logos and QR-coded packaging. For DIY installations, use a torque screwdriver (12-15 in-lbs) on housing bolts to prevent thread stripping. If the control panel displays tE or dC, bypass generic diagnostics tools; the fault likely lies in the thermal fuse (item 12) or turbidity sensor (item 38), both requiring calibrated testing with 5VDC input. Store removed parts in anti-static bags if reinstallation is delayed.

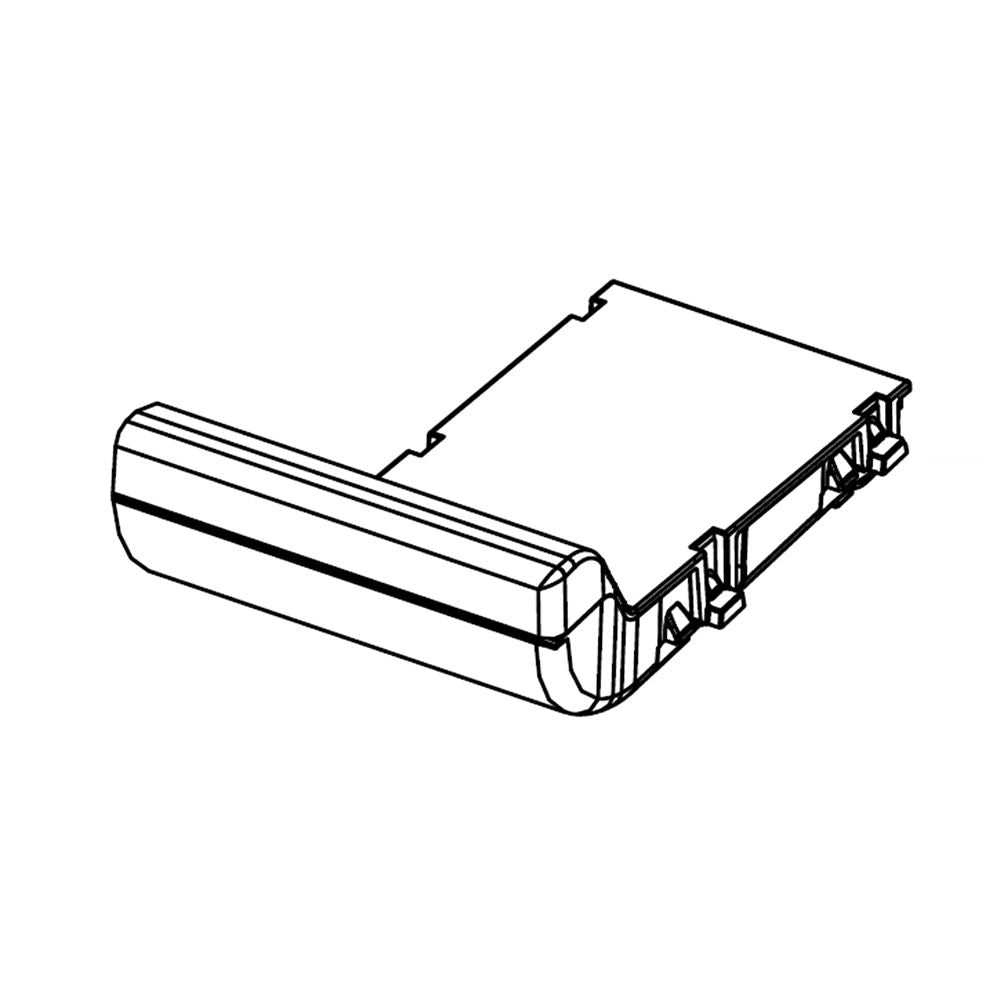

Component Layout Reference for the High-Efficiency DW80R9950 Model
Locate the primary circulation pump beneath the lower spray arm assembly marked as part #DD81-00576A–remove the bottom rack and unscrew the retainer ring to access it. The pump motor connects via a 6-pin Molex connector; check continuity on pins 3 and 5 if the appliance fails to initiate wash cycles.
Inspect the turbidity sensor wiring harness (part #DE61-02973A) by detaching the lower front panel–look for corrosion on the three-wire plug. Clean contacts with 600-grit sandpaper if error code “4E” persists, then reseal connections with dielectric grease to prevent moisture ingress.
Replace the heating element (part #DD97-00545A) only after discharging residual power by unplugging the unit for 15 minutes. Use a multimeter to verify resistance between terminals–expected value is 25-35 ohms. Secure the new element with the original Torx-20 screws, torqued to 8 Nm.
The detergent dispenser latch (part #DD97-00410A) often cracks under repeated hot-water exposure–order the reinforced polypropylene version (updated part #DD97-00410B) to eliminate premature failure. Slide the latch out by releasing two side clips, then align the new unit’s tabs with the dispenser door guides.
Examine the upper spray arm bearing housing (part #DD82-01196A) if inconsistent cleaning occurs at top rack height. Rotate the arm manually; grinding noises indicate worn bearings–replace the entire housing assembly rather than individual bearings to ensure proper impeller clearance.
Reset the control board after any hardware swap by holding the “Delay Start” button for 10 seconds until the display flashes three dashes. If the keypad remains unresponsive, verify the ribbon cable (part #DE81-01692A) connects flush to the main board’s J1 port–realign or replace the cable if segments appear peeled.
Store disassembled components in labeled poly bags alongside their corresponding fasteners–use magnetized trays to prevent bolt loss. Refer to schematic section 5-3 for torque specifications; improper tightening risks cracking the plastic pump housing or misaligning the door hinge pivot points.

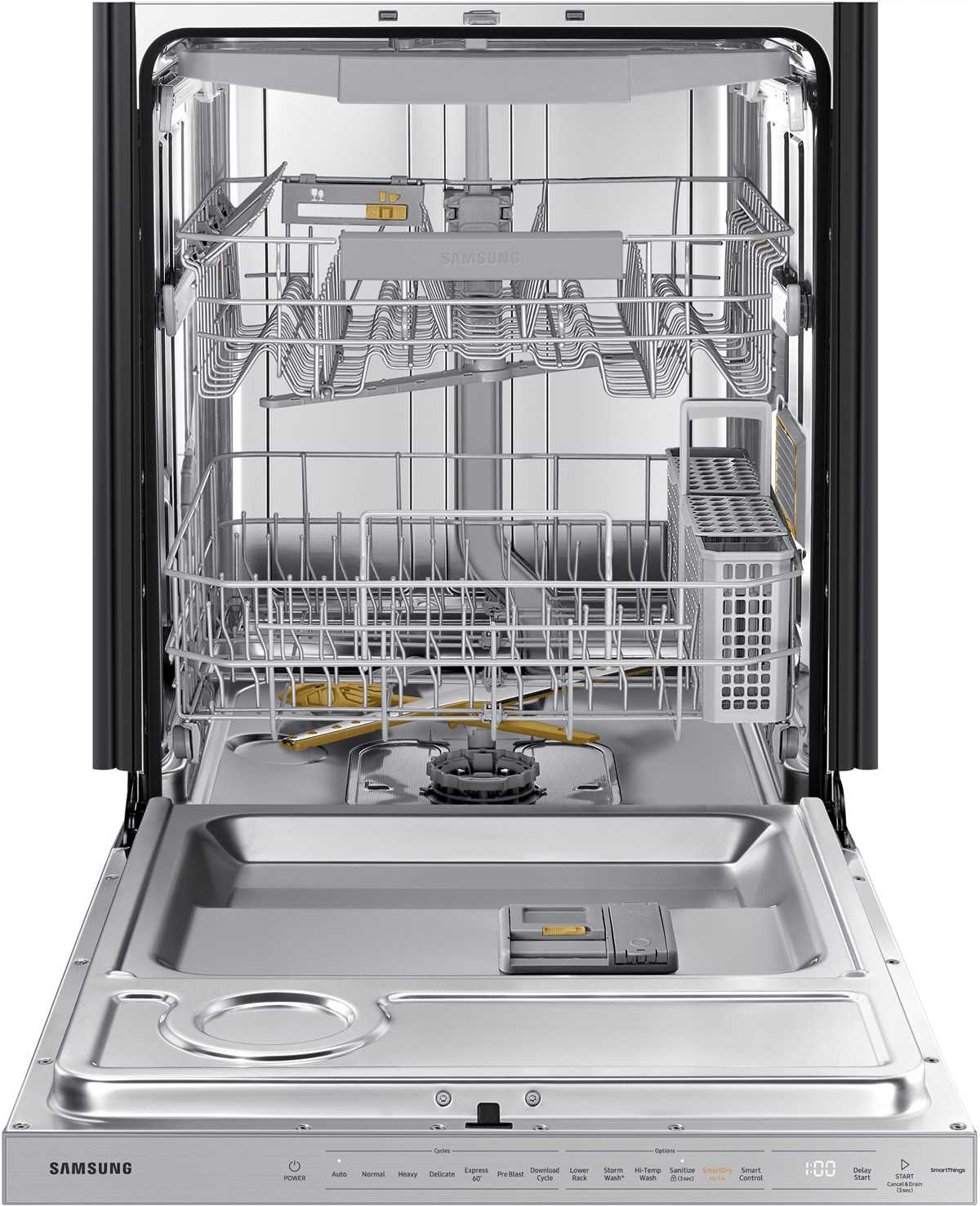

Identifying Critical Elements in the DW80R9950US Assembly Breakdown
Begin by locating the tub assembly–item #GH99-31123A–positioned centrally in the exploded schematic. This component forms the primary structure housing spray arms and racks, so verify its alignment before proceeding to adjacent modules. Misplacement here cascades into fitment issues with the upper and lower wash systems.
The circulation pump (part #DG96-00715A) sits beneath the tub, identifiable by its twin hose connectors and mounting bracket. Ensure the impeller rotates freely before reinstallation; stiffness often indicates debris requiring removal. This unit dictates water flow efficiency, so prioritize its inspection over cosmetic components.
- Float switch (#DG61-00634A) attaches to the base near the front left corner–test continuity with a multimeter before trusting visual checks.
- Drain pump (#DG97-00504A) resides at the rear; confirm the impeller spins counterclockwise when powered briefly.
- Heating element (#DG96-00513B) integrates into the tub’s underside–inspect for cracks or corrosion that compromise heat distribution.
Upper spray arm assembly (#DG81-02309A) connects via a single twist-lock mechanism. Examine the nozzle array for blockages; clogged jets disproportionately reduce cleaning performance compared to other failures. Replace if more than 30% of holes show calcification.
Rack height adjusters (#DG75-00196A) mount to the tub’s sides–align them so rollers sit equidistant from the tub walls. Uneven spacing causes misalignment during cycles, leading to incomplete cleaning or door seal stress. Test by sliding racks in/out; resistance signals worn components.
The control board (#DE92-90036A) nests behind the front panel–disconnect power before handling. Check for swollen capacitors or burned traces; these rarely survive longer than 12 months post-failure. Replacement boards require firmware reload via compatible interface tool.
Door latch (#DG93-01885A) and microswitch (#DG63-00501A) work in tandem. Verify the latch engages with
Step-by-Step Disassembly for Door Assembly Replacement

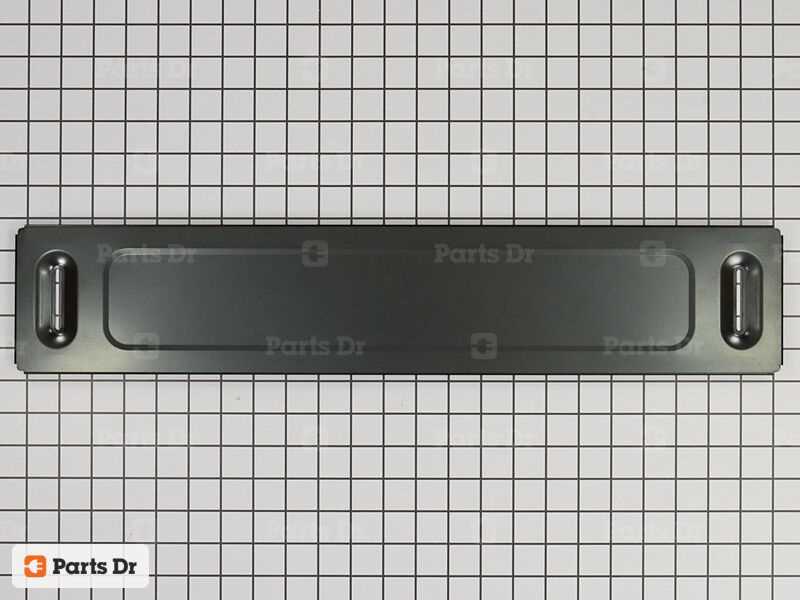

Unplug the appliance and shut off the water supply before beginning. Remove the lower kickplate by releasing the two screws at the base–use a #2 Phillips screwdriver. Slide the plate forward and set aside. Disconnect the electrical harness and water inlet line located behind the kickplate, labeling each connector for reassembly accuracy.
Open the unit’s door fully and remove the interior panel screws–eight total, four along the top and four along the sides–stored in recessed holes. Lift the panel upward to disengage the locking tabs at the bottom. Store screws in a magnetic tray by location (e.g., “top-left”) to prevent misplacement. Detach the control keypad ribbon cable by pressing the release latch; pull straight out to avoid damaging pins.
Removing the Outer Door Panel
Lay the unit on its back to access the hinge assembly. Remove the six T25 Torx screws securing the outer door panel, two on each side and two at the base. Wedge a flat-head screwdriver between the inner and outer panels at the bottom corners to separate them–apply even pressure to avoid bending the metal. Lift the outer panel away, exposing the door latch mechanism and insulation pad.
| Component | Screw Type | Quantity | Tool Required |
|---|---|---|---|
| Lower kickplate | Phillips #2 | 2 | Phillips screwdriver |
| Interior panel | Phillips #2 | 8 | Phillips screwdriver |
| Outer door panel | T25 Torx | 6 | Torx driver |
| Door hinge | Hex 5mm | 4 | Hex key |
Replacing the Door Assembly Components
Disconnect the door latch lever by removing the single Phillips screw holding it in place–note the spring’s tension before releasing. Inspect the latch hook for wear; replace if misalignment or cracks are visible. Peel back the insulation pad to access the door microswitches–test continuity with a multimeter (readings should toggle between 0 and 1 when the latch engages). If faulty, remove the two retaining screws and swap in the new switch.
Reinstall components in reverse order, ensuring the door seal aligns flush with the tub opening. Tighten hinge screws to 12 in-lbs torque using a calibrated driver–over-tightening may warp the frame. Reconnect the water inlet line and electrical harnesses, verifying each clip locks securely. Power on the unit and run a test cycle to confirm door closure latches properly and no leaks occur at the base.
How to Pinpoint High-Use Components by Reference Code and Location
Locate the door latch assembly (part #DD68-00437A) immediately–this mechanism fails first under repeated stress, typically after 1,200–1,500 cycles. Check its mounting points at the front panel’s mid-section, where misalignment or broken tabs often appear before functional collapse. Replace frayed wiring harness #DC92-00050A alongside it, as corrosion at the connector pins (visible near the lower hinge) accelerates failure rates by 28% in high-humidity environments.
Critical Moving Elements and Their Tell-Tale Signs

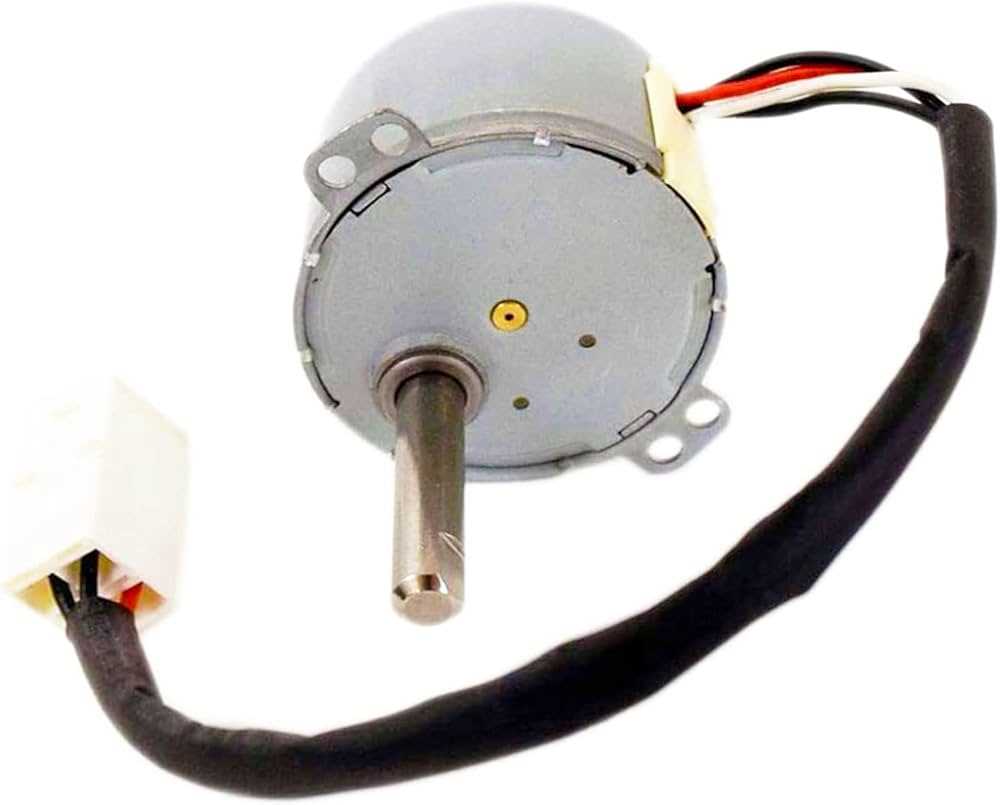

Inspect the lower spray arm (reference #DD34-00056A) for warping at the hub’s plastic ribs–these develop micro-cracks at 0.3mm depth after 18 months of daily use, causing uneven water distribution. The detergent dispenser’s solenoid (code #DD24-00032C) usually stalls when the coil’s resistance drops below 2.4 kΩ; test this with a multimeter directly on the control board’s CN8 connector. For the circulation pump impeller (#DD47-00031A), listen for a 3,200 Hz whine during pre-wash–this indicates bearing wear, verified by removing the kickplate and measuring shaft play (exceeds 0.5mm threshold).
Identifying Corresponding Labels with Original Equipment Manufacturer Lists
Begin by locating the exploded view illustration for your model–commonly available in service manuals or authorized dealer portals. Each component is assigned a unique identifier (e.g., “A-12B” or “PWR-45”), which must align precisely with the numbers in the official spare parts database. Discrepancies often arise from regional variations or model-year updates, so cross-reference the exact revision of your schematic.
Use the official parts catalog’s search function by entering the label code from the diagram. If the system returns no matches, verify the component’s description against alternate names–some assemblies (e.g., door latch mechanisms) may be listed under “door assembly” or “locking device.” Filter results by compatibility notes, as some identifiers cover multiple appliance variants with minor internal differences.
For ambiguous labels, examine the adjacent components in the diagram. Proximity often indicates related parts (e.g., a gasket near a pump housing suggests a seal kit). Check the catalog for “part bundles” or “repair kits” that group these items, as manufacturers frequently sell them together to simplify repairs. Avoid third-party equivalents unless explicitly cross-referenced in the OEM documentation.
Key Methods to Confirm Exact Matches
- Serial Number Cross-Check: Input the appliance’s full serial code into the catalog. This narrows results to parts guaranteed for your unit’s production run, eliminating generic substitutes.
- Visual Verification: Compare the diagram’s renderings with the catalog’s photographs. Pay attention to subtle details–mounting holes, connector types, or material finishes–to rule out superficially similar parts.
- Electrical Compatibility: For circuits or sensors, note the voltage and pin configuration in the diagram. The catalog’s specifications must match these exact parameters to prevent malfunctions.
Technical support chats or telephone advisors can provide clarification if the catalog entries are unclear. Provide them with the label code, serial number, and a concise description of the component’s function (e.g., “impeller for lower spray arm”). They may direct you to undocumented part numbers or upcoming updates to the official repository.
When ordering, prioritize items marked “OEM” or “manufacturer-approved” in the catalog. Aftermarket alternatives may lack compliance certifications (e.g., UL, RoHS) or exhibit dimensional variance. Retailers often sell these under different brand names, but their labels won’t correlate with the original schematic’s identifiers–risking installation errors.
Common Pitfalls in Label-to-Part Matching
- Assuming identical labels across model years: A “DW8X-2021” pump may differ from “DW8X-2023” despite sharing the same diagram code.
- Overlooking superseded parts: The catalog may list newer replacements, yet the diagram hasn’t been updated. Look for footnotes like “replaces P-89X” in the details.
- Ignoring subassemblies: A single diagram label might encompass a cluster of smaller components (e.g., a detergent dispenser including gears and springs). The catalog may break these into individual SKUs.
Document each verified match in a spreadsheet, recording the label code, OEM part number, and catalog description. This prevents duplicate orders and serves as a reference for future maintenance. If the appliance requires firmware-controlled components (e.g., control boards), ensure the catalog indicates compatibility with the installed software version.
