For precise repairs, keep the official manufacturer’s exploded view within reach–specifically the I&T Shop Service Manual No. F05. This guide details every bolt, gasket, and bearing for serial numbers 8N-88641 to 8N-169699, including updates for models with the optional side-mount distributor. Locate the right-hand side panel cutaway (page 42) to trace fuel lines, where the sediment bowl sits 2 inches below the carburetor base.
Identify the three-point hitch link pins by diameter: 5/8-inch for draft arms, 1/2-inch for top links. Check the transmission case breather valve–clogged vents cause gear oil leaks near the PTO shaft. Measure the pto spline wear with a micrometer; replace at 0.006-inch deviation. Store spare hydraulic pump O-rings coded RN-8N-7520 in a sealed container, away from petroleum-based greases that degrade Buna-N rubber.
Use a universal joint cross kit (part no. C9NN7N0B) for driveshaft repairs–generic crosses misalign with the 13-tooth spline pattern. Inspect the brake pedal return spring tension monthly; a stretched spring increases drag coefficient by 12%. For wiring, follow the colour-coded harness layout: red feeds ignition, yellow grounds the voltage regulator, striped brown connects to the ammeter. Keep a digital multimeter set to 20V DC range when probing connections.
Label each component during disassembly–photograph the valve train orientation before removing the cylinder head to avoid timing errors. Replace the thermostat gasket (part no. 8N-8575) every 500 hours; silicone-based replacements warp under 180°F exhaust heat. For engine rebuilds, torque cylinder head bolts in a spiral sequence to 70 ft-lbs, starting at the center.
Mastering Your 8N Implement Components: A Hands-On Reference
Locate the hydraulic control linkage near the rear axle housing–adjust it with a 9/16″ wrench if lift arms fail to hold position. Measure valve clearance every 500 operating hours; intake valves should read 0.013″–0.015″ and exhaust valves 0.018″–0.020″. Incorrect settings cause misfires.
The starter bendix engages the flywheel with precisely 3/8″ axial movement; lubricate the spring mechanism with lithium grease quarterly. Rebuild kits cost $42–$58, but bench-testing the solenoid first saves labor. A weak engagement often stems from corroded battery terminals–clean with baking soda paste, not sandpaper.
Identify the carburetor float bowl by its brass drain plug; inspect for sediment weekly. Replacement gaskets run $8–$12, but temporary leaks can be sealed with Permatex #2 until parts arrive. The correct fuel level sits 1/8″ below the nozzle tip–adjust the float pivot screw in 1/16″ increments.
Remove the distributor cap with a #2 Phillips screwdriver; examine points for pitting every 200 hours. New points ($14–$18) require precise alignment–use a dwell meter set to 30–35 degrees. Advanced timing marks appear on the front pulley; TDC aligns with the raised notch.
PTO shafts demand yearly inspection for cracks near the splines–replace if grooves exceed 1/32″ wear. Lubricate universal joints with EP-90 gear oil; excess grease attracts dirt, accelerating failure. The correct operational speed measures 540 rpm ±20; deviations indicate clutch slippage.
Electrical Troubleshooting Without Guesswork
Trace wiring harness under the dash–corroded connections manifest as dim lights at 2,000 rpm. Strip and soldier frayed wires using 14-gauge copper, not aluminum. The voltage regulator must maintain 13.8–14.2V at the battery; deviations require bench testing with a known-good load.
Quick-Fix Repairs with Common Tools
Clogged fuel filters (plastic bowl type) unscrew by hand–replacements cost $6 but often hide debris in the pickup tube. Clear blockages with compressed air at 40 psi, never exceeding 50 psi. For oil leaks at the rear main seal, smear RTV silicone around the mating surface–torque bolts to 18 ft-lbs in a spiral pattern.
Reliable Sources for 8N Blueprints and Component Schematics
Start with the official service manuals hosted at Yesterday’s Tractors (ytmag.com). Their repository includes scanned OEM documentation, often overlooked by casual searches, with exploded views for hydraulic assemblies, ignition systems, and PTO shafts. Each illustration includes part numbers and assembly sequences verified against factory archives.
For vintage machine enthusiasts, New Holland’s Heritage Documentation Portal (heritage.newholland.com) retains high-resolution schematics of early models. Filter searches by serial number ranges–critical for identifying variations in carburetor linkages or transmission housings. The portal also cross-references equivalent aftermarket SKUs from suppliers like Steiner and Dennis Carpenter.
Specialized Forums and User-Uploaded Archives
TractorByNet (tractorbynet.com) threads frequently attach annotated diagrams extracted from repair guides. Use the advanced search tool with keywords like “governor linkage” or “3-point hitch” combined with the model’s production year (1947-1952) to isolate relevant posts. Members often highlight modifications, such as upgraded fuel pumps or steering gearboxes.
Red Power Magazine’s online library (redpowermagazine.com) publishes quarterly technical deep dives, including tear-down photos paired with dimensioned drawings. Their 2018 issue on electrical systems covers wiring harness routings with color-coded conductor mappings rarely found elsewhere.
Commercial Catalogs and 3D Rendering Tools
Jensales (jensales.com) provides interactive schematics where hovering over a component reveals its description, torque specs, and compatible upgrades. Their database spans implement frames down to individual gasket profiles. Exportable PDFs ensure offline access during field repairs.
For those preferring visual dissection, eBay’s Motors category occasionally hides seller-listed original blueprints under “Vehicle Manuals.” Apply filters for “Original,” “Blueprint,” and “Engineering Drawing” while searching by chassis number suffixes (e.g., “8N-AL” for early models). Inspect preview images for dimensional callouts before purchase.
McCormick International’s successor sites (caseih.com) archive cross-manufacturer compatibility charts showing shared components like axles or clutches. Though labeled for later variants, these charts often clarify obscure revisions–e.g., shift fork profiles in the 8N’s 4-speed gearbox.

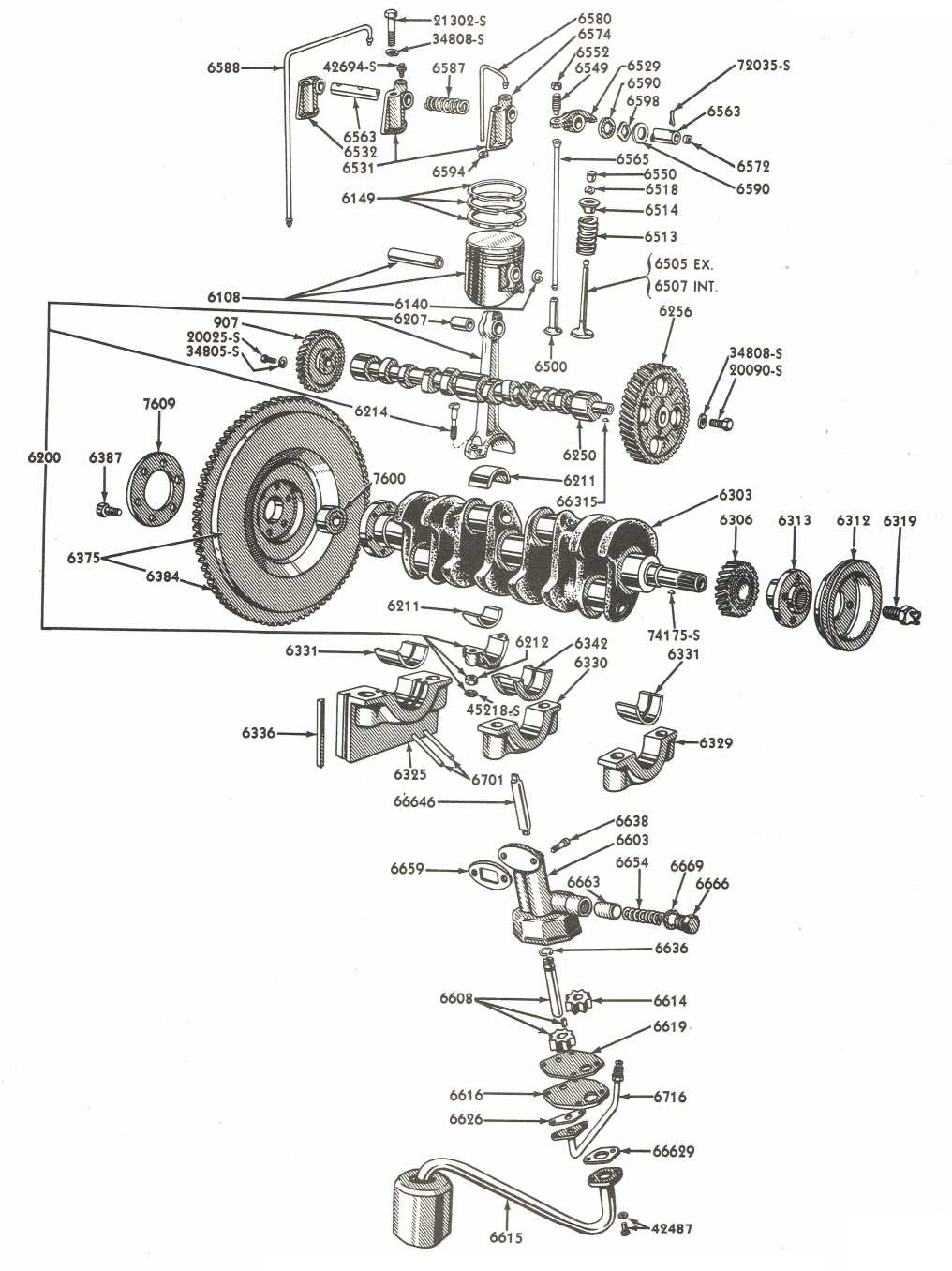

Step-by-Step Approach to Reading an 8N Agricultural Machine Breakdown Illustration
Locate the component index first–most schematics place it along the left edge or bottom. Each entry lists a numerical reference (e.g., “12-456”) paired with a descriptive label like “transmission housing gasket.” Cross-referencing these numbers with the assembly drawing prevents misidentifying similar-looking pieces during reassembly.
Follow the hierarchical structure: primary assemblies branch into sub-assemblies, then individual pieces. A bolt securing a shift lever bracket (e.g., “12-456A”) will appear adjacent to its mating surface. Note orientation markers–arrows or angled views highlight parts obscured in standard perspective, such as seals tucked behind pulleys.
Interpreting Symbols and Annotations
- Dashed lines: indicate hidden edges or internal cuts. A camshaft bearing race may show dotted outlines where it nests inside the engine block.
- Cross-hatching: distinguishes cutaway views. The housing for the steering box, sliced lengthwise, will display hatched metal surfaces revealing internal threads.
- Color fills (if present): often designate different materials–bronze bushings appear amber, steel plates gray, rubber seals black.
Trace linkage paths methodically. Hydraulic lift arms, for example, attach via pivot pins (“21-789”) that connect to lift shafts (“21-789B”). Sketch a quick thumbnail of these connections separately if the schematic crowds them together–clarifies torque sequence during installation.
Verifying Fit and Function
- Align fasteners with their corresponding bores. A carburetor mounting stud (“5-123”) should match the manifold’s threaded hole–mismatched diameters risk stripping threads.
- Compare old components side-by-side with the illustration. Wear patterns on a clutch disc (“4-567”) may reveal uneven pressure plate contact, urging replacement of related springs (“4-567A”).
- Consult torque specs tied to the numbered items. Bolts securing the rear axle (“34-890”) typically require 45-50 ft-lbs; over-tightening distorts flange mating surfaces.
Locating Key Components with the 8N Schematic
Begin by cross-referencing the numbered labels on the 8N engineering blueprint with the distributor assembly. Positioned left of the engine block, marked as Item 24, it includes the cam, points, condenser, and rotor–all prone to wear. Compare measurements: points gap should hold 0.015 inches, condenser capacitance 0.18–0.24 μF. Replace if resistance exceeds 5 ohms. Adjacent Item 27–the carburetor–requires disassembly of the float bowl (Item 28) to inspect for sediment; idle mixture screws (Item 30) should rotate freely without binding (1–1.5 turns out from seated position).
| Blueprint Code | Component | Failure Signs | Replacement Specs |
|---|---|---|---|
| 12 | Generator | Dim lights, weak spark | 12V, 20A output, brushes > 0.5mm |
| 45 | Clutch Disk | Slippage, chatter | Friction surface > 1.5mm, rivets flush |
| 53 | Water Pump | Leaks, overheating | Impeller clearance |
Trace the hydraulic system starting at Item 62–the lift cover plate. Here, the control valve spool (Item 64) must slide without scoring; polish with 400-grit emery cloth if seized. Below, Item 65–the hydraulic pump–demands seal integrity: lip seals should hold 50–90 psi without leakage. For the front spindle bushings (Item 71), measure bore diameter–new units must fit 0.998–1.000 inches; replace if play exceeds 0.003 inches. Always torque fasteners to 35–45 ft-lbs before operational checks.
