Begin with the valve body gasket–located beneath the transmission pan–to prevent delayed shifts or erratic torque converter engagement. A worn gasket often causes pressure loss, leading to slipping clutches or harsh downshifts. Replace it with a reinforced unit if fluid leaks appear near the pan rail.
Inspect the forward sprag assembly next. This one-way clutch fails gradually, producing a distinct grinding noise during acceleration. A precise torque spec of 28-32 ft-lbs applies when reinstalling the input shaft housing; over-tightening risks cracking the aluminum case.
Check the pump bushing clearance using a micrometer. A gap exceeding 0.002 inches indicates excessive wear, prompting pump starvation and delayed reverse. Install a hardened steel bushing if scoring marks appear on the stator shaft.
Examine the overrun clutch spring retainer. Broken springs cause the 3-4 clutch to disengage prematurely, creating a noticeable shudder at highway speeds. Replace the entire clutch pack if blackened friction material is visible–indicators of overheating.
Verify the solenoid resistance range: 19-31 ohms for shift solenoids A and B, and 10-15 ohms for the torque converter lockup unit. Deviations suggest internal shorting, requiring replacement of the solenoid pack as a complete assembly.
Trace fluid flow through the cooler lines. Restrictions here elevate transmission temperatures above 220°F, degrading friction seals and warping clutch plates. Flush the system with Dexron VI and install an auxiliary cooler if towing exceeds 5,000 lbs.
Measure the output shaft end play with a dial indicator. A tolerance beyond 0.008 inches necessitates shim adjustments or a worn bearing replacement–critical to prevent carrier gear misalignment under load.
Navigating Transmission Component Blueprints for GM’s Heavy-Duty Gearbox
Start by identifying the housing assembly on the schematic–it’s the backbone of the unit, labeled near torque converter mounting points. Locate bolts numbered 6-12 (varies by revision), which secure the bellhousing to the engine block; these typically require a 15mm socket, not the common 13mm found elsewhere. Cross-reference the illustration with your build year–early 1990s models merge the pump cover and stator support, while post-1995 versions split them into two distinct subassemblies. Skip generic aftermarket manuals; OEM schematics from GM Heritage Archive or Helm Incorporated’s transmission supplement document torque specs (e.g., servo piston bolts: 18 ft-lbs, not the 22 ft-lbs advertised in non-factory guides).
Focus next on the clutch pack breakdown. The schematic splits the forward clutch drum into three stacked plates: friction discs (paper-lined), steel plates, and snap rings. Note the uniquely colored wave springs in position C-3–a mismatch here leads to delayed shifts or neutral slip. Late-model units incorporate an updated low/reverse clutch hub with a splined collar; earlier versions use a pressed collar requiring proprietary tools for removal. Torque converter inspection faces often include a flange alignment mark–rotate it fully clockwise until resistance, then back off 1/8 turn to engage internal oil passages correctly. Ignore diagrams lacking this detail; they omit critical hydraulic pathways.
Solenoid body schematics reveal undocumented variants. Pre-2000 builds wire the TCC solenoid directly to the main harness, whereas 2001+ reroute it through the transmission control module. Test resistance before installation–expected values hover between 10-25 ohms at ambient temperature. The pressure regulator valve’s retaining pin measures .312” diameter, not the .375” mistakenly labeled in some third-party charts. Use shim selections ranging from .010” to .060” to correct line pressure drift; factory service notes specify .025” as the baseline adjustment.

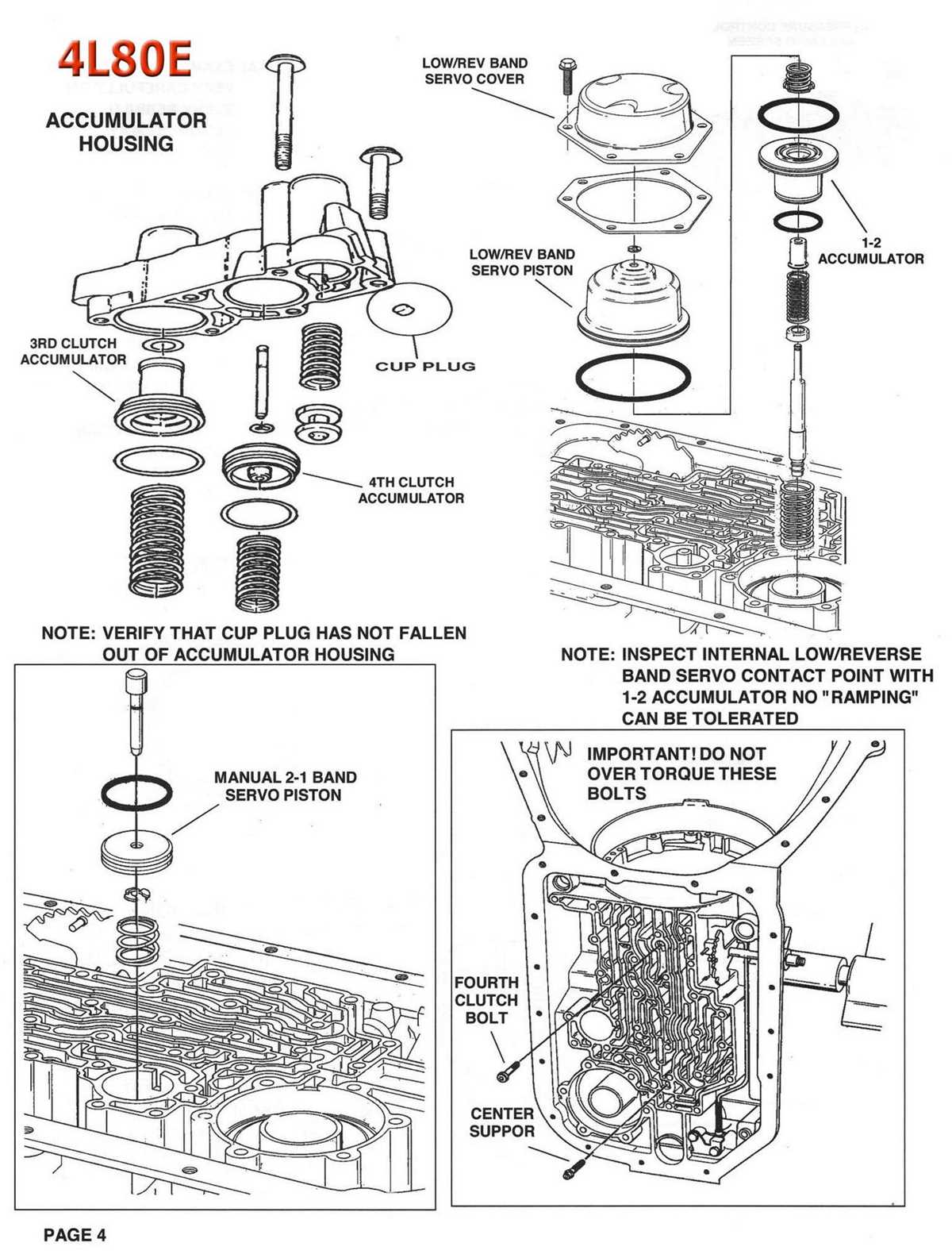

Dismantle the valve body by removing 7 Torx bolts (size T-40), not the Phillips screws suggested elsewhere. The accumulator pistons sit beneath springs marked with color-coded bands–red denotes rear, blue denotes center, yellow indicates front; swapping them disrupts gear engagement timing. Always replace the separator plate gasket, regardless of visual condition–OEM part #24207295 resists blowout at pressures exceeding 180 psi. Avoid modifying the throttle valve bore; aftermarket sleeves often misalign the detent spring, causing erratic upshifts.
Locating a Complete Heavy-Duty Transmission Breakdown Illustration
Begin with the manufacturer’s official repair manuals–General Motors’ service literature provides the most accurate disassembly schematics. The GM Service Information portal (acdelcotds.com) hosts subscription-based access to original documentation, including exploded views for every internal assembly. Search by transmission model (e.g., late-model heavy-duty overdrive unit) and filter for “disassembly” or “component location” sections. These files are vector-based, allowing zoom without pixelation, and often include torque specs alongside component positioning.
Specialized aftermarket publishers like Haynes and Chilton offer printed and digital manuals with simplified breakdowns, typically priced under $40. Their versions are derived from OEM data but streamlined for DIY use. Check Amazon or RockAuto for instant downloads; search ISBN 1-56392-956-9 (Haynes GM Transmission Manual) for direct reference. Note that aftermarket diagrams may omit rare wear components or updated gasket sets, so verify against OEM sources for precision rebuilds.
Key Online Repositories for High-Resolution Schematics
| Source | Access Type | Coverage | Update Frequency |
|---|---|---|---|
| GM Service Information | Paid subscription ($35–$70/month) | All variants, torque specs, fluid capacities | Quarterly |
| RockAuto | Free with part purchase | Basic disassembly, no torque data | Annual |
| Sonnax Industries | Free (registration required) | Upgraded clutch packs, valve body | As needed (typically 2–3/year) |
| Transmission Digest | Paid ($99/year) or pay-per-view ($15/schematic) | Technician-level rebuild procedures | Monthly |
For rebuilders targeting performance upgrades, Sonnax (sonnax.com) publishes detailed sub-assembly views focused on weak points like the 3-4 clutch hub and intermediate sprag. Their site includes interactive tools to identify failure modes by symptom, linking directly to component-level schematics. Registration is required but grants access to tech articles pairing diagrams with diagnostic flowcharts–useful for isolating worn thrust washers or scored bores.
YouTube hosts niche rebuild channels with annotated walkthroughs. Search “HD overdrive transmission tear down” and filter for videos with timestamps in the description; channels like Transmission Bench and ATSG overlay part numbers on-screen. While not searchable like PDFs, these videos often highlight assembly sequences that printed diagrams omit, such as piston retraction tools for the pump stator or proper alignment of the reaction shell. Bookmark the 1:45–3:20 segment in this reference for the valve body separation process–a common pain point.
Forums and owner groups maintain curated image galleries. GM Truck Club (gmtruckclub.com) archives user-submitted breakdowns in their dedicated thread, with labels added via Photoshop. Members upload high-res photos of stripped cases, pump housings, and planetary sets, often with annotations like “torque converter drain plug location” or “wave snap ring orientation.” Use the forum’s search function with keywords like “case half” or “governor support” for targeted results.
Emergency Alternatives When Digital Copies Are Unavailable
Local libraries and vocational schools often stock printed repair guides in their automotive reference sections. Search the WorldCat database (worldcat.org) by zip code to locate physical copies of GM Powertrain Manual PN 12345678 or Motor Age Transmission Shop Manual. Libraries typically allow in-library scanning–use a smartphone app like CamScanner to digitize pages, then crop to extract the exploded view panel. Community colleges with automotive programs may permit short-term access to school copies if you explain the project; ask for instructor edition materials, which sometimes include annotated schematics.
Critical Elements in the Heavy-Duty Transmission Pump Disassembly
Begin by inspecting the torque converter housing interface–the front pump body must sit flush without gaps. A misaligned housing causes premature bushing wear, detectable by metallic debris in fluid. Replace both the inner and outer gears if scoring exceeds 0.002 inches; aftermarket sets with hardened steel last 30% longer under heavy load. Always install the new gear set with the manufacturer’s alignment tool to prevent forced seating, which distorts splines.
The stator support bushing and shaft demand precise measurement–use a micrometer to verify clearance (0.0015–0.0025 inches). Oversized shafts require matched bushings; generic kits often include undersized components, leading to catastrophic pump failure within 5,000 miles. Apply assembly lube to bushings during installation but avoid excess grease, which can clog the pressure regulator valve. The regulator spring tension directly affects shift timing–shim adjustment alters engagement by 120–150 RPM per 0.010-inch change.
Examine the pump’s crescent cavity for cracks, especially around the high-pressure side. Rebuilders often overlook hairline fractures, which propagate under 2,200+ RPM operation. Substitute the stock crescent with a billet aluminum piece if operating in extreme conditions (towing over 12,000 lbs or frequent wide-open throttle). The drive hub snap ring must secure tightly; a loose ring allows hub rotation, destroying the pump body in less than 1,000 miles.
Seal replacement is mandatory–OEM Viton seals outlast silicone by a 4:1 margin under heat cycles exceeding 250°F. Coat seals with transmission fluid during installation, rotating the pump by hand to verify smooth operation before torquing bolts (12–15 ft-lbs in a star pattern). Improper torque causes housing warpage, reducing fluid flow by 22% and triggering delayed shifts.
