For precise troubleshooting or upgrades, begin by isolating the extrusion assembly. The hot end and cold end must operate within 5°C of their rated temperatures–consult thermistor readings first. A 12V or 24V heater cartridge with resistance between 4-8 ohms is standard; deviations indicate failure. Replace the nozzle if diameter exceeds 0.4mm post-calibration, as filament inconsistencies stem from worn outlets. Verify PTFE tubing integrity: cracks near the Bowden coupling cause filament drag, reducing layer adhesion by up to 30%.
Frame rigidity dictates print fidelity. Aluminum extrusion profiles (2020 or 2040) should show less than 0.1mm deflection under 20kg load. Check Z-axis lead screws for backlash; stepper motors require 1.8° per step resolution, with microstepping set to 1/16 for optimal precision. If layer shifts persist, inspect the timing belt tension–the GT2 6mm width should deflect no more than 2mm under 5N force. Misalignment here introduces artifacts visible in overhang tests (e.g., 45° bridging failures).
Electronics demand exact wiring. RAMPS 1.4 boards without MOSFET upgrades risk overheating during multi-extruder operations. Use silicone-coated wires for heated beds to prevent short circuits from thermal expansion. For Marlin firmware, confirm `DEFAULT_AXIS_STEPS_PER_UNIT` matches your gear ratio–common values are 80 for XY and 400 for Z (M8 leadscrew). A mismatch here scales models incorrectly, distorting functional prints like gears by ±0.5mm. Update endstop switches to optical or hall-effect sensors to eliminate false triggers from mechanical wear.
Cooling systems differentiate baseline from professional models. Standard axial fans attached to the print head struggle with PLA bridging beyond 150mm/s–upgrade to a 5015 blower (30 CFM) for consistent airflow. Dual fans are necessary for ABS to prevent warping; target 30°C ambient temp around the build area. For enclosed machines, a PID-controlled heater (e.g., 200W silicone pad) maintains 60-80°C chamber temp, improving interlayer bonding for high-impact polymers like PETG. Without this, layer separation occurs at 0.2mm thickness or less.
Understanding Component Layouts in Additive Manufacturing Machines
Begin by labeling every mechanical, electronic, and structural element in a schematic to avoid confusion during troubleshooting. Use color-coded zones: red for high-voltage components, blue for cooling systems, and green for motion control. This simplifies identification and reduces cross-referencing time.
Break down the extruder assembly into its core segments:
- Hotend (nozzle, heat block, thermistor, heater cartridge)
- Cooling fans (part cooling, heat sink)
- Filament drive mechanism (geared or direct)
Mark each segment with precise measurements (e.g., M6 threading for nozzle, 40W heater cartridge) to ensure compatibility when sourcing replacements.
For the motion system, detail the axes configuration:
- X-axis: belt-driven (GT2 6mm belt + 20T pulleys)
- Y-axis: lead screw (8mm pitch) or belt (identical to X)
- Z-axis: dual threaded rods (TR8x8) or lead screws
Include torque specifications for stepper motors (e.g., NEMA 17 with 0.4Nm holding torque) and belt tension values (0.5–1.0kg for GT2 belts).
Critical Calibration Points
Indicate endstop positions using arrows and fractional offsets (e.g., “0.3mm from bed edge at X=-30mm”). For bed leveling, specify probe type–BLTouch (servo-based) or fixed inductive sensor–and its mounting height relative to the nozzle (typically 2–3mm higher). Add a small table for PID values if using firmware like Marlin:
| Parameter | Default Value | Tuning Range |
|---|---|---|
| P | 10.0 | 5–20 |
| I | 0.5 | 0.1–2.0 |
| D | 200 | 100–500 |
Include power distribution details:
- PSU rating: 12V/24V, 360W minimum for heated beds
- RAMPS or SKR board: fuse ratings (5A for hotend, 10–15A for bed)
- Stepper drivers: microstepping (1/16 vs 1/32) and current limits (VREF calculation for TMC2209)
Note voltage drop considerations for long cable runs (e.g., heated bed wires ≥16AWG).
Highlight firmware-specific settings in annotated boxes:
#define DEFAULT_AXIS_STEPS_PER_UNIT {80, 80, 400, 500}
#define DEFAULT_MAX_FEEDRATE {300, 300, 5, 25}
#define Z_PROBE_OFFSET_FROM_EXTRUDER 0.1
Link each parameter to its functional impact (e.g., steps_per_unit affects layer resolution, max_feedrate influences print speed).
Failure-Prone Areas and Proactive Measures
Flag high-wear regions with icons:
- Heat break threading (replace PTFE liner every 200 hours)
- ⚙️ Idler pulleys (lubricate with lithium grease monthly)
- ⚡ Control board connectors (crimp Dupont pins annually)
Add QR codes linking to vendor datasheets for common failure components (e.g., Mosfets for heated beds). Include a mini-checklist for weekly maintenance:
- Verify belt tension (pluck test: 100Hz frequency)
- Inspect nozzle wear (0.4mm ±0.02mm orifice tolerance)
- Check stepper motor coupling set screws

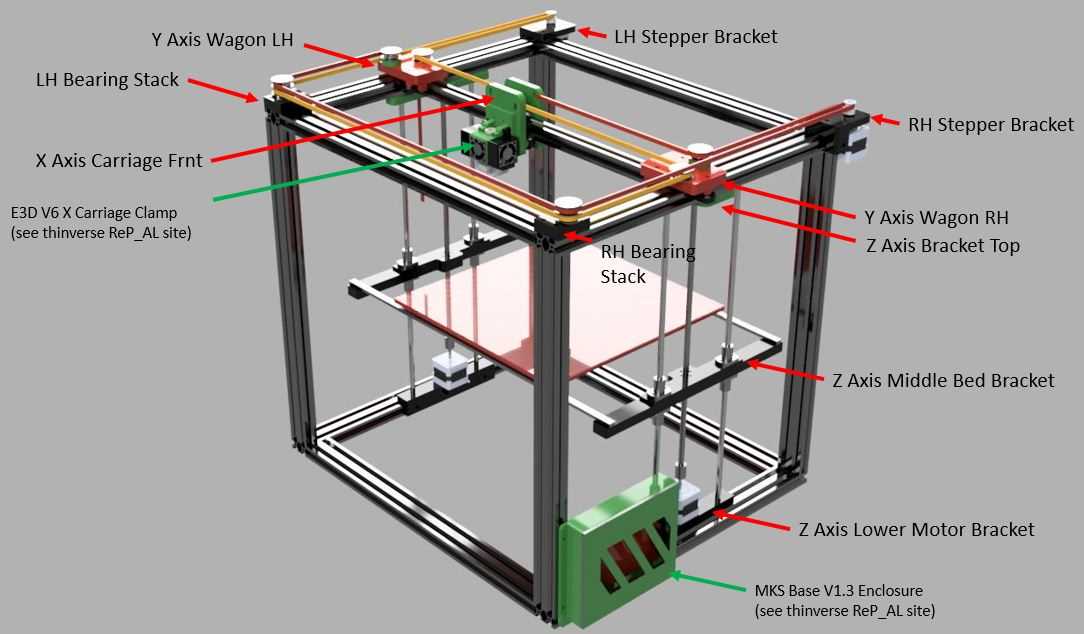

Critical Hardware Elements and Precise Positions in a Typical FDM Extrusion System
Secure the extruder assembly at the rear of the gantry’s X-axis carriage, ensuring the stepper motor’s gear aligns with the filament feed path–misalignment here causes inconsistent extrusion. The heater block attaches directly below the cold end, typically containing a 24V cartridge heater and a thermistor; verify wiring insulation to prevent short circuits. Locate the nozzle at the block’s base, where it threads into the heater; brass variants (0.4mm standard) require periodic checks for abrasion, especially with carbon-filled materials.
Anchor the build platform centrally on the Y-axis carriage, leaving at least 5mm clearance from the frame’s edges to prevent mechanical interference during homing. A magnetic flex plate (PEI-coated) improves adhesion but demands precise leveling–use a dial indicator for sub-0.1mm accuracy, particularly at the four corners. Heated beds (PCB or AC silicone mats) require temperature calibration; PID tuning (M303 command) eliminates overshoot during initial layers, critical for ABS or PETG prints.
Motion System Placement and Calibration
Position endstops at the extreme ends of each axis–Y and Z on the frame’s left, X on the gantry’s far side–without contact bounce, which causes homing failures. Belt-driven systems (GT2 6mm width) need tension adjustment via eccentric pulleys or spring-loaded rollers; slackening by even 1mm reduces print resolution. V-slot wheels (facing inward on the gantry) must rotate freely without wobble; replace if grooves develop from hardened filament debris.
Lead screws (Z-axis) thread into anti-backlash nuts secured to the gantry; lubricate with PTFE spray every 100 hours of operation to avoid binding. Stepper drivers (TMC2209 or similar) mount to the control board, requiring heat sinks if currents exceed 1.2A–monitor motor temperatures during prolonged prints to prevent demagnetization. For dual-extrusion setups, secondary hotend wiring must route through strain-relief guides to prevent tangling during X-axis movement.
Filament Path and Sensors
Feed the filament through a Bowden tube or direct-drive guide, maintaining a consistent radius (minimum 30mm) to prevent snap or deformation. The extruder’s drive gear should press firmly against the filament, with tension adjustable via a spring-loaded idler; too loose risks slippage, too tight causes gear teeth wear. A filament runout sensor (optical or microswitch) installs between the spool holder and extruder–test by pausing mid-print to verify accuracy.
Position the control board (e.g., SKR Mini E3) near the power supply but away from heat sources; USB ports face outward for firmware updates. A 30x30mm axial fan cools the board’s stepper drivers, while a separate 5015 blower aims at the hotend’s heatsink to prevent heat creep. Wiring harnesses bundle tightly with spiral wrap, avoiding sharp edges that could chafe insulation over time; use ferrite chokes on motor and heater leads to reduce electromagnetic interference.
For enclosure builds, mount temperature sensors (DS18B20) at both the ambient air level and near the print surface–fluctuations above ±3°C indicate insufficient airflow, risking warping with high-temp polymers. AC components (PSU, heated bed) must ground separately to the frame, with star topology to minimize noise; a multimeter’s continuity test confirms proper bonding before initial power-on.
Step-by-Step Guide to Swapping the Extrusion Head and Thermal Core
Power down the device and disconnect all cables to avoid thermal damage or short circuits. Use a 2.5mm hex key to loosen the retaining screw on the cooling shroud, then gently slide it upward to expose the brass nozzle. Heat the nozzle to 200°C using the control interface–this softens residual filament, preventing thread stripping during removal. Turn the nozzle counterclockwise with pliers or a wrench, applying steady pressure. If resistance occurs, re-heat to 230°C for PLA-heavy builds or 250°C for ABS composites. Clean the internal threads with a brass brush to remove carbonized debris before installing the replacement.
Inspect the thermal core for oxidation or pitting before reattachment. Apply a thin layer of thermal paste (e.g., Arctic MX-4) to the heater cartridge threads to improve heat transfer efficiency. Secure the new brass nozzle finger-tight, then torque to 1.5 Nm using a calibrated driver–over-tightening risks thread deformation or glass-fiber leak paths in reinforced plastics. Verify alignment by extruding 10mm of filament; misalignment causes inconsistent layer adhesion or clogs. If the extrusion path deviates horizontally, re-check the nozzle seating depth against the manufacturer’s tolerance (typically ±0.1mm).
| Material | Nozzle Temp (°C) | Removal Torque (Nm) | Thread Replacement Interval |
|---|---|---|---|
| PLA | 200–220 | 0.8–1.2 | Every 500 hours |
| PETG | 230–245 | 1.0–1.3 | Every 400 hours |
| ABS | 240–260 | 1.2–1.5 | Every 300 hours |
| PA6 (Nylon) | 250–270 | 1.3–1.6 | Every 200 hours |
Replace the heater block if the resistance reading deviates by more than 5% from the nominal value (e.g., E3D V6: 3.6Ω ±0.2Ω). Use a multimeter to probe the cartridge leads–faulty blocks exhibit erratic temperature spikes or failsafe triggers. When installing a new block, ensure the thermistor sits flush against the channel walls; gaps cause thermal lag or inaccurate readings. For dual-extrusion setups, mark the nozzle index slots to preserve offset calibration (±0.05mm tolerance). Recalibrate the z-height after swaps using a feeler gauge or inductive probe.
Post-replacement, run a 50mm purge test with a sacrificial filament (e.g., PLA) at reduced speed (20mm/s) to clear residual carbon from the melt zone. Monitor extrusion width with calipers–deviations beyond ±0.1mm indicate partial clogging or incorrect nozzle diameter selection. For abrasive materials (e.g., carbon fiber, glow-in-dark PLA), upgrade to hardened steel nozzles (e.g., Olsson Ruby) to extend service life. Store spare nozzles in a dry container with silica gel to prevent corrosion. Document swap dates and resistance values in a maintenance log to track degradation trends.
If filament oozing persists after reassembly, check the heat break for partial blockage–remove the Bowden tube and use a 0.4mm drill bit to clear any obstructions manually. For direct-drive configurations, verify the stepper motor’s gear mesh clearance (±0.2mm) to prevent filament grinding. Avoid using metallic tools to scrape hardened residue; instead, soak components in a heated ultrasonic bath with limonene-based solvent (e.g., CleanGreen3D) for 20 minutes, followed by compressed air drying. Reassemble in reverse order, ensuring the cooling fan duct aligns with the nozzle tip to prevent overheating during extended prints.
