Start troubleshooting or upgrading your 36-volt electric utility vehicle by locating the motor controller–the heart of the system–positioned under the seat. The Alltrax SPM or XCT model is standard in older units, identifiable by its rectangular housing with six heavy-gauge cables (two for battery input, two to the motor, and two for accessories). Check connection integrity first; corrosion on terminals often mimics component failure. For 2008–2014 models, refer to manual sheet ED-09-1234 for pin assignments–mistaking accessory circuits for motor leads risks irreversible damage.

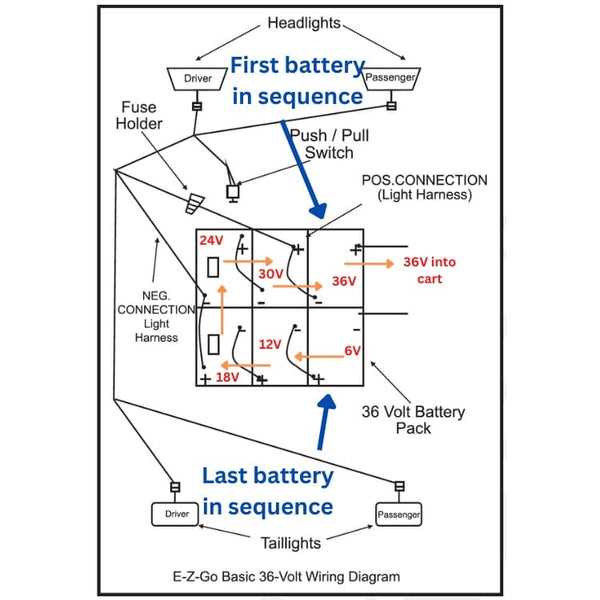

Battery interconnects follow a series configuration: positive of pack one links to negative of pack two, continuing through six 6V units for 36V output. When replacing cables, use 4 AWG tinned copper for main feeds and 6 AWG for accessories–thinner wires cause voltage drop under load. Label every connection before disassembly; factory diagrams often omit accessory circuits like cooling fans or LED lights, which can differ across model years.
The solenoid, mounted near the controller, features four terminals: B+ battery, M motor, S small, and A accessory. Jumpering B+ to M tests function–if the motor engages, the solenoid is good; silence indicates failure even if resistance measures within spec (typically 45–60 ohms). For charger ports, verify pinout compatibility with Delta-Q or Delta-T models; reverse polarity destroys onboard circuits instantly.
Suspension upgrades require matching drive axle torque ratings (350 ft/lb standard, 450 ft/lb for lifted models). Replace worn leaf springs individually–stacking additional leaves alters handling geometry. For regenerative braking systems, confirm brake switch continuity (0.2–0.5 ohms) before testing; faulty switches prevent energy recovery, compromising range by 12–18%.

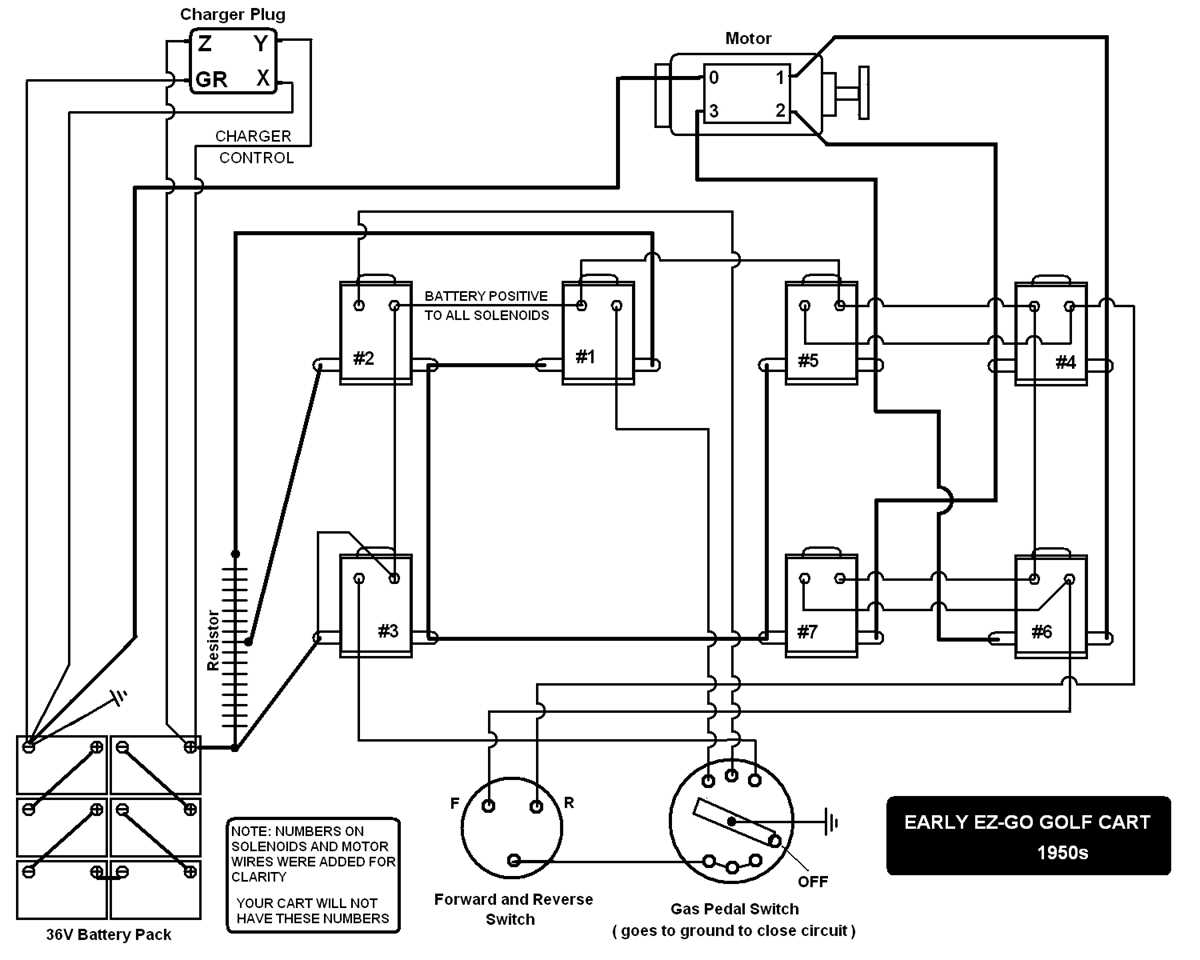

Electrical Schematic Breakdown for 36V EZ Go Vehicle Components
Begin troubleshooting by locating the main power relay under the driver’s side seat–identify the red cable from the battery pack that feeds into the unit. This relay controls current flow to the primary controller and must be inspected first if the vehicle fails to power on. Verify the relay’s coil resistance (should read ~80–120 ohms) and check for corrosion at the terminal connections using a multimeter in continuity mode.
The motor solenoid sits adjacent to the rear axle assembly, recognizable by its cylindrical shape and two large copper studs. Measure voltage across these studs when engaging the accelerator; a reading below 32V indicates internal contact degradation or a faulty activation switch. Replace the solenoid if clicking sounds persist without motor engagement–common failure points include worn plunger springs or charred contact points.
Trace the wiring harness from the forward-neutral-reverse (FNR) switch to the controller’s 8-pin connector. Pin 3 (gray wire) carries signal voltage to the motor controller; if this circuit reads open, inspect the switch’s micro-terminals for oxidation. A temporary bypass can be created by jumpering Pin 3 to Pin 5 (blue wire) for testing, but permanent repairs require switch replacement or soldered bypass of damaged traces.
Key Diagnostic Measurements
Test the main battery pack’s individual cell voltages–each 6V unit should measure between 5.8–6.3V when fully charged. Cells reading below 5.4V require load testing; use a carbon pile tester to simulate a 100-amp draw. If voltage drops below 4.8V under load, the cell has sulfated plates and must be replaced or equalized with a smart charger set to 2.45V per cell for 12–24 hours.
The speed sensor, mounted near the rear differential, communicates wheel rotation data via a single-pin connector (yellow wire). If the vehicle experiences erratic speed changes or abrupt halts, probe this wire for a 1.5–3.0V AC signal while spinning the rear wheel by hand. No signal indicates sensor failure, while intermittent signals suggest a loose mounting bolt or stripped gear teeth on the encoder wheel.
Inspect the accelerator potentiometer by removing the floor mat and peeling back the access panel. The pot’s resistance should vary smoothly between 0.5–4.7 kΩ when pressing the pedal. Deviations above 5.0 kΩ or sudden jumps in resistance indicate worn carbon tracks–replace the pot if cleaning with contact cleaner fails to restore smooth operation. Ensure the return spring tension is adequate (6–8 oz-in) to prevent pedal sticking.
Front suspension components, particularly the A-arm bushings, directly affect steering stability and electrical grounding. Check the ground strap connected to the front frame rail; a corroded or loose strap creates voltage drop issues mimicking controller failure. Scrape paint from mounting points until bare metal appears, then reattach the strap with a star washer to ensure solid electrical contact.
Controller Configuration and Error Codes
The Curtis 1205 controller stores fault codes accessible via the onboard diagnostic port (D-plug beneath the dash). Short pins A and B on the D-plug, then turn the key to “ON” to display codes via the charge meter needle–count the needle sweeps to decode errors (e.g., 3 sweeps = controller over-temperature, 5 sweeps = motor phase loss). Clear codes by disconnecting the main battery pack for 30 seconds; persistent codes require controller recalibration or replacement.
For vehicles with regenerative braking, verify the brake light switch (mounted on the brake pedal arm) sends a 12V signal to the controller when depressed. Absence of this signal prevents regenerative braking and may trigger a “brake switch fault” (code 8). Adjust the switch’s plunger travel to engage at 1/4-inch pedal depression; lubricate the pedal linkage pivot points to prevent switch binding.
Locating Key Electrical Elements in a 36V EZ Go Schematic
Identify the solenoid first–it sits near the power pack, typically bolted to the frame or battery tray. The component’s two large terminals connect directly to the main power feed and motor, while smaller lugs manage control signals. Use a multimeter to verify continuity between the control terminals when the throttle engages; a healthy solenoid should click audibly and show near-zero resistance.
Trace the motor controller next, usually housed beneath the passenger side floorboard or behind the main dash panel. The controller’s heat sink and mounting plate distinguish it from other modules. Pinpoint its input wires–red for positive, black for negative–and output lines feeding the drive unit. Check the label for model-specific codes, as replacement units must match the original’s amperage rating within 5%.
Locate the throttle potentiometer along the pedal assembly, identifiable by its three-wire connection. The outer wires provide reference voltage (typically 5V), while the center wire delivers variable resistance as the pedal depresses. Compare voltage readings at these terminals against a factory manual’s baseline values–deviation exceeding 0.3V signals wear or contamination requiring cleaning or replacement.
Common Wiring Fault Points
| Component | Symptom | Diagnostic Step |
|---|---|---|
| Battery interconnect cables | Intermittent power loss | Inspect for corrosion at clamp ends; resistance should not exceed 0.1 ohms |
| Main fuse block | Complete system shutdown | Check for blown 150A fuse; replace with identically rated unit |
| Direction switch | Fails to engage forward/reverse | Test voltage at F/R switch terminals; should toggle between 0V and pack voltage |
Find the key switch harness beneath the steering column; its wiring loom consolidates all ignition-controlled circuits. The primary red wire carries current from the power pack, while auxiliary wires (blue, orange) activate accessories. Inspect the plastic connector for brittleness–replace entire pigtail if pins show green oxidation or melting.
Laser-sharp focus on ground connections: the motor casing, frame rails, and battery negative bus must maintain impeccable contact. Scrape paint or rust from attachment points, then retighten bolts to 18-22 ft-lbs torque. A single compromised ground can mimic multiple electrical failures, so confirm continuity with a multimeter before pursuing other repairs.
Quick Reference Pinout Values
| Connection Type | Expected Reading | Tolerance |
|---|---|---|
| Solenoid control coil | 36-42 ohms | ±2 ohms |
| Throttle signal | 1.0-4.2V | ±0.2V |
| Charger receptacle | 0V off / 42V charging | ±1V |
Step-by-Step Guide to Identifying the Motor and Controller Connections
Locate the primary power cables exiting the traction unit–typically two thick leads labeled A1 and A2. Trace these back to the speed regulator’s output terminals, where markings often indicate “B+” and “B-” for battery-sourced current or “M1” and “M2” for the motor circuit. Use a multimeter in continuity mode to confirm direct links between the motor leads and the corresponding controller posts before proceeding.
Inspect the smaller auxiliary wires, usually color-coded green, yellow, or black, connecting the controller’s field excitation output (often marked “F1” and “F2”) to the motor’s shunt winding. Verify the polarity matches the manufacturer’s schematic–reversed connections will reduce torque or trigger fault codes. Label each wire with masking tape to prevent misalignment during reassembly.
Check for a thermal sensor or Hall-effect device embedded in the motor housing–most 1.5 kW setups include either a two-pin JST connector or a braided shield terminating near the rear axle. Disconnect this harness first to avoid damaging delicate circuitry when servicing power cables. Reconnect it last, ensuring the socket aligns with the controller’s designated input port, typically marked “T” or “TH”.
Test drive system integrity by powering on the vehicle and engaging forward motion at 25% throttle. Monitor the controller’s status LED–steady green confirms proper linkage, while rapid blinking suggests a wiring error or loose terminal. If voltage readings at the motor posts fluctuate more than ±0.3 V under load, re-tighten all terminals with a torque wrench set to 12-15 Nm.
Document every adjustment, noting wire gauge, connector type, and pinout orientation. Store this alongside the original build chart for future diagnostics; overlooking a single spade connector or ring terminal can cause intermittent failures. Keep a spare set of 8-gauge crimp terminals on hand–corroded contacts are a leading cause of unexpected drivetrain shutdowns.
