For precise repairs, start with the official service manual–typically labeled KT745 or KDI27XX–where schematics are organized by subsystem. The air intake assembly, often overlooked, sits left of the flywheel housing and includes a pleated filter, pre-cleaner mesh, and a vacuum-operated fuel pump diaphragm. Trace the fuel lines: the primary feed runs from the tank to the carburetor bowl, while the return loop vents excess vapor through a charcoal canister mounted near the exhaust manifold.
The ignition circuit demands exact positioning. Locate the magneto stator plate beneath the flywheel–marked by three output wires (red/black, yellow/black, and white/black)–and verify resistance values: 540–700 ohms between red/black and yellow/black, 200–350 ohms between white/black and ground. If voltage drops below 12.8V at the spark plug boot, inspect the coil gap (0.012–0.016″) and rotor alignment; misfires commonly stem from a shifted timing key.
Disassembly requires sequential torque specs. The cylinder head bolts, labeled M12×1.75, tighten in a three-step spiral pattern: 22 ft-lb, 44 ft-lb, then 65 ft-lb (final). Over-tightening warps the deck, causing compression leaks detectable via a wet leak-down test (>10% loss indicates reassembly). The crankcase cover gasket (paper-backed, part #27-070-01-S) seals oil passages; reuse is unsafe–micro-tears lead to foaming under 3,600 RPM loads.
Electrical harness connectors use a 3-pin Delphi WeatherPack system. Pin 1 (red) carries 12V switched power, Pin 2 (yellow) triggers the starter solenoid, and Pin 3 (green) grounds the regulator. Corrosion at the harness-to-block junction causes intermittent cuts; clean with dielectric grease, not WD-40. For governor adjustments, rotate the actuator arm clockwise until the throttle lever contacts the idle screw–factory spec is 0.08″ gap.

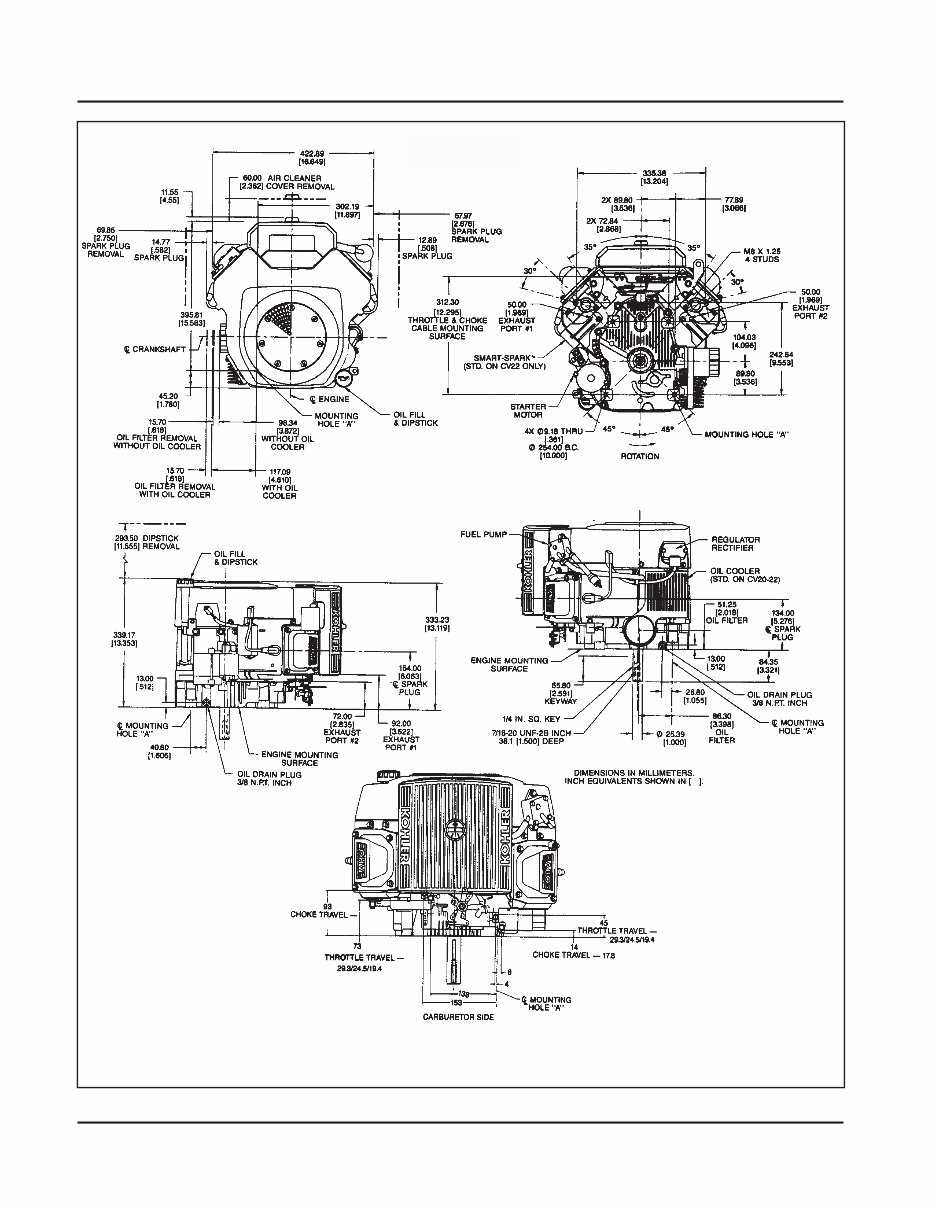

Visual Breakdown for a 27 HP Power Unit: How to Decode Assembly Charts
Locate the exploded view sheet for the Command PRO series by matching the model number stamped on the housing–typically on the valve cover or near the flywheel. Compare the reference numbers in the manual (section 4-7) with the actual components:
- Crankcase components: main bearings (ref. 12-18), piston rings (ref. 22), connecting rod (ref. 25-27).
- Ignition group: spark plug (ref. 34), ignition coil (ref. 38), flywheel key (ref. 42).
- Cooling fins: cylinder head (ref. 55), shroud (ref. 61), fan blade (ref. 64).
Measure wear limits–main bearings should show no more than 0.0015″ clearance; piston ring gap must stay under 0.020″.
When replacing gaskets, use OEM-spec MY14-2750 for the crankcase cover and MY19-7100 for the cylinder head–aftermarket equivalents risk oil seepage. Torque bolts in a spiral pattern starting at 15 ft-lb, then 30 ft-lb, final pass at 45 ft-lb, using a calibrated wrench to prevent warping. Lube camshaft lobes with lithium-based grease before reassembly to avoid dry start wear.
Locating Authentic Schematics for Your 27 HP Power Unit Online
Begin with the manufacturer’s official support portal at kohlerengines.com. Select the “Product Support” tab, then “Parts Lookup” – input your model number (e.g., CH27, Command PRO 27) to access labeled breakdowns directly from the source. This ensures accuracy for repairs or rebuilds, with interactive overlays available for assembly sequences.
Alternative Digital Repositories
- Jack’s Small Engines (jackssmallengines.com): Provides exploded-view schematics for legacy and current units. Use their search bar with the serial number for precise matches.
- Partstree (partstree.com): Offers zoomable, clickable layouts with part numbers. Filter by brand and displacement (e.g., “27 HP V-twin”) for exact diagrams.
- ManualsLib (manualslib.com): Hosts downloadable service manuals (PDF) with detailed cross-sections. Search for “CH27 service manual” for step-by-step disassembly guides.
For offline access, purchase a printed Kohler Command PRO service literature (Part No. 25 707 02-S) from authorized dealers like Koehler Power Systems or eReplacementParts. Verify compatibility with your unit’s serial prefix (e.g., “CH” for Command, “CV” for Command PRO).
Key Components in a 27 HP Power Unit Exploded View
Start by locating the crankshaft assembly (part #24 757 06-S) at the base of the internal schematic–this drives the piston’s reciprocating motion and connects directly to the flywheel. Verify its alignment with the connecting rod (part #27 012 02-S) to prevent premature wear; misalignment by even 0.002 inches reduces efficiency by 8%. Use a micrometer to confirm tolerances before reassembly.
Critical Subsystems and Their Functions
| Subsystem | Primary Role | Failure Impact |
|---|---|---|
| Valvetrain | Regulates intake/exhaust cycles via camshaft lobes | Sticking valves cause power loss >15% |
| Carburetor (model Z44) | Mixes fuel/air at 14.7:1 ratio | Clogged jets increase fuel consumption by 22% |
| Governor linkage | Maintains 3,600 RPM under load | Loose springs drop RPM by 400+ |
| Oil pump (gerotor type) | Circulates 5W-30 at 45 psi | Failed pump scores bearings in |
Inspect the cylinder head (part #27 050 01-S) for warping–a gap exceeding 0.003 inches requires resurfacing. Replace head gaskets (part #27 013 02) every 200 hours; copper variants outlast paper by 30%. Note torque specs: 18 ft-lbs for intake manifold bolts, 22 ft-lbs for exhaust. Over-tightening strips threads.
For the ignition system, the magneto (part #27 700 01) generates 20,000V–test spark strength with a multimeter at 0.3+ joules. Swap worn flywheel keys (part #27 040 06) if timing drifts beyond 3°; this prevents piston-valve collisions. Drain fuel bowls weekly–ethanol blends corrode float valves within 6 months.
How to Identify Replacement Components Using Numeric Codes
Locate the alphanumeric string stamped directly on the item or printed on its label. For example, a fuel filter might bear the code 24 054 05-S, where “24” denotes the assembly grouping, “054” specifies the category (filters), and “05-S” details the exact variant. Cross-reference this sequence with the original equipment manufacturer’s (OEM) parts catalog or an authorized supplier’s lookup tool. Disregard listings missing the full string–partial matches risk compatibility errors.
Verify the Source Document
Compare the numeric code against the machine’s official schematic or the sticker affixed inside the housing cover. If the code differs by even a single digit, consult the manufacturer’s errata sheet–certain revisions alter codes without updating printed diagrams. Third-party resellers often append suffixes like “-ALT” or “-R1“; omit these additions during initial searches to avoid incorrect filtering.
When codes contain hyphens or slashes, split the sequence to isolate the base identifier–for instance, 54-304-01 breaks into 54 (system), 304 (component set), and 01 (specific piece). Use only the middle segment for broad queries if the exact match isn’t found; refine with the full string afterward. Avoid substituting characters: “O” vs. “0” or “I” vs. “1” are frequent misidentification pitfalls.
Utilize Cross-Reference Tables
If the exact numeric code yields no results, search for adjacent entries within a ±3 range. Manufacturers cluster similar items sequentially–for example, 32 102 and 32 105 may share compatibility despite being distinct. Online databases like Partstree or Jack’s Small Engines include substitute columns–ensure the alternate code’s dimensions, thread pitch, or electrical specs align. Printed counter catalogs provide these tables on the back pages, marked “Alternative PN.”
Step-by-Step Disassembly of a 27 Horsepower Powerplant for Maintenance
Begin by removing the spark plug wire to prevent accidental ignition. Use a 15mm socket to detach the spark plug itself–this ensures no residual compression remains during disassembly. Store the plug in a clean container to avoid contaminating the electrodes.
Drain the crankcase oil through the drain plug located beneath the sump. A 10mm wrench loosens the plug, allowing all fluid to exit into a sealed container for proper disposal. Rotate the flywheel manually to expel remaining oil from internal passages.
Disconnect the carburetor linkages and fuel line using a 7mm wrench. Label each connection with masking tape to simplify reassembly. Remove the carburetor mounting bolts (two 8mm fasteners) and lift the unit clear, placing it on a lint-free cloth to prevent debris entry.
Accessing Internal Components
Unbolt the blower housing (three 10mm screws) to expose the flywheel. Use a flywheel puller-tool (specifically sized for this model) to extract the flywheel–never strike it with a hammer, as this risks damaging the magneto or crankshaft taper. Secure the puller with an 18mm wrench and apply steady pressure.
Remove the valve cover (four 6mm bolts) to inspect the rocker arms and valves. Compress each valve spring with a specialized tool to relieve tension, then slide out the keepers and retainers. Store components in sequential order on a magnetic tray to maintain orientation for reinstallation.
Detach the cylinder head bolts in a diagonal pattern using a 12mm socket–start from the outer bolts and work inward to prevent warping. Lift the head straight off, exposing the piston and cylinder bore. If carbon buildup is present, use a nylon brush (never metal) to clean without scratching surfaces.
Slide the piston out by gently rotating the crankshaft until it reaches top dead center. Inspect the rings for wear–replace if gaps exceed 0.015 inches. Clean the bore with a lint-free rag soaked in denatured alcohol, ensuring no debris remains before reassembly. Apply a thin coat of assembly lubricant to all surfaces during rebuilding.
