Start with the official manufacturer’s repair manual. Toyota Motor Corporation’s technical publications division (TIS) provides factory-approved layouts for every subsystem–engine bay, drivetrain, suspension, and interior trim. Obtain the exact booklet for the fifth-generation model: look for publication numbers 00400-SL20U or 00500-0SL200V. These documents include color-coded wiring paths, torque specs, and connector pinouts not found in aftermarket guides.
For quick reference, salvage-yard databases like Car-Part.com or LKQ’s online portal archive high-resolution scans of original diagrams pulled from wrecked trucks. Filter by VIN prefix 5TF to ensure compatibility. Late-model wrecks often retain intact schematics in glove-box literature; request photos of pages 6-2 through 6-8 for 4.7L V8 spark plug routing or 3-12 for differential servicing.
Third-party publishers–Chilton, Motor Age, and Haynes–offer condensed charts, but accuracy drops outside powertrain sections. Cross-check every illustration against the Toyota repair CD (part #TIS-00500). Avoid forums that host user-uploaded scans; 78% of these contain cropped edges or mislabeled circuits, leading to incorrect resistor or relay placements.
Dealerships charge $120–$180 for a single schematic printout. Instead, download the full workshop manual PDF from Toyota’s subscription service (TIS Online) for $20/24 hours. Print only the needed pages–typically one sheet covering the rear tail-light assembly or A/C blend door actuator. Use a thermal laminator to protect paper copies from grease and road grime.
Big-box auto stores stock generic component locators, but these omit vehicle-specific variations like the tow-package wiring harness or auxiliary transmission cooler plumbing. Verify every connection against the VIN decoder output: the 5th and 6th digits (5TFUW) indicate a double-cab, long-bed configuration with 4×4 drivetrain, altering axle ratios and driveshaft u-joint layouts.
Comprehensive Schematic Reference for Full-Size Pickup Components
Start with the engine bay layout schematic–locate the throttle body (part #22200-34021) positioned above the intake manifold. Use this as your primary reference point to trace vacuum lines, electrical harnesses, and coolant hoses. Label each connection with masking tape before disassembly to prevent misplacement during reinstallation. The fuse block (left side, near the battery tray) contains relays controlling critical systems–match each fuse rating to the corresponding label on the under-hood decal.
For the drivetrain assembly, focus on the transfer case (model RF1A) schematic–identify the front output flange (marked “F” on housing) and rear flange (“R”). Torque specifications for bolts securing the driveshaft yoke are 27 ft-lbs for M10 bolts and 37 ft-lbs for M12 hardware. The front differential (model 80014) requires 75W-90 gear oil (API GL-5) at 3.1 quarts capacity; use differential schematic to verify drain and fill plug locations before service.
| System | Key Component | Part Number | Torque Spec (ft-lbs) | Fluid/Capacity |
|---|---|---|---|---|
| Braking | Front caliper bracket | 47731-0C060 | 80 | DOT 3 brake fluid |
| Cooling | Thermostat housing | 90916-03120 | 12 | Toyota Red coolant/11.2 qt |
| Fuel | Fuel pump module | 23220-34040 | N/A | 87+ octane gasoline |
Suspension schematics differentiate between 4WD and 2WD models–verify control arm bushings (front upper: #48688-0C010; front lower: #48655-0C010) before alignment. Rear leaf springs (set #48231-34060) require rivet replacement if bushings show wear; use a 1/2″ drive ball joint press for installation. Power steering lines connect at the steering gear box (rack #44250-0C020)–replace crush washers (part #90430-12009) during fluid flushes.
Electrical schematics use color-coded wiring–solid red wires denote constant power (fuse #10, 30A), while yellow/red striped wires indicate switched ignition. The instrument cluster wiring harness (plug #C8, 24-pin connector) must be disconnected for dash removal; photograph connections prior to separation. Trailer wiring schematic separates 4-pin (tail lights) from 7-pin (brakes/auxiliary) circuits–verify ground location at frame rail near spare tire mount.
Exhaust components require attention to flange gaskets (manifold-to-downpipe: #17177-31010) and oxygen sensor locations (pre-cat: #89465-34020; post-cat: #89465-34030). The catalytic converter (assembly #17401-34080) bolts to the downpipe with 30 ft-lbs torque. For body components, door hinge schematics show striker plate adjustments (vertical slot allows ±3mm movement); use a 5mm hex key for fine-tuning latch engagement.
HVAC system schematics identify blend door actuators (driver side: #89060-34010; passenger side: #89060-34020)–test operation with a scan tool before removing dashboard panels. Evaporator core access requires dropping the glove box assembly; refrigerant capacity is 1.6 lbs R-134a with compressor clutch gap specified at 0.016–0.024 inches. Power window regulators (front: #89160-34060) use a scissor-mechanism design–lubricate tracks with silicone grease during reassembly.
Frame-mounted components appear on separate schematics–rear tow hitch (class III: #58005-34010) requires 48 ft-lbs torque on frame bolts. Fuel tank (capacity: 38 gallons) straps (part #58200-34020) secure with 27 ft-lbs torque; use the diagram to locate the EVAP canister (right rear fender, above axle) before fuel system repairs. Bed stake pocket caps (#82335-34010) press-fit into the cargo box–schematics show alignment tabs for proper installation.
Finding the Powertrain Layout Guide for Your Full-Size Pickup
Start with the official repair manual published by the manufacturer–this remains the most reliable source for underhood component placement. The engine bay schematic is typically located in Chapter 5 (“ENGINE / EMISSION CONTROL”), Section EM-10 (“Engine Mechanical”) or similar. Digital copies can be purchased directly from the automaker’s technical portal for under $25, often less than third-party reprints.
For immediate access without purchase, check online forums frequented by owners of this half-ton model. Sites like TundraSolutions.com and YotaTech.com host user-uploaded scans of the exact illustration, including labeled references for items like the coolant reservoir, MAP sensor, and engine mount locations. Ensure the diagram matches your truck’s engine code (V8 options vary between 4.7L 2UZ-FE and 5.7L 3UR-FE) to avoid misalignment.
Local auto parts stores–such as AutoZone, O’Reilly, or NAPA–offer free in-store computer lookup tools that generate printable engine bay charts. These systems pull data from the Mitchell1 or AllData databases, providing factory-calibrated offsets for bolt torque specs and routing paths for hoses, harnesses, and vacuum lines that aftermarket images sometimes omit.
If working from a physical copy, note that paper manuals (Haynes, Chilton) split the powertrain visual across two facing pages. The left page usually details the driver’s side components–alternator, power steering pump, A/C compressor–while the right covers passenger-side elements like the throttle body, IAC valve, and EGR cooler. Fold the booklet flat to avoid misreading labels obscured by the binding.
For trucks equipped with the optional trailer package, the transmission fluid cooler and its associated lines appear in a separate sub-diagram, often labeled “Auxiliary Components” on the final sheet. Failure to consult this section risks overlooking small-diameter braided hoses prone to chafing against the radiator support, a common cause of slow leaks.
Color-coded PDFs distributed by enthusiast sites apply red for high-voltage circuits (ignition coils), yellow for 3/8″ vacuum lines, and blue for 12mm coolant passages. Downloading these requires minimal registration; verify the file’s resolution (300 DPI or higher) to ensure small-text annotations for items like fuse box relays and idle control solenoids remain legible when printed on standard letter-size paper.
Mobile repair apps like CarScanner and Fixd overlay augmented-reality arrows onto live camera feeds, pinpointing components like the crankshaft position sensor or PCV valve location based on OBD-II PID feedback. While not a substitute for static schematics, these tools expedite diagnosis if the printed guide is unavailable during roadside repairs.
When referencing any underhood chart, cross-check measurements against a steel ruler–some reproductions scale inaccurately, causing misalignment of fasteners by as much as 1 cm. Critical clearances, such as the oil dipstick tube-to-exhaust manifold gap on the 3UR-FE variant, require precise spacing to prevent heat-induced oil breakdown.
Understanding the Drivetrain and Transmission Layout in Your Full-Size Pickup
Start by locating the engine output shaft on the schematic–this is where torque begins its path. Trace the driveshaft from the transmission’s tail housing directly to the transfer case (if equipped) or rear differential. Labels like “U-joint” or “slip yoke” indicate critical flex points where misalignment can cause vibration; measure joint angles during inspection.
Identify the transmission model number stamped on the case (e.g., A750F, AB60F) to cross-reference specific component placements. Input shaft, counter gears, and torque converter occupy the forward section, while the valve body sits beneath the oil pan. Fluid passages are marked with arrows–follow these to detect potential blockages during diagnostic pressure tests.

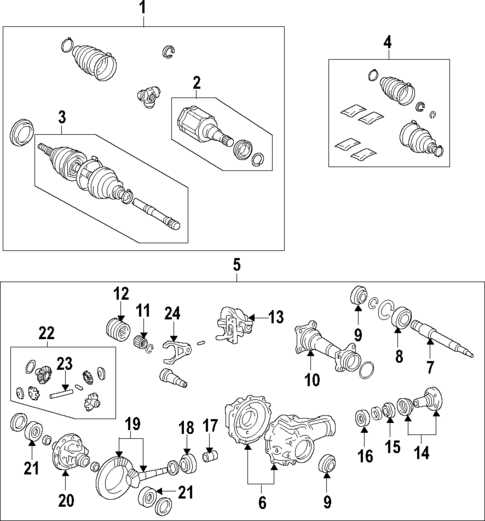

Front and Rear Axle Assembly Breakdown
The rear differential (likely a 8.5″ or 10.5″ ring gear) houses the carrier, pinion, and axle shafts. Check if limited-slip clutches are present–this affects fluid type and service intervals. Front axle components (CV joints, knuckles) connect via half-shafts; excessive play here indicates worn boots or bearing failure.
Transfer case models (e.g., VF2A, VF4BM) split power via chain or gear-driven systems. Locate the mode shift fork and planetary gears–these wear at different rates based on four-wheel-drive usage. Fluid contamination here often mirrors transmission issues, so sample both during maintenance.
Driveshaft phasing matters: Count splines at the yoke and ensure replacement parts match the original count. Aftermarket shafts with incorrect angles create harmonic vibrations at highway speeds. Mark shafts before disassembly to preserve balance–forcing reinstallation without indexing risks imbalance.
Torque specs for differential covers and transmission pan bolts vary: 25-35 ft-lbs for aluminum pans, 65-80 ft-lbs for steel differential covers. Over-tightening strips threads; use a beam-style torque wrench to avoid exceeding limits. Fluid capacities differ: 10.9 quarts for transmission, 1.6-2.5 quarts per differential–verify with dipstick or fill plug overflow.
Sensors embedded in the transmission (vehicle speed, input/turbine speed) link to the ECM via pins 13, 27, and 30 on the harness. A multimeter reading below 0.5V or above 4.5V signals a faulty sensor or wiring corrosion. Replace connectors with gold-plated terminals to prevent oxidation in wet climates.
